SURVIVOR® Multi-Platform Truck Scale

  • 75,000 lb load cells and G-Force™ mounts
  • Up to 270,000 lb full scale capacity
  • NTEP Certified
  • Available in various configurations
  • Standard widths from 10 ft to 14 ft

The Best Way to Find Axle Weight

Out of three common methods used for axle weighing, a multi-platform truck scale is the most accurate, fastest and the only Legal for Trade axle weighing solution available.

One axle weighing method is to weigh the steering, drive and trailer axles separately on a truck scale, stopping and taring after taking each weight and totaling for a proximate gross weight. Sometimes used for convenience, this method is time consuming and inaccurate. The second method uses an axle scale to weigh axles individually when a truck drives each axle onto the scale, producing non-Legal for Trade weight data helpful in axle and gross weight compliance checking.

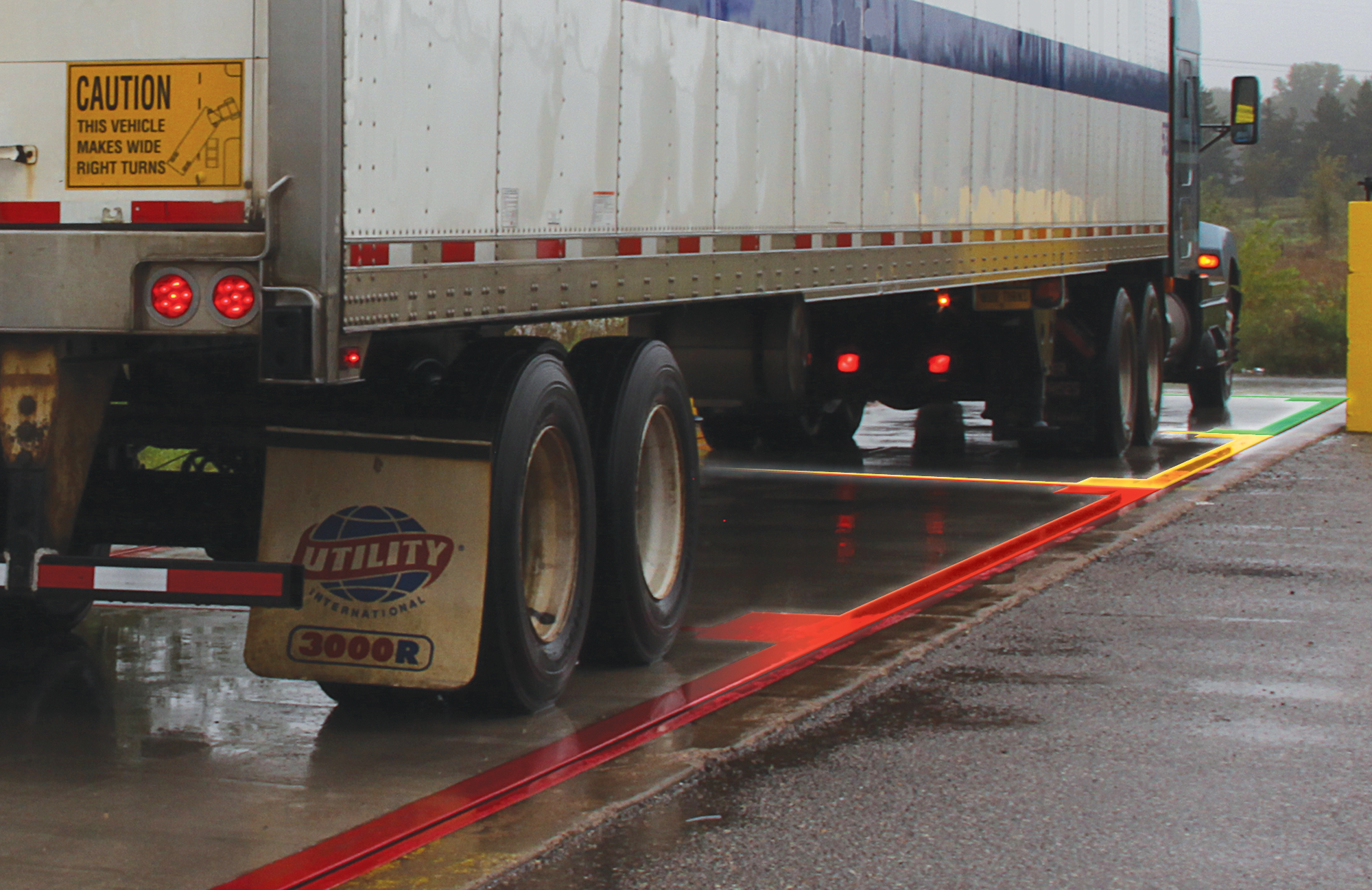

The third method, a SURVIVOR multi-platform truck scale, weighs all axles at once with one stop of the truck on the scale. The multi-platform scale has a custom-module design sized for the axle alignments needed for the specific truck lengths required for the application. A multi-platform truck scale is the best method for obtaining both individual axle and gross weights in Legal for Trade applications.

Rice Lake offers multiple platform sizes of the popular SURVIVOR OTR, SR, PT and ATV truck scales in multi-platform configurations. The combination of module sizes and total length of the scale are determined by the axle spacing of the trucks being weighed. If you don’t see a combination to fit your needs below, we also offer custom solutions.

Resources / Downloads

Title Download Email
SURVIVOR Multi-Platform Catalog Page Download Email

Title Version Revision Download Email Category Archived
Side Checking Bumper Option - OTR Download Email Truck Scales No

Title Collateral Wizard Request Download Email Category
SURVIVOR Multi-Platform Truck Scale Request Download Email Truck Scales
The Truck Scale Buyer's Guide Request Download Email Truck Scales
The SURVIVOR Advantage Request Download Email Truck Scales
Total Cost of Ownership Worksheet Request Download Email Truck Scales

Title View Download Email Category
Truck Scale Sales Video View Download Email Truck Scales
Rice Lake SURVIVOR® Truck Scale Advantages View Download Email Truck Scales
Truck Scale Grounding View Email Truck Scales

Parts

OTR Concrete Deck

Part # Description List Price Cart
103155 Truck Scale, 70x10 OTR C Multi-Axle Concrete Deck 10-20-40 SURVIVOR OTR Model EZ7010-SC-100-OTR, 90,000lb CLC, 200,000lb Capacity, 7 Section

Call for price

103156 Truck Scale, 70x11 OTR C Multi-Axle Concrete Deck 10-20-40 SURVIVOR OTR Model EZ7011-SC-100-OTR 90,000lb CLC, 200,000lb Capacity, 7-Section

Call for price

103160 Truck Scale, 80x11 OTR C Multi-Axle Concrete Deck 12-20-47 SURVIVOR OTR Model EZ8011-SC-100-OTR 100,000lb CLC, 200,000lb Capacity, 7-Section

Call for price

103161 Truck Scale, 80x10 OTR C Multi-Axle Concrete Deck 20-20-40 SURVIVOR OTR Model EZ8010-SC-100-OTR 90,000lb CLC, 200,000lb Capacity, 7-Section

Call for price

OTR Steel Deck

SR

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
