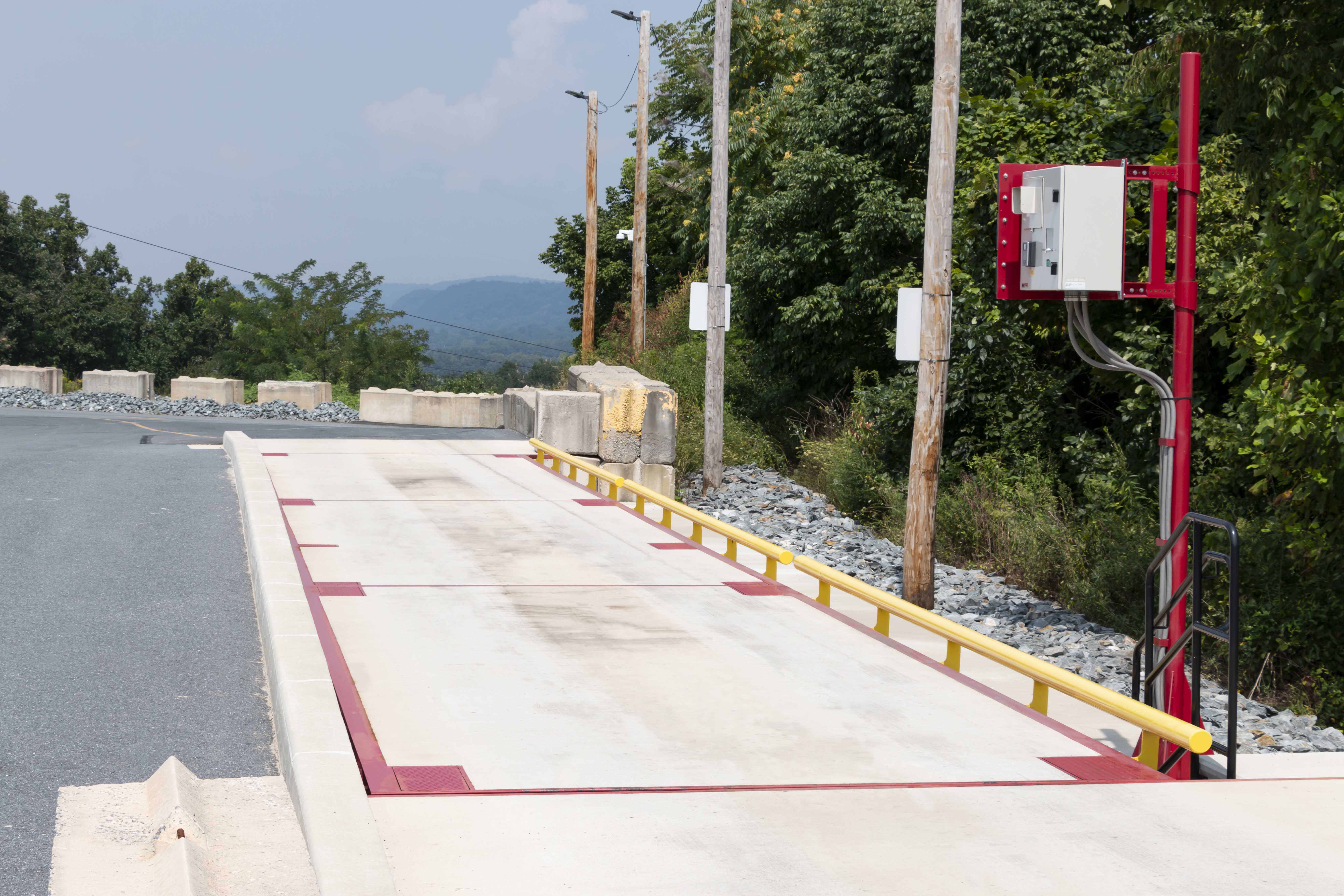

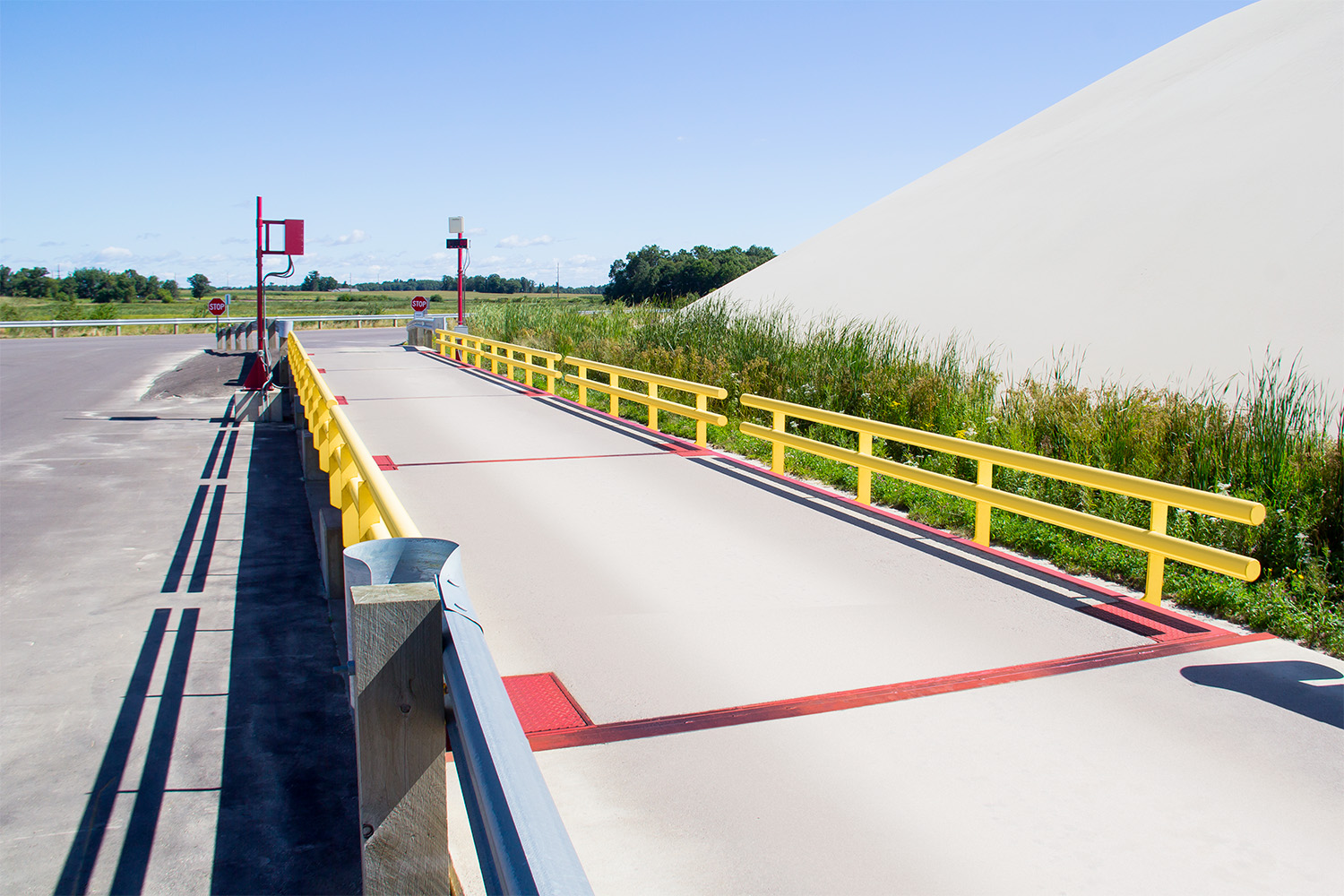

SURVIVOR® OTR Concrete Deck Truck Scale

  • Concrete deck sits above neutral axis, supported by 6-inch steel deck substructure
  • Longitudinal I-beam construction
  • Integrated load cell pockets
  • Boltless, top access to load cells and junction box
  • Self-seating, P-bracket connection between modules
  • G-Force mount assemblies return the scale to center without check rods or bumper bolts
  • Cables completely encased in rodent-proof conduit
  • Thorough finishing process includes cleaning of steel before and after welding, followed by either high  solids urethane liquid paint or durable powder paint

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW LOGO NOM

WARNING: Cancer and Reproductive Harm California Proposition 65

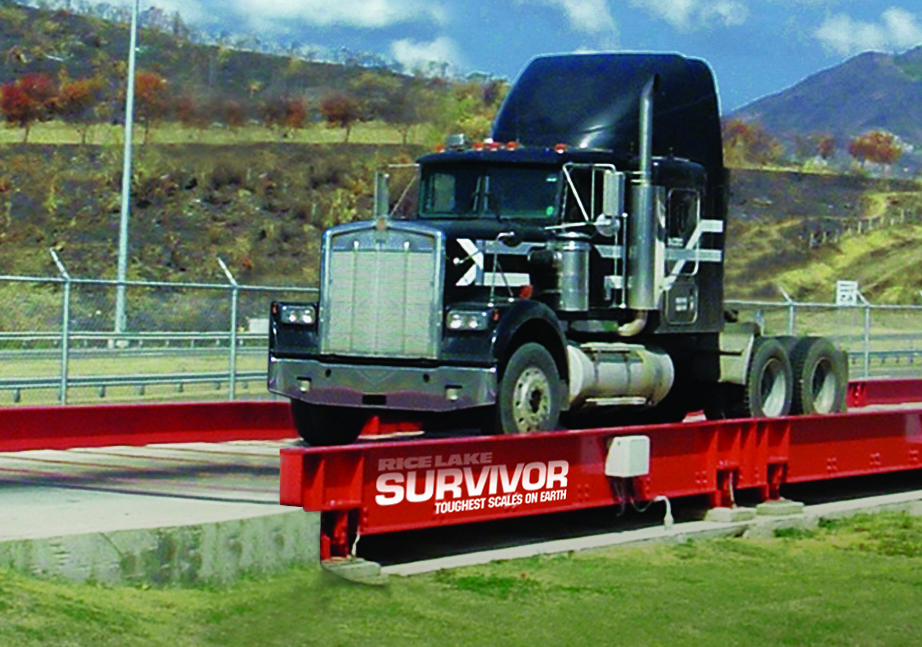

Uncompromising SURVIVOR® Strength

Concrete deck truck scales provide reliable traction in wet or icy weather conditions, and resist corrosion— extending the weighbridge’s lifespan. SURVIVOR OTR concrete deck truck scales have greater mass than steel deck scales, resulting in less friction and maintenance.

Reliable Concrete Deck Design

Concrete deck truck scales offer improved load distribution to withstand movements caused by heavy trucks entering and exiting the weighbridge.

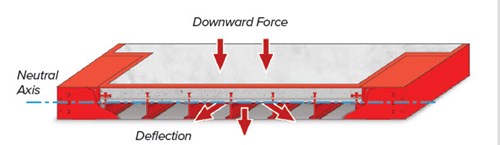

The neutral axis on a truck scale is the point where no compression or tension occurs when a vehicle is on the weighbridge. In a concrete deck truck scale, this represents the point where concrete shifts from expected compression to damaging tension.

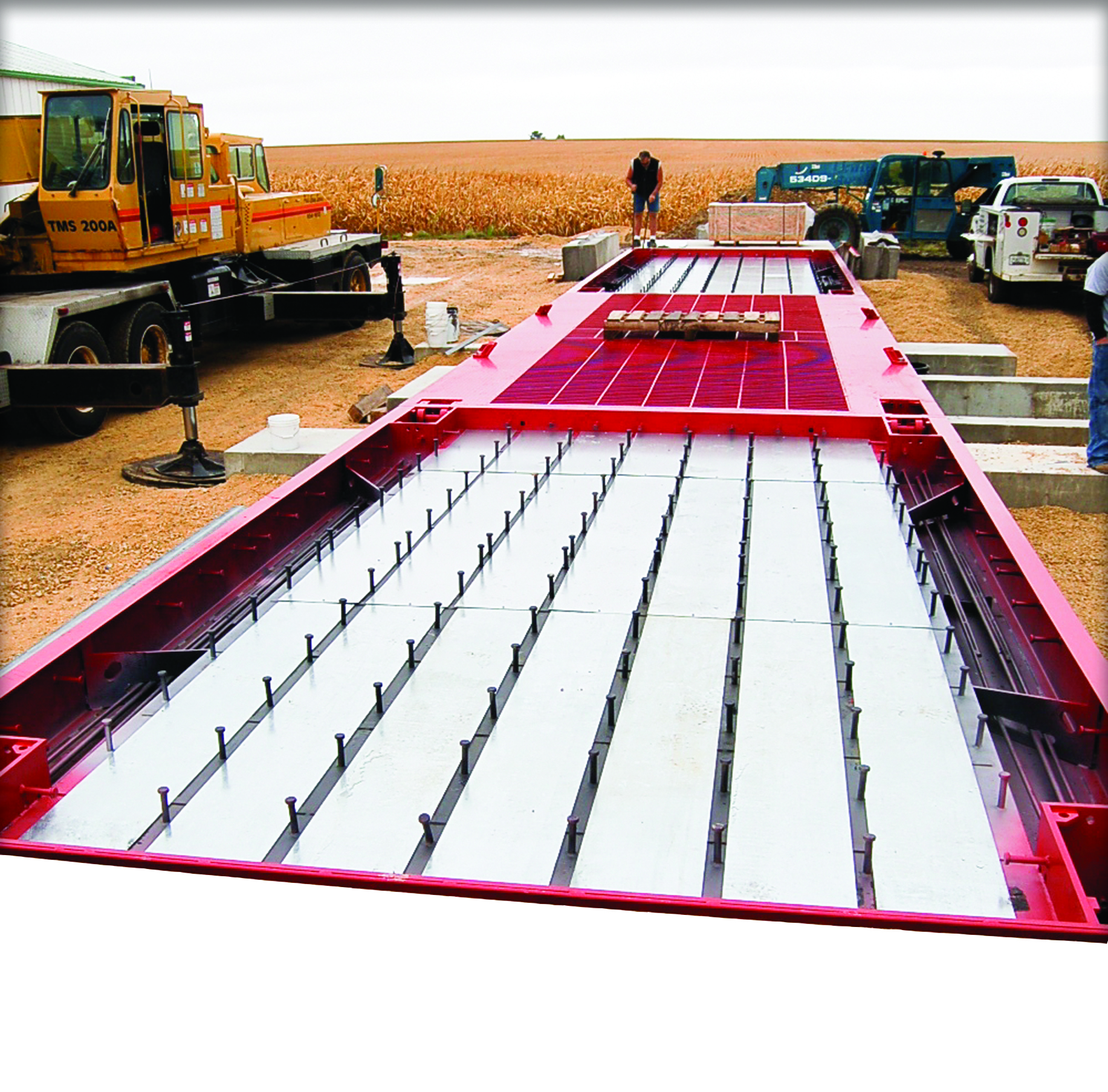

The six-inch-thick concrete deck of a SURVIVOR OTR sits above the weighbridge’s neutral axis. It is supported by a six-inch steel deck substructure incorporating galvanized steel sheets and I-beams, which increases strength throughout each module.

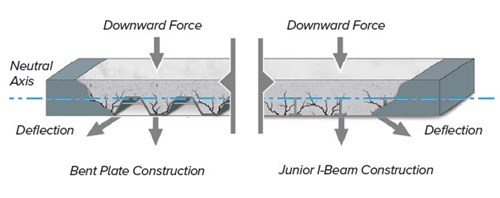

Competitor Designs

Many competitive weighbridges try to compensate for lighter steel or a lack of steel components by pouring a 9-, 10- or 12-inch concrete deck, often extending below the neutral axis. This can result in dangerous concrete bending, which can cause surface cracks after just a short period of use.

Load Cells:
Rice Lake RL75058-LP Alloy Steel,
Double Ended Beam, 75,000 lb capacity

Mount Assemblies:
G-Force self-checking mounting system

Junction Box:
JB8SPT Tuffseal® Polycarbonate NEMA Type 4X enclosure with
overlapping solid cover, stainless steel screws

Platform Size:
10 to 160 ft length
10 ft, 11 ft and 12 ft width (NTEP Certified up to 16.5 ft) (custom length and width available)

Scale Profile:
16.5 in or 18.75 in
(custom profiles available)

Deck Thickness:
6 in

Full Scale Capacity:
Up to 270,000 lb

Concentrated Load Capacity (CLC):
100,000 lb

Dual Tandem Axle (DTA):
100,000 lb

Warranty:
Weighbridge: 5-year or 12-year limited
Parts: 5-year or 12-year limited, including lightning protection

Approvals:
NTEP CC 02-003, Class IIIL
Measurement Canada AM-5413

  • 5 lb division for livestock
  • 10 lb division for truck or livestock
  • 20 lb division
  • 50 lb division/400,000 lb capacity
  • Guiderails
  • Schedule 80 guiderails
  • Manhole

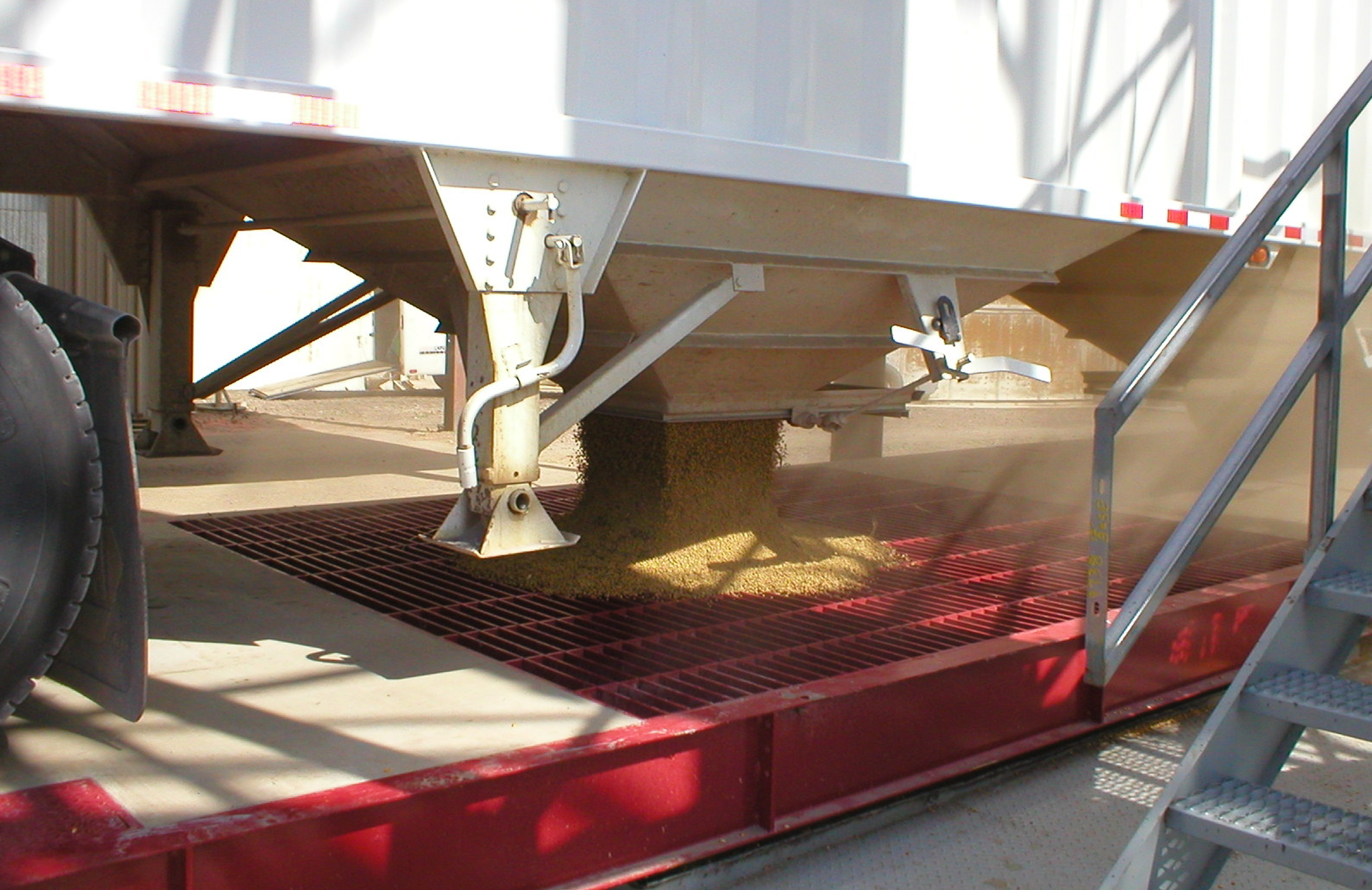

  • Grain dump
  • End cleanout
  • Stainless steel load cells
  • Tapered links and radius blocks
  • Pre-suspended load cells and mounts
  • Stainless steel suspension hardware
  • Galvanized weighbridge and suspension hardware
  • Corrosion-resistant coating
  • 3/8-inch runners
  • Roll-off
  • Side deflector plates
  • Catwalk
  • Landing with stairs
  • Dolly down plate
  • iQUBE2® digital diagnostic junction box
  • iQUBE2 and 1280 Enterprise Series programmable weight indicator bundle
  • iQUBE2 and 920i® Series programmable weight indicator bundle

Resources / Downloads

Title Download Email
SURVIVOR OTR Concrete Deck Catalog Page Download Email

Title Version Revision Download Email Category Archived
Side Checking Bumper Option - OTR Download Email Truck Scales No
SURVIVOR OTR Flattop Truck Scale Installation Manual F Download Email Truck Scales No
SURVIVOR OTR Báscula Camionera Modular A Download Email Truck Scales No

Title Download Email
Existing Truck Scale Foundation Questionnaire Download Email
SURVIVOR Truck Scale Catwalk Questionnaire Download Email
Truck Scale Trimming Pad Download Email
Truck Scale Site Evaluation Download Email

Title Collateral Wizard Request Download Email Category
SURVIVOR OTR Series Concrete Deck Download Email Truck Scales
The SURVIVOR Advantage Request Download Email Truck Scales
The Truck Scale Buyer's Guide Request Download Email Truck Scales
Total Cost of Ownership Worksheet Request Download Email Truck Scales
SURVIVOR Catwalks Download Email Truck Scales

Title View Download Email Category
Truck Scale Sales Video View Download Email Truck Scales
Rice Lake SURVIVOR® Truck Scale Advantages View Download Email Truck Scales
Weighing Solutions for the Agriculture Industry View Download Email Agriculture
Weighing Solutions for the Energy Industry View Download Email Truck Scales
Weighing Solutions for the Forestry Industry View Download Email Truck Scales
Truck Scale Grounding View Email Truck Scales

Title Download Email
SURVIVOR OTR Concrete Deck 70ft x 11ft (PDF) Download Email
SURVIVOR OTR Concrete Deck 70ft x 11ft (Word) Download Email
SURVIVOR OTR Concrete Deck 70ft x 10ft (Word) Download Email
SURVIVOR OTR Concrete Deck 70ft x 10ft (PDF) Download Email

Parts

10 Foot Width

Part # Description List Price Cart
53318 Truck Scale,24x10 OTR C Concrete Deck SURVIVOR OTR Model EZ2410-SC-60-OTR 100,000lb CLC, 120,000lb Capacity, 2-Section

Call for price

53327 Truck Scale,60x10 OTR C Concrete Deck SURVIVOR OTR Model EZ6010-SC-100-OTR 100,000lb CLC, 200,000lb Capacity, 4-Section

Call for price

53330 Truck Scale,70x10 OTR C Concrete Deck SURVIVOR OTR Model EZ7010-SC-100-OTR 100,000lb CLC, 200,000lb Capacity, 4-Section

Call for price

53333 Truck Scale,80x10 OTR C Concrete Deck SURVIVOR OTR Model EZ8010-SC-100-OTR 100,000lb CLC, 200,000lb Capacity, 5-Section

Call for price

53336 Truck Scale,93x10 OTR C Concrete Deck SURVIVOR OTR Model EZ9310-SC-100-OTR 100,000lb CLC, 200,000lb Capacity, 5-Section

Call for price

53339 Truck Scale,100x10 OTR C Concrete Deck SURVIVOR OTR Model EZ10010-SC-100-OTR 100,000lb CLC, 200,000lb Capacity, 6-Section

Call for price

53342 Truck Scale,117x10 OTR C Concrete Deck SURVIVOR OTR Model EZ11710-SC-100-OTR 100,000lb CLC, 200,000lb Capacity, 6-Section

Call for price

126369 TS,15x10 OTR CONCRETE Deck SURVIVOR, Model EZ1510-SC-60-OTR 100,000lb CLC, 120,000 lb Capacity 2 Section, Standard Profile, (14FT10-1/2X9FT10-1/2)

Call for price

11 Foot Width

12 Foot Width

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

1280 Kiosk

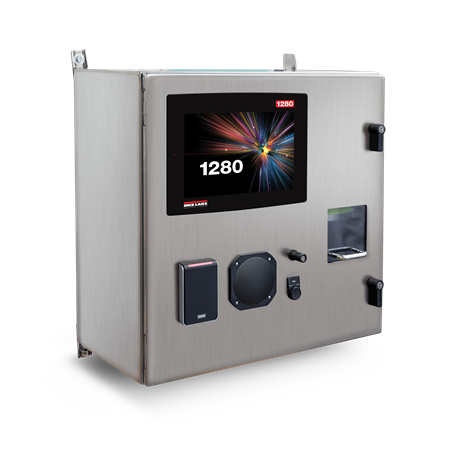

1280 Truck Scale Kiosk

Rice Lake's 1280 Kiosk automated ticketing system simplifies truck weighing by eliminating the need to hand-write a ticket for every weighment. The state-of-the-art 1280 indicator features a large, vibrant touchscreen and web server connectivity.

Kiosk Atv1

Automated Ticketing Kiosks

Rice Lake's line of Automated Ticketing Kiosks eliminates the need to hand-write a ticket for each weighment, giving your system the efficiency it needs to keep up with growing business.

WEB SC ATK Ticketing

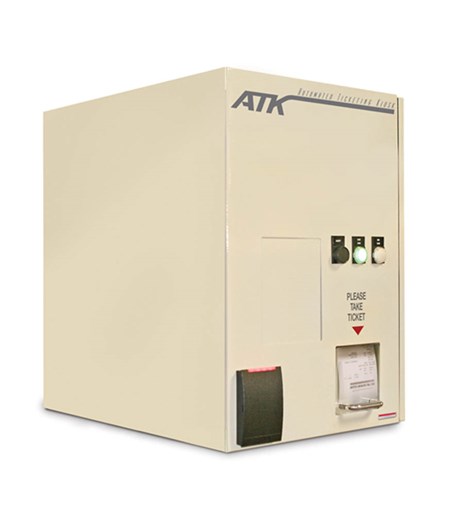

Printer Kiosks

Automated Ticketing Printer Kiosks improve more than just speed and accuracy. They offer state-of-the-art features like RFID, vehicle recognition and a durable, weatherproof design.

WEB SC Truck Scale Kiosk Saftey Arm

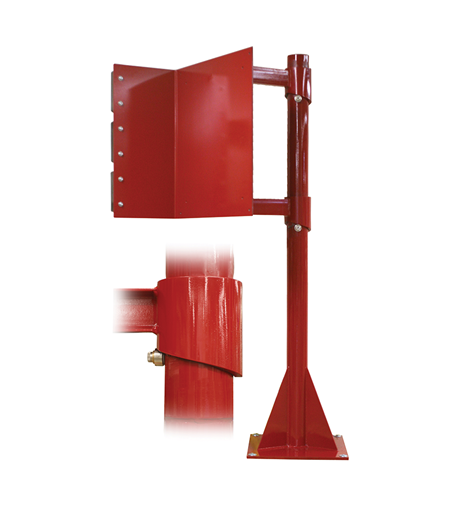

Truck Scale Kiosk Safety Swing-Away Arm

Kiosk Safety Swing-Away Arms protect your kiosk investment from accidental collisions. Our Safety Swing-Away Arm will swing away from vehicle cabs and mirrors and return to center after contact.

WEB SC Ontrack Software

OnTrak® Truck Scale Data Management Software

OnTrak software is an effective data management tool for truck scale operations that use Rice Lake Automated Ticketing Kiosk (ATK) systems.

Loop

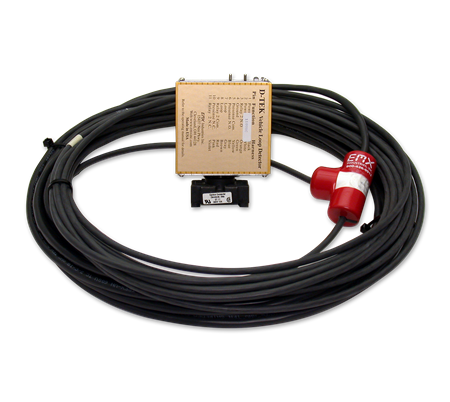

Loop Detectors

Loop detectors from Rice Lake are easily installed below ground at the entry or exit of your truck scale to detect vehicle movement.

1 US Trafficlight Collarring

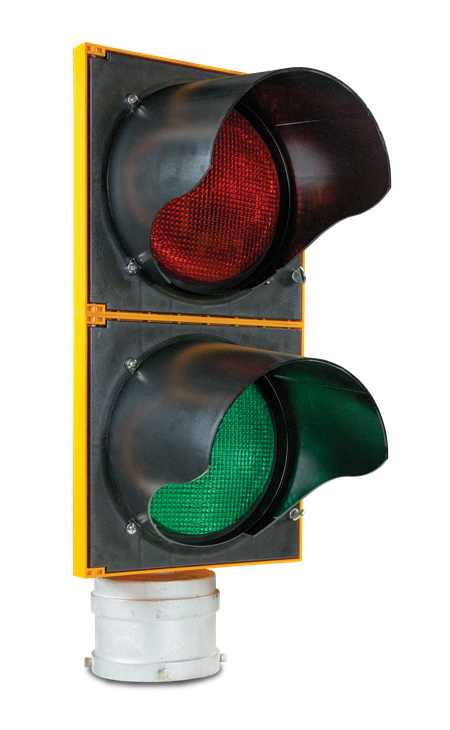

Traffic Light Kits

Traffic Light Kits from Rice Lake offer industrial-strength lighting systems that will professionally communicate the universal red and green stop/go commands at a distance for your truck scale system.

Photoeyes

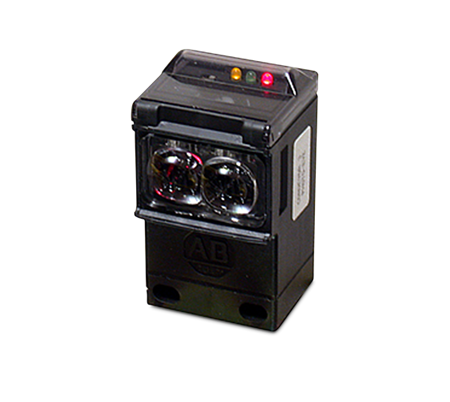

Photo Eyes

Photo Eyes from Rice Lake are a simple solution for detecting vehicle movement and traffic flow. Photo eyes are very practical in many scale operations.

WEB SC Scale Intercom

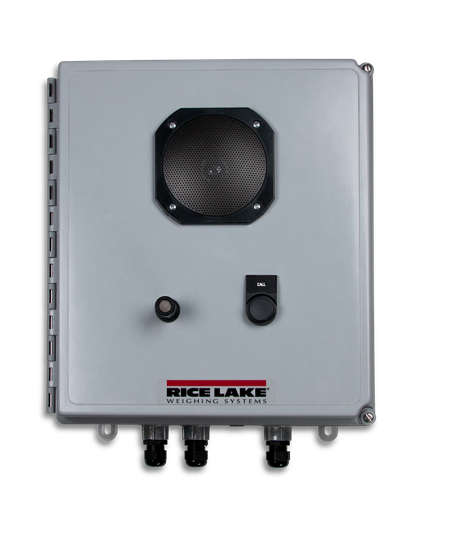

Scale Intercom

Intercom AI Phone, truck scale intercom, truck scale intercom radio, truck scale intercom phone

Transcore

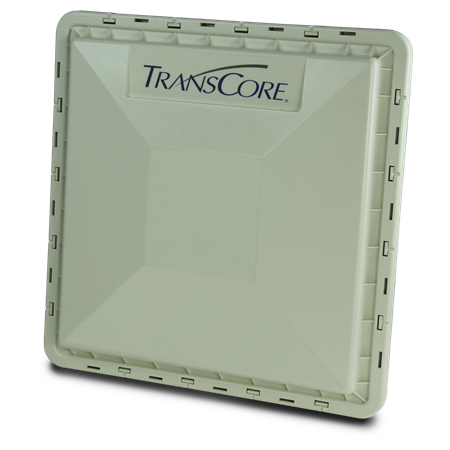

TransCore® Tags and Readers

TransCore Tags and Readers speed up truck scale traffic flow and remotely identify vehicles with Radio Frequency Identification.

Tags

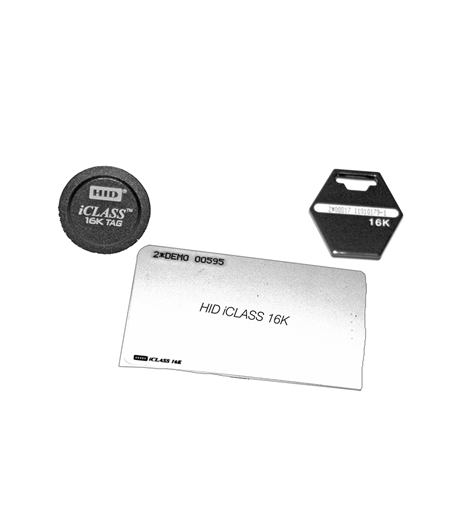

HID RFID Cards and Readers

HID RFID Tags, Readers, Cards and Keys speed up traffic flow and remotely identify vehicles with Radio Frequency Identification (RFID). Rice Lake offers a selection of devices to meet the needs of nearly any process.

HID Long Range Readers

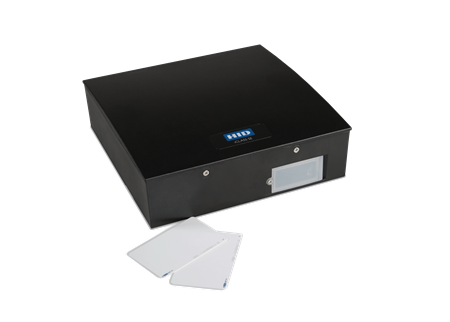

HID Long Range Readers
