SURVIVOR® OTR-LP Low-Profile Steel Deck Truck Scale

  • Top access to load cells and junction box
  • 75,000 lb capacity load cells and G-Force™ mount assemblies
  • Junction box(es) appropriate for number of load cells utilized
  • NTEP Certified 02-003
  • 90,000 lb Concentrated Load Capacity (CLC)
  • 90,000 lb Dual Tandem Axle (DTA)
  • Up to 200,000 lb full scale capacity
  • Two standard widths: 10 ft and 11 ft

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW

WARNING: Cancer and Reproductive Harm California Proposition 65

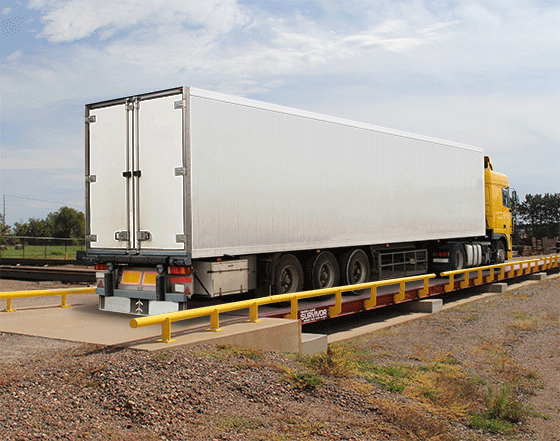

Built Tough for Replacing Existing Truck Scales

Rice Lake Weighing Systems’ SURVIVOR truck scales utilize up to 25 percent more steel content than competitor’s truck scales. The OTR-LP was designed as a steel deck replacement scale solution with a low profile and easy installation in pre-existing foundations used for non-Rice Lake truck scales.

The OTR-LP features a 5/16- or 3/8-inch diamond plate deck and a rugged I-beam construction. Eight-inch, wide-flange beams minimize deflection and prolong the life of the weighbridge. Widths are available in 10 or 11 feet, and the profile ranges from 11 to 16 inches with a three-to-eight inch cleanout.

Load Cells and Mount Assemblies:
75,000 lb capacity; G-Force™ self-checking mounting system, top access to load cells

Full Scale Capacity:
Up to 200,000 lb

Load Cells and Mount Assemblies:
90,000 lb

Dual Tandem Axle (DTA):
90,000 lb

Approvals:
NTEP Certified per H-44, Class IIIL, 02-003

Warranty:
5-year or 12-year limited warranty on the weighbridge
5-year or 12-year limited parts warranty, including lightning protection

  • Built to fit all truck scale foundations with profiles between 11 in and 16 in
  • Custom grain dumps
  • 10 lb division
  • 20 lb division

Resources / Downloads

Title Download Email
SURVIVOR OTR-LP Catalog Page Download Email

Title Version Revision Download Email Category Archived
OTR-LP Installation Manual A Download Email Truck Scales No
Side Checking Bumper Option - OTR Download Email Truck Scales No

Title Download Email
Existing Truck Scale Foundation Questionnaire Download Email
SURVIVOR Truck Scale Catwalk Questionnaire Download Email

Title Collateral Wizard Request Download Email Category
SURVIVOR OTR-LP Series Low Profile Deck Request Download Email Truck Scales|Vehicle Scale System
SURVIVOR Catwalks Download Email Truck Scales
The SURVIVOR Advantage Request Download Email Truck Scales
Total Cost of Ownership Worksheet Request Download Email Truck Scales

Title View Download Email Category
Rice Lake SURVIVOR® Truck Scale Advantages View Download Email Truck Scales
Truck Scale Grounding View Email Truck Scales

Parts

Part # Description List Price Cart
Consult Consult factory for part number and pricing

Call for price

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
