SURVIVOR® PL Low Profile Rail Scale

  • 100,000 lb capacity compression load cells
  • Standard platforms sizes: 12 ft 6 in; 15 ft; 18 ft; 25 ft
  • 7 ft 8 in platform width
  • 18.5 in profile from top of pier to base of rail
  • 24.5 in profile from top of pier to top of rail
  • Surge protection kit
  • Built-in conduit runs
  • 1/4 in bolted checkered steel top plate
  • Designed for 115 lb or 132 lb rail (other sizes available)
  • Configurations: Single, Single/Single, Single/Double, Double, Double/Double

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW

WARNING: Cancer and Reproductive Harm California Proposition 65

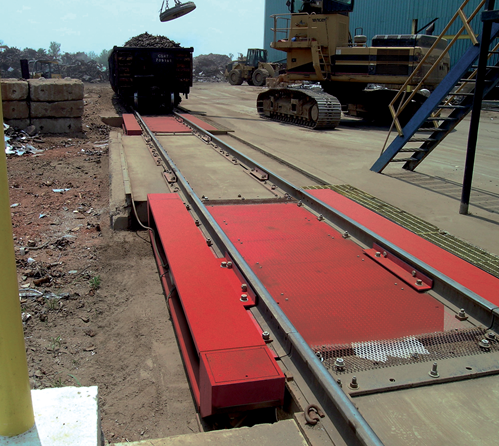

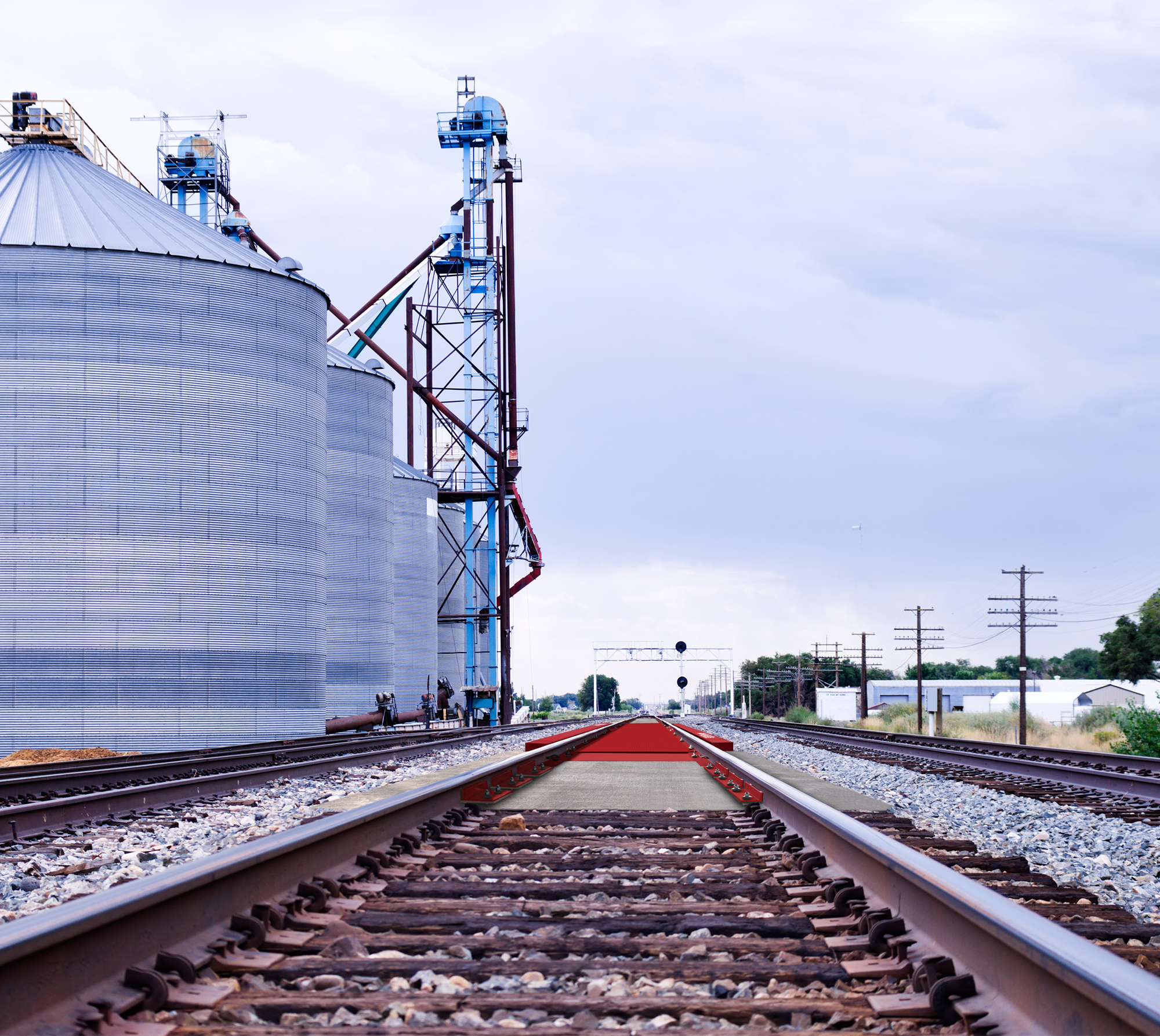

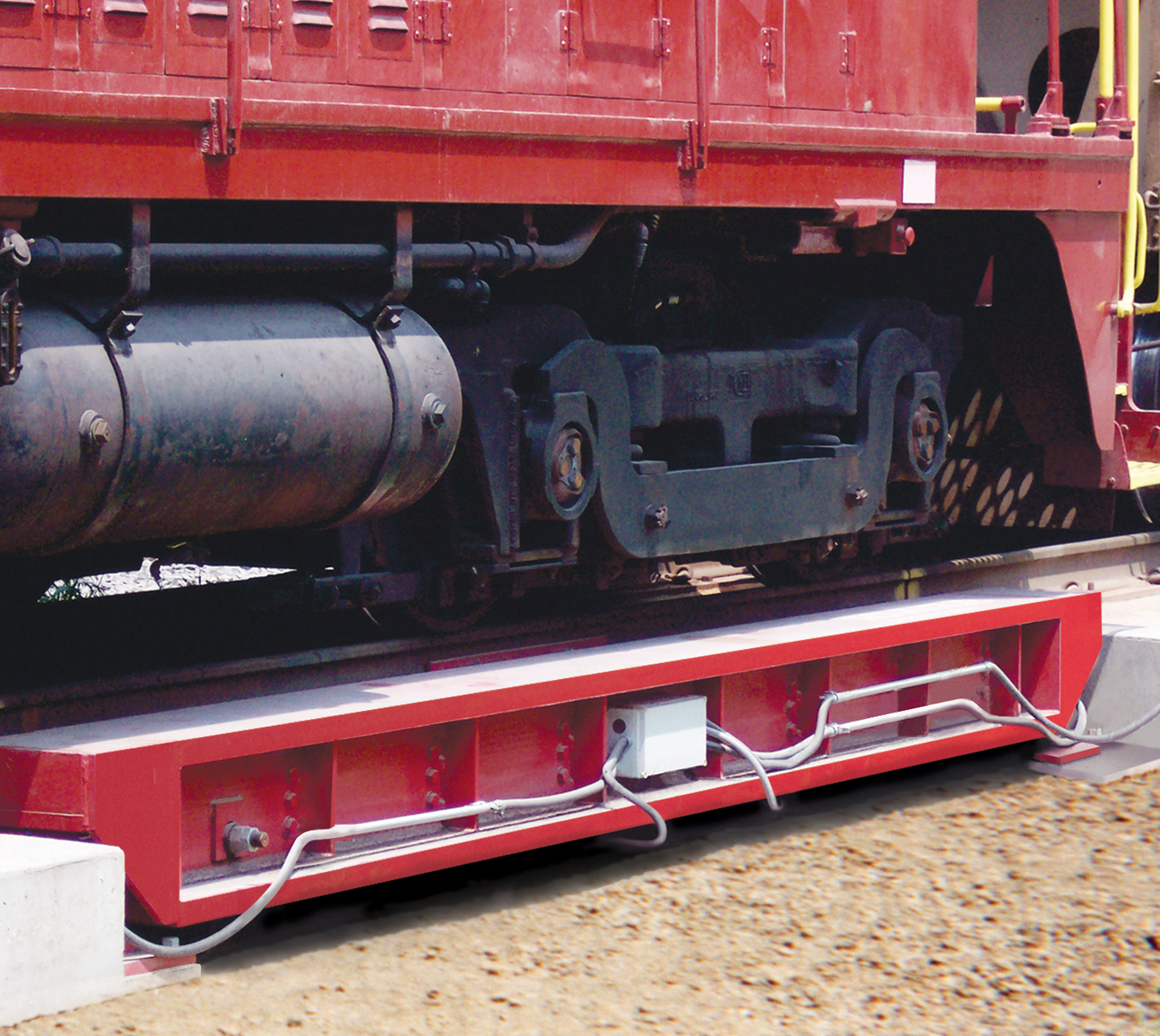

Low Profile, Modular Installation

The SURVIVOR PL rail scale’s low-profile design eliminates the need for a pit, saving time and costs on construction and pit maintenance. A highly-accurate, full- or double-draft weighing solution for Legal for Trade rail applications, the SURVIVOR PL Class IIIL rail scale meets NIST, AAR and AREMA requirements. The SURVIVOR PL is manufactured with more steel content than competitive models and engineered to stand alone as the industry’s highest performing, longest-lasting rail scale.

Flexible Configuration Options

Numerous scale platform lengths allow the SURVIOR PL to offer a superior range of scale configurations. These configuration options make rail car weighing adaptable to different car sizes, saving space and costs associated with extra materials.

Load Cells:
100,000 lb capacity compression load cells

Gross Capacity:
350,000 lb

Sectional Capacity:
170,000 lb

Approvals:
NTEP CC 02-087, Class IIIL; Measurement Canada AM-5850; Meets Cooper E-80 design specifications; Meets AAR and AREMA specifications

Warranty:
Five-year limited warranty on the weighbridge; Two-year electronic components warranty

  • Custom platform sizes and configurations
  • Concrete approach
  • T-beam approach hardware
  • Rail plate approach hardware
  • Intermediate section hardware
  • Flush deck design

Resources / Downloads

Title View Email Category Type
How Do I Know Which Rail Scale I Need? Email Rail Scales Articles

Title Download Email
SURVIVOR® PL Low Profile Rail Scale Download Email

Title Version Revision Download Email Category Archived
SURVIVOR PL Pitless Modular Railroad Track Scale Installation Manual D Download Email Rail Scales|Vehicle Scale System No

Title Download Email
SURVIVOR PL Modular Rail Scale Questionnaire Download Email

Title Collateral Wizard Request Download Email Category
SURVIVOR Low Profile Rail Scale Request Download Email Rail Scales
Low Profile Modular Rail Scale Requirements Download Email Rail Scales
Dump Payloads Fast with SURVIVOR Truck and Rail Scale Dump-Through Grating Request Download Email Rail Scales|Truck Scales
Railroad Track Weighing Solutions Request Download Email Rail Scales

Title View Email Category
Rail Scale Glossary Download Email Rail Scales

Parts

Part # Description List Price Cart
Consult Consult factory for rail scale products

Call for price

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
