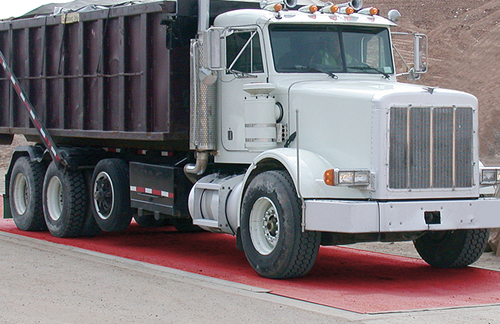

SURVIVOR® PT-M Truck Scale
- In-pit foundation
- Ideal for limited access locations
- Structural steel pipe lever system
- NTEP Certified 05-018
- Standard levers - 32.5 ton sectional rating
- Capacities to 400,000 lb
- Standard widths from 10 ft to 14 ft
- Standard profile 44.5 in
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
Renowned for reliability— Rice Lake’s Legendary Levertronic Vehicle Scales
The SURVIVOR PT-M is a mechanical pipe-lever design of our pit-type PT model. The mechanical lever system is precision-built from heavy-duty structural steel to provide higher strength and less stress breaks than competitive components. These mechanical scales are designed with a load cell inserted into its lever system. These levertronic designs are better suited for areas susceptible to heavy moisture. The in-ground installation is ideal for locations with limited space or access. It may also be installed above ground for special site applications.
A Solid Investment
The PT-M is a cost effective investment for a long term, permanent installation, providing the highest accuracy with the lowest maintenance costs. Available in both steel and concrete decks and constructed with the same massive I-beams that support our PT and SR designs, the PT-M is a solid investment for many pit-type applications.
Full Scale Capacity:
Concentrated Load Capacity (CLC):
- Load cell stand
- Steel deck
- Pit angle coping
- Deck rebar
- Deck channel
- Bumper plates
- Foundation bolts
- Manhole frames and covers
- Conversions-beam load cell(s)
- Load cell mounting hardware
- Other peripheral equipment
Resources / Downloads
|Part #||Description||List Price||Cart|
|90079||650P11-C 60 TON 50X11 MP 50 X 11 LEVERTRONIC PIT SCALE FOR CONCRETE DECK PT-M SERIE||
Call for price
|90083||1080P11-C 100 T 80X11 MP 80X11 LEVERTRONIC PIT SCALE FOR CONCRETE DECK PT-M SERIES||
Call for price
No options found for this product
Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.
To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
