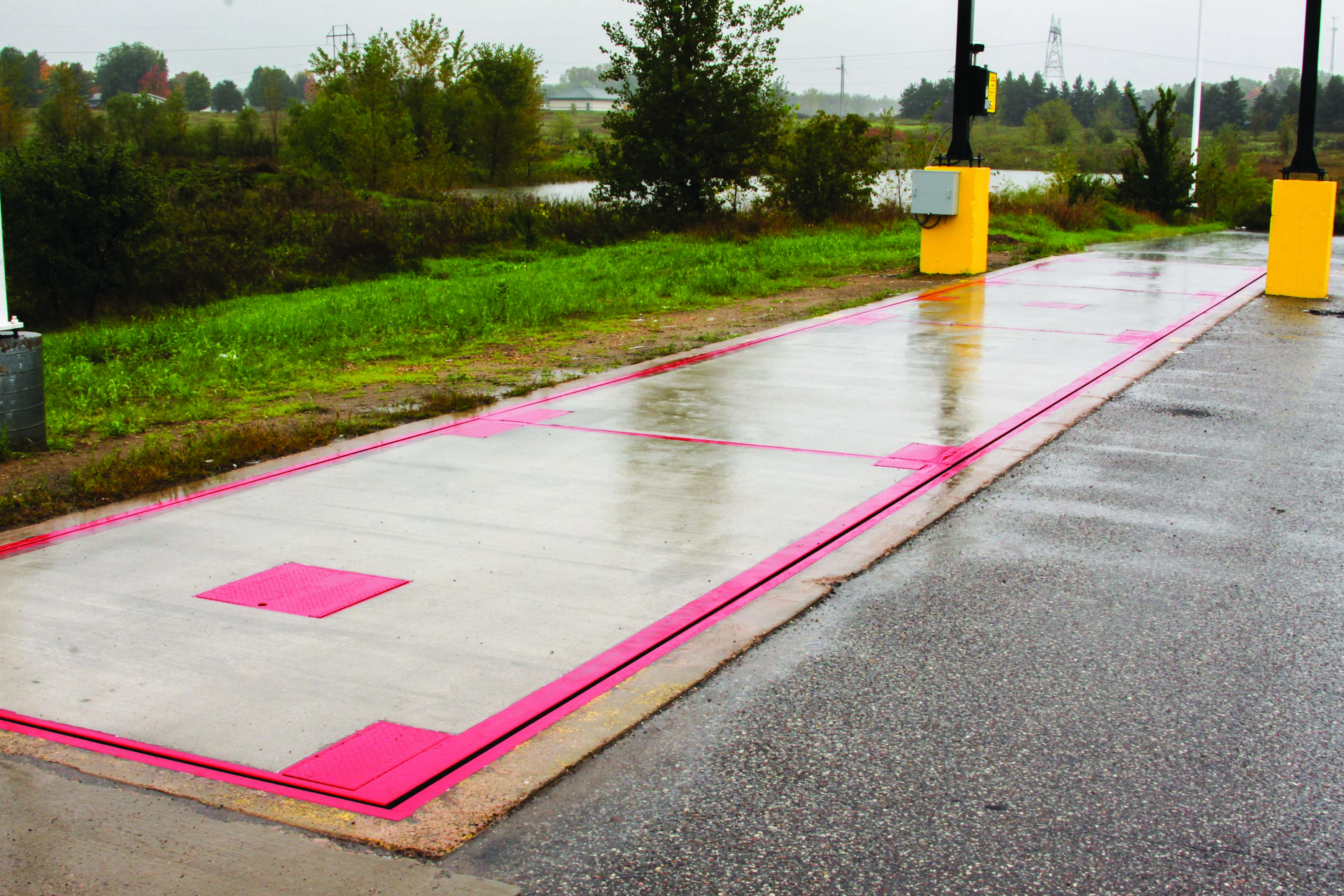

SURVIVOR® PT Series Pit-Type Truck Scale

  • One 2 x 2 ft manhole opening
  • Up to 42 ft section span
  • Longitudinal I-beam construction
  • Integrated load cell pockets
  • Self-seating, P-bracket connection between modules
  • G-Force mount assemblies return the scale to center without check rods or bumper bolts
  • Cables completely encased in rodent-proof conduit
  • Thorough finishing process includes cleaning of steel before and after welding, followed by either high  solids urethane liquid paint or durable powder paint

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW LOGO NOM

WARNING: Cancer and Reproductive Harm California Proposition 65

Strength and Reliable Performance

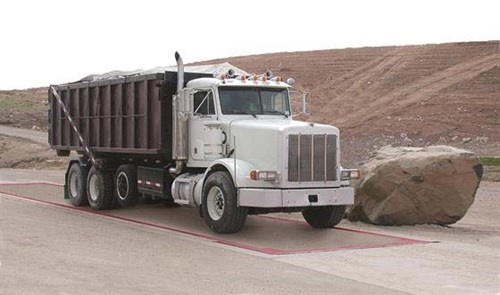

SURVIVOR PT Series pit-type truck scales are built with industry leading features and rugged dependability for lasting performance in the toughest conditions. The SURVIVOR PT Series offers reliable performance for installations with limited space by eliminating the need for a traditional approach.

The SURVIVOR PT truck scale is constructed for reliable performance in high-traffic, heavy-duty applications. Wide flange I-beams and steel cross beams support a poured concrete deck. This durable construction minimizes deflection, lengthening the lifespan of the truck scale. SURVIVOR PT Series scales up to a 14-foot width are NTEP Certified Legal for Trade.

Custom sizes are available to fit existing pit foundations and custom capacity options create the best scale for any application. Rice Lake’s professional engineers carefully design each custom SURVIVOR PT truck scale to ensure durable, reliable performance.



Load Cells:
Rice Lake RL75058-LP Alloy Steel,
Double Ended Beam
75,000 lb capacity

Mount Assemblies:
G-Force self-checking mounting system

Junction Box:
JB8SPT Tuffseal®
Polycarbonate NEMA Type 4X enclosure with overlapping solid cover, stainless steel screws

Platform Size:
10 to 160 ft length
10-foot, 11-foot, 12-foot width (NTEP Certified up to 16.5 ft) (custom length and width available)

Scale Profile:
42 in (custom profiles available)

Deck Thickness:
6 in (other sizes available)

Full Scale Capacity:
Up to 270,000 lb

Concentrated Load Capacity (CLC):
120,000 lb

Dual Tandem Axle (DTA):
120,000 lb

Warranty:
Weighbridge: 5-year or 12-year limited
Parts: 5-year or 12-year limited,
including lightning protection

Approvals:
NTEP CC 98-011, Class IIIL
Measurement Canada AM-5413

  • 20 lb division
  • 18-inch main beams for increased pit clearance
  • Steel deck
  • 3/8, 1/2, or 1-inch or 2-inch steel deck plate upgrade
  • Grain dump
  • Stainless steel load cells
  • Tapered links and radius blocks
  • Stainless steel suspension hardware
  • Galvanized weighbridge and suspension hardware
  • Corrosion-resistant coating
  • Dolly down plate
  • iQUBE2® digital diagnostic junction box
  • iQUBE2 and 1280 Enterprise Series programmable weight indicator bundle
  • iQUBE2 and 920i® Series programmable weight indicator bundle

Resources / Downloads

Title Download Email
SURVIVOR PT Catalog Page Download Email

Title Version Revision Download Email Category Archived
SURVIVOR® PT Pit-Type Concrete Deck Truck Scale Installation Manual D Download Email Truck Scales No

Title Download Email
Existing Truck Scale Foundation Questionnaire Download Email
Truck Scale Trimming Pad Download Email
Truck Scale Site Evaluation Download Email

Title Collateral Wizard Request Download Email Category
SURVIVOR PT Pit-Type Truck Scale Request Download Email Truck Scales
The Truck Scale Buyer's Guide Request Download Email Truck Scales
The SURVIVOR Advantage Request Download Email Truck Scales
Total Cost of Ownership Worksheet Request Download Email Truck Scales

Title View Download Email Category
Truck Scale Sales Video View Download Email Truck Scales
Rice Lake SURVIVOR® Truck Scale Advantages View Download Email Truck Scales
Truck Scale Grounding View Email Truck Scales

Title Download Email
SURVIVOR PT Steel Deck 70ft x 10ft (Word) Download Email
SURVIVOR PT Steel Deck 70ft x 10ft (PDF) Download Email
SURVIVOR PT Concrete Deck 70ft x 10ft (PDF) Download Email
SURVIVOR PT Concrete Deck 70ft x 10ft (Word) Download Email

Parts

10 Foot Width

Part # Description List Price Cart
51341 Truck Scale,Pit 10x10 60 Ton SR1010-PC-60 CLC=70,000lb

Call for price

72955 Truck Scale,50x10 PT C Concrete Deck SURVIVOR PT Model SR5010-PC-100 90,000lb CLC, 200,000lb Cap, 3-Section

Call for price

72954 Truck Scale,30x10 PT C Concrete Deck SURVIVOR PT Model SR3010-PC-60 90,000lb CLC, 120,000lb Cap, 2-Section

Call for price

51348 Truck Scale,80x10 PT Concrete Deck SURVIVOR PT Model SR8010-PC-100 90,000lb CLC, 200,000 Capacity 5-Section

Call for price

11 Foot Width

12 Foot Width

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
