SURVIVOR® SR Truck Scale

  • 75,000 lb capacity load cells and pre-assembled G-Force™ mounts
  • Junction box(es) appropriate for number of load cells utilized
  • NTEP Certified 98-011
  • 120,000 lb Concentrated Load Capacity (CLC)
  • 120,000 lb Dual Tandem Axle (DTA)
  • Up to 270,000 lb full scale capacity
  • 8 in thick reinforced concrete deck
  • Up to 42 ft section span
  • Three standard widths: 11 ft, 12 ft and 14 ft

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO NOM LOGO Measurementcanada Approved BW

WARNING: Cancer and Reproductive Harm California Proposition 65

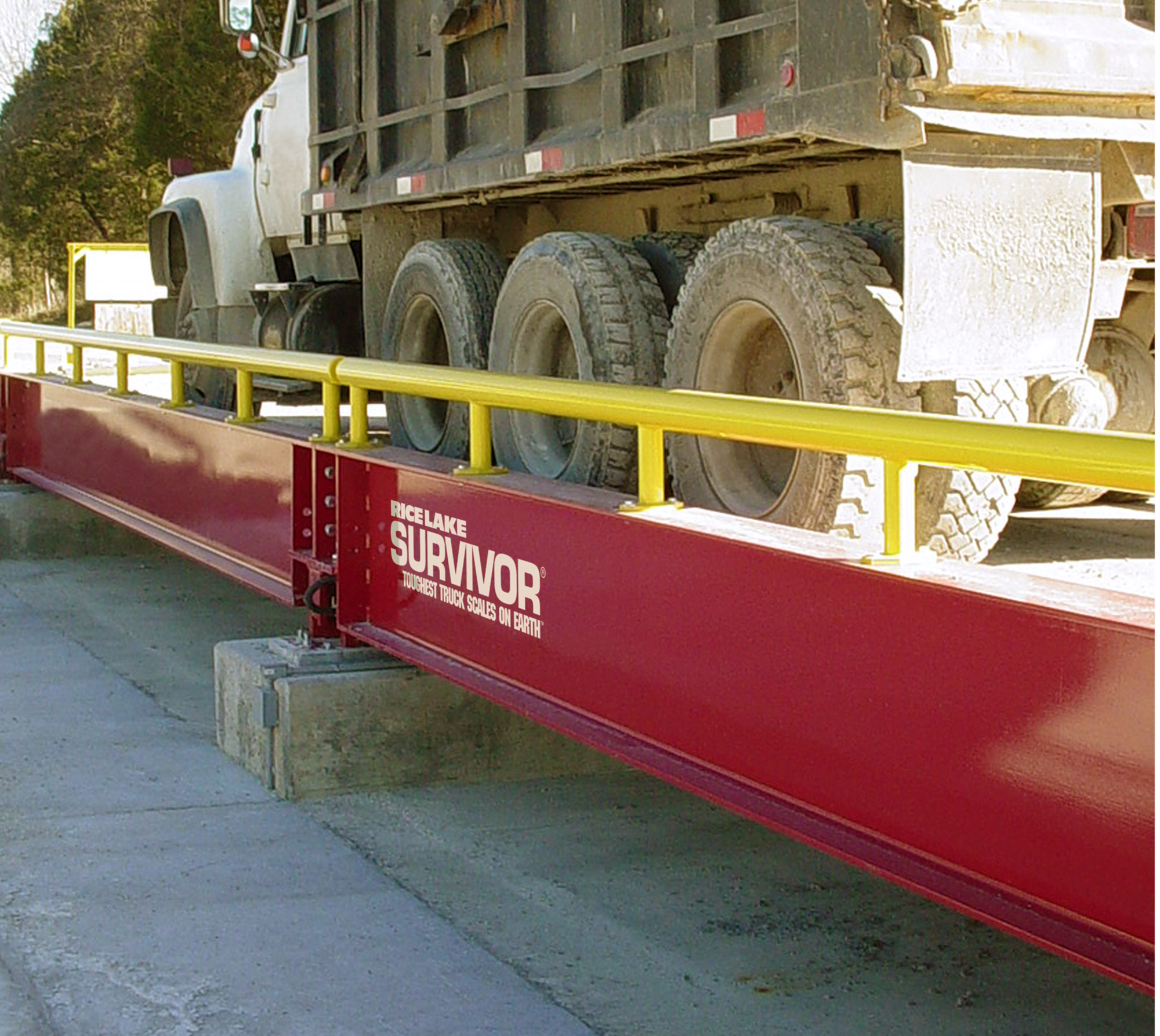

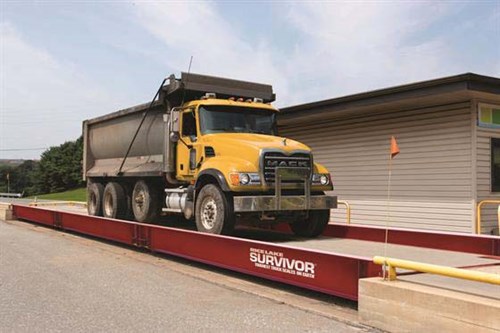

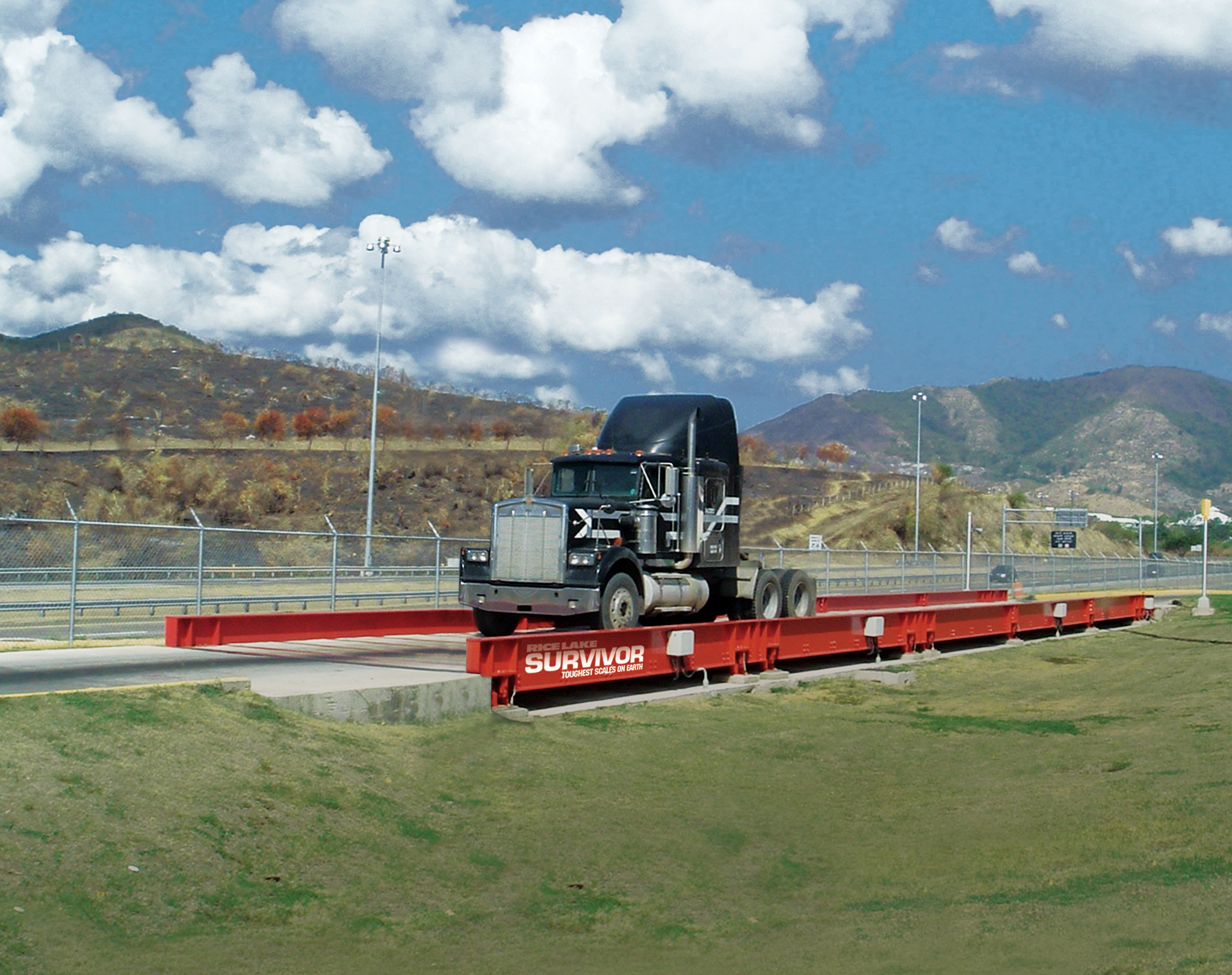

Proven the Toughest Truck Scale Made, Any Way You Look at It

The SURVIVOR SR Series side rail truck scale offers superior strength and longevity proven by the SURVIVOR brand. With design elements that outperform competitor brands, a SURVIVOR SR truck scale offers the best total cost of ownership in the industry.

SURVIVOR SR stands up to constant heavy loading, with more wide-flange I-beams integrated throughout the weighbridge than other leading brands, and massive, wide-flange I-beams adding rigidity to each side of the weighbridge and acting as side guides for safe truck loading.

Custom sizes and capacities are available for fitting into nearly any application’s site requirements and space constraints.

Load Cells and Mount Assemblies:
75,000 lb capacity; G-Force™ self-checking mounting system, top access to load cells

Full Scale Capacity:
Up to 270,000 lb

Concentrated Load Capacity (CLC):
120,000 lb

Dual Tandem Axle (DTA):
120,000 lb

Approvals:
NTEP Certified per H-44, Class IIIL, 98-011
Measurement Canada AM-5413

Warranty:
5-year or 12-year limited warranty on the weighbridge
5-year or 12-year limited parts warranty, including lightning protectio

  • Steel deck

Resources / Downloads

Title View Email Category Type
Factors that Increase Truck Scale Durability Email Truck Scales Articles
Simplifying Truck Scale Installation Email Truck Scales Articles
Six Facts About SURVIVOR® Truck Scales Email Truck Scales Articles
Solid Foundation View Email Truck Scales|Rail Scales Articles
Truck Scale Basics View Email Truck Scales Articles
Truck Scale Calibration View Email Truck Scales Articles
Truck Scale Foundations Email Truck Scales Articles
Truck Scale Features that Minimize Downtime Email Truck Scales Articles
Truck Scale Quality and Protection View Email Truck Scales Articles
Truck Scale Site Planning View Email Truck Scales Articles
Truck Scale Weighbridge Design and Capacity View Email Truck Scales Articles
Who’s Behind Your Truck Scale? Email Truck Scales Articles

Title Download Email
SURVIVOR SR Catalog Page Download Email

Title Version Revision Download Email Category Archived
SURVIVOR® SR Siderail Truck Scale Assembly Instructions D Download Email Truck Scales No

Title Download Email
Truck Scale Trimming Pad Download Email
Truck Scale Site Evaluation Download Email

Title Collateral Wizard Request Download Email Category
SURVIVOR SR Truck Scale Request Download Email Truck Scales
The Truck Scale Buyer's Guide Request Download Email Truck Scales
The SURVIVOR Advantage Request Download Email Truck Scales
Total Cost of Ownership Worksheet Request Download Email Truck Scales

Title View Download Email Category
Truck Scale Sales Video View Download Email Truck Scales
Rice Lake SURVIVOR® Truck Scale Advantages View Download Email Truck Scales
Truck Scale Grounding View Email Truck Scales

Title Download Email
SURVIVOR SR Steel Deck 70ft x 11ft Bid Specification (Word) Download Email
SURVIVOR SR Steel Deck 70ft x 11ft Bid Specification (PDF) Download Email
SURVIVOR SR Concrete Deck 70ft x 11ft Bid Specification (PDF) Download Email
SURVIVOR SR Concrete Deck 70ft x 11ft Bid Specification (Word) Download Email

Parts

11 Foot Width

Part # Description List Price Cart
44566 Truck Scale,10'x11' Siderail,120,000lb CAP,SR1011-SC-60,CLC=90,000lb

Call for price

44567 Truck Scale,20'x11' Siderail,120,000lb CAP,SR2011-SC-60,CLC=90,000lb

Call for price

44569 Truck Scale,35'x11' Siderail,120,000lb CAP,SR3511-SC-60,CLC=90,000lb

Call for price

44570 Truck Scale,40'x11' Siderail,120,000lb CAP,SR4011-SC-60,CLC=90,000lb

Call for price

44571 Truck Scale,47'x11' Siderail,120,000lb CAP,SR4711-SC-60,CLC=90,000lb

Call for price

44572 Truck Scale,60'x11' Siderail,200,000lb CAP,SR6011-SC-100,CLC=90,000lb

Call for price

44573 Truck Scale,70'x11' Siderail,200,000lb CAP,SR7011-SC-100,CLC=100,000lb

Call for price

44574 Truck Scale,70'x11' Siderail,200,000lb CAP,SR7011-SC-100,CLC=90,000lb

Call for price

44575 Truck Scale,80'x11' Siderail,200,000lb CAP,SR8011-SC-100,CLC=90,000lb

Call for price

44577 Truck Scale,100'x11' Siderail,200,000lb CAP,SR10011-SC-100,CLC=90,000lb

Call for price

44578 Truck Scale,117'x11' Siderail,200,000lb CAP,SR11711-SC-100,CLC=90,000lb

Call for price

44568 Truck Scale,24'x11' Siderail,120,000lb CAP,SR2411-SC-60,CLC=90,000lb

Call for price

12 Foot Width

14 Foot Width

Options

No options found for this product
