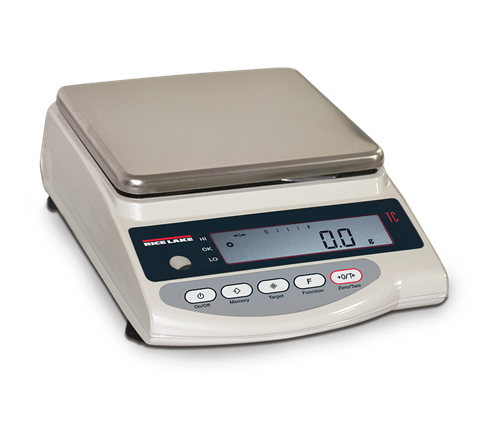

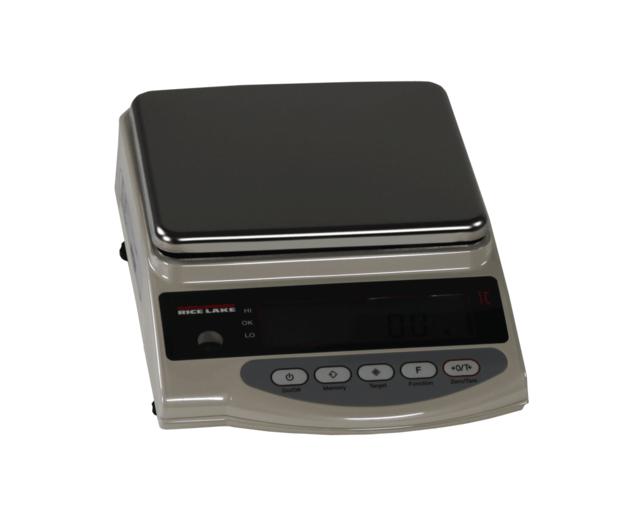

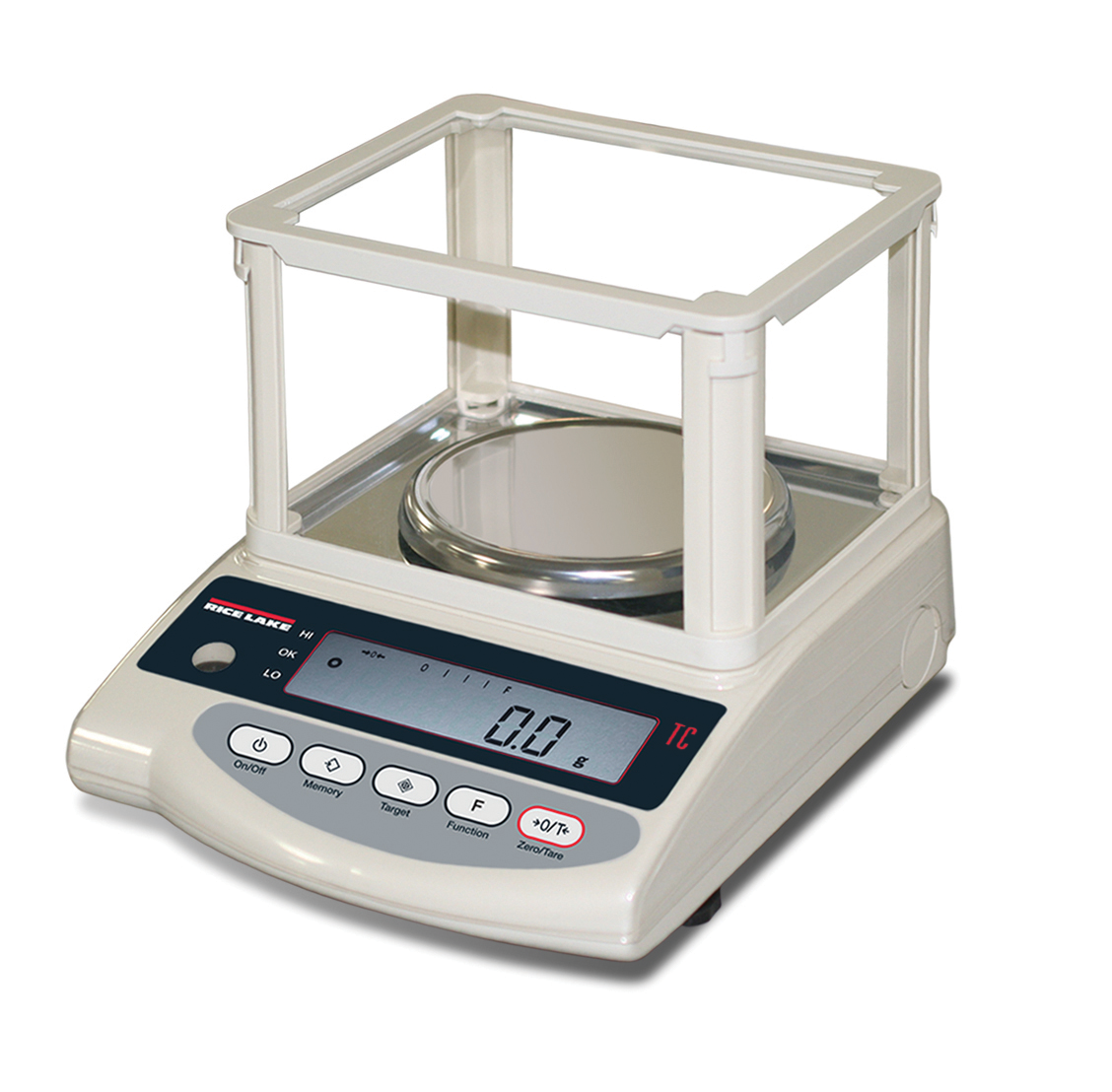

TC Series, Rice Lake Toploader Balance
- Large, 16.5 mm-high, backlit liquid crystal display (LCD)
- 12 units of measurement
- Mono-metal tuning fork sensor (MMTF) provides quick response and stability
- 20-step bar graph display
- Semi-automatic calibration, external weight
- Plastic housing on models <1,000 g
- Plastic top and die-cast bottom on models >1,000 g
TC Series, Rice Lake Toploader Balance Specifications
| Weighing Units: Carat, Pennyweight, Troy Ounce, Decimal Ounce, Decimal Pound (See technical manual for complete listing) Operating Modes: Weight, Count, Percentage, Limit Function (Checkweighing) |
Power: Operating Temperature : Calibration Weight: |
Est. Weight: TC-620: 2.9 lb (1.3 kg) TC-1200: 2.9 lb (1.3 kg) TC-4200: 5.9 lb (2.7 kg) TC-6200: 5.9 lb (2.7 kg) Warranty: Five-year limited Return Policy: Rice Lake standard policy |
TC Series, Rice Lake Toploader Balance Models
| Model | Capacity | Readability | Repeatability | Linearity | Pan Size | Dimensions | Part Number |
|---|---|---|---|---|---|---|---|
|
TC-620 |
620 g |
0.01 g |
1 division |
1 division |
Ø 5.5 in |
9.2 × 7.1 × 2.9 in |
107232 |
|
TC-1200 |
1,200 g |
0.1 g |
1 division |
1 division |
6.7 × 5.6 in |
10.4 × 7.5 × 3.4 in |
107233 |
|
TC-4200 |
4,200 g |
0.1 g |
1 division |
1 division |
7 × 6.2 in |
10.4 × 7.5 × 3.4 in |
107234 |
|
TC-6200 |
6,200 g |
0.1 g |
1 division |
1 division |
7 × 6.2 in |
10.4 × 7.5 × 3.4 in |
107235 |
Resources / Downloads
Manuals
| Title | Version | Revision | Download | Category | Archived | |
|---|---|---|---|---|---|---|
| Rice Lake TC Series Operation Manual | A | Download |  Email |
Toploader Balances|Veterinary and Small Animal|Veterinary Scales|Animal | No | |
| RS-232 Option Card Installation Manual | Download | Email |
Precision Balances | No | ||
| Rice Lake TC Series Manual (Archived) | Download | Email |
Toploader Balances|Animal|Veterinary and Small Animal|Veterinary Scales | Yes |
Videos / Webinars
| Title | View | Download | Category | |
|---|---|---|---|---|
| Precision Weighing: Part 1, Precision or Accuracy? | View | Download | Email |
Precision Measurement|Balances |
| Precision Weighing: Part 2, Specifications | View | Download | Email |
Precision Measurement|Balances |
| Rice Lake Balances, Part 1: Balance Technology | View | Download | Email |
Balances |
| Rice Lake Balances, Part 2: TC Series | View | Download | Email |
Balances |
Parts
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 107232 | Balance,TC-620 Rice Lake 620 G x 0.01G, 5.5IN Pan, 120VAC |
List Price: $815.00 |
|
| 107233 | Balance,TC-1200 Rice Lake, 1200G x 0.1G, 6.6 x 5.5IN Pan, 120VAC |
List Price: $750.00 |
|
| 107234 | Balance,TC-4200 Rice Lake, 4200 G x 0.1G, 7 x 6.2IN Pan, 120VAC |
List Price: $815.00 |
|
| 107235 | Balance,TC-6200 Rice Lake, 6200 G x 0.1G, 7 x 6.2IN Pan, 120VAC |
List Price: $878.00 |
Options
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 107236 | Battery, Rechargeable TC-620 and TC-1200, 32 Hour Run time, 12 Hour Charge time |
List Price: $121.00 |
|
| 107237 | Battery, Rechargeable TC-4200, TC-6200, TP-3200 and TP-8200, TP-12K 32 Hour Run time Nickel Cadmium, 12 hour charge time |
List Price: $121.00 |
|
| 107238 | Balance OPT,RS-232 Bi-Directional, DIN-5 Pin Connector (TC-620, TC-1200) Not compatible with Battery Option |
List Price: $150.00 |
|
| 107239 | Balance OPT, RS-232 Bi-Directional (TC-4200 and TC-6200) DIN-5 Pin Connector Not Compatible with Battery Option. Only For Use In 2017 Or Later Models. |
List Price: $150.00 |
|
| 107240 | Cover,In-Use Dust Small TC or TP Balance, 220g to 1200g |
List Price: $30.00 |
|
| 107250 | Cover,In-use 2200g to 12K TC or TP Balance |
List Price: $30.00 |
|
| 109236 | Hook,Underweighing TS & TP-220 and TP-820 Balance |
List Price: $30.00 |
|
| 109292 | Hook,Underweigh 2200-12K Rice Lake, TC and TP |
List Price: $30.00 |
|
| 42566 | Pwr Supply,Adapter 60Hz 4.5W Input 12VDC/1.0A 2.1x5.5x11mm Female Output QB MB QBG Balance QBX Counting Scale Class 2 Transformer for Model UM124 100 to 240 VAC |
List Price: $76.00 |
|
| 107243 | LIT,Manual Operating TC Balance |
List Price: $18.00 |
|
| 75351 | Software,WinWedge 32 Std TAL |
List Price: $345.00 |
|
| 115303 | Cable Assy,RS-232 5-Pin DIN to DB9 Female |
List Price: $111.00 |
|
| 115148 | LIT,Manual RS232 Option TC Balance RS-232 Option Operator Manual |
List Price: $7.00 |
Replacement Parts
Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.
To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
