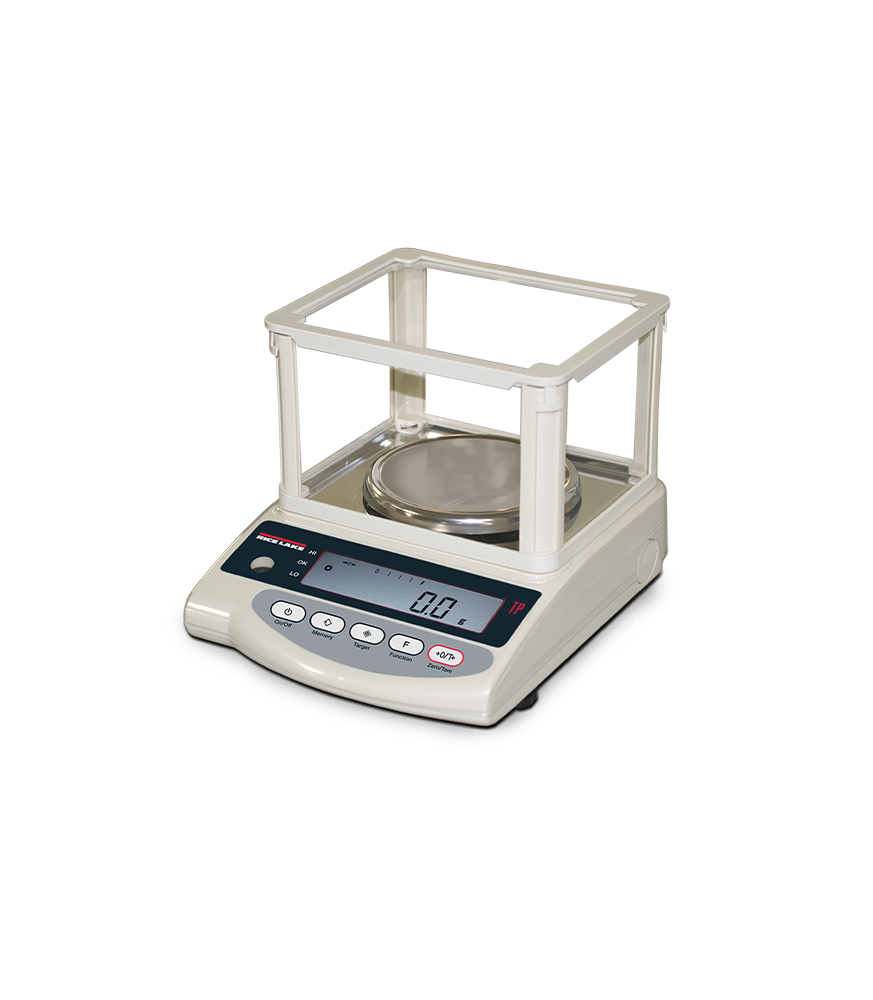

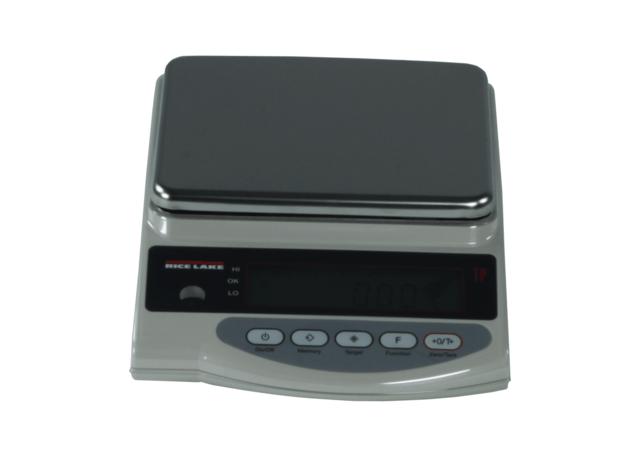

TP Series, Rice Lake Toploader Balance

  • External weight calibration
  • Large, 16.5 mm-high backlit liquid crystal display (LCD)
  • Mono-metal tuning fork sensor (MMTS) provides quick response and stability
  • 20-step bar graph display
  • One part in 620,000 resolution
  • RS-232 interface for connecting
    to printer or PC
  • Plastic housing on models <1,000 g
  • Plastic top and die cast bottom
    on models >1,000 g

Options

  • Rechargeable battery
  • Under-hook weighing
Request More Information
TP Series Balance
360 Image

Practical. Portable. Precise.

The simple, straightforward design of Rice Lake’s TP Series balance creates for an effortless user experience. Equipped with the unique Mono-Metal Tuning Fork Sensor (MMTS), this balance series brings remarkable response time and exceptional stability to any setting.

User Friendly:

Functions that are easy to use and understand come standard with the TP Series balance. Enhance productivity with modes such as unit counting and percentage weighing. Adapt to any type of standard with the ability to weigh in 12 different measurement units.

Compact:

The compact and manageable size of the TP Series balance is suitable for even the most limited of space. A footprint smaller than a sheet of paper makes it perfect for crowded work environments.

Responsive:

Each balance performs with incredible sensitivity and stability by relying on its dynamic tuning fork sensor. Plug in and go without waiting for stabilization.

Weighing Units
Carat, Pennyweight, Troy Ounce, Decimal Ounce, Decimal Pound (See technical manual for
complete listing)

Operating Modes
Weight, Count, Percentage, Limit Function
(Checkweighing)

Power
120 VAC (adapter included)

Battery Option
Nickel Cadmium battery, 12-hour run time, 24-hour charge time

RS-232 Baud Rate
1200/2400/2800/9600; Data bits - 8, Connector - DIN 5-Pin		 Calibration Weight
TP-220: 200  g
TP-820: 800  g
TP-3200: 3,000  g
TP-8200: 8,000  g
TP-12K: 12,000  g

Operating Temperature
41° F to 95° F (5° C to 35° C)

Est. Weight
6.2 lb (2.8 kg)

Warranty
Five-year limited warranty

Return Policy
Rice Lake Standard Policy

Model  Capacity Readability Repeatability Linearity Pan Size Weighing Chamber  Dimensions Part #

TP-220

220 g

0.001 g

1 division

1 division

Ø 4.6 in
(116.8 mm)

170mm W x 140 mm D x 95 mm H

9.2 x 7.1 x 6.6 in(including windshield)(235 x 182 x 170 mm)

107244

TP-820

820 g

0.01 g

1 division

1 division

6.6 in x 5.5 in (167.6 x 139.7 mm)

N/A

9.2 x 7.1 x 2.9 in

(235 x 182 x 75 mm)

107245

TP-3200

3,200 g

0.01 g

1 division

1 division

7 in x 6.2 in
(177.8 x 157.5 mm)

N/A

10.1 x 7.5 x 3.4 in

(265 x 192 x 87 mm)

107246

TP-8200

8,200 g

0.1 g

1 division

1 division

7 in x 6.2 in
(177.8 x 157.5 mm)

N/A

10.1 x 7.5 x 3.4 in

(265 x 192 x 87 mm)

107247

TP-12K

12,000 g

0.1 g

1 division

1 division

7 in x 6.2 in
(177.8 x 157.5 mm)

N/A

10.1 x 7.5 x 3.4 in

(265 x 192 x 87 mm)

107248

Resources / Downloads

Title View Email Category Type
Give Your Balance a Brain View Email Precision Balances Articles

Title Download Email
Rice Lake TP Series Toploader Balance, Catalog Page Download Email

Title Version Revision Download Email Category Archived
Rice Lake TP Series Balance Technical Manual D Download Email Precision Balances No
Rice Lake TP Series Software Development Kit Download Email Precision Balances No
Rice Lake TP Series Balance Technical Manual (Includes NTEP Models) B Download Email Precision Balances No

Title Download Email
TC/TP/TS/TA Series Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Rice Lake TP Series Request Download Email Balances
Rice Lake TP Series Balances Application Brief Download Email Balances
Rice Lake TC & TP Series Request Download Email Balances
Tuning-Fork Balance Series, Rice Lake Weighing Systems Request Download Email Balances

Title View Email Category
Rice Lake Tuning Fork Technology Technical Bulletin Download Email Precision Balances

Title View Download Email Category
Precision Weighing: Part 1, Precision or Accuracy? View Download Email Precision Measurement|Balances
Precision Weighing: Part 2, Specifications View Download Email Precision Measurement|Balances
Rice Lake Balances, Part 1: Balance Technology View Download Email Balances
Rice Lake Balances, Part 3: TP Series View Download Email Balances

Parts

NTEP

Part # Description List Price Cart
163606 Balance,TP-6200NT 6200g x 0.1g (e) [0.01g (d)]. 7 x 6.2 in (177.8 x 157.8 mm) pan size, 120 VAC, NTEP Class I

List Price: $1,455.00

Non-NTEP

Options

Part # Description List Price Cart
107249 Battery,Rechargeable TP TP-220, TP-820

List Price: $105.00
107237 Battery, Rechargeable TC-4200, TC-6200, TP-3200 and TP-8200, TP-12K 32 Hour Run time Nickel Cadmium, 12 hour charge time

List Price: $105.00
107250 Cover,In-use 2200g to 12K TC or TP Balance

List Price: $27.00
107240 Cover,In-Use Dust Small TC or TP Balance, 220g to 1200g

List Price: $27.00
109236 Hook,Underweighing TS & TP-220 and TP-820 Balance

List Price: $27.00
109292 Hook,Underweigh 2200-12K Rice Lake, TC and TP

List Price: $27.00
42566 Pwr Supply,Adapter 60Hz 4.5W Input 12VDC/1.0A 2.1x5.5x11mm Female Output QB MB QBG Balance QBX Counting Scale Class 2 Transformer for Model UM124 100 to 240 VAC

List Price: $68.00
42168 Adapter,230 Volt EU Plug QB MB TC AND TP Series Balance

List Price: $74.00
107251 Manual,Operating TP Rice Lake Balance

List Price: $16.00
75351 Software,WinWedge 32 Std TAL

List Price: $345.00
115303 Cable,RS-232 5-Pin DIN to DB9 Female

List Price: $98.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

WEB SC Taplus Analytical Balance

TA Plus Series, Rice Lake Analytical Balance

The Rice Lake TA Plus analytical balance utilizes tuning fork technology to provide precise measurement, quick response and remarkable stability.

WEB SC Teseries Balance

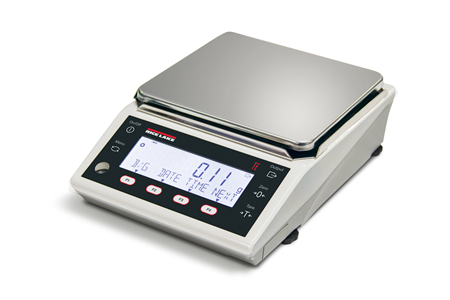

TE Enhanced Series, Rice Lake Precision Balance
