Traffic Light Kits

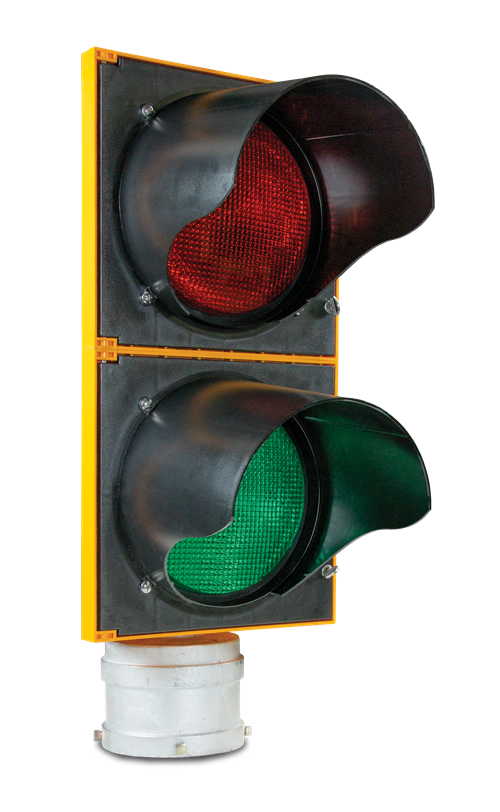

Light

  • Housing meets or exceeds ITE specifications
  • Stainless steel hardware
  • 8 in LED lights, enclosure injection molded polycarbonate
  • LED modules
  • Compliant to ITE UTCSH - LED circular signal
  • Temperature compensated power supplies for long LED life
  • Conformal coated power supplies
  • Intertek/ETL certified and listed on ETL certification program
  • 135 VAC

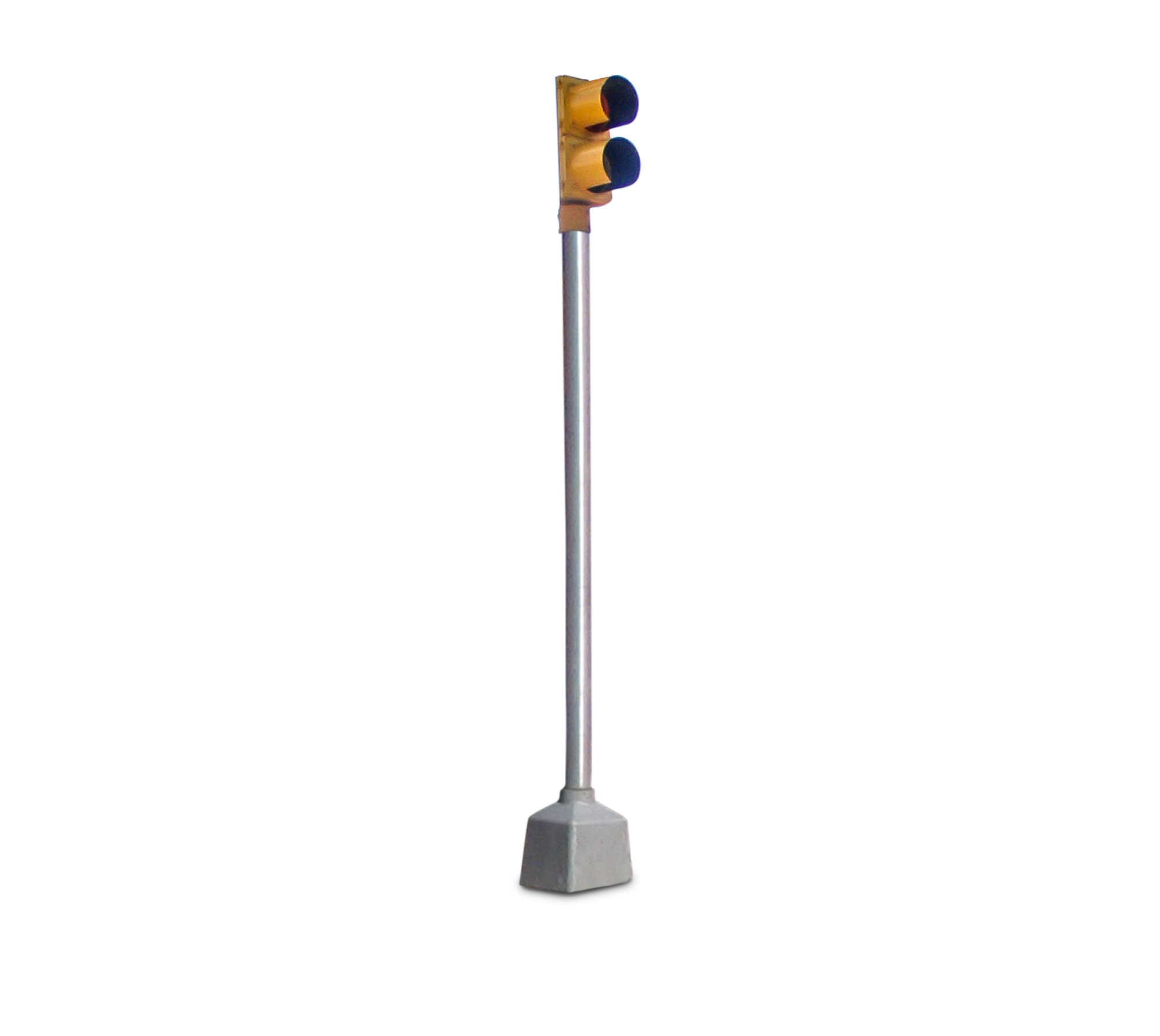

Pole

  • 4.5 in outer dimension aluminum pole
  • Cast aluminum base mounts to concrete with four anchor bolts
  • Base underside has integrated anchor bolt guide to ensure proper anchor placement.
  • Removable 8 in access door for cable splicing and bolt attachments
    (H × W) 15  × 13-3/4 in

Simple Traffic Control

Traffic control is as simple as adding one of Rice Lake's stop and go lights to your truck scale process. Stop Lights from Rice Lake offer industrial-strength lighting systems that will professionally communicate the universal red and green stop/go commands at a distance, keeping your process moving quickly and efficiently.

Resources / Downloads

Title View Email Category Type
Automate Your Truck Scale with Peripheral Equipment Email Truck Scales|Automated Systems|Vehicle Scale Accessories Articles
Truck Scale System Accessories View Email Truck Scales Articles

Title Download Email
Traffic Light Kits Catalog Page Download Email

Parts

Part # Description List Price Cart
23146 Signal Kit,Traffic 2 Section, With Mounting Hardware for 4.5 Inch Pole 120VAC LED

List Price: $865.00

85789 Kit,Traffic Light Pole Includes 8ft Aluminum Pole, base & four 18 inch anchor bolts with nuts and washers. Option: Pole Cap(PN 179172)

List Price: $1,055.00

179172 Pole, Cap Aluminum 4.5in. For Traffic Light Pole. (PN 85789)

List Price: $59.00

87111 Side Mounting Kit,Traffic Light Wall Or Pole Includes Two Universal Hub Plates Two Cast Nipples Two 10-Inch Nipples Two Ells and One Gasket

List Price: $240.00

84504 Bolt,Anchor Bent 3/4 x 18 Inch, Plain Finish, With Nut and Washer Traffic Light Mounting

List Price: $13.00

160242 Kit, Dual Traffic Light Includes (2) 23146 Traffic lights, (2) 85789 traffic light poles (1) 160208 and electrical drawing (170218).

List Price: $5,345.00

160208 Control Panel, Dual Traffic Light, Manual 3-pos. Switches Labeled Red/Off/Green. Includes Legend Plates: North, South, East And West That Dealer Can Install.

List Price: $925.00

163734 Switch Box, Remote DIO FRP enclosure with single N/O contact push button. Includes Legend plates Print, Tare, Zero, Cancel and Accept. 72in cable

List Price: $315.00

156106 Buzzer box, 115 VAC

Call for price
