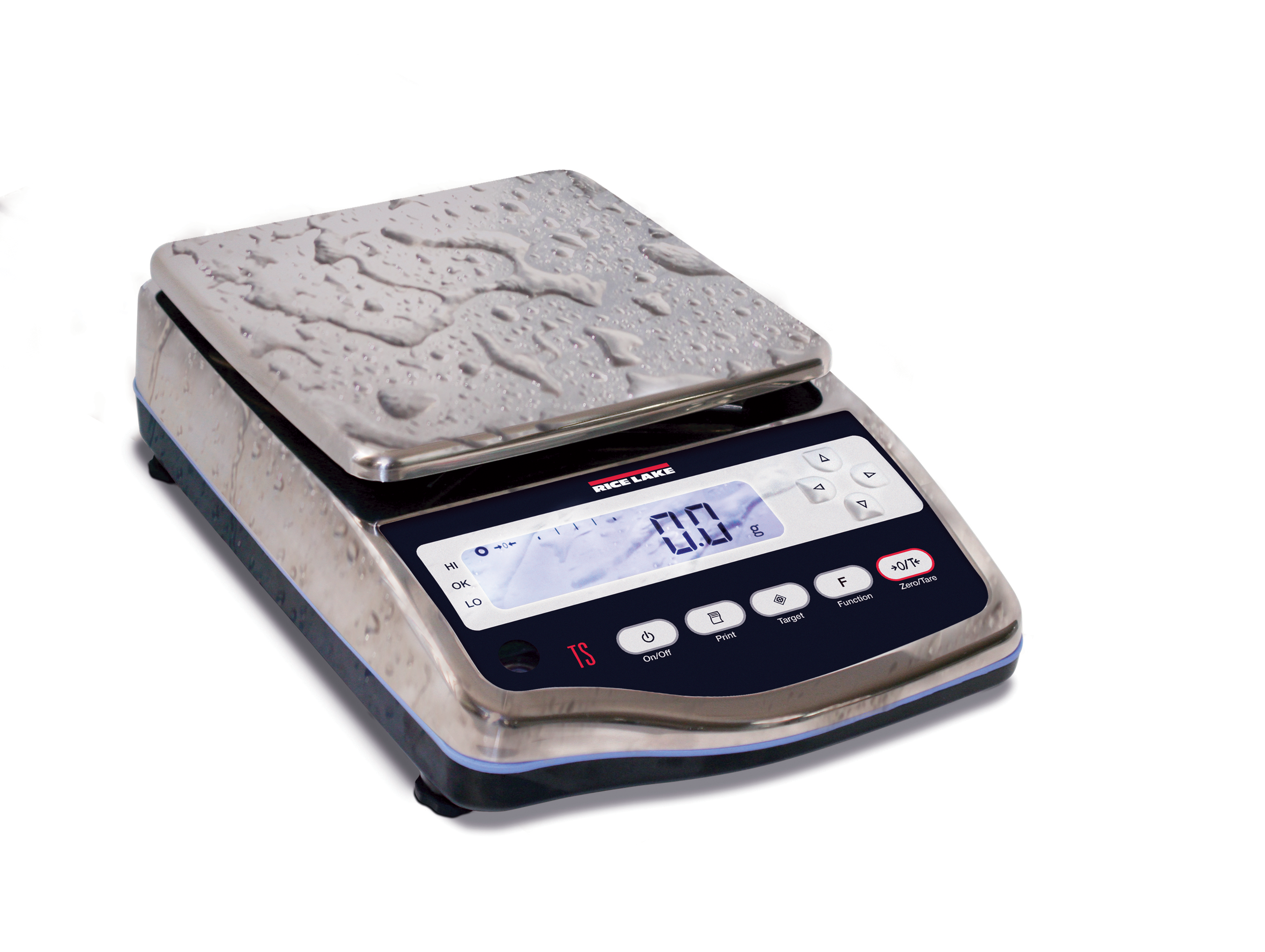

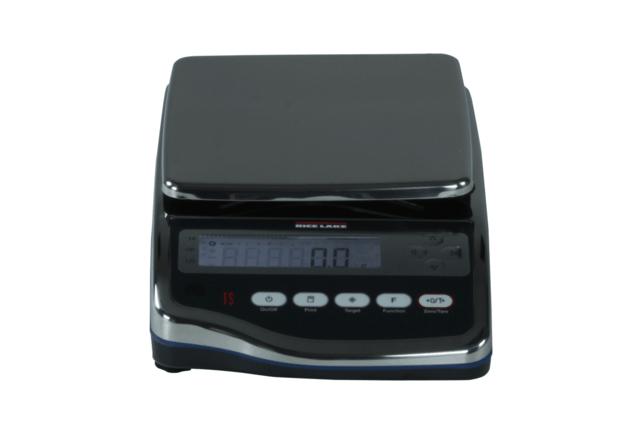

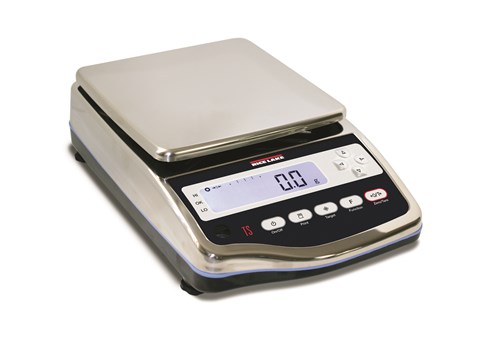

TS Series, Rice Lake Precision Washdown Balance

  • Stainless steel, IP65 top housing
  • Large, 18 mm liquid crystal display (LCD) with blacklight
  • Selectable modes
  • 13 units of measurement
  • Mono-metal tuning fork sensor (MMTS) provides quick response and stability
  • Washdown with IP65 rating
  • 115 VAC adapter included (230 VAC optional)
  • Semi-automatic calibration, external weight
  • RS-232 interface for connecting to
    printer or PC

Options:

  • Battery holder
  • Underweigh hook
  • Waterproof RS-232 cable

Form meets Function

The sleek-looking stainless steel housing of Rice Lake’s TS Series is more than just attractive. This mirror finish is a barrier against potentially destructive elements. For work environments where anything can happen, trust in a balance that delivers performance inside and out.

IP65 Design

The polished finish of the TS Series’ stainless steel housing offers exceptional durability. An IP65 rating means this balance protects against the ingress of dust and liquids into electronic components that can happen from normal spills and splashes. The smooth, continuous lines of the TS design make cleanup effortless.

Rapid Response

Unique tuning fork technology provides a high-speed response time, with stable and reliable results. No more waiting for stabilization or warm up, simply plug in and go.

RS-232 Interface

The TS Series offers incredibly fast output compared to similar models. The ability to interface with a PC and other equipment is invaluable for creating compliance records and data storage.

  TS-620 TS-6200 TS-8200
Part # 108156 108157 112182
Capacity 620 g 6,200 g 8,200 g
Resolution 0.01 g 0.1 g 0.1 g
Operating Modes Counting, Percentage, Limit Function (Checkweighing), Weighing Multiplied by Coefficient, Specific Gravity, Animal Weighing, Adding Multiple Measurements
Repeatability 1 division
Linearity 1 division
Operating Temperature 0° C to 40° C 80% RH or lower
RS-232 Specifications Baud rate - 1200/2400/4800/9600/19200, Data bits 8/7; Connector - 9-Pin D-Sub M (not IP65 unless using PN 109238 cable)
Pan Size Ø 140 mm (5.51 in) 190 mm x 190 mm (7.48 in x 7.48 in)
Dimensions 12.2 x 8.2 x 3.4 in (310 x 208 x 87 mm)
Weight (Approx.) 10 lb (4.5 kg)
Calibration Weight* 600 g 6,000 g 8,000 g
Power 120-240 VAC adapter, multi-plug adaptor
Battery Option Field installable, uses 4 AA dry cell batteries
Warranty Five-year Limited Warranty
Return Policy Rice Lake Standard Policy
UNIT OF MEASURE
Decimal Ounce 21 x 0.0005 oz 210 x 0.005 oz 280 x 0.005 oz
Decimal Pound 1.3 x 0.00005 lb 13 x 0.0005 lb 18 x 0.0005 lb
Troy Ounce 19 x 0.0005 ozt 190 x 0.005 ozt 260 x 0.005 ozt
Pennyweight 390 x 0.01 dwt 3,900 x 0.1 dwt 5,200 x 0.1 dwt
Carat 3,100 x 0.05 ct 31,000 x 0.5 ct 41,000 x 0.5 ct
Momme 160 x 0.005 mom 1,600 x 0.05 mom 2,100 x 0.05 mom
Grain Unit 9,500 x 0.2 GN 95,000 x 2 GN 120,000 x 2 GN
* Calibration of balance does not require weight of full capacity (adjustable)

Resources / Downloads

Title View Email Category Type
Give Your Balance a Brain View Email Precision Balances Articles
What are IP Ratings? Email Checkweighers|Indicators / Controllers|Load Cells|Platform Scales|Precision Balances|Retail Equipment|Wrappers|Weigh Modules Articles

Title Download Email
TS Series Catalog Page Download Email

Title Version Revision Download Email Category Archived
Rice Lake TS Series Operation Manual Download Email Precision Balances No
Rice Lake TS Series Dry-Cell Operation Manual Download Email Precision Balances No

Title Download Email
TC/TP/TS/TA Series Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
TS Series with 920i Intelligence Application Brief Download Email Balances
TS Series Application Brief Download Email Balances
TS Series Stainless Steel Tuning Fork Balance Request Download Email Balances
Tuning-Fork Balance Series, Rice Lake Weighing Systems Request Download Email Balances
Washdown Solutions Request Download Email Washdown Scales

Title View Email Category
Rice Lake Tuning Fork Technology Technical Bulletin Download Email Precision Balances

Title View Download Email Category
Precision Weighing: Part 1, Precision or Accuracy? View Download Email Precision Measurement|Balances
Precision Weighing: Part 2, Specifications View Download Email Precision Measurement|Balances
Rice Lake Balances, Part 1: Balance Technology View Download Email Balances
Rice Lake Balances, Part 4: TS Series View Download Email Balances

Parts

Part # Description List Price Cart
108156 Balance,TS-620 Stainless 620g x 0.01g

List Price: $1,365.00

108157 Balance,TS-6200 Stainless 6200g x 0.1g

List Price: $1,475.00

112182 Balance,TS-8200 Stainless 8200g x 0.1g

List Price: $1,550.00

Options

Part # Description List Price Cart
108499 Adapter,AC 6VDC/MULTI- RANGE (110-230), MULTI-PLUG, TS Balance

List Price: $52.00

72440 Cable,RS232 Straight 25 Pin D SUB Male to 9 Pin D SUB Female, Pinout: 2 to 2, 3 to 3, 5 to 7 G, RTS to DSR, DSR to DTR Cable is 6ft long

List Price: $67.00

22436 Cable,COMM DB9F 9 Pin FEM On One End Stripped And Tinned On Other End 6ft Pin 2 (Brown) Pin3 (Red) pin 5 (Yellow)

List Price: $67.00

66535 Cable,DB9F to DB9F Null Modem Serial Cable 6 Foot

List Price: $46.00

119064 Adapter,Slimline Null Modem, Gender Changer DB9 Female/Female

List Price: $11.00

109236 Hook,Underweighing TS & TP-220 and TP-820 Balance

List Price: $27.00

109238 Cable,Waterproof TS DB9 cable

List Price: $360.00

109050 Manual,Operating TS

List Price: $16.00

112611 LIT,Addendum TS Balance addendum for dry-cell battery on TS Series Balance

List Price: $6.00

112516 Battery OPT, TS Balance Holder,requires 4 AA dry-cell batteries, Battery life 32-hours using backlight or 200 hours backlight off

List Price: $105.00

119919 Cable,AbleCable RS-232 DB9-Male to USB. Keyboard Input for Serial Devices

List Price: $190.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
