VIRTUi²® PC-based HMI for iQUBE²®

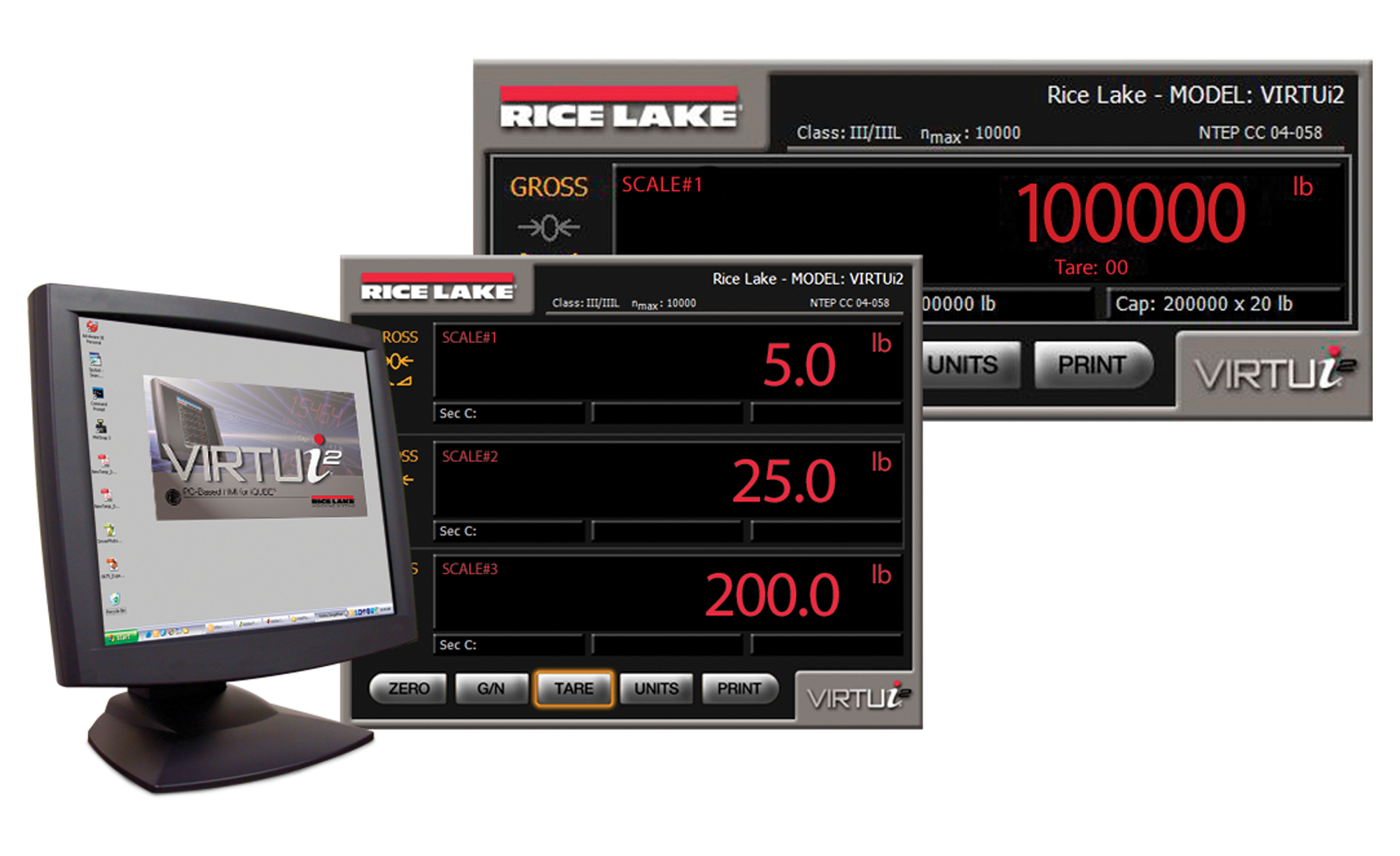

  • Virtual front panel consists of display and five-button keypad
  • Web browser-based iQUBE² cell status
  • Provides local and remote reporting of diagnostics and error conditions
  • Up to four scales and one total scale
  • Primary/secondary units configuration (lb, kg, short tons, metric tons, none)
  • RS-232 communications at up to 460 kbps
  • Electronic Data Processing (EDP) port over RS-232 and TCP/IP
  • Printer port for output-only, simplex communications
  • Two print formats
  • Provides iQUBE² configuration screen and iQUBE² digital I/O configuration
  • Supports iQUBE² diagnostics with configurable error viewing
  • Peak weight history
  • Recalibration notification
  • Concentrated load capacity (CLC)
  • Section capacity

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo

WARNING: Cancer and Reproductive Harm California Proposition 65

The PC-Based HMI for iQUBE²

VIRTUi² is the second generation of virtual indicators, providing the functionality of a basic weight indicator and placing it right on your computer screen. This PC-based solution is NTEP Certified and enables users to monitor cell diagnostics, set next calibration alerts, send email alerts, configure gross/net print formats as well as remotely view load cell status via a web browser when used with iQUBE². VIRTUi² provides the same functionality of a physical indicator with the convenience and safety of remote functionality.

Virtui² is a Windows®-based desktop application that works with iQUBE² to replicate simple indicator functionality ideal for system integrators and OEMs wanting to provide a PC-based solution. Load cells are individually monitored and calibrated, making setup easy.

Minimum System Requirements:
Windows® 8.1 or newer

Serial port
USB to serial converter, or Ethernet TCP/IP for connection to iQUBE²
Additional serial ports are required for connections to printers/remote displays

Annunciators:
Units (lb, kg, short tons (tn), metric tons (t), NONE) gross/net, motion, center of zero

Approvals:
NTEP CC 04-058 Class III/IIIL, 10,000d

Resources / Downloads

Title Download Email
VIRTUi2 Catalog Page Download Email

Title Version Revision Download Email Category Archived
Rough-n-Ready System VIRTUi² Installation Instructions Download Email Software|Indicator Software No

Title Version Size Release Date Download Email
VIRTUI2 Demo Version 2.0.3 107.3 MB 09/22/2021 Download Email
VIRTUi Software 1 26.6 MB 12/28/2021 Download Email
VIRTUI² Help Files 1 787 KB 12/28/2021 Download Email
VIRTUi Help Files 1 686.6 KB 12/28/2021 Download Email

Parts

Part # Description List Price Cart
108436 Activation Code, Virtui2 Software

List Price: $550.00
