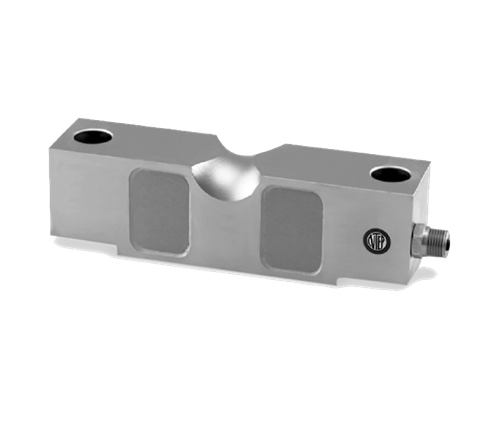

VPG Celtron CLB Alloy Steel, Double-Ended Beam Load Cell
An alloy steel, nickel-plated, double-ended beam ideal for applications in truck, track, tank and hopper applications. Center-loaded design and compatible with MVS and TSA mounting assemblies. Available in capacities ranging from 20,000 lb to 125,000 lb. Provided with 35 ft of load cell cable.
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
CLB Load Cell Specifications
|
Full Scale Output: Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: Safe Sideload: Rated Excitation: Combined Error: Insulation Resistance: Cable Length: |
Cable Diameter: Cable Color Code: Warranty: Approvals: |

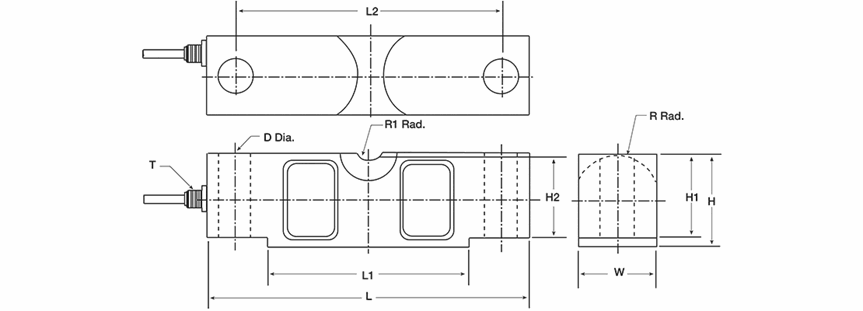

CLB Load Cell Dimensions
| Rated Capacity | L | L1 | L2 | W | H | H1 | H2 | D | R | R1 | T |
|---|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | |||||||||||
| 20,000 to 25,000 | 7.75 | 4.99 | 6.50 | 1.69 | 1.94 | 1.70 | 1.63 | 0.68 | 0.90 | 0.75 | 1/4-18 NPT |
| 40,000 | 10.25 | 6.39 | 8.50 | 1.94 | 2.44 | 2.10 | 2.00 | 0.81 | 1.12 | 1.00 | 1/4-18 NPT |
| 50,000 to 75,000 | 10.25 | 6.39 | 8.50 | 2.44 | 2.94 | 2.65 | 2.54 | 1.06 | 1.37 | 1.00 | 1/2-14 NPT |
| 125,000 | 15.25 | 8.99 | 12.75 | 2.90 | 3.86 | 2.43 | 3.30 | 1.62 | 1.80 | 1.50 | 1/2-14 NPT |
Resources / Downloads
Parts
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 46675 | Load Cell,DEB CLB-20K 20000lb 25ft Celtron 3mV/V 700 Ohm WW NTEP IIIL 10M FM IP67 |
List Price: $646.00 |
|
| 46676 | Load Cell,DEB CLB-25K 25000lb 25ft Celtron 3mV/V 700 Ohm WW NTEP IIIL 10M FM IP67 |
List Price: $662.00 |
|
| 46677 | Load Cell,DEB CLB-40K 40000lb 25ft Celtron 3mV/V 700 Ohm WW NTEP IIIL 10M FM IP67 |
List Price: $790.00 |
|
| 46678 | Load Cell,DEB CLB-50K 50000lb 25ft Celtron 3mV/V 700 Ohm WW NTEP IIIL 10M FM IP67 |
List Price: $858.00 |
|
| 46679 | Load Cell,DEB CLB-60K 60000lb 25ft Celtron 3mV/V 700 Ohm WW NTEP IIIL 10M FM IP67 |
List Price: $858.00 |
|
| 46680 | Load Cell,DEB CLB-75K 75000lb 25ft Celtron 3mV/V 700 Ohm WW NTEP IIIL 10M FM IP67 |
List Price: $858.00 |
|
| 46682 | Load Cell,DEB CLB-125K 125000lb 25ft Celtron 3mV/V 700 Ohm WW NTEP IIIL 10M FM IP67 |
List Price: $1,563.00 |
