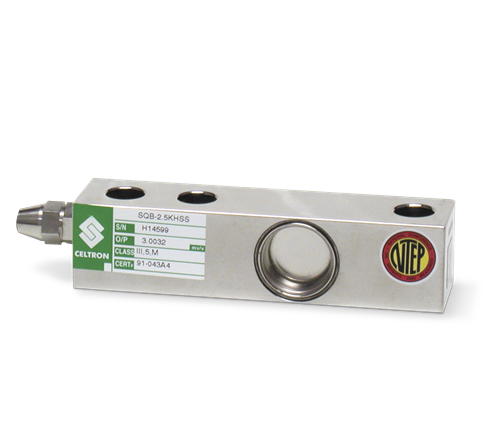

VPG Celtron SQB-HSS Stainless Steel, Single-Ended Beam Load Cell

The VPG Celtron SQB-HSS stainless steel, welded-seal, single-ended beam is a precision load cell offering exceptional performance and reliability in hostile environment applications typical of food and chemical processing. Designed for single or multiple load cell installations, the SQB-HSS is provided with a threaded load hole for easy adaptation of mounting hardware or leveling feet typical of floor scales. Capacities range from 1,000 lb to 10,000 lb. Complete with 20 ft of load cell cable.

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
3.0 mV/V

Output Resistance:
350 (± 3) ohm

Input Resistance:
385 (± 5) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Welded-seal, IP67

Safe Overload:
150% full Scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02 full scale

Insulation Resistance:
5,000 megohms

Cable Length:
20 ft

Cable Diameter:
0.200 in polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited

Approvals:
cFMus
NTEP

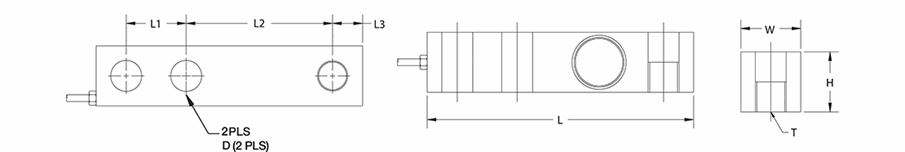

Rated Capacity L L1 L2 L3 W H D T
lb/in
1,000 to 5,000 SE 5.12 1.00 3.00 0.50 1.25 1.25 0.53 1/2-20 UNF
5,000 LE to 10,000 6.75 1.50 3.75 0.75 1.50 1.50 0.78 3/4-16 UNF





Resources / Downloads

Title Download Email
Celtron SQB-HSS Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

Part # Description List Price Cart
67118 Load Cell,SEB SQB-HSS-1K 1,000lb 20ft Celtron 3mv/v 350ohm NTEP III 5M SST WS IP67 FM

List Price: $344.00

67119 Load Cell,SEB SQB-HSS-2K 2,000lb 20ft Celtron 3mv/v 350ohm NTEP III 5M SST WS IP67 FM

List Price: $344.00

67120 Load Cell,SEB SQB-HSS-2.5 K 2,500lb 20ft Celtron 3mv/v 350ohm NTEP III 5M SST WS IP67 FM

List Price: $344.00

67121 Load Cell,SEB SQB-HSS-3K 3,000lb 20ft Celtron 3mv/v 350ohm NTEP III 5M SST WS IP67 FM

List Price: $344.00

67122 Load Cell,SEB SQB-HSS-4K 4,000lb 20ft Celtron 3mv/v 350ohm NTEP III 5M SST WS IP67 FM

List Price: $344.00

67123 Load Cell,SEB SQB-HSS-5K SE 5,000lb 20ft Celtron 3mv/v 350ohm NTEP III 5M SST WS IP67 FM

List Price: $344.00

67124 Load Cell,SEB SQB-HSS-5K LE 5,000lb 20ft Celtron 3mv/v 350ohm NTEP III 5M SST WS IP67 FM

List Price: $450.00

67125 Load Cell,SEB SQB-HSS-10K 10,000lb 20ft Celtron 3mv/v 350ohm NTEP III 5M SST WS IP67 FM

List Price: $450.00

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
