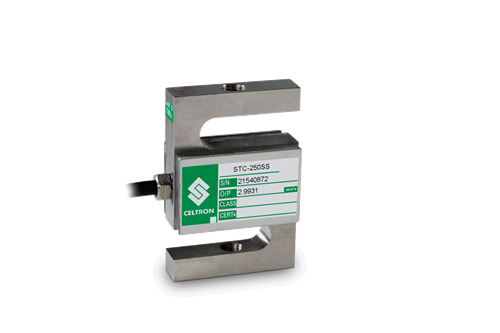

VPG Celtron STC SS Stainless Steel, S-Beam Load Cell

The VPG Celtron STC has been a popular industry s-beam for some time, and for the first time is available in a stainless steel version. This high-quality product is ideal for tension applications, and provides the additional protection of being manufactured from stainless steel. Capacities range from 250 lb to 10,000 lb. Each unit is provided with a standard 20 ft of load cell cable.

Approvals

Some approval documents are available to view by clicking the icons below.

LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
3.0 mV/V nominal

Output Resistance:
350 (± 3) ohm

Input Resistance:
385 (± 5) ohm

Material/Finish:
Stainless steel

Temperature:
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Nonlinearity:
0.03% full scale

Hysteresis:
0.02% full scale

Insulation Resistance:
5,000 megohms

Cable Length:
20 ft

Cable Diameter:
0.200 in polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited

Approvals:
cFMus

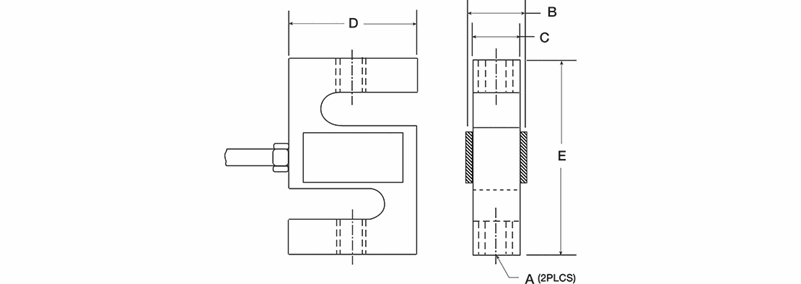

Rated Capacity A B C D E
lb/in
250 3/8-24 UNF 0.75 0.50 2.00 3.00
500 to 1,500 1/2-20 UNF 1.00 0.75 2.00 3.00
2,000 to 3,000 1/2-20 UNF 1.25 1.00 2.00 3.00
5,000 3/4-16 UNF 1.25 1.00 3.00 4.25
10,000 3/4-16 UNF 1.25 1.00 3.50 4.25





Resources / Downloads

Title Download Email
Celtron STC Low Capacity Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

Part # Description List Price Cart
46659 Load Cell,SBM STCSS-250lb 20ft Celtron 3mV/V 350 Ohm WW FM IP67

List Price: $312.00

46661 Load Cell,SBM STCSS-500lb 20ft Celtron 3mV/V 350 Ohm FM WW SST IP67

List Price: $312.00

46662 Load Cell,SBM STCSS-750lb Celtron 20ft 3mV/V 350Ohm FM WW SST IP67

List Price: $312.00

46663 Load Cell,SBM STCSS-1K 1000lb Celtron 20ft 3mV/V 350 Ohm FM WW SST IP67

List Price: $312.00

46664 Load Cell,SBM STCSS-1.5K 1500lb 20ft Celtron 3mV/V 350 Ohm FM WW SST IP67

List Price: $312.00

46665 Load Cell,SBM STCSS-2K 20ft Celtron 3mV/V 350 Ohm FM WW SST IP67

List Price: $312.00

46666 Load Cell,SBM STCSS-2.5K 2500lb 20ft Celtron 3mV/V 350 Ohm FM WW SST IP67

List Price: $335.00

46667 Load Cell,SBM STCSS-3K 3000lb 20ft Celtron 3mV/V 350 Ohm FM WW SST IP67

List Price: $335.00

46668 Load Cell,SBM STCSS-5K 5000lb 20ft Celtron 3mV/V 350 Ohm FM WW SST IP67

List Price: $470.00

46669 Load Cell,SBM STCSS-10K 10000lb 20ft Celtron 3mV/V FM WW SST IP67

List Price: $480.00

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

Portals 0 Products 70382A8666364bcb8f259df7f5e12f81 Orig

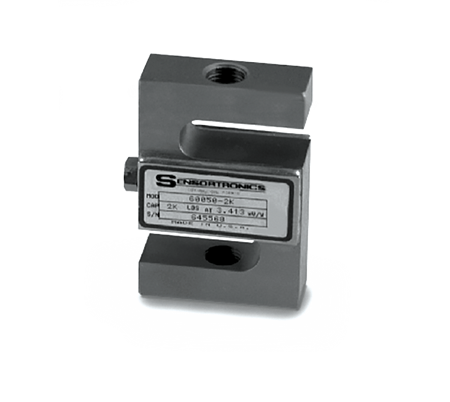

VPG Sensortronics 60050 Stainless Steel, S-Beam Load Cell
