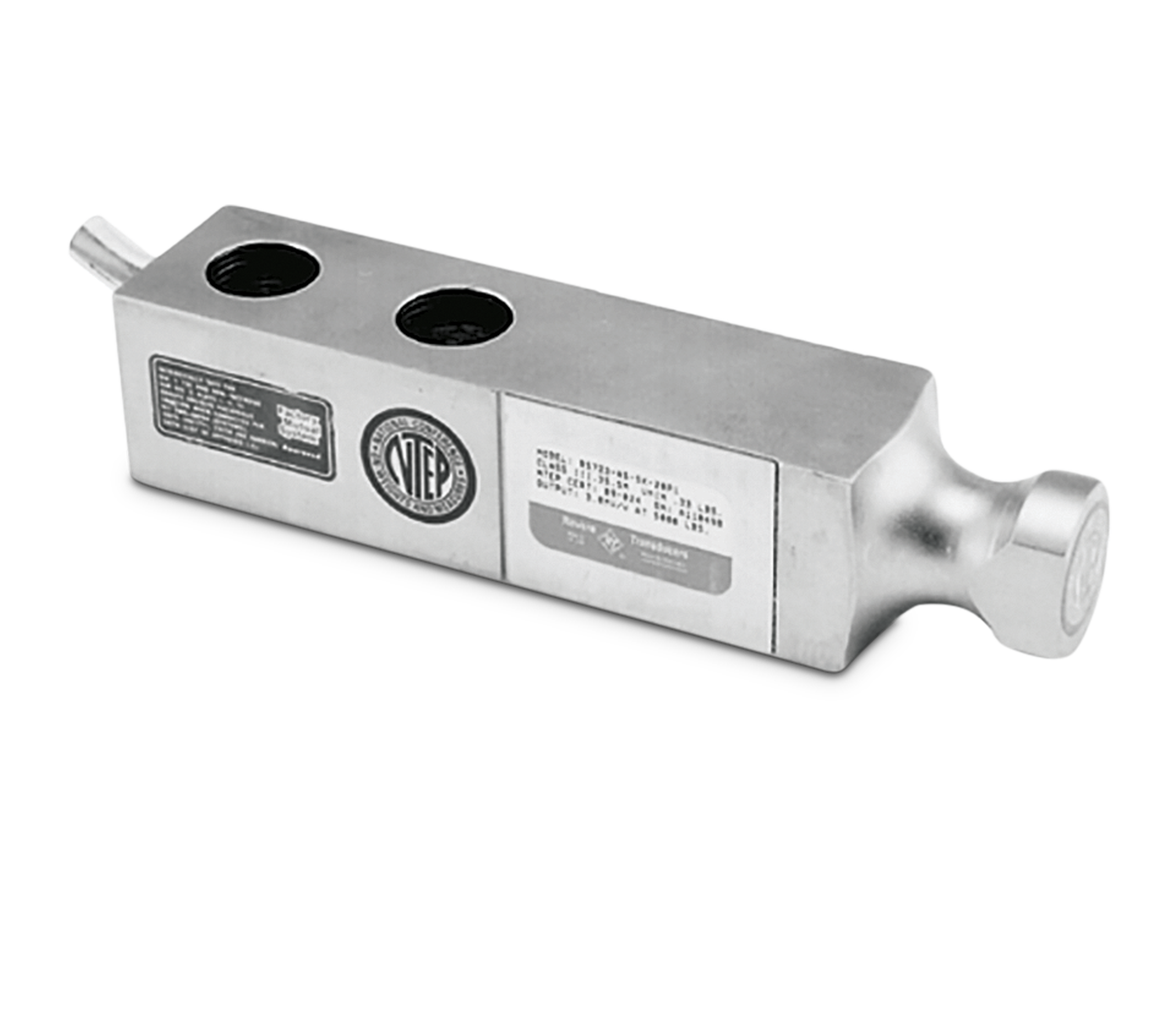

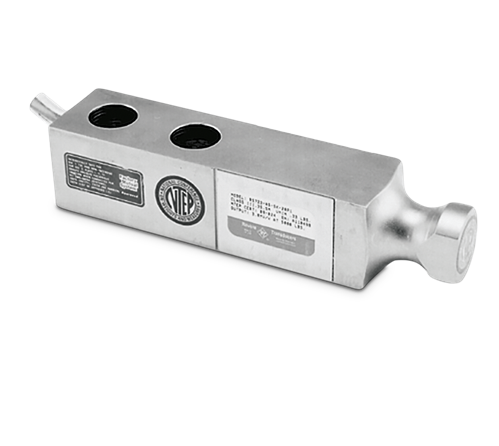

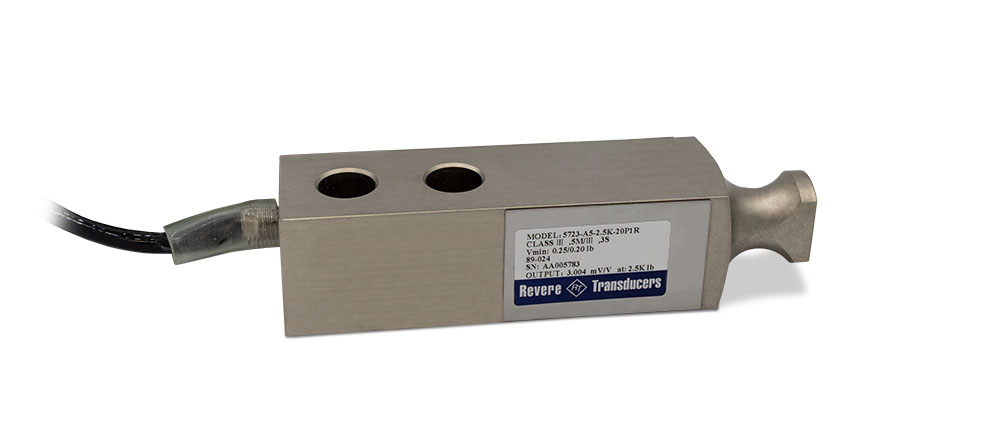

This high-performance single-ended beam load cell uses a well-proven link-loading technique. This low-cost and flexible loading method allows load movement without reading error in tanks, hoppers and platform scales. Capacities range from 1,000 to 10,000 lb.
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 31396 | Load Cell,SEB 5723-A5-1k -20P1 1,000lb 20ft RTI 3mV/V 350 OHM WW NTEP III 3S/5M FM Link IP67 | List Price: $550.00 | |
| 79713 | Load Cell,SEB 5723-A5- 1.5k-20P1 1500lb 20ft RTI 3 mv/v 350 OHM WW NTEP III 3S/5M FM LINK IP67 | List Price: $550.00 | |
| 31397 | Load Cell,SEB 5723-A5- 2.5k-20P1 2,500lb 20ft RTI 3mV/V 350 OHM WW NTEP III 3S/5M FM LINK IP67 | List Price: $650.00 | |
| 31398 | Load Cell,SEB 5723-A5-4k -20P1 4,000lb 20ft RTI 3mV/V 350 OHM WW NTEP III 3S/5M FM Link IP67 | List Price: $650.00 | |
| 31399 | Load Cell,SEB 5723-A5-5K -20P1 5,000lb 20ft RTI 3mV/V 350 OHM WW NTEP III 3S/5M FM Link IP67 | List Price: $725.00 | |
| 31400 | Load Cell,SEB 5723-A5- 10k-20P1 10,000lb 20ft RTI 3mV/V 350 OHM WW NTEP III 3S/5M FM LINK IP67 | List Price: $725.00 |
