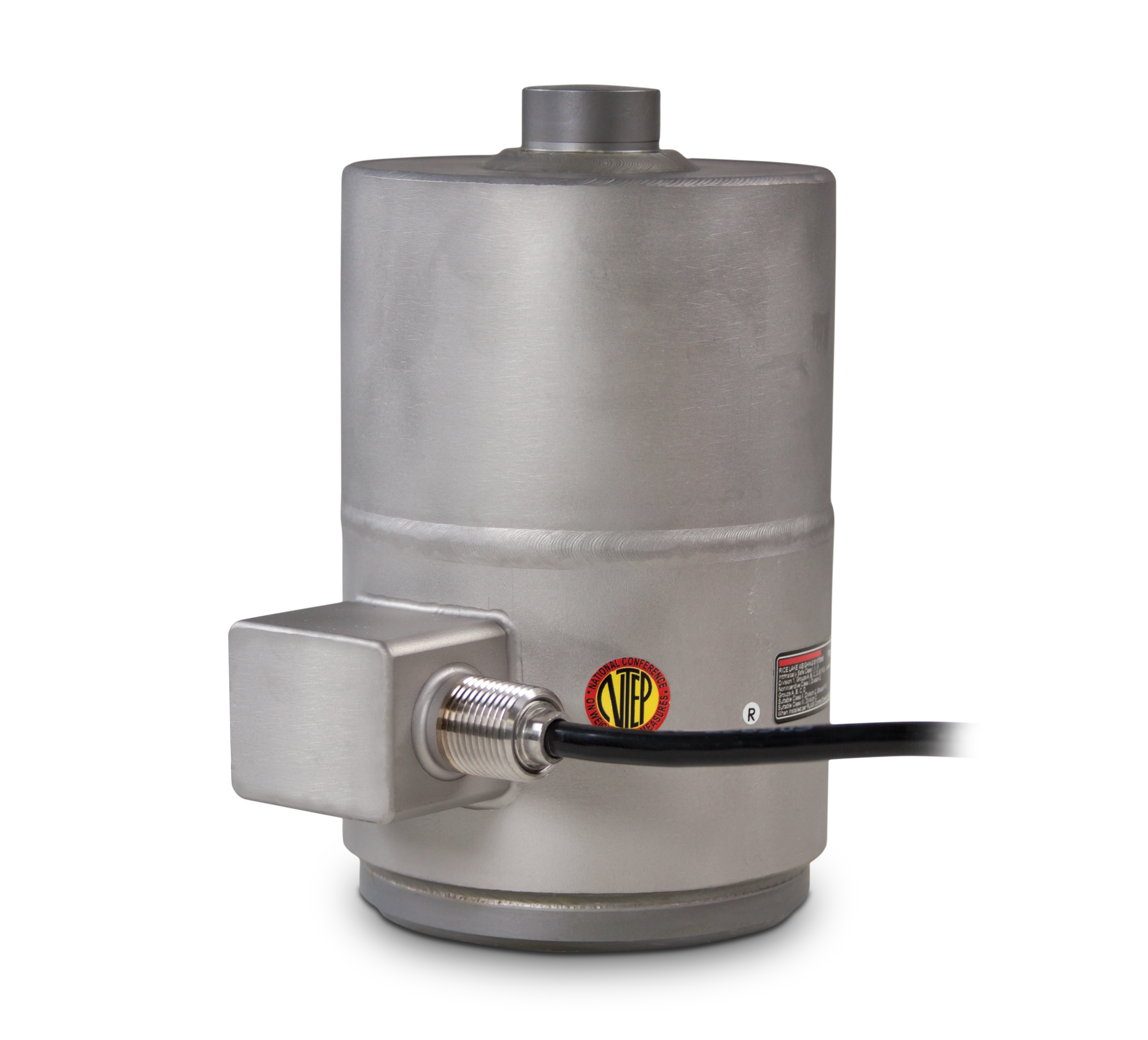

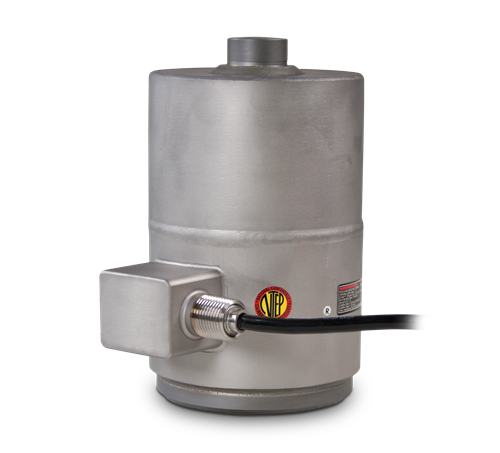

The 792 compression canister features a single-column design with low deflection and welded-seal for easy operation. The high-alloy steel and epoxy coating make this load cell ideal for use in harsh environments. It's available in capacities of 50,000 to 200,000 pounds, equipped with 35 feet of polyurethane cable.
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 31307 | Load Cell,CSR 792-B10-50k -35P5 50,000lb 35ft RTI 2mV/V 350 OHM EW NTEP IIIL 10 M FM SST WS IP68 | List Price: $2,326.00 | |
| 31306 | Load Cell,CSR 792-B10-100 K-35P5 100,000lb 35ft RTI 2mV/V 350 OHM EW NTEP IIIL 10 M FM SST WS IP68 | List Price: $2,326.00 | |
| 31305 | Load Cell,CSR 792-B10-200 K-35P5 200,000lb 35ft RTI 2mV/V 350 OHM EW NTEP IIIL 10 M FM SST WS IP68 | List Price: $3,598.00 |
