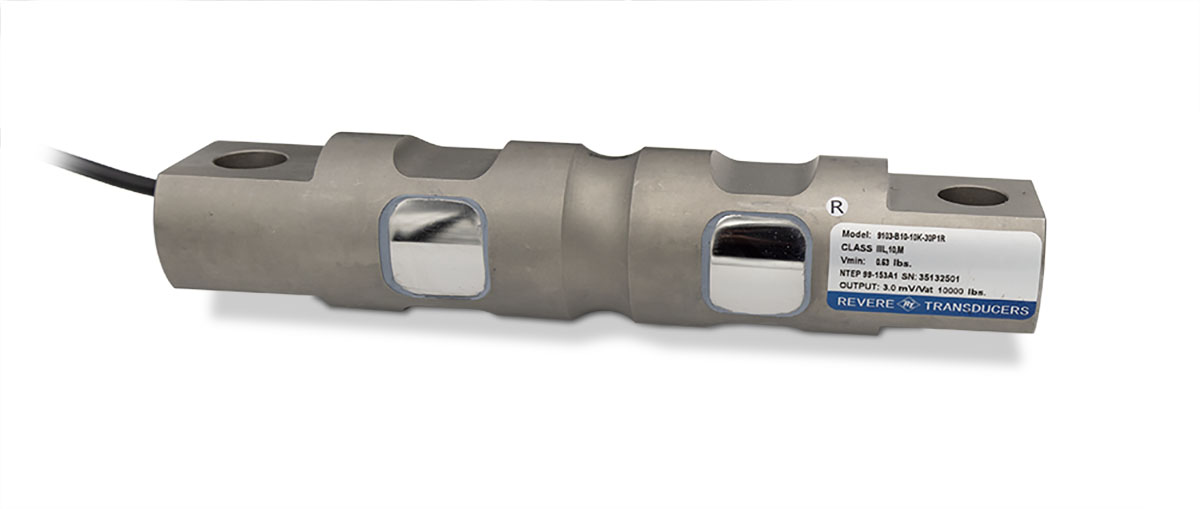

VPG® Revere 9103 Stainless Steel, Double-Ended Beam Load Cell

Stainless steel double-ended beam designed for truck, track and process weighing. High accuracy, low profile and tolerance to non-axial loading and redundant seal. NTEP Certified capacities range from 10,000 lb to 100,000 lb; non-NTEP Certified capacities of 5,000 lb and 150,000 lb. Complete with 30 ft of load cell cable.

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
3.0 mV/V

Output Resistance:
700 (± 7) ohm

Input Resistance:
700 (± 7) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.03% full scale

Non-repeatability:
0.02% full scale

Insulation Resistance:
5,000 megohm

Deflection at Capacity:
5,000 lb: 0.02 in
10,000 lb: 0.025 in
20,000 lb: 0.042 in
30,000 to 50,000 lb: 0.02 in
60,000 lb: 0.025 in
100,000 to 150,000 lb: 0.02 in

Cable Length:
30 ft

Cable Diameter:
0.295 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited

Approvals:
cFMus
NTEP

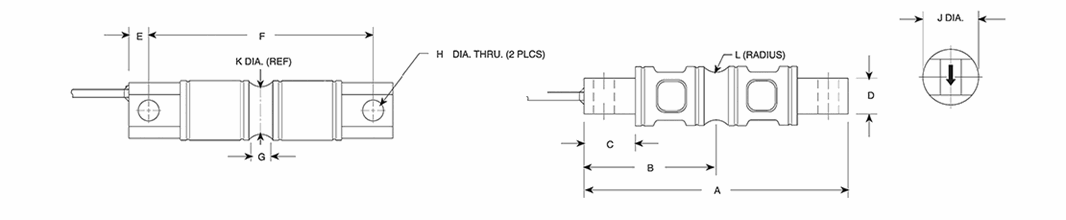

Rated Capacity A B C D E F G H J K L
lb/in
5,000 to 10,000 8.12 4.06 1.44 1.12 0.62 6.88 0.62 0.66 1.70 1.48 0.50
20,000 8.12 4.06 1.44 1.12 0.62 6.88 0.84 0.66 1.95 1.48 0.50
30,000 to 60,000 10.25 5.12 1.88 2.37 0.88 8.50 1.00 1.06 3.00 2.73 1.00
100,000 11.25 5.62 1.88 2.50 0.88 9.50 1.00 1.06 3.50 3.24 1.50
150,000 11.25 5.62 1.88 2.80 0.88 9.50 1.25 1.06 3.90 3.64 1.50





Resources / Downloads

Title Download Email
Revere 9103 Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook D Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

NTEP Certified

Part # Description List Price Cart
17329 Load Cell,DEB 9103-B10- 10k-30P1 10,000lb 30ft 3mv/v 700 Ohm NTEP IIIL 10M FM WW IP67 SST RTI

List Price: $820.00

17330 Load Cell,DEB 9103-B10- 20k-30P1 20,000lb 30ft 3mv/v 700 Ohm NTEP IIIL 10M FM WW IP67 SST RTI

List Price: $820.00

17331 Load Cell,DEB 9103-B10- 30k-30P1 30,000lb 30ft 3mv/v 700 Ohm NTEP IIIL 10M FM WW IP67 SST RTI

List Price: $901.00

17332 Load Cell,DEB 9103-B10- 40k-30P1 40,000lb 30ft 3mv/v 700 Ohm NTEP IIIL 10M FM WW IP67 SST RTI

List Price: $901.00

17333 Load Cell,DEB 9103-B10- 50k-30P1 50,000lb 30ft 3mv/v 700 Ohm NTEP IIIL 10M FM WW IP67 SST RTI

List Price: $1,007.00

17334 Load Cell,DEB 9103-B10- 60k-30P1 60,000lb 30ft 3mv/v 700 Ohm NTEP IIIL 10M FM WW IP67 SST RTI

List Price: $1,007.00

17335 Load Cell,DEB 9103-B10- 100k-30P1 100,000lb 30ft 3mv/v 700 Ohm NTEP IIIL 10M FM WW IP67 SST RTI

List Price: $1,960.00

Non-NTEP Certified

Options

Conduit Adapter Kit (must be factory installed to maintain warranty)

Part # Description List Price Cart
31534 Adapter,Conduit SST 1/4-18 NPT 3/8-24UNF-ZA

List Price: $37.00

31535 Adapter,Conduit SST 1/2in NPT 5/8-18UNF-2A

List Price: $37.00

Related Products

rl-RL70000SS-load-cell

Rice Lake RL70000SS Stainless Steel, Double-Ended Beam Load Cell

The Rice Lake RL70000SS double-ended beam, stainless steel load cell is designed for truck, track, and process weighing.

rl-rl72020SS-load-cell

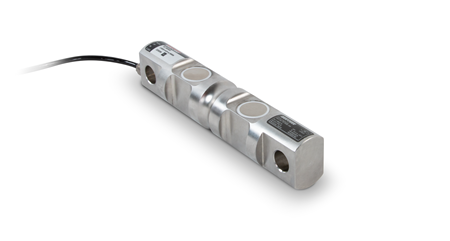

Rice Lake RL72020SS Stainless Steel, Double-Ended Beam Load Cell

The RL72020SS is a stainless steel, double-ended beam load cell with an environmental seal and Legal for Trade NTEP certification. Available in capacities of 5,000 lb to 60,000 lb, the RL72020SS is complete with 30 ft of cable.

Hdimage(1)

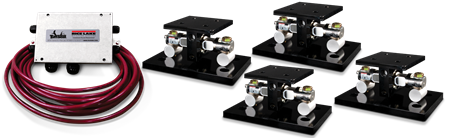

EZ Mount 1 Weigh Module with RL70000 Load Cell
