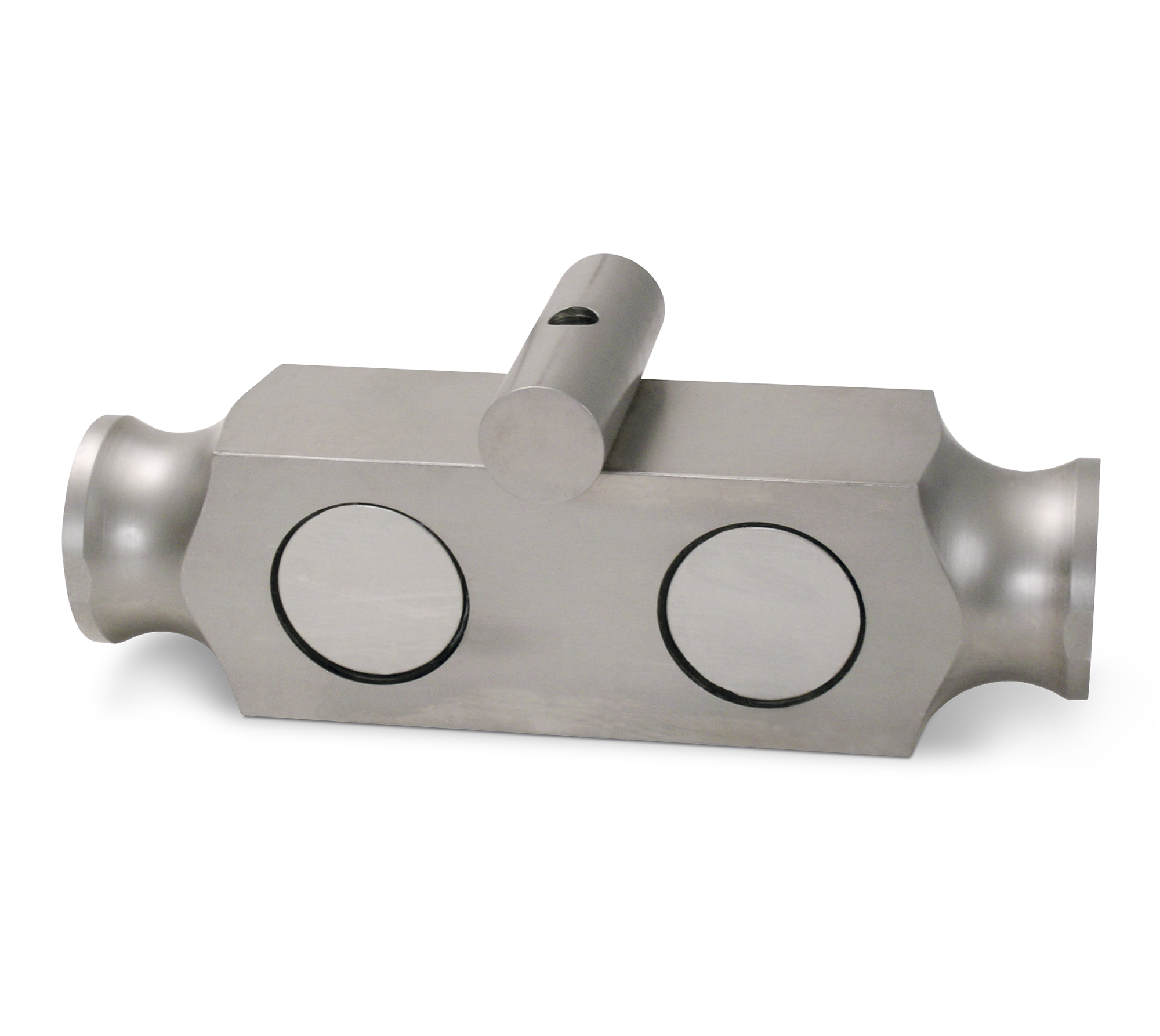

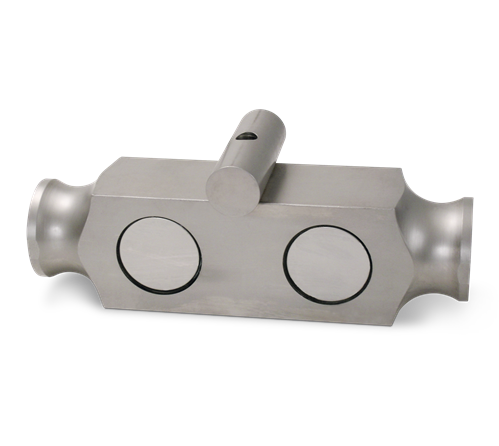

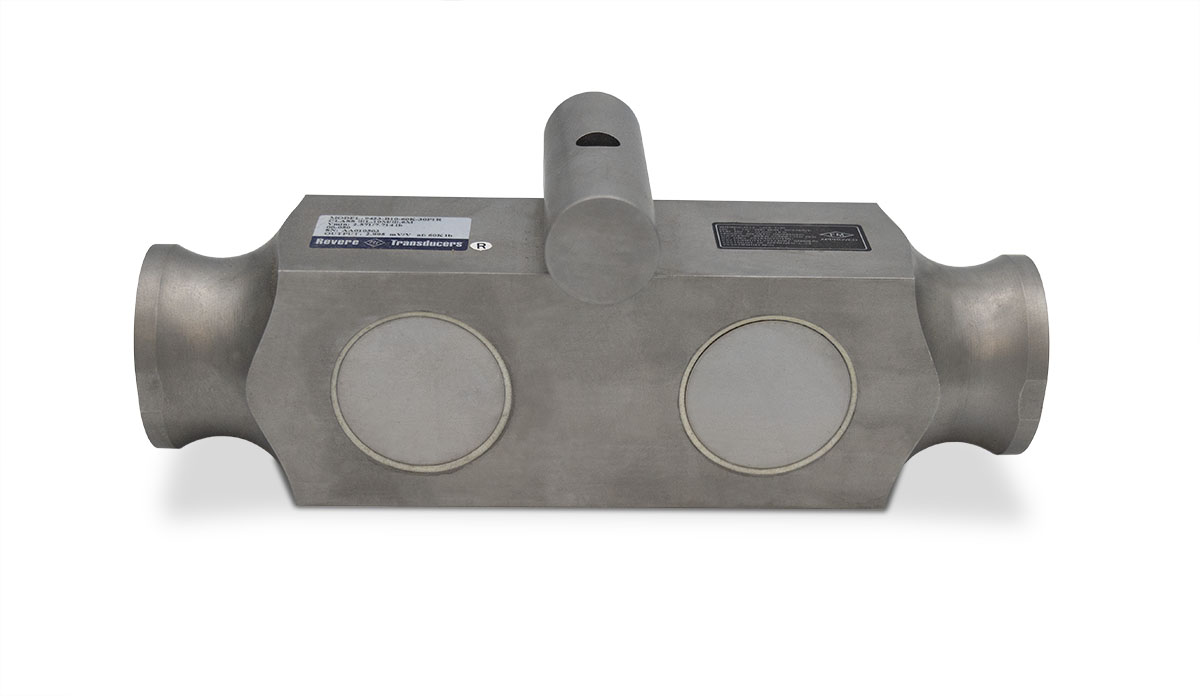

VPG Revere 9423 Stainless Steel, Double-Ended Beam Load Cell

Designed for low-profile track and truck scales in harsh environments. Parallel link loading provides free movement in all horizontal directions with virtually no friction. High-performance end-loaded, center-supported double-ended beam, available in 50,000 lb and 60,000 lb. Complete with 30 ft of load cell cable.

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
3.0 mV/V

Output Resistance:
700 (± 7) ohm

Input Resistance:
700 (± 7) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Non-repeatability:
0.01% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
30 ft

Cable Diameter:
0.295 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited

Approvals:
cFMus
NTEP

Rated Capacity A B C E F G H J K R S T
lb/in
50,000 to 60,000 8.50 2.45 1.95 7.25 3.62 0.63 0.75 1.75 2.00 3.38 3.00 1.00





Resources / Downloads

Title Download Email
Revere 9423 Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook D Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

Part # Description List Price Cart / Quote
79711 Load Cell,DEB 9423-B10- 50k-30P1 50000lb 30ft RTI 3 mv/v 700 OHM WW NTEP IIIL 10M SST

List Price: $1,007.00

79712 Load Cell,DEB 9423-B10- 60k-30P1 60000lb 30ft RTI 3 mv/v 700 OHM WW NTEP IIIL 10M SST

List Price: $1,055.00
