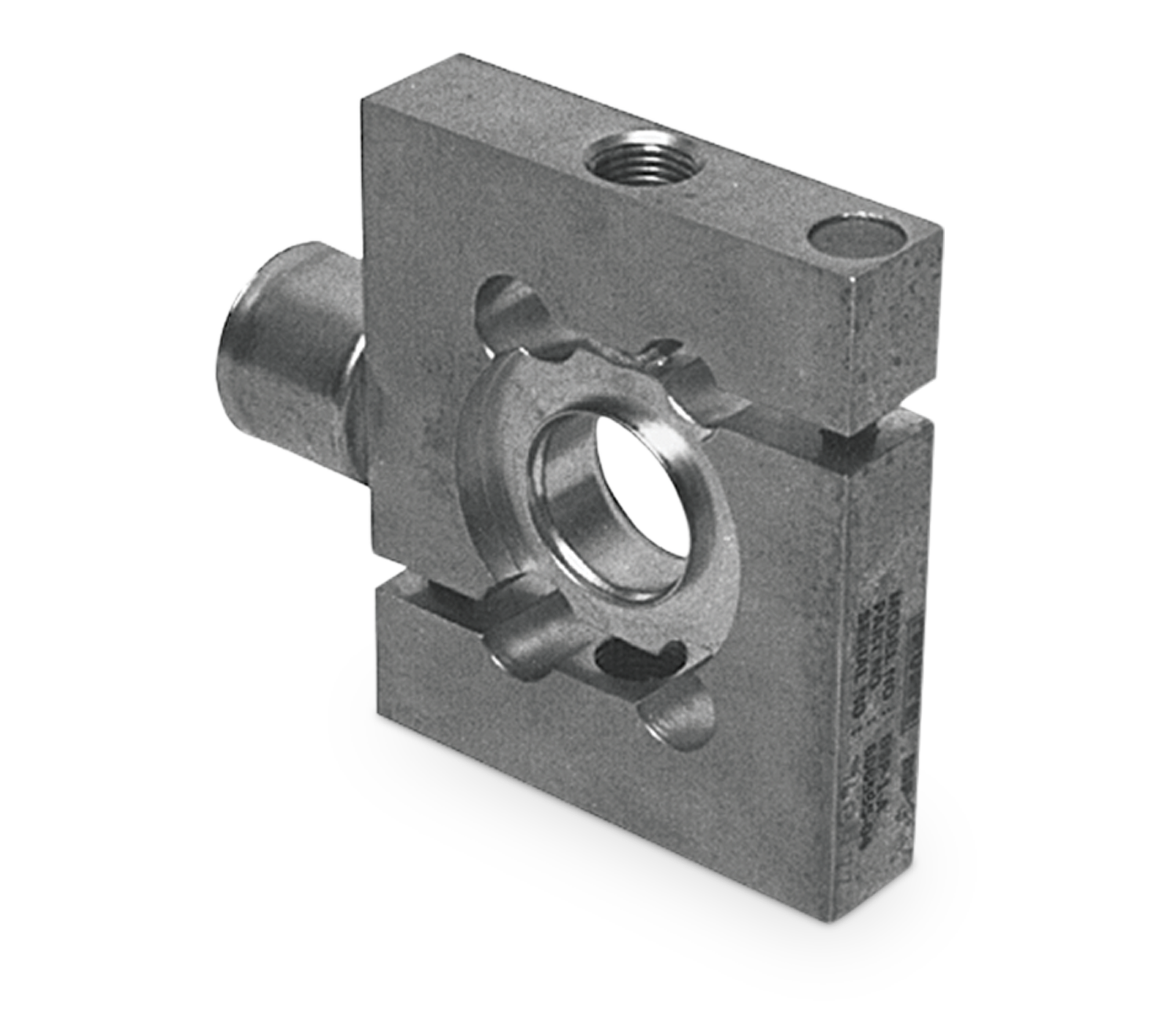

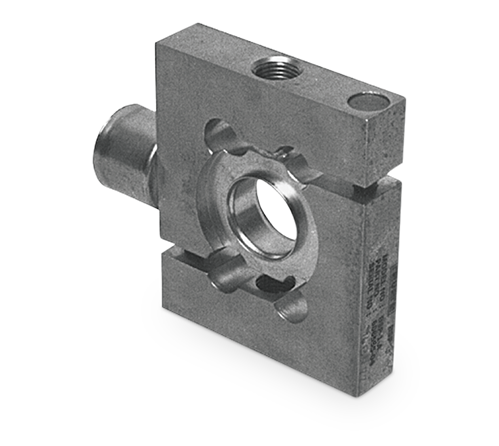

VPG® Revere BSP Stainless Steel, S-Beam Load Cell

Welded-seal stainless steel S-beam load cell designed for compression and tension. Ideal for scale conversions and general-purpose weighing. NTEP Certified capacities range from 100 lb to 5,000 lb; non-NTEP Certified capacity of 10,000 lb. Complete with 30 ft of load cell cable.

Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65
rl-VPG-revere-BSP-s-beam-load-cell

Full Scale Output:
3.0 mV/V

Output Resistance:
350 (±3.5) ohm

Input Resistance:
350 (±3.5) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Welded-seal, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.03% full scale

Non-repeatability:
0.01% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
30 ft

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal

Warranty:
One-year limited

Approvals:
NTEP
cFMus

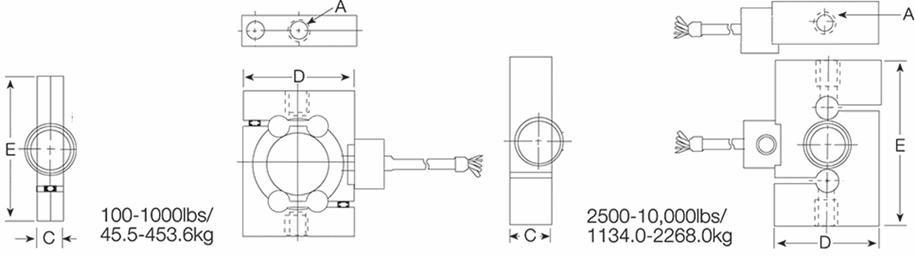

Rated Capacity A C D E
lb/in
100 to 250 3/8-24 UNF 0.94 2.48 3.32
500 1/2-20 UNF 0.71 2.44 3.50
1,000 1/2-20 UNF 0.71 2.44 3.50
2,500 1/2-20 UNF 0.95 2.44 3.75
5,000 to 10,000 1-14 UNS 1.44 2.44 4.75





Resources/Downloads

Title Download Email
Revere BSP Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook D Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

NTEP Certified

Part # Description List Price Cart/Quote
21447 Load Cell,SBM BSP-B10-100 -30P5 100lb 30ft 3mv/v 350 Ohm NTEP IIIL 10S FM EW IP67 SST WS RTI

List Price: $965.00
21448 Load Cell,SBM BSP-B10-250 -30P5 250lb 30ft 3mv/v 350 Ohm NTEP IIIL 10S FM EW IP67 SST WS RTI

List Price: $965.00
21449 Load Cell,SBM BSP-B10-500 -30P5 500lb 30ft 3mv/v 350 Ohm NTEP IIIL 10S FM EW IP67 SST WS RTI

List Price: $965.00
21450 Load Cell,SBM BSP-B10-1K- 30P5 1000lb 30ft 3mv/v 350 Ohm NTEP IIIL 10S FM EW IP67 SST WS RTI

List Price: $965.00
21451 Load Cell,SBM BSP-B10- 2.5K-30P5 2500 lb 30ft 3mv/v 350 Ohm NTEP IIIL 10S FM EW SST WS WS RTI

List Price: $995.00
21452 Load Cell,SBM BSP-B10-5K- 30P5 5000lb 30ft 3mv/v 350 Ohm NTEP IIIL 10S FM EW IP67 SST WS RTI

List Price: $1,025.00

Non-NTEP Certified
