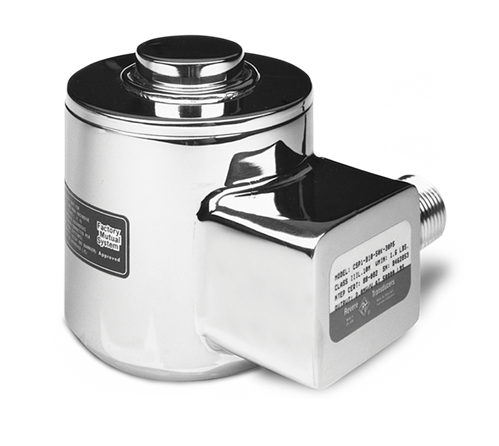

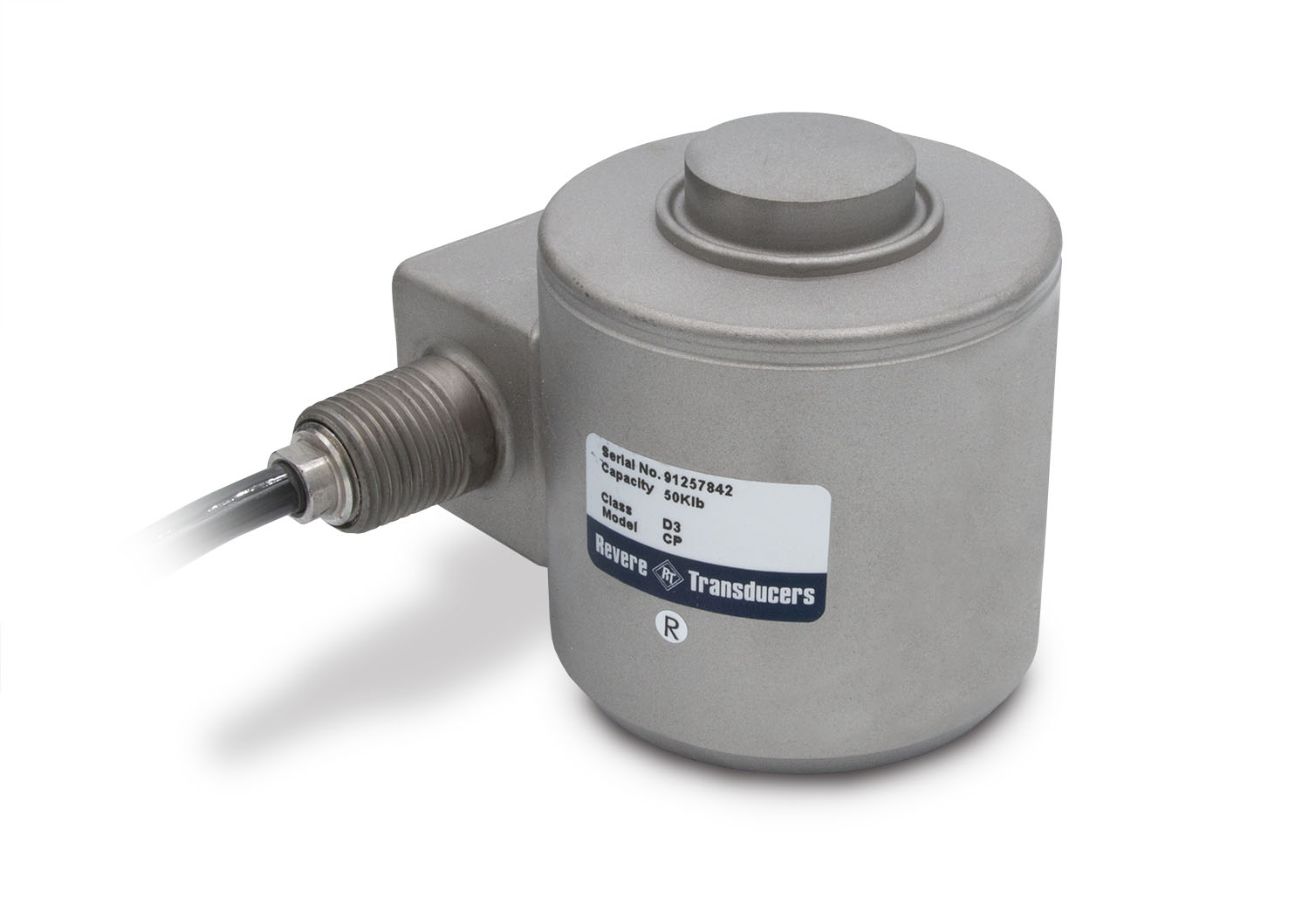

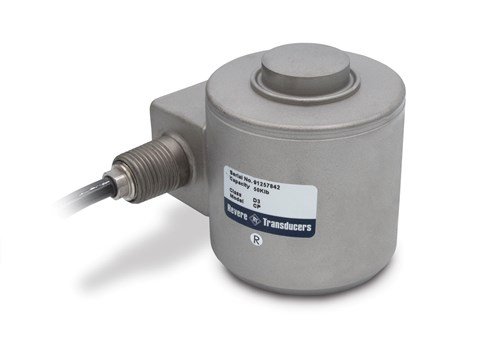

VPG Revere CP Stainless Steel, Compression Canister Load Cell

This welded-seal, canister cell is designed for compression service only. High-capacity transducers are built for reliability, durability and extreme precision. Compression Precision (CP) cells are recommended for most industrial applications. Single or dual bridges available for 10,000 to 500,000 lb capacities. Completed with 30 ft of load cell cable.

Approvals

Some approval documents are available to view by clicking the icons below.

LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
1.75 mV/V

Output Resistance:
480 (± 4.8) ohm

Input Resistance:
450 (± 4.5) ohm

Material/Finish:
Stainless steel

Temperature:
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Welded-seal, IP68

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.15% full scale

Non-repeatability:
0.03% full scale

Insulation Resistance:
5,000 megohms

Deflection at Capacity:
10,000 to 50,000 lb: 0.003 in
100,000 to 300,000 lb: 0.006 in
500,000 lb: 0.009 in

Cable Length:
30 ft

Cable Diameter:
0.295 in polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal

Warranty:
One-year limited

Approvals:
cFMus

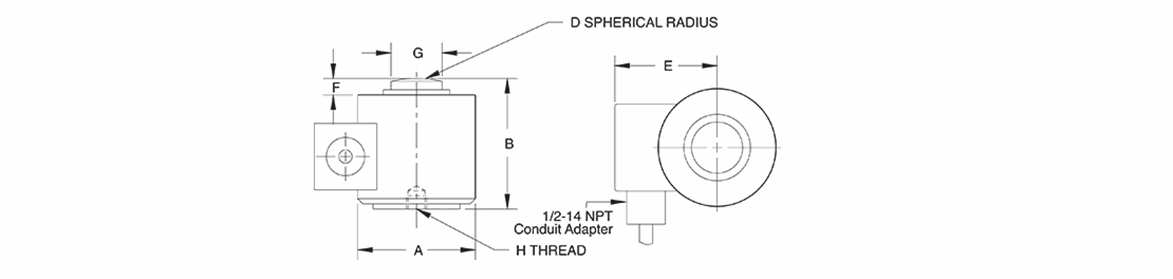

Rated Capacity A B D E F G H DEPTH of H
lb/in
10,000 to 50,000 2.48 3.25 6.00 3.30 0.40 1.25 1/2-20 UNF 0.31
100,000 4.12 5.00 6.00 3.50 0.51 2.31 3/4-16 UNF 0.56
200,000 to 300,000 6.00 7.25 17.00 4.60 1.04 3.13 3/4-16 UNF 0.75
500,000 6.50 9.00 17.00 4.80 0.56 3.69 3/4-16 UNF 0.75





Resources / Downloads

Title Download Email
Revere CP Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

Part # Description List Price Cart
17588 Load Cell,CSR CP-D3-10K- 30P5 10,000lb 30ft 1.75mv/v 480 Ohm FM EW IP68 SST WS Comp. RTI

List Price: $1,425.00

17589 Load Cell,CSR CP-D3-25K- 30P5 25,000lb 30ft 1.75mv/v 480 Ohm FM EW IP68 SST WS Comp. RTI

List Price: $1,425.00

17590 Load Cell,CSR CP-D3-50K- 30P5 50,000lb 30ft 1.75mv/v 480 Ohm FM EW IP68 SST WS Comp. RTI

List Price: $1,425.00

17591 Load Cell,CSR CP-D3-100K- 30P5 100,000lb 30ft 1.75mv/v 480 Ohm FM EW IP68 SST WS Comp. RTI

List Price: $1,575.00

17592 Load Cell,CSR CP-D3-200K- 30P5 200,000lb 30ft 1.75mv/v 480 Ohm FM EW IP68 SST WS Comp. RTI

List Price: $2,432.00

17593 Load Cell,CSR CP-D3-300K- 30P5 300,000lb 30ft 1.75mv/v 480 Ohm FM EW IP68 SST WS Comp. RTI

List Price: $2,676.00

17594 Load Cell,CSR CP-D3-500K- 30P5 500,000lb 30ft 1.75mv/v 480 Ohm FM EW IP68 SST WS Comp. RTI

List Price: $4,765.00

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
