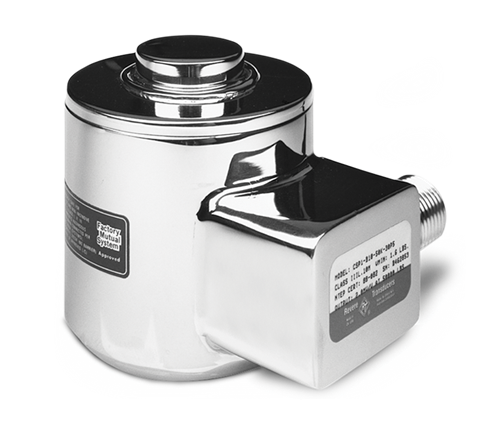

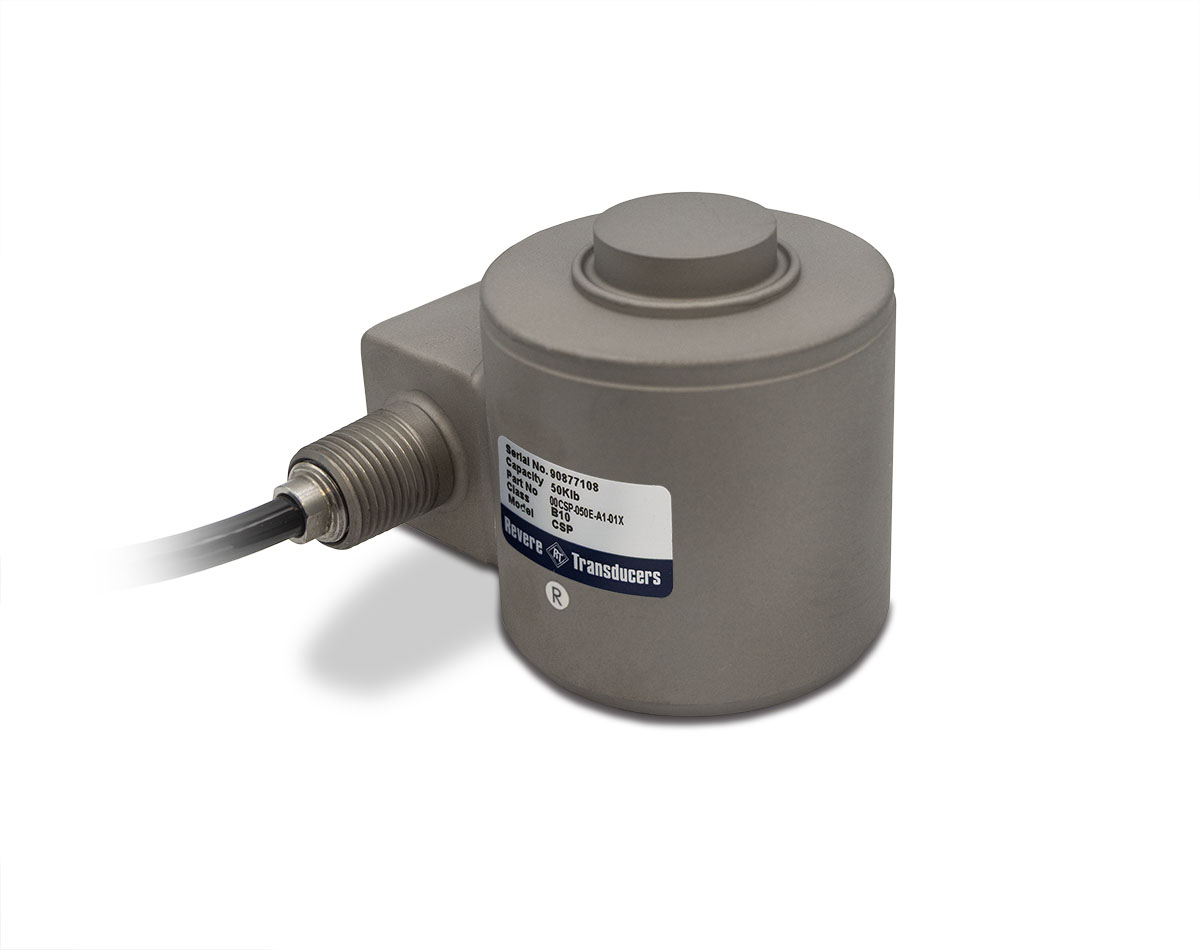

VPG Revere CSP Stainless Steel, Compression Canister Load Cell

This welded-seal, stainless steel canister cell is designed for compression service only. High-capacity transducers are built for reliability, durability and extreme precision. Compression Super Precision (CSP) cells are ideal for applications where ultimate precision is needed. Single or dual bridges available for 10,000 lb only. NTEP Certified capacities range from 25,000 to 200,000 lb; non-NTEP Certified capacities are 10,000 lb and 500,000 lb. Complete with 30 ft of load cell cable.

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS OIML Logo

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
2 mV/V

Output Resistance:
480 (± 4.8) ohm

Input Resistance:
450 (± 4.5) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Welded-seal, IP68

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale (0.05% Non-NTEP Certified)

Non-repeatability:
0.01% full scale

Insulation Resistance:
5,000 megohms

Deflection at Capacity:
10,000 to 50,000 lb: 0.003 in
100,000 to 300,000 lb: 0.006 in
500,000 lb: 0.009 in

Cable Length:
30 ft
60 ft

Cable Diameter:
0.295 in polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal

Warranty:
One-year limited

Approvals:
cFMus
NTEP
OIML

Rated Capacity A B C D E F G H DEPTH of H
lb/in
10,000 to 50,000 2.88 3.25 1.28 6.00 2.51 0.40 1.25 1/2-20 UNF 0.38
100,000 4.12 5.00 2.15 6.00 3.39 0.51 2.31 3/4-16 UNF 0.56
200,000 to 300,000 6.00 7.25 3.63 17.00 4.26 1.04 3.13 3/4-16 UNF 0.75
500,000 6.50 9.00 4.34 17.00 4.59 0.56 3.69 3/4-16 UNF 0.75





Resources / Downloads

Title Download Email
Revere CSP Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

NTEP Certified

Part # Description List Price Cart
21649 Load Cell,CSR CSP-B10-25K -30P5 25,000lb 30ft 2mv/v 480 Ohm NTEP IIIL 10M FM EW IP68 SST WS C RTI

List Price: $1,700.00

21650 Load Cell,CSR CSP-B10-50K -30P5 50,000lb 30ft 2mv/v 480 Ohm NTEP IIIL 10M FM EW IP68 SST WS C RTI

List Price: $1,700.00

21651 Load Cell,CSR CSP-B10- 100K-30P5 100,000lb 30ft 2mv/v 480 Ohm NTEP IIIL 10M FM EW IP68 SST WS C RTI

List Price: $1,892.00

21652 Load Cell,CSR CSP-B10- 200K-30P5 200,000lb 30ft 2mv/v 480 Ohm NTEP IIIL 10M FM EW IP68 SST WS C RTI

List Price: $2,538.00

NTEP Certified 60ft Cable

Non-NTEP Certified

OIML 60ft Cable

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

Hdimage(1)

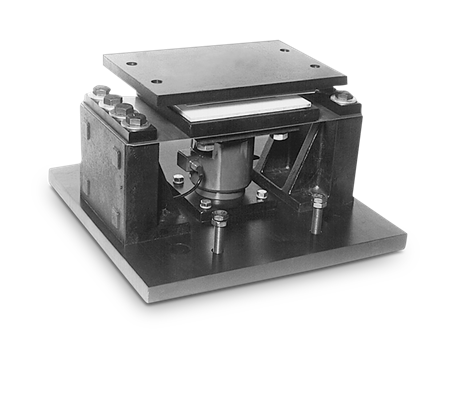

MagnaMount® Tank, Truck, Rail Assembly

The MagnaMount tank, truck and railroad scale assembly is designed for use with Rice Lake Weighing Systems RLCSP1 or Revere Transducers CP or CSP load cells.

Portals 0 Products 187C44aedec04a719304745455aaa8e8 Orig

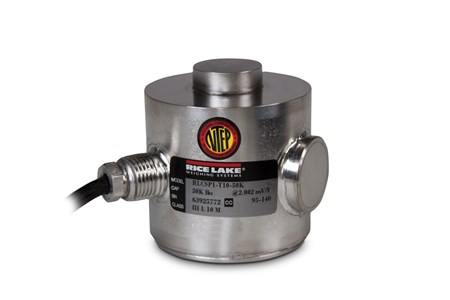

Rice Lake RLCSP1 Stainless Steel, Compression Canister Load Cell
