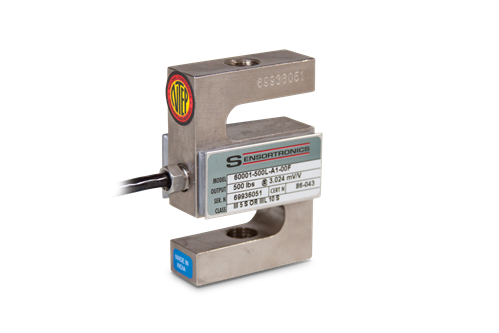

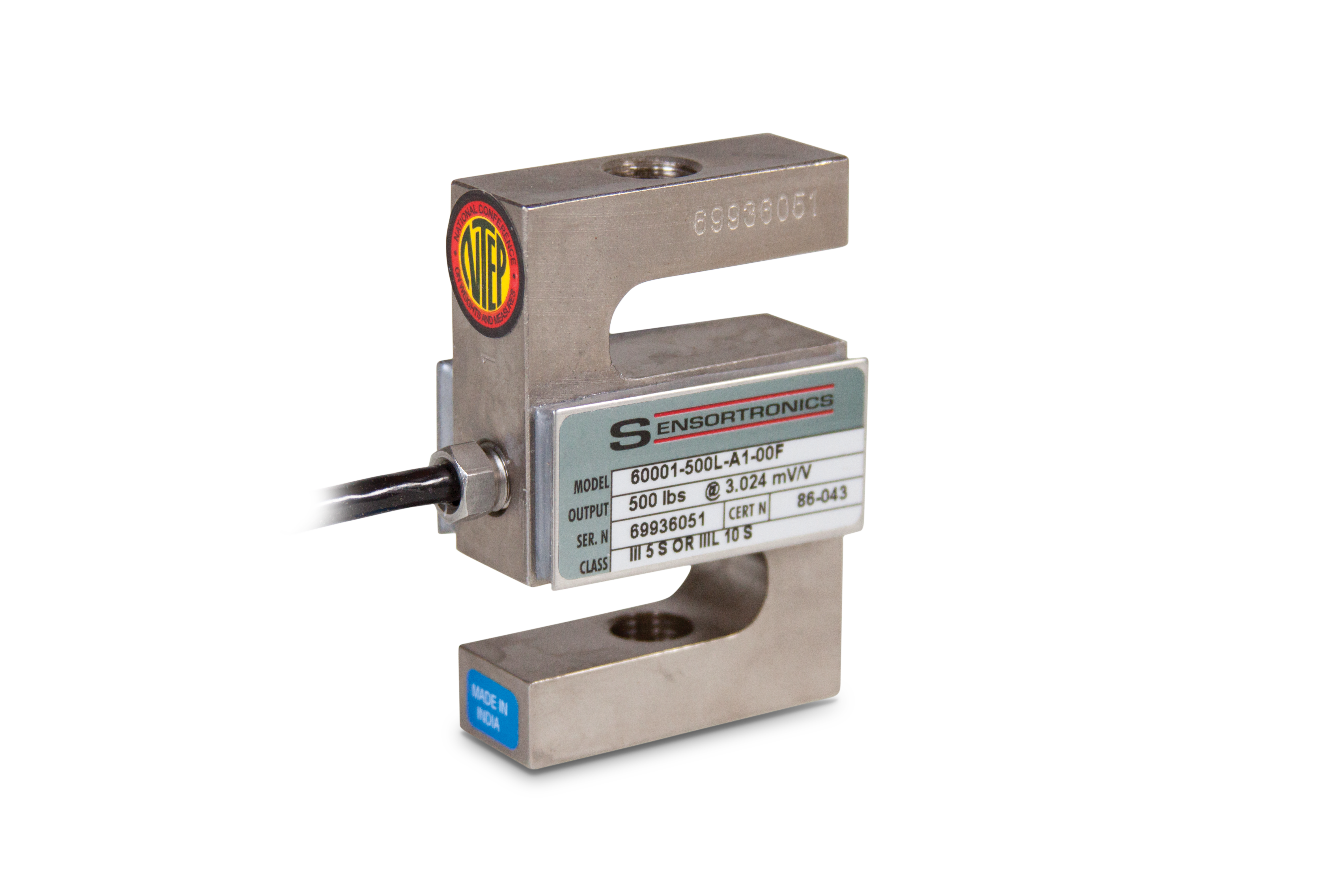

VPG Sensortronics 60001 Alloy Steel, S-Beam Load Cell

Suitable for single- or multiple-cell tension load applications. Nickel plated, high-alloy steel construction. Complete with 20 ft of load cell cable and full environmental protection with stainless steel side plates. Capacities range from 25 lb to 20,000 lb. Capacities of 5,000 lb or higher have standardized output for multiple-cell installations.

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
3.0 mV/V

Output Resistance:
349 to 355 ohms

Input Resistance:
343 to 450 ohms

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 V DC (15 V maximum)

Combined Error:
0.03% full scale

Insulation Resistance:
5,000 megohms

Cable Length:
20 ft

Cable Diameter:
0.200 in polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited

Approvals:
cFMus
NTEP

Rated Capacity A B C D E
lb/in
25 to 200 1/4-28 UNF 0.65 0.50 2.00 2.50
250 to 300 3/8-24 UNF 0.75 0.50 2.00 3.00
500 to 2,000 1/2-20 UNF 1.00 0.75 2.00 3.00
2,500 to 3,000 1/2-20 UNF 1.25 1.00 2.00 3.00
5,000 3/4-16 UNF 1.25 1.00 3.00 4.25
10,000 3/4-16 UNF 1.25 1.00 3.50 4.75
15,000 1-14 UNS 1.50 1.25 4.00 5.50
20,000 1 1/4-12 UNF 2.25 2.00 5.00 7.00





Resources / Downloads

Title Download Email
Sensortronics 60001 Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

Part # Description List Price Cart
61116 Load Cell,SBM 60001A25- 1177 25lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67

List Price: $312.00

61117 Load Cell,SBM 60001A50- 1177 50lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67

List Price: $312.00

61118 Load Cell,SBM 60001A100- 1177 100lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67

List Price: $312.00

61119 Load Cell,SBM 60001A200- 1177 200lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM

List Price: $312.00

61120 Load Cell,SBM 60001A250- 1177 250lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67

List Price: $312.00

61121 Load Cell,SBM 60001A300- 1177 300lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67

List Price: $312.00

61122 Load Cell,SBM 60001A500- 1177 500lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67

List Price: $312.00

61123 Load Cell,SBM 60001A750- 1177 750lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67

List Price: $312.00

61124 Load Cell,SBM 60001A1K- 1177 1000lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67

List Price: $312.00

61125 Load Cell,SBM 60001A1.5K- 1177 1500lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67

List Price: $312.00

61126 Load Cell,SBM 60001A2K- 1177 2000lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67

List Price: $312.00

61127 Load Cell,SBM 60001A2.5K- 1177 2500lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67

List Price: $355.00

61128 Load Cell,SBM 60001A3K- 1177 3000lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67

List Price: $355.00

61129 Load Cell,SBM 60001A5K 1177 5000lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67

List Price: $503.00

61130 Load Cell,SBM 60001A10K- 1177 10,000lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67

List Price: $503.00

61131 Load Cell,SBM 60001A15K- 1177 15,000lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67

List Price: $609.00

61132 Load Cell,SBM 60001A20K- 1177 20,000lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67

List Price: $949.00

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

WEB SC RL20000I S Beam

Rice Lake RL20000I Alloy Steel, S-Beam Load Cell

The alloy steel, Rice Lake RL20000I S-beam load cell is ideally suited for scale conversions and general purpose weighing.

Portals 0 Products 80E825053d944d4faa7ab5e86932c58e Orig

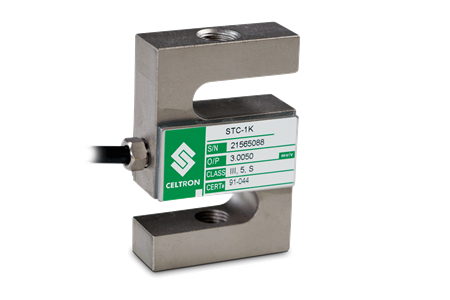

VPG Celtron STC Alloy Steel, S-Beam Load Cell
