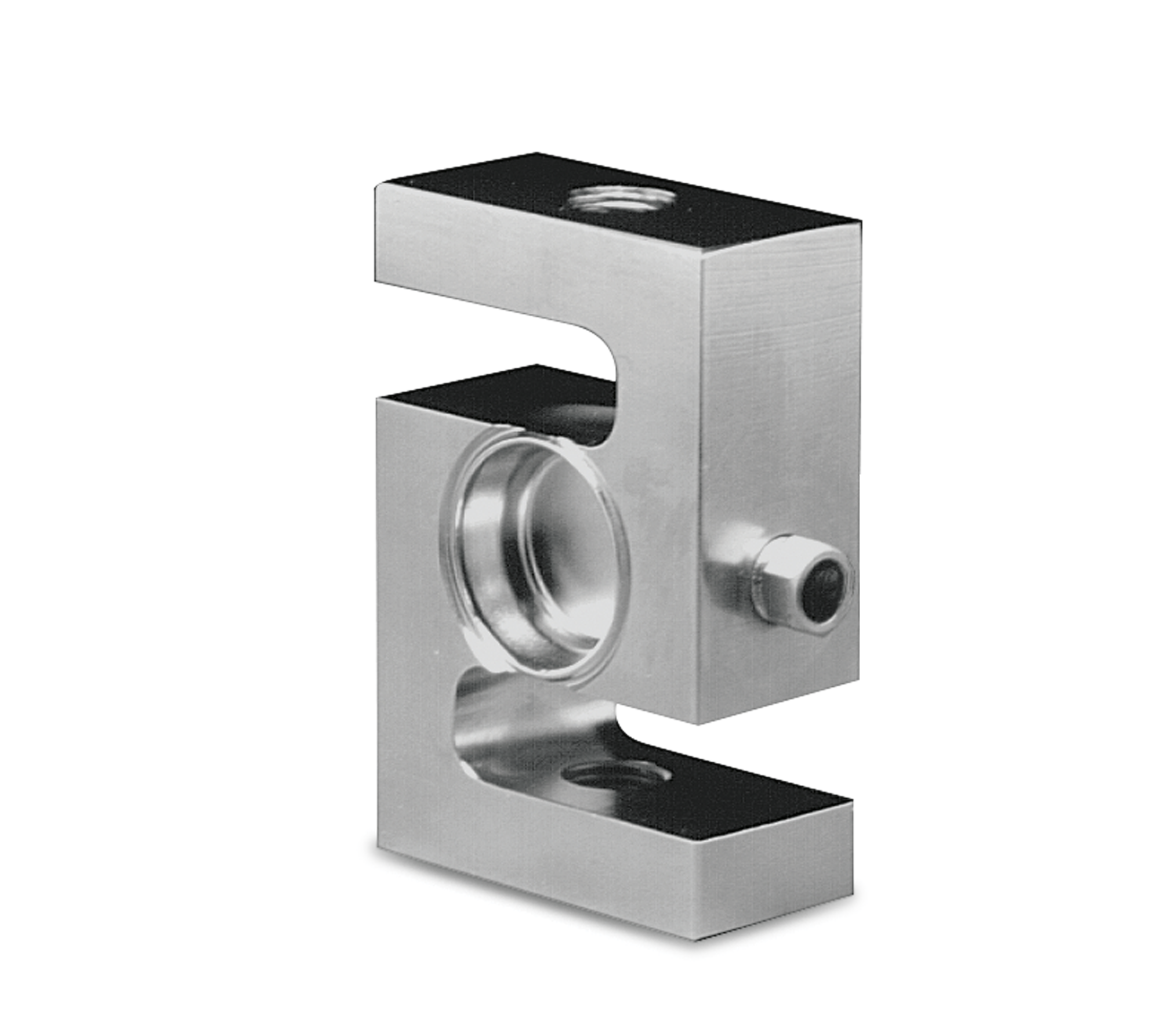

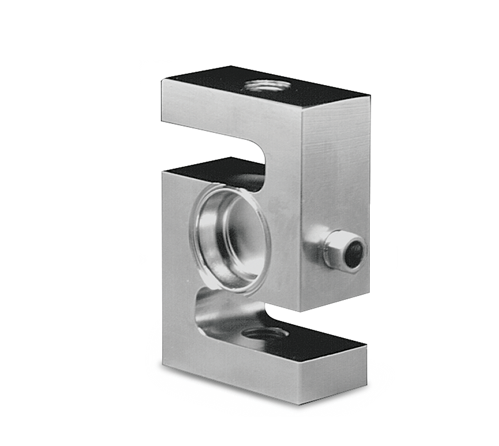

VPG Sensortronics 60063 Stainless Steel, S-Beam Load Cell

Welded-seal, stainless steel, s-beam load cell designed for compression and tension. Ideal for scale conversions and general-purpose weighing. NTEP Certified in capacities ranging from 500 lb to 5,000 lb. 10,000 lb is non-NTEP Certified.

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
2.0 mV/V

Output Resistance:
349 to 355 ohms

Input Resistance:
349 to 350 ohms

Material/Finish:
Stainless steel

Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Welded-seal, IP68

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 V DC (15 V maximum)

Combined Error:
0.03% full scale

Insulation Resistance:
5,000 megohms

Cable Length:
20 ft

Cable Diameter:
0.200 in polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited

Approvals:
cFMus
NTEP

Rated Capacity A B D E
lb/in
500 to 3,000 1/2-20 UNF 1.00 2.00 3.00
5,000 to 10,000 3/4-16 UNF 1.00 3.50 4.75





Resources / Downloads

Title Download Email
Sensortronics 60063 Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

NTEP Certified

Part # Description List Price Cart
36272 Load Cell,SBM 60063S500- 1000 500lb 20ft SENSTRS 2mV/V 350 OHM WW SST WS IP68 NTEP 1:5000 Class III/1:10000 Class IIIL Single Cell

List Price: $875.00

36273 Load Cell,SBM 60063S750- 1000 750lb 20ft SENSTRS 2mV/V 350 OHM WW SST WS IP68 NTEP 1:5000 Class III/1:10000 Class IIIL Single Cell

List Price: $875.00

36274 Load Cell,SBM 60063S1K- 1000 1,000lb 20ft SENSTRS 2mV/V 350 OHM WW SST WS IP68 NTEP 1:5000 Class III/1:10000 Class IIIL Single Cell

List Price: $875.00

36275 Load Cell,SBM 60063S1.5K- 1000 1,500lb 20ft SENSTRS 2mV/V 350 OHM WW SST WS IP68 NTEP 1:5000 Class III/1:10000 Class IIIL Single Cell

List Price: $875.00

36276 Load Cell,SBM 60063S2K- 1000 2,000lb 20ft SENSTRS 2mV/V 350 OHM WW SST WS IP68 NTEP 1:5000 Class III/1:10000 Class IIIL Single Cell

List Price: $875.00

36277 Load Cell,SBM 60063S2.5K- 1000 2,500lb 20ft SENSTRS 2mV/V 350 OHM WW SST WS IP68 NTEP 1:5000 Class III/1:10000 Class IIIL Single Cell

List Price: $875.00

36278 Load Cell,SBM 60063S3k- 1000 3,000lb 20ft SENSTRS 2mV/V 350 OHM WW SST WS IP68 NTEP 1:5000 Class III/1:10000 Class IIIL Single Cell

List Price: $875.00

36279 Load Cell,SBM 60063S5k- 1000 5,000lb 20ft SENSTRS 2mV/V 350 OHM WW SST WS IP68 NTEP 1:5000 Class III/1:10000 Class IIIL Single Cell

List Price: $1,160.00

Non-NTEP Certified

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

RL20001HE

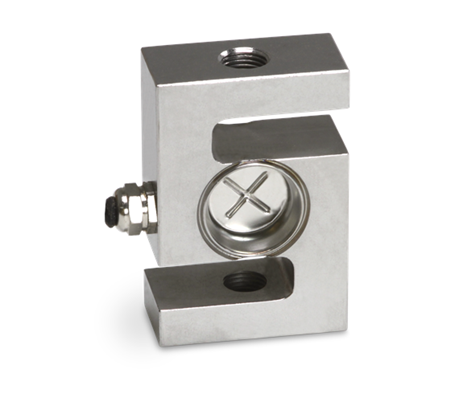

Rice Lake RL20001HE Stainless Steel, S-Beam Load Cell
