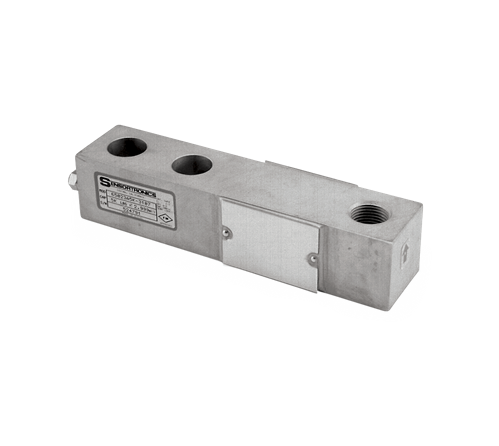

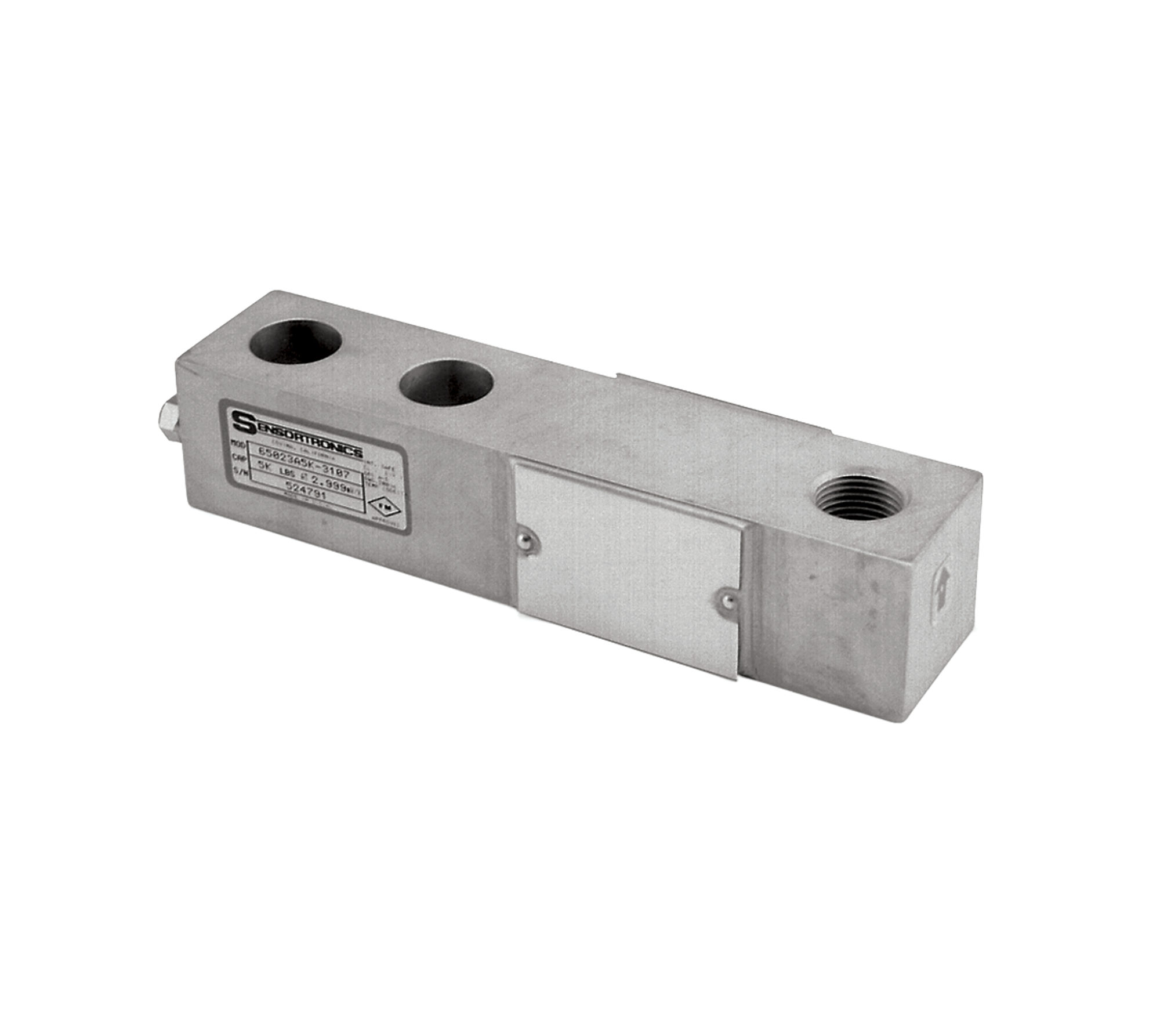

This model is manufactured from alloy steel, is nickel plated to provide protection from the elements and features mV/V/ohm calibration. It's available in three capacities and two lengths of load cell cable. The 1,000- and 2,500-pound capacities are equipped with 8.5 feet of cable, while the 5,000-pound capacity comes with 10 feet. This model was originally designed for Fairbanks Scales® under part number 65023-XX-5164.
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 68825 | Load Cell,SEB 65023A1K- 5297 1,000lb 8.5ft Senstrs 3mV/V 350 OHM WW NTEP III 5 FM Matched output | List Price: $312.00 | |
| 68824 | Load Cell,SEB 65023A2.5K- 5297 2,500lb 8.5ft Senstrs 3mV/V 350 OHM WW NTEP III 5 FM Matched output | List Price: $312.00 | |
| 156957 | Load Cell, SEB 65023A5KLE 5297 5000lb 10ft SENTRS 3mv/v 350 Ohm WW NTEP III 5 FM Matched output | List Price: $398.00 |
