VPG Tedea-Huntleigh 120 Stainless Steel, Compression Canister Load Cell

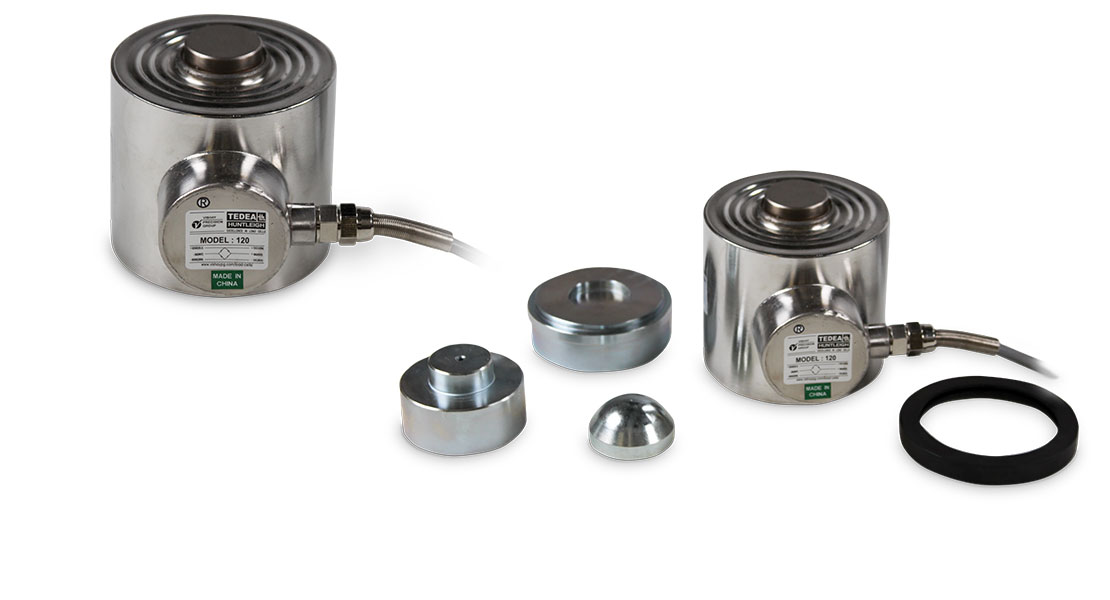

The model 120 is a stainless steel, welded-seal canister offered in capacities from 20,000 to 50,000 kg and includes load cup and load pin.

Full Scale Output:
1.5 mV/V

Output Resistance:
605 (± 5) ohm

Input Resistance:
670 (± 15) ohm

Material/Finish:
Stainless steel

Temperature:
Operating range
-0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP68

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC

Combined Error:
0.02% of applied load

Insulation Resistance:
2,000 megohms

Cable Length:
15 m

Cable Color Code:
Green +Excitation
Black -Excitation
Red +Signal
White -Signal
Blue +Sense
Brown -Sense

Warranty:
 One-year limited

Rated Capacity A B C D E F O R1 R2
kg/mm
20,000 138.3 112.3 72.3 50.0 32.3 69.0 88.0 15.0 150.0
30,000 138.3 112.3 72.3 50.0 32.3 69.0 88.0 15.0 150.0
50,000 155.5 115.3 74.0 50.0 32.3 69.0 88.0 35.0 300.0





Resources / Downloads

Title Download Email
Tedea 120 Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

Part # Description List Price Cart
169233 Load Cell, CSR Tedea 120 20t 15m 1.5 mv/v 605 Ohm stainless steel IP68

List Price: $662.00

169234 Load Cell, CSR Tedea 120 30t 15m 1.5 mv/v 605 Ohm stainless steel IP68

List Price: $662.00

169235 Load Cell, CSR Tedea 120 50t 15m 1.5 mv/v 605 Ohm stainless steel IP68

List Price: $662.00

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
