VPG Tedea-Huntleigh 3510-NTEP Stainless Steel, Single-Ended Beam Load Cell
Low profile and all-welded sealing combined with high accuracy makes the 3510 ideally suited for low-profile platforms, weigh modules, tanks and silos. Hermetic sealing and polyurethane shielded cable enable this load cell to function in harsh environments while maintaining its operating specifications. Capacities range from 1,000 to 4,000 lb.
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
3510-NTEP Load Cell Specifications
|
Full Scale Output: Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: Safe Sideload: Rated Excitation: Combined Error: Insulation Resistance: Deflection at Capacity: Cable Length: |
Cable Diameter: Cable Color Code: Warranty: Approvals: |

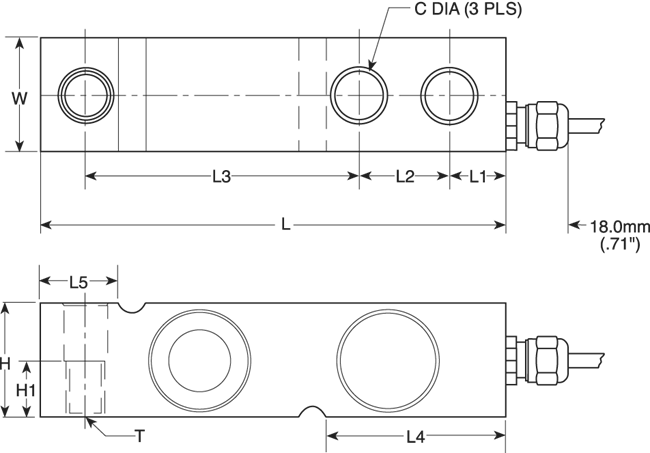

3510-NTEP Load Cell Dimensions
| Rated Capacity | C | C1 | H | H1 | L | L1 | L2 | L3 | L4 | L5 | T | W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | ||||||||||||
| 1,000 to 4,000 | 0.53 | 0.53 | 1.26 | 0.63 | 5.12 | 0.62 | 1.00 | 3.00 | 1.97 | 0.91 | 1/2-20 UNF | 1.26 |
Resources / Downloads
Parts
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 36458 | Load Cell,SEB 3510-1000lb 1000lb 16.4ft TH 3.0 mV/V 350 OHMS FM NTEP SST WS IP68 |
List Price: $515.00 |
|
| 36459 | Load Cell,SEB 3510-1.5K 1,500 lb 16.4 ft TH 3.0 mV/V 350 OHMS FM NTEP SST WS |
List Price: $515.00 |
|
| 36460 | Load Cell,SEB 3510-250010 1 2,500 lb 16.4 ft TH 3.0 mV/V 350 OHMS FM NTEP SST WS IP68 |
List Price: $515.00 |
|
| 36461 | Load Cell,SEB 3510-400010 1 4,000 lb 16.4 ft TH 3.0 mV/V 350 OHMS FM NTEP SST WS IP68 |
List Price: $515.00 |
