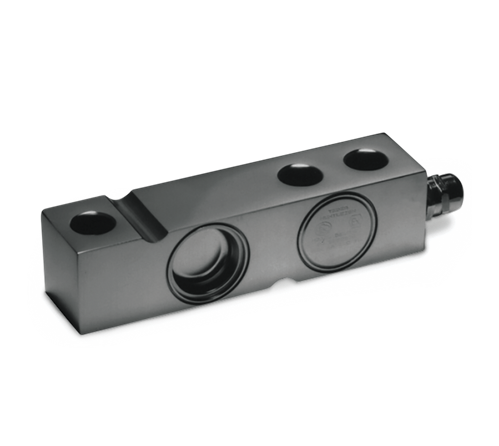

VPG Tedea-Huntleigh 3510-OIML Stainless Steel, Single-Ended Beam Load Cell
OIML approved, 6,000 division single-ended beam. Low profile and all-welded sealing combined with high accuracy makes this model suited for low-profile platforms, weigh modules, tanks and silos. Polyurethane shielded cable enables function in harsh environments while maintaining its operating specifications. Capacities range from 500 kg to 5,000 kg.
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
3510-OIML Load Cell Specifications
|
Full Scale Output: Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: Safe Sideload: Rated Excitation: Combined Error: Insulation Resistance: Deflection at Capacity: Cable Length: |
Cable Diameter: Cable Color Code: Warranty: Approvals: |
3510-OIML Load Cell Dimensions
| Rated Capacity | C | C1 | H | H1 | L | L1 | L2 | L3 | L4 | L5 | T | W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kg/mm | ||||||||||||
| 500 to 2,000 | 13.5 | 13.5 | 32.0 | 16.0 | 130.0 | 15.8 | 25.4 | 76.2 | 50.5 | 23.5 | M12 x 1.75 Thrd. |
32.0 |
| 5,000 | 20.5 | 20.5 | 48.0 | — | 171.5 | 19.0 | 38.1 | 95.3 | 70.0 | 37.0 | — | 36.5 |
Resources / Downloads
Parts
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 30161 | Load Cell,SEB 3510-500KG 500KG 5m TH 2mV/V 350 OHM OIML C3 SST WS IP68 FM |
List Price: $514.00 |
|
| 30162 | Load Cell,SEB 3510-1000KG 1000KG 5m TH 2mV/V 350 OHM OIML C3 SST WS IP68 FM |
List Price: $514.00 |
|
| 30163 | Load Cell,SEB 3510-2000KG 2000KG 5m TH 2mV/V 350 OHM OIML C3 SST WS IP68 FM |
List Price: $514.00 |
|
| 30164 | Load Cell,SEB 3510-5000KG 5000KG 5m TH 2mV/V 50 OHM OIML C3 SST WS IP68 FM |
List Price: $514.00 |
Related Products

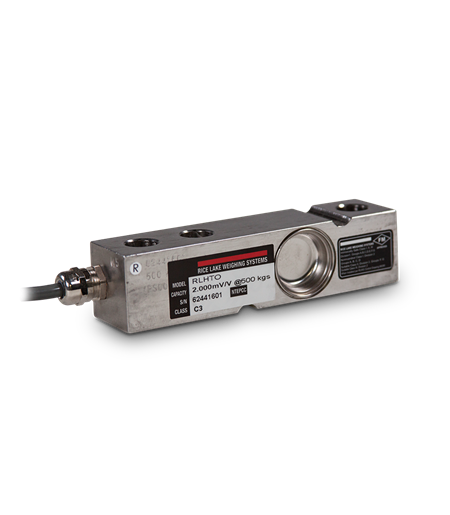

Rice Lake RLHTO Stainless Steel, Single-Ended Beam Load Cell
