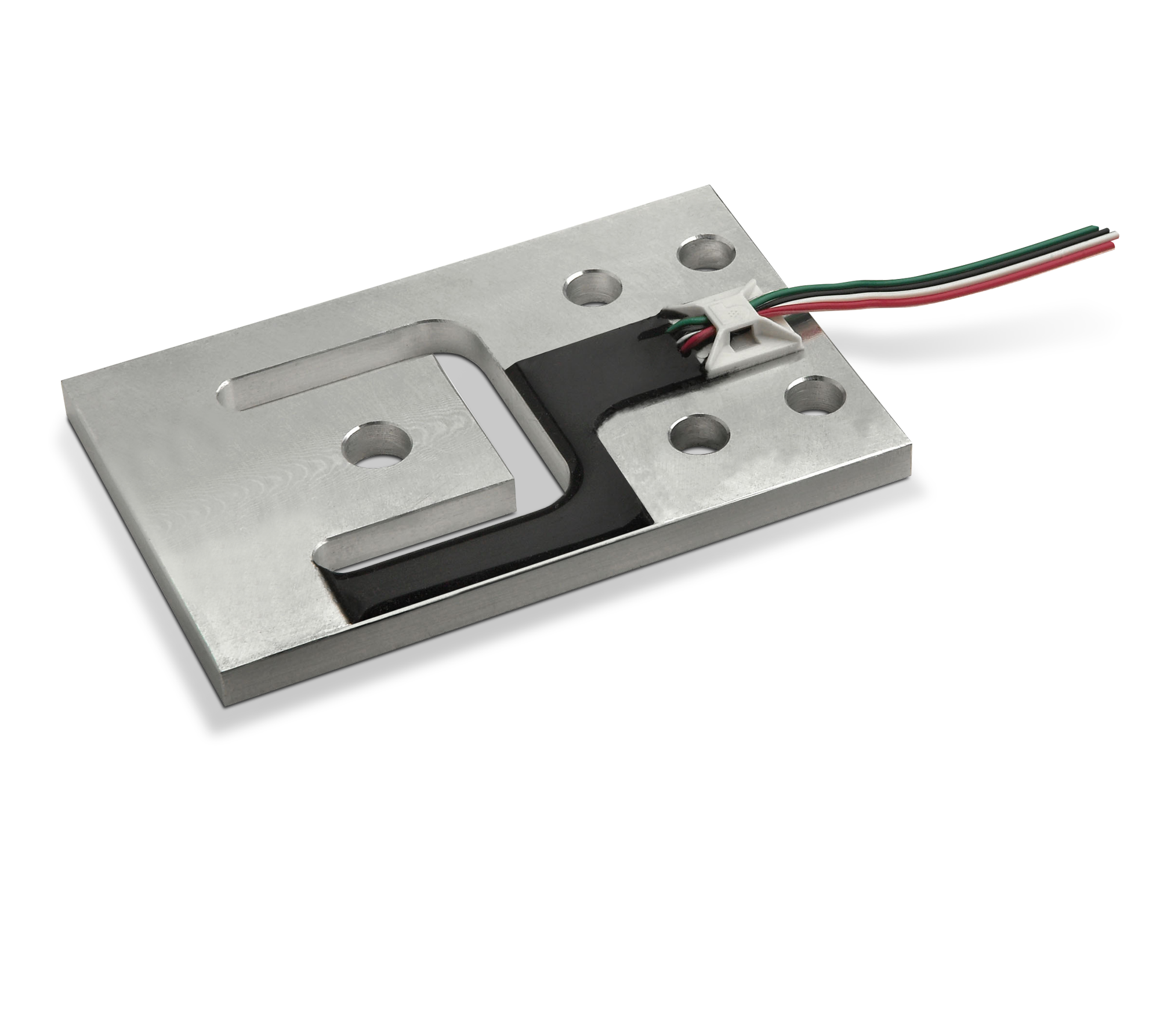

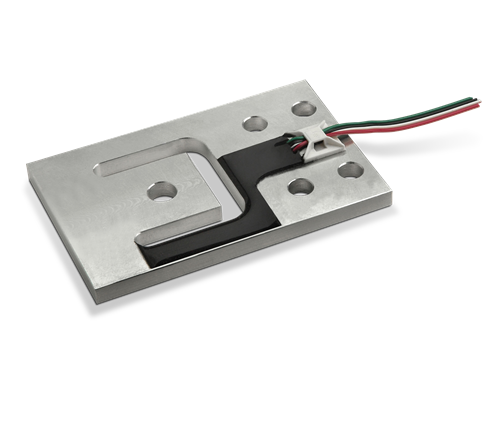

This is a low-profile planar beam designed for a range of capacities and direct mounting in platform scales. It has capacities of 7.5 to 150 kilograms. Each unit is complete with 1.5 meters of flat ribbon PVC cable.
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 186687 | Load Cell, 380 Planar Beam 15kg 1.5m 1mv/v 1000 Ohm OIML C3 IP65 AL | List Price: $142.00 | |
| 112922 | Load Cell,380 Planar Beam 37.5kg 1.5m 1mv/v 1000 Ohm OIML C3 IP65 AL | List Price: $142.00 | |
| 112923 | Load Cell,380 Planar Beam 50kg 1.5m 1mv/v 1000 Ohm OIML C3 IP65 AL | List Price: $145.00 | |
| 112924 | Load Cell,380 Planar Beam 75kg 1.5m 1mv/v 1000 Ohm OIML C3 IP65 AL | List Price: $145.00 | |
| 112925 | Load Cell,380 Planar Beam 150kg 1.5m 1mv/v 1000 Ohm OIML C3 IP65 AL | List Price: $150.00 |
