Easy Wire Rope Tension Measuring with the New MSI Dyna-Clamp

The Answer for Wire Rope Tension Measuring

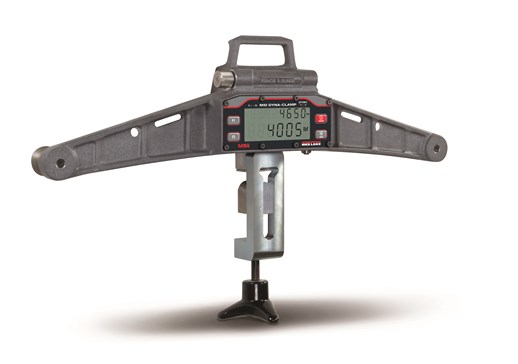

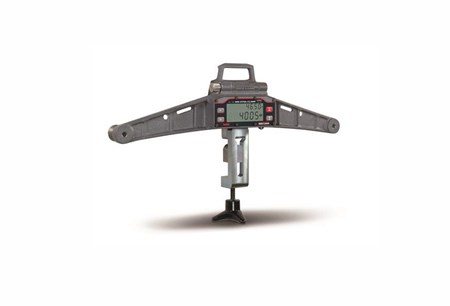

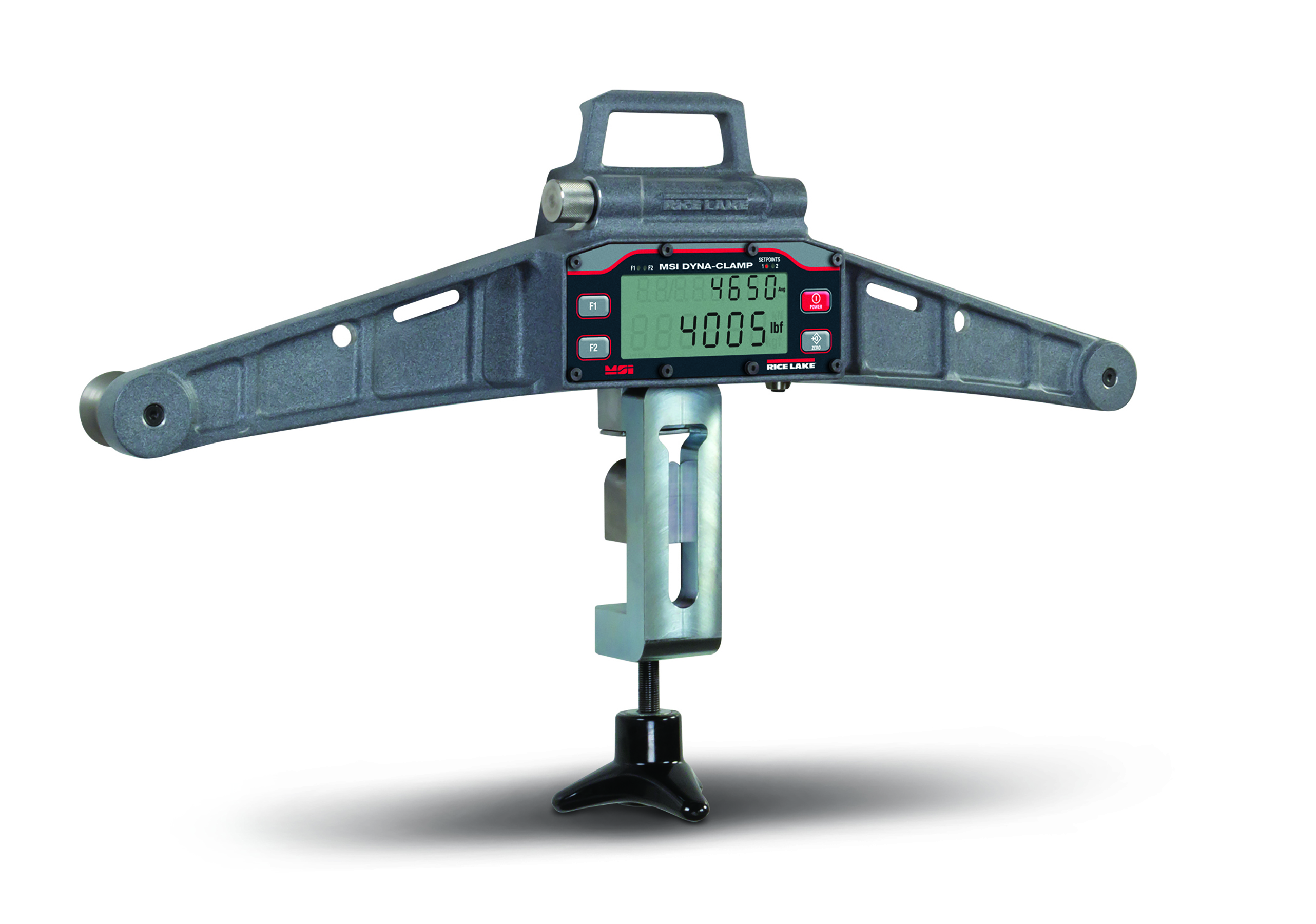

The MSI Dyna-Clamp tension meter allows operators to quickly check wire rope tension. Its durable, easy-to-use design saves time and money by eliminating the need to have multiple sheaves to accommodate different rope diameters.

It makes measuring tension on wire ropes and cables easier than ever. Its easy-turn power screw doesn’t require as much physical force to engage as competitive models, making measuring wire rope tension straightforward, even in difficult environments.

Heavy-Duty Construction

The Dyna-Clamp is able to accommodate wire rope sizes from 3/16 of an inch up to one inch without needing to change rollers or bobbins, making it one of the most versatile tension meters available. Bright and easy to read in sunlight, its LCD display communicates live wire rope tension on the primary display line. The secondary display line can be configured to choose between wire rope diameter, average tension, or peak tension. The Dyna-Clamp is made in the U.S.A. with a cast aluminum frame with an IP65 rating, making it a heavy-duty solution. Powered by two AA batteries for 24 hours means it is the ultimate in portability and adaptability.

Adaptable for Many Applications

Tension rope measuring with the Dyna-Clamp can support a variety of applications, from bridges and elevators to aircraft cables and zip lines. It can also be used for tower and stack wires, winch ropes, pre-tensioned cable barriers, overhead electric transit wires, and fall arrest systems.
