An Introduction to Load Cells

A load cell (also called a transducer) converts a mechanical force into an electrical signal. In its simplest form, the load cell is a precision-machined metal element that bends with the force of loading (when weight is applied). In a cavity on the metal element, typically four strain gauges are bonded at points to form resistors, making an electrical circuit called a Wheatstone bridge circuit.

Initially, the four gauges are balanced; if excitation voltage is supplied to the load cell when no load is applied, the output voltage is zero. When a load is applied, the load cell compresses (in a compression-mounted load cell, where the load cell is beneath the weighing vessel or other load-receiving element) or stretches (in a tension-mounted load cell, where the weighing vessel is suspended from the load cell).

The load cell’s compression or stretching causes the metal element to bend and the gauges to become unbalanced, which changes the strain gauge resistance. The Wheatstone bridge circuit amplifies the small resistance change to a usable electrical signal (usually measured in a few millivolts) proportional to the applied load. The load cell transmits this signal via a cable to a controller that converts the signal into a weight measurement.

Depending on the application, a weighing system can include one or more load cells. When an application such as a weigh hopper requires multiple load cells (called multiple load points), each load cell should measure the same proportion of the total load. In a three-load-point system, each load cell should measure exactly one-third of the load, and in a four-load-point system, each should measure exactly one-quarter of the load.

When possible, it’s better to use three rather than four load cells because the three load cells align perfectly in one plane and the hopper’s weight will be perfectly distributed among them. When four or more load cells are used, they must be carefully leveled to ensure that all are on the same plane so that each receives the same load during weighing.

Capacity Versus Resolution

A load cell’s resolution will determine what sensitivity (or readability) it can attain for a given capacity. That is, the resolution of the weighing system (whether it has one or multiple points) equals the system capacity divided by its sensitivity. Simply put, the higher the capacity system, the lower the resolution and sensitivity. Consider for instance a 5,000-pound system divided by 1 pound would be a 1:5000 system. That same 5000-pound scale displaying the weight in 0.5-pound increments would change to 1:10,000 (5,000 pounds divided by 0.5 pounds). Understanding this is important because as a scale’s resolution gets higher, the actual millivolt output per increment gets smaller. The smaller each millivolt reading, the more difficult it is to detect small weight changes. This makes it more difficult for the load cell to deliver accurate weighing results and the digital indicator to display stable readings.

Common Load Cell Types

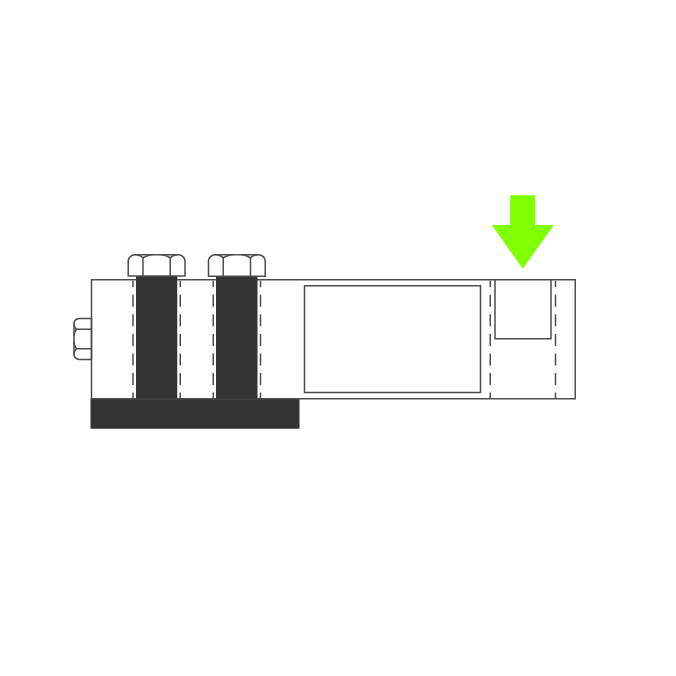

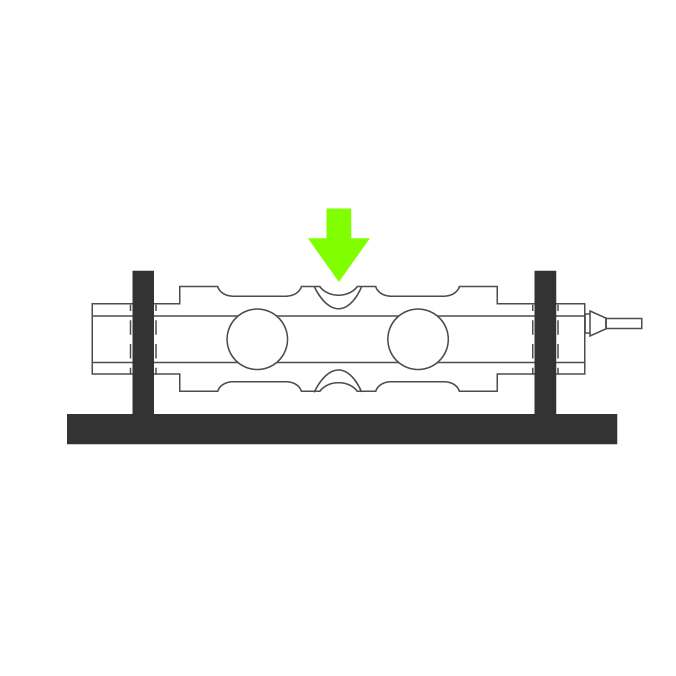

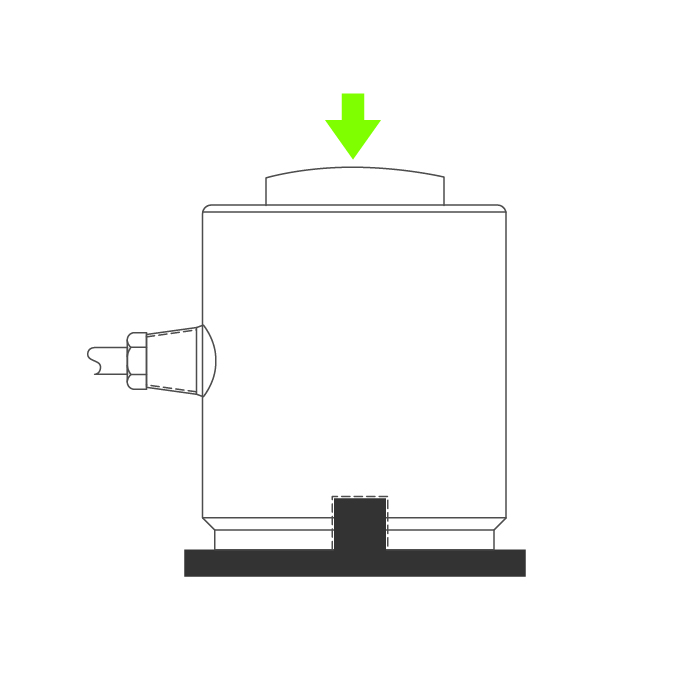

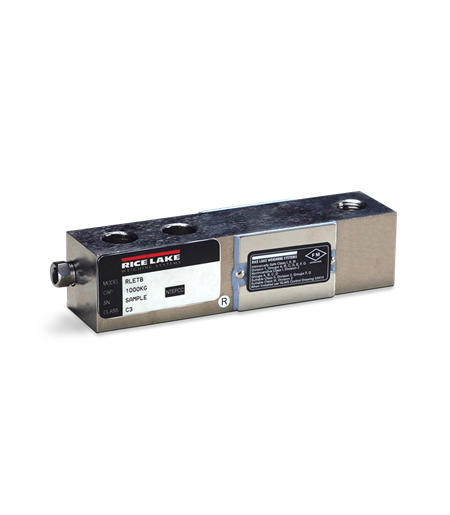

Common load cell types for weighing applications include S-beam, shear beam, bending beam, canister, rocker and double-ended shear beam.
