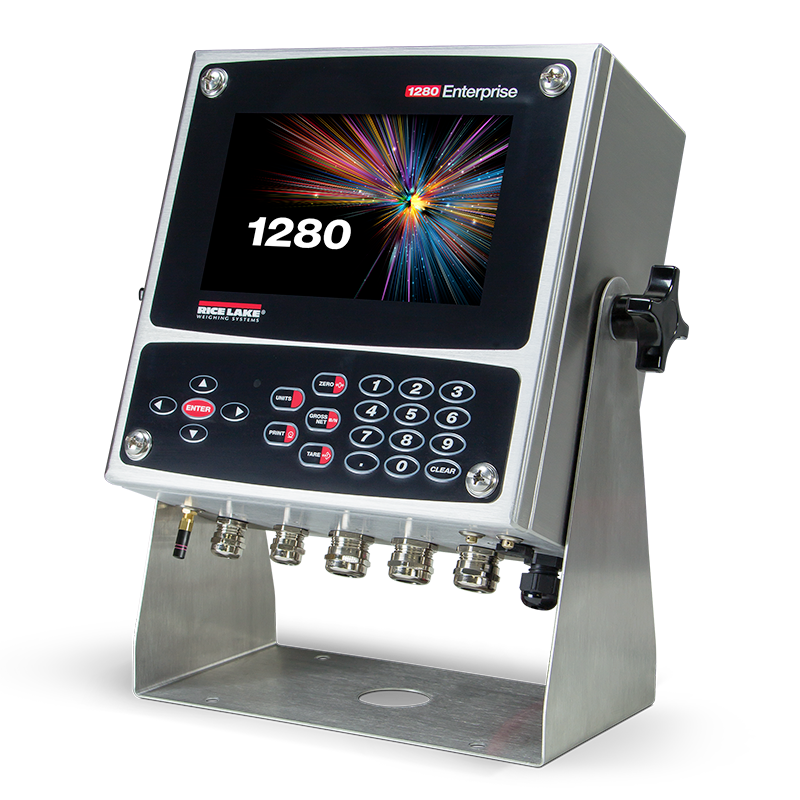

1280 Enterprise™ Series Programmable Digital Weight Indicator

Customizable color touchscreen with graphical user interface
User-defined softkeys, icons and graphics
Tactile keypad for scale operations, numeric entry and navigation
On-screen keyboard available during entry mode (or external keyboard)
Built-in web server for remote access, systems integration and data monitoring
Multi-language operation and text entry
Supports eight scales within five different kinds:
- Analog load cell, multi-range/interval weighing
- Total scale summing
- Serial input scales
- iQUBE³ and iQUBE² scales
- Program scales
Six smart card slots for additional scale channels, serial ports, digital inputs and outputs, analog outputs and protocol interfaces
iRite™ Programming Software
- Five built-in applications: Truck In/Out, recipe storage, filling/dosing, counting, checkweighing
- Customizable user programs with event-based functions
- 150 built-in functions for common processes and data tables
- Customize and transfer data via email, FTP server and networked printers
- Display data with line charts or bar graphs
- iRite reporting of iQUBE alerts
Email, USB, Ethernet TCP/IP, Wi-Fi Direct®, two serial ports RS-232 or RS-485
Alibi memory captures serial port transmissions
Four configurable data-stream formats for PC, printers and remote displays
100 setpoints, 18 configurable setpoint types
Eight digital I/O for control and pulse count
Three different enclosure types: universal with tilt stand, panel mount and wall mount

Approvals

Some approval documents are available to view by clicking the icons below.

Resources/Downloads

Parts

Part #	Description	List Price
171427	1280 Univ Single AC-US Enclosure Universal AC Power Supply U.S. Universal Power Cord Display Type Standard Slot 1 Single A/D LPC Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open	List Price: $3,850.00
171441	1280 Univ Single AC-Eur Enclosure Universal AC Power Supply Europe Universal Power Cord Display Type Standard Slot 1 Single A/D Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open	List Price: $3,850.00
171662	1280 Univ Dual AC-US Enclosure Universal AC Power Supply U.S. Universal Power Cord Display Type Standard Slot 1 Dual A/D LPC Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open	List Price: $4,050.00
172188	1280 Univ Dual AC-Eur Enclosure Universal AC Power Supply Europe Universal Power Cord Display Type Standard Slot 1 Dual A/D Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open	List Price: $4,150.00

Options

Part #	Description	List Price
220026	1280 Opt,Single Scale LPC	List Price: $475.00
220027	1280 Opt,Dual Scale LPC 1280 option card	List Price: $675.00
166957	OPTION,1280 INDICATOR NTEP SCALE CARD SEAL	List Price: $15.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
