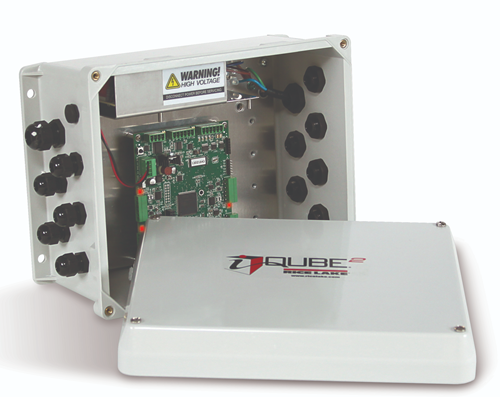

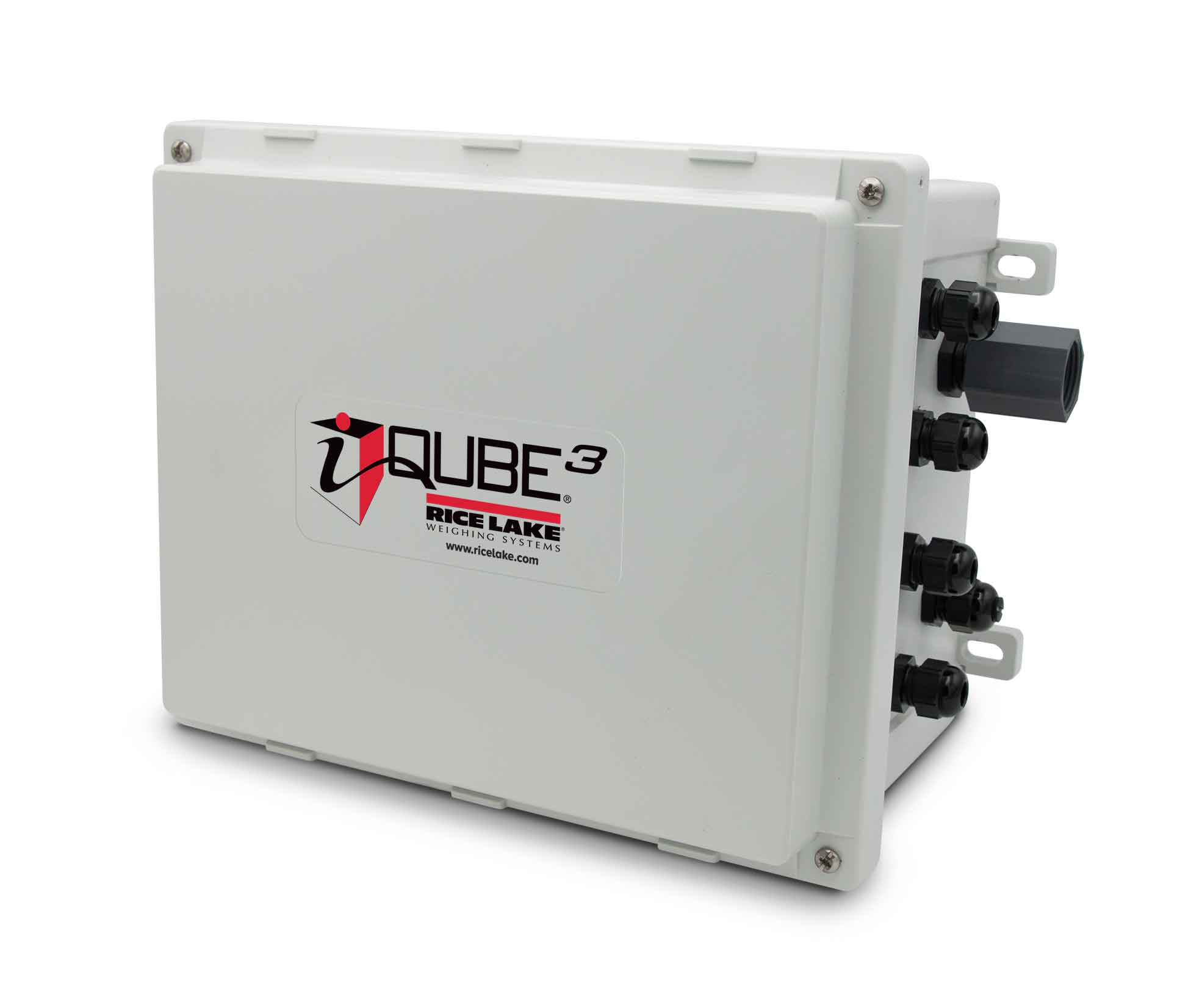

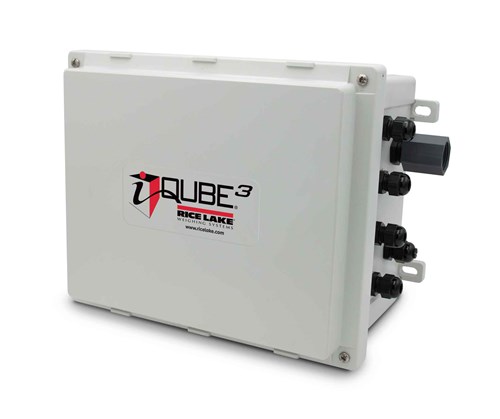

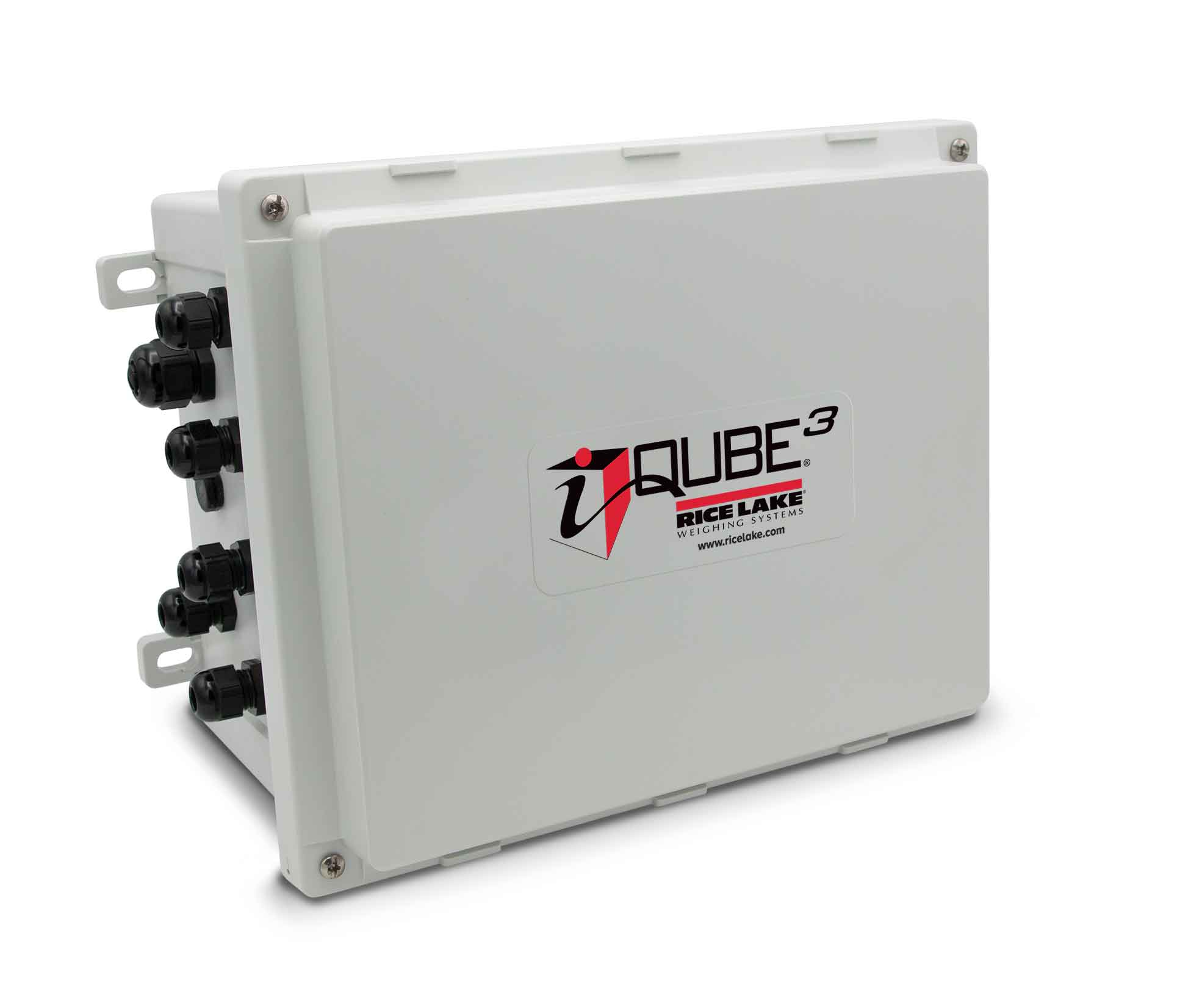

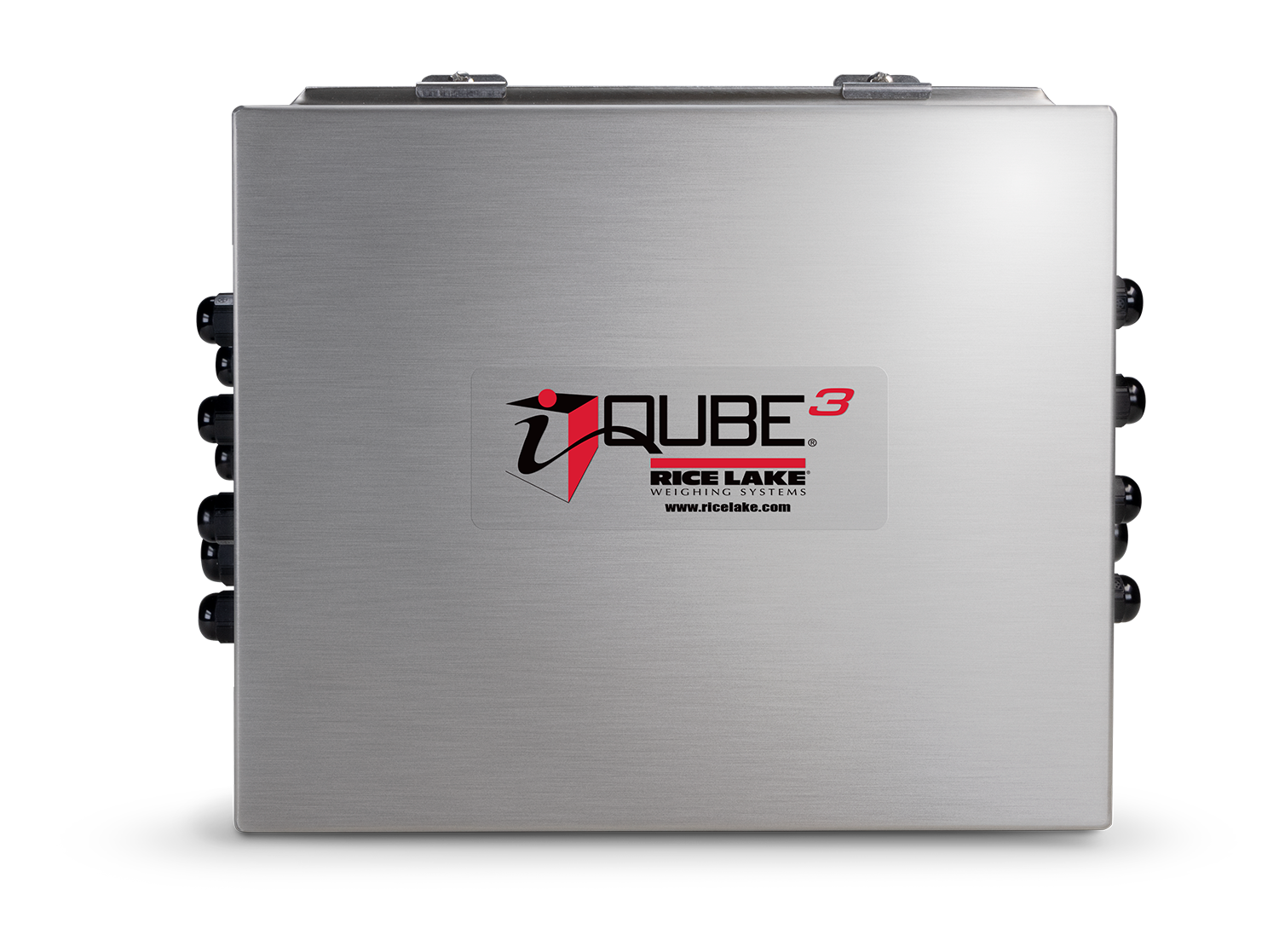

iQUBE³ Digital Diagnostic Junction Box

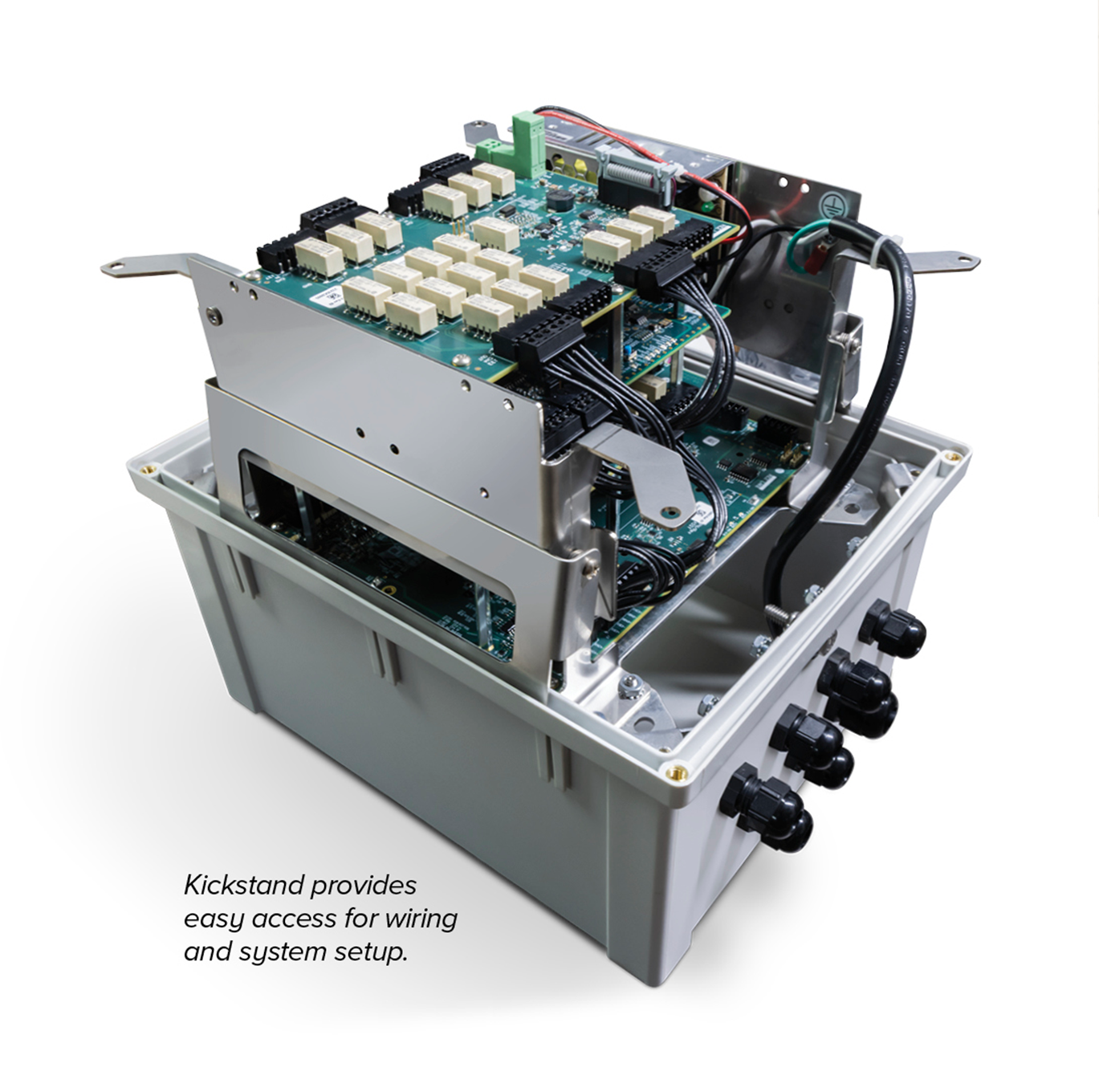

- iQUBE³ CPU board: Four A/D channels, SD Slot, RS232/485, four DIOs, Ethernet TCP/IP (wired), USB-C
- iQUBE³ CPU board supports networking up to four iQUBE³ four-channel boards (four A/D channels each), for a total of 24 A/D channels; connection can be up to four separate scales and a system total

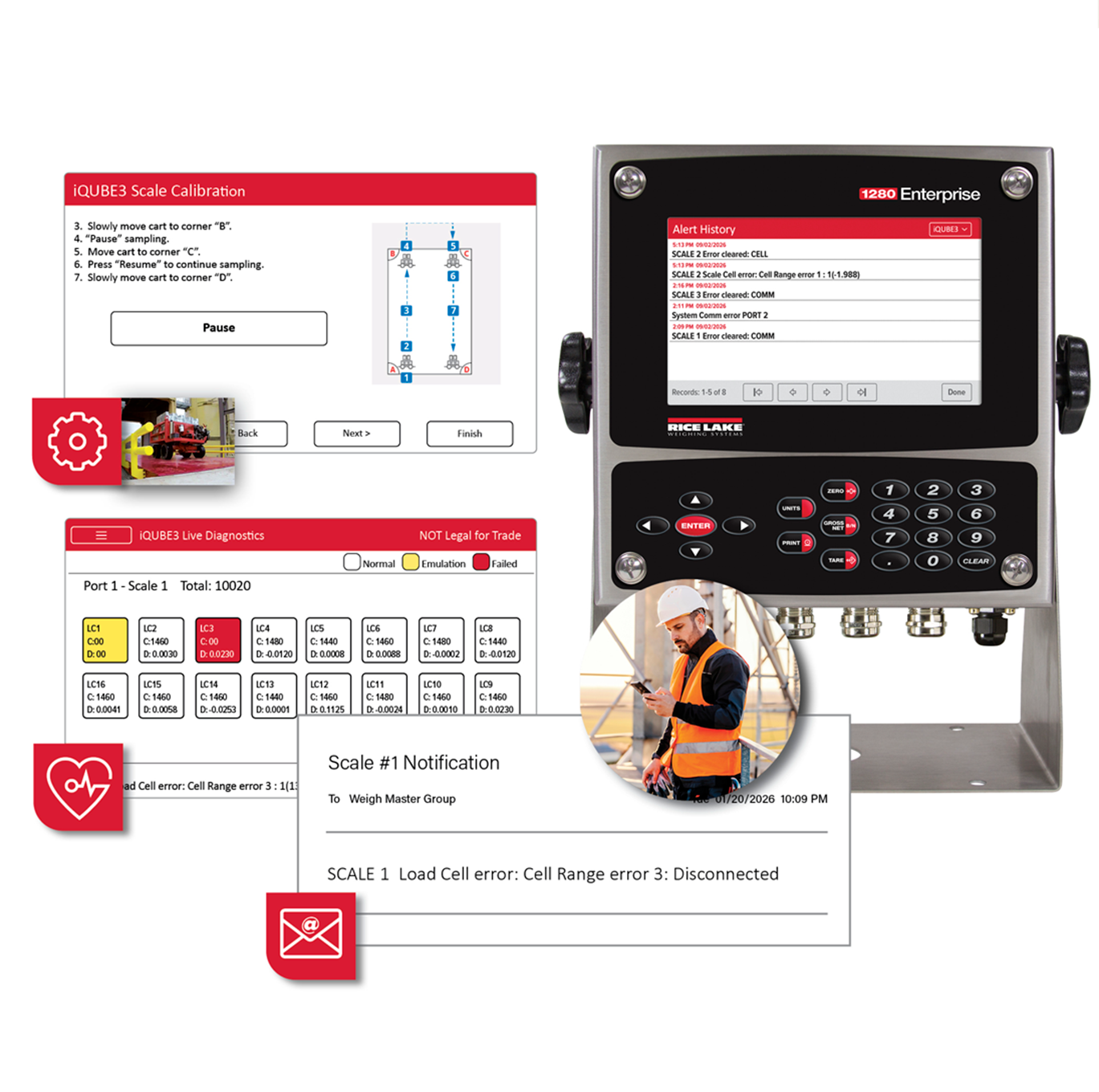

- Diagnostic routines for weighing errors and system health
- Additional diagnostics for overloaded, underloaded, zero reference, drift, noise and unbalanced conditions
- Onboard status LEDs for communication and visual bi-color indication of cell health
- Cell emulator compensates for a failed load cell
- Cal-Match® algorithm automatically trims and calibrates the scale in one pass of test weights (stopping over each mount)
- Standard communications
- Two option card slots for fiber optic, analog output (16-bit, 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA), relay or Serial (two RS232 or RS422/485)

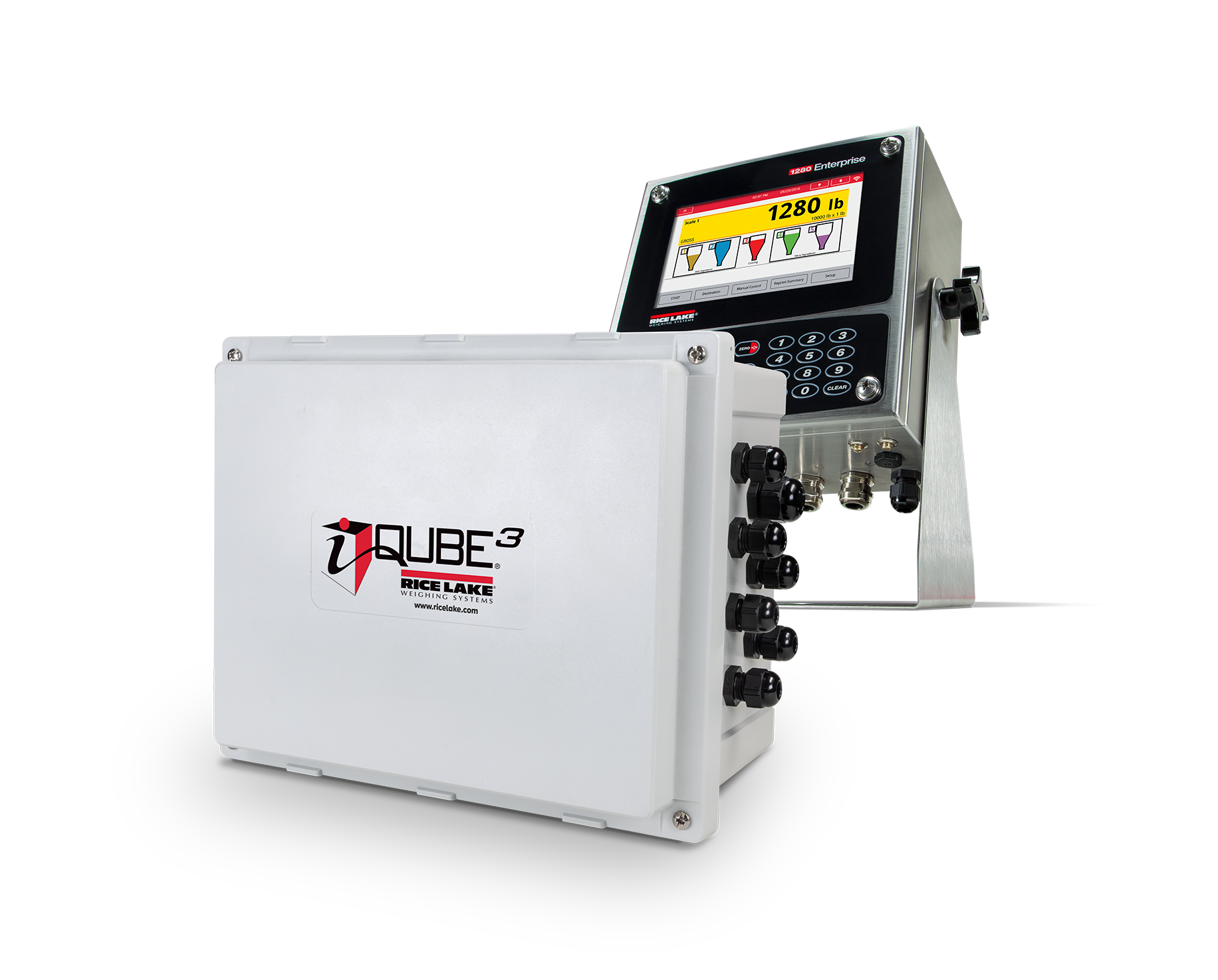

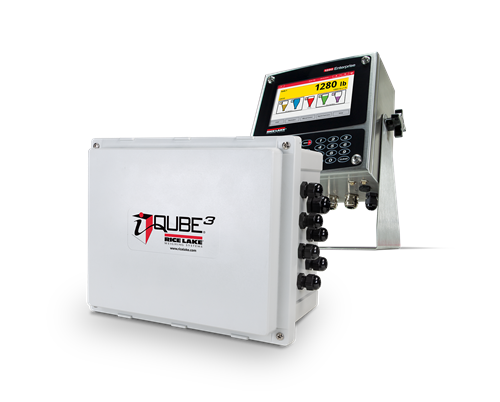

- Communicates to 1280
- 1280 indicator
- Truck and railroad scales
- Tank and hopper scales
- Multi-channel scales
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
iQUBE³ Digital Diagnostic Junction Box Specifications
|
Voltage Input: Analog Signal Input Range: Analog Signal Sensitivity: A/D Sampling Rate: Digital I/O: |
Communication Ports: Load Cell Inputs: Load Cell Excitation: Rating/Material: |
Temperature: Warranty: Approvals: |

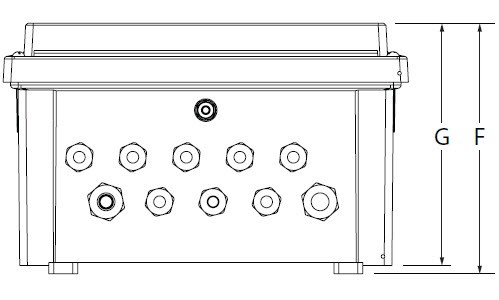

iQUBE³ Digital Diagnostic Junction Box Dimensions
| Stainless Steel | |||
|---|---|---|---|
| A | 13.50 in (343 mm) | E | 8.00 in (203 mm) |
| B | 12.28 in (312 mm) | F | 6.29 in (160 mm) |
| C | 12.75 in (324 mm) | G | 6.20 in (157 mm) |
| D | 10.28 in (261 mm) | ||
| Polycarbonate Small | |||
| A | 12.13 in (308 mm) | E | 5.98 in (152 mm) |
| B | 11.45 in (291 mm) | F | 6.95 in (176 mm) |
| C | 10.51 to 11.30 in (267 to 287 mm) | G | 6.71 in (170 mm) |
| D | 9.32 in (237 mm) | ||
| Polycarbonate Large | |||
| A | 14.13 in (359 mm) | E | 7.99 in (203 mm) |
| B | 13.46 in (341 mm) | F | 7.02 in (178 mm) |
| C | 12.52 to 13.31 in (318 to 338 mm) | G | 6.79 in (172 mm) |
| D | 11.36 in (289 mm) | ||
