350-10-2 Single-Ramp Wheelchair Scale
- Two wheels for portability
- Single ramp
- Nonslip platform
- Large 1-inch LCD display
- Motiontrap™ movement compensation technology
- Unit of measure toggle or locking
- EMR capable
- Serial and USB data communication ports
- Bluetooth® BLE 4.0 available, part number selectable
- Tare function
- Hold function
- BMI (body mass index) function
- Factory calibrated
- Easy to store, folded depth is 11.75 in
Same-day Shipping Available
Approvals
Some approval documents are available to view by clicking the icons below.
![LOGO CEMET](/media/2zzpnovi/logo_cemet.png?height=50)
WARNING: Cancer and Reproductive Harm California Proposition 65

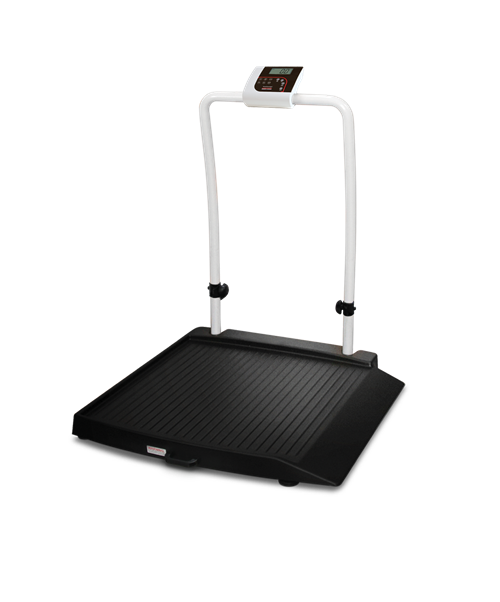

350-10-2 Healthweigh® Single-Ramp Wheelchair Scale
Rice Lake's Healthweigh® 350-10-2 single-ramp wheelchair scale with handrail allows high capacity, accurate weighing for a wide range of patients. Convenient keypad tare reduces errors and increases efficiency. Foldable and light, this sturdy scale is easily transported on two heavy-duty rear wheels to any location.
350-10-2 Specifications
Capacity: Platform Dimensions Without Ramp: Power: |
Battery Type: Battery Use: Operating Temperature: |
Display: Approvals: Warranty: |
350-10-2 Dimensions
Dimensions | ||
---|---|---|
Inches | Centimeters | |
A | 29.5 | 74.9 |
B | 32.0 | 81.3 |
C | 2.4 | 6.1 |
D | 9.3 | 23.5 |
E | 37.5 | 95.3 |
F | 45.0 | 114.3 |
350-10-2 Shipping Weight
Shipping Weight | |||||||
---|---|---|---|---|---|---|---|
Part # | Model # | L (in) | W (in) | H (in) | Package Wgt. (lb) | Dim Wgt. (lb) | Shipping Wgt. (lb) |
141445 | 350-10-2 | 42 | 41 | 14 | 90 | 174 | 174 |
194739 | 350-10-2BLE | 42 | 41 | 14 | 90 | 174 | 174 |
Resources / Downloads
Articles
Title | View | Category | Type | |
---|---|---|---|---|
How to Clean Health Scales | Health Scales | Articles | ||
The Importance of Medical Scale Calibration | View | Calibration Weights|Health Scales | Articles | |
How Often Should You Calibrate A Medical Scale? | View | Health Scales | Articles | |
Maintaining Medical Scales: 5 Ways to Care for Your Scale | View | Health Scales | Articles | |
Top 5 Wheelchair Scale Types | Health Scales|Wheelchair Scales | Articles |
Manuals
Title | Version | Revision | Download | Category | Archived | |
---|---|---|---|---|---|---|
350-10 Series Digital Wheelchair Scale Operator Manual | E | Download | Health Scales|Wheelchair Scales | No | ||
350-10 Series Digital Wheelchair Scale Technical Manual | F | Download | Health Scales|Wheelchair Scales | No | ||
Bluetooth Low Energy (BLE) Demo for Rice Lake Medical Scales | B | Download | Health Scales | No | ||
Bluetooth Setup Instructions for Rice Lake Medical Scales | A | Download | Health Scales | Yes | ||
Rice Lake Health Scales Hinged Joint Replacement | Download | Health Scales|Wheelchair Scales | No |
Sales Literature
Title | Collateral Wizard | Request | Download | Category | |
---|---|---|---|---|---|
Wheelchair Scales: Vacuum Formed Scale Top | Request | Download | Health Scales|Wheelchair Scales | ||
Calibrating Patient Weighing Scales | Collateral Wizard | Request | Download | Health Scales | |
Medical Product Guide | Request | Download | Health Scales |
Technical Bulletins
Title | View | Category | |
---|---|---|---|
How Often Should You Calibrate A Medical Scale? | Download | Health Scales|Home Health Scales|Mechanical Health Scales|Load Cells|Weigh Modules | |
Medical Scale Maintenance | Download | Health Scales|Home Health Scales|Mechanical Health Scales | |
Maintaining Medical Scales: 5 Ways to Care for Your Scale | Download | Health Scales|Home Health Scales|Mechanical Health Scales | |
Healthweigh Indicator Keypad and CPU Board Testing | Download | Health Scales | |
Healthweigh 350 Series Wheelchair Scales Trimming Corner Load Cell Alignment | Download | Wheelchair Scales|Health Scales |
Videos / Webinars
Title | View | Download | Category | |
---|---|---|---|---|
Accurate Patient Weighing With Rice Lake | View | Download | Health Scales | |
Health Scale Product Line Overview | View | Download | Health Scales | |
Locking Units of Measure on Rice Lake Medical Indicators | View | Download | Health Scales | |
Calibrating a Rice Lake Medical Scale | View | Download | Health Scales | |
How to Measure a Wheelchair to Find the Right Size Scale | View | Download | Wheelchair Scales | |
Unpacking and Assembling Rice Lake's 350-10-3 Wheelchair Scale | View | Download | Health Scales | |
Adjusting ATOL (Average Time of Lock) on Rice Lake Medical Indicators | View | Download | ||
ScaleTalk: How to Test the Keypad & CPU on Healthweigh Indicators | View | Download | Health Scales |
Accurate Patient Weighing With Rice Lake
Health Scale Product Line Overview
Locking Units of Measure on Rice Lake Medical Indicators
Calibrating a Rice Lake Medical Scale
How to Measure a Wheelchair to Find the Right Size Scale
Unpacking and Assembling Rice Lake's 350-10-3 Wheelchair Scale
Adjusting ATOL (Average Time of Lock) on Rice Lake Medical Indicators
ScaleTalk: How to Test the Keypad & CPU on Healthweigh Indicators
Parts
Part # | Description | List Price | Cart |
---|---|---|---|
141445 | Scale, Wheelchair 350-10-2 1000lb(450kg) x 0.2lb(100g) with (1) 9.25in. Ramp includes 6 AA size Alkaline batteries |
List Price: $1,285.00 |
|
194739 | Scale, Wheelchair 350-10-2BLE 1000lb(450kg) x 0.2lb(100g) with (1) 9.25in. Ramp with Bluetooth BLE 4.0 and 6 AA size Alkaline batteries |
List Price: $1,520.00 |
Options
Part # | Description | List Price | Cart |
---|---|---|---|
115655 | Adapter,120-240VAC/9 VDC |
List Price: $43.00 |
|
133077 | Power Supply,+9.0V Wall rated input voltage 100-240VAC, Operating range 50/60Hz, rated input frequency 0.2A max, UL approved range 50/60Hz, rated input frequency 0.2A max, UL approved |
List Price: $25.00 |
|
102508 | Adapter,220VAC AC Healthweigh 9VDC 500MA |
List Price: $30.00 |
|
81076 | Printer,Tape TM-U220D RS232 Serial, Universal Power Supply, US Power Cord Epson |
List Price: $445.00 |
|
186830 | Cable, RS-232 scale to printer, 6ft, 25-pin D-Sub(male) to RJ-45 |
List Price: $69.00 |
|
79074 | Cable, USB 6ft USB-A (male) to USB-B (male) |
List Price: $35.00 |
|
217091 | Cable, Communication DB9 (female)to RJ45 (male), 4 Conductor |
List Price: $25.00 |
Replacement Parts
Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.
To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
Related Products
![WEB SC 350 10 7 Single Ramp Wheelchair](/media/zbfbg1t0/web_sc_350-10-7-single-ramp-wheelchair.png?anchor=center&mode=crop&width=450&rnd=132654851603730000)

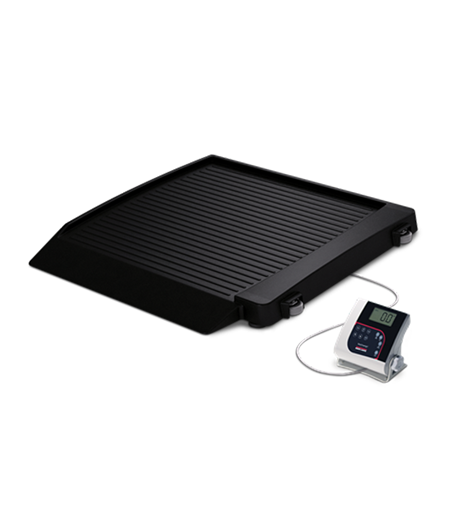

350-10-7 Single-Ramp Wheelchair Platform Scale
