350-10-4 Dual-ramp Wheelchair Scale with Seat
- Large LCD display
- Antimicrobial keypad
- Two wheels for portability
- Dual ramp
- Nonslip platform

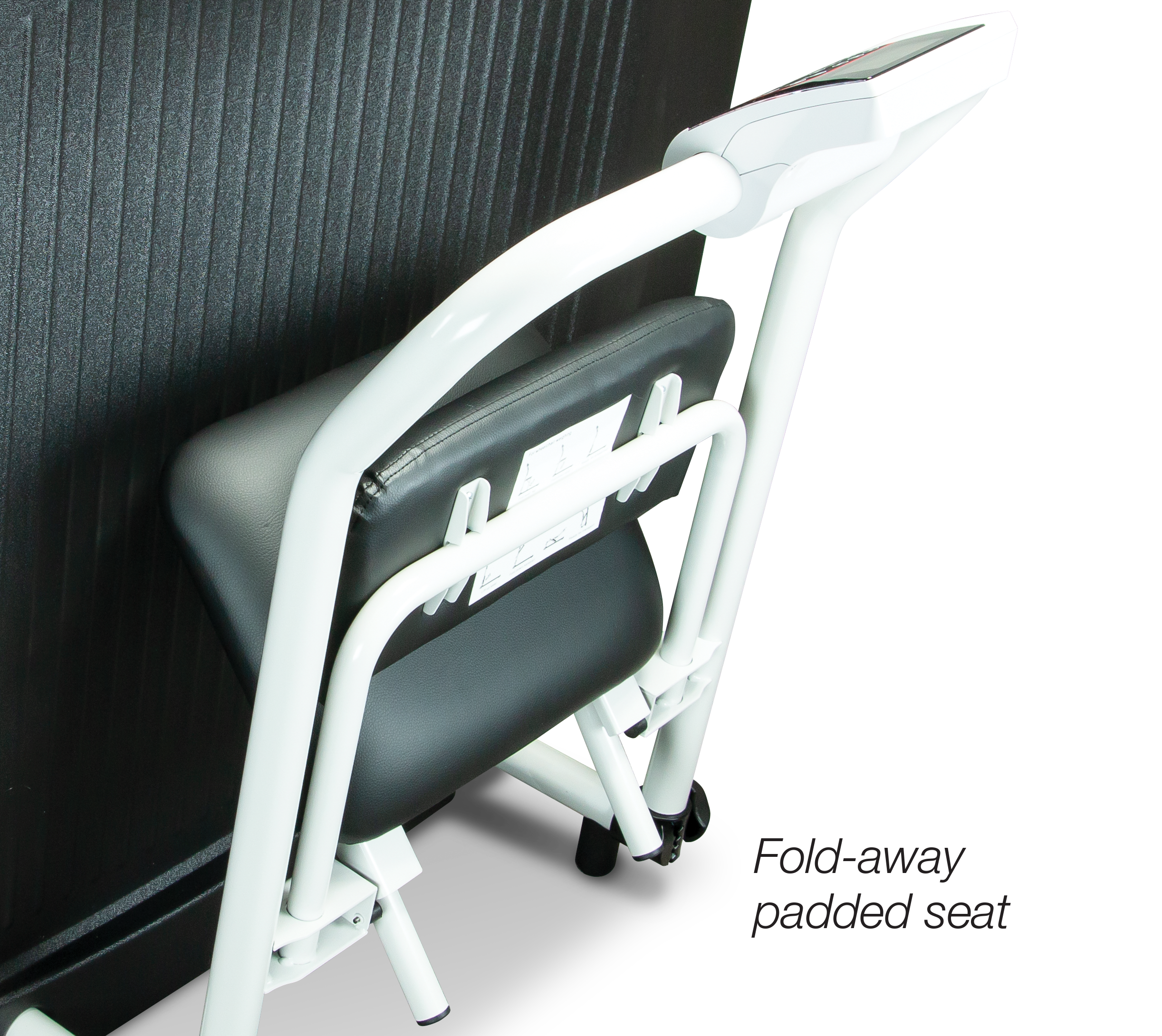

- Fold-away padded seat with backrest
- Motiontrap™ movement compensation technology
- Unit of measure toggle or locking
- EMR capable
- Serial and USB data communication ports
- Bluetooth® BLE 4.0 available, part number selectable
- Tare function
- Hold function
- BMI (body mass index) function
- Factory calibrated

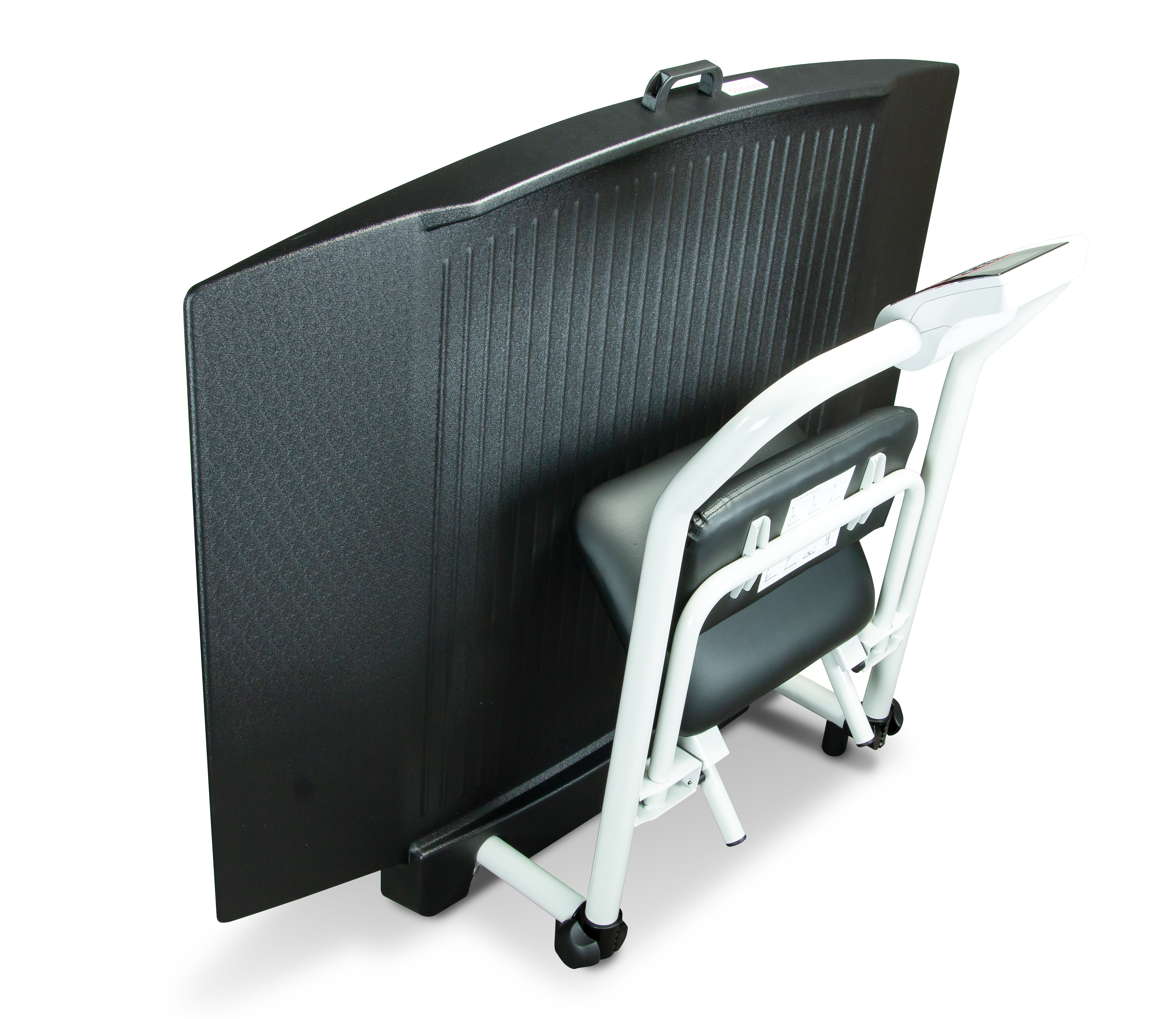

- Easy to store, folded depth is 11.75 in (29.8 cm)

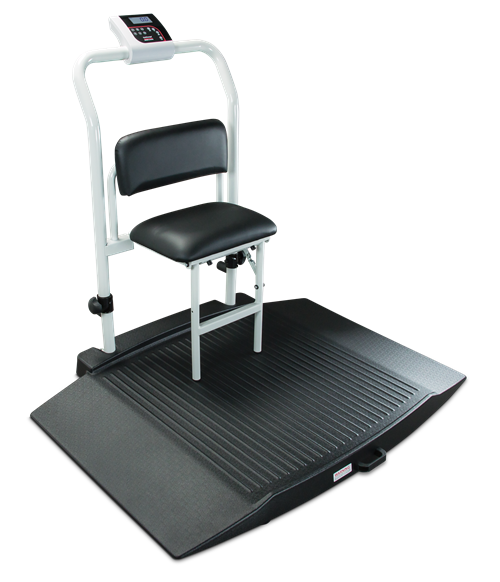

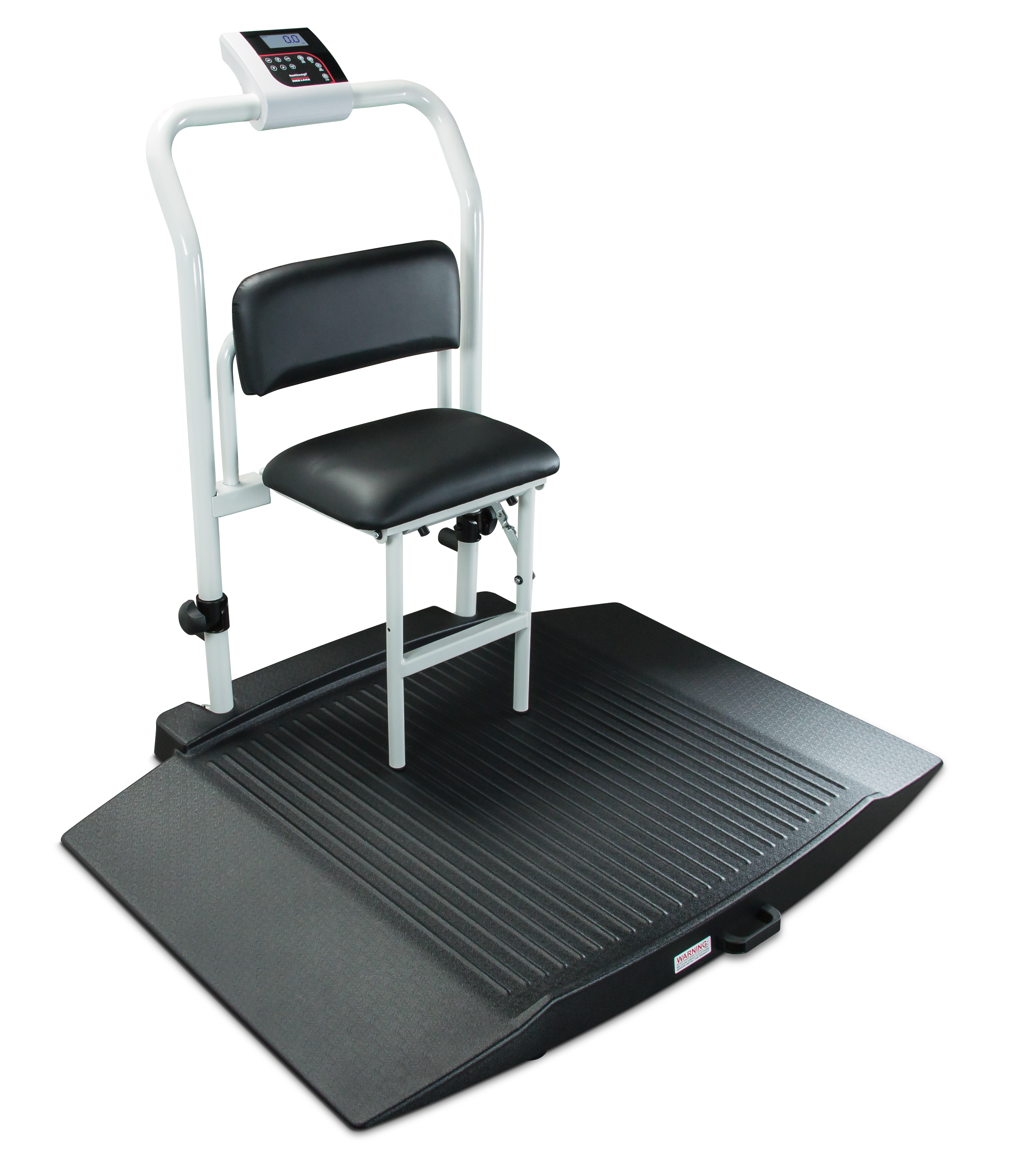

Healthweigh® Dual-ramp Wheelchair Scale with Seat
Rice Lake's Healthweigh® 350-10-4 dual-ramp wheelchair scale with seat and handrail allows high capacity, accurate weighing for patients requiring a seat. The padded seat easily tucks away, allowing this model to function as either a wheelchair or chair scale. Convenient keypad tare reduces errors and increases efficiency. Foldable and light, this sturdy scale is easily transported on two heavy-duty rear wheels to any location.
350-10-4 Wheelchair Scale Specifications
|
Capacity: Platform Dimensions Without Ramps: Power: |
Battery Type: Battery Use: |
Display: Temperature: Warranty: |
350-10-4 Wheelchair Scale Dimensions
| Dimensions | ||
|---|---|---|
| Inches | Centimeters | |
| A | 48.50 | 123.2 |
| B | 32.00 | 81.3 |
| C | 2.40 | 6.1 |
| D | 9.30 | 23.6 |
| E | 38.00 | 96.5 |
| F | 45.00 | 114.3 |
| G | 11.42 | 29.0 |
| H | 15.75 | 40.0 |
350-10-4 Wheelchair Scale Shipping Weight
| Shipping Weight | |||||||
|---|---|---|---|---|---|---|---|
| Part # | Model # | L (in) | W (in) | H (in) | Package Wgt. (lb) | Dim Wgt. (lb) | Shipping Wgt. (lb) |
| 141448 | 350-10-4 | 51 | 43 | 21 | 132 | 332 | 332 |
| 194737 | 350-10-4BLE | 51 | 43 | 21 | 132 | 332 | 332 |
Resources/Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| The Importance of Medical Scale Calibration | View |  Email |
Calibration Weights|Health Scales | Articles |
| How Often Should You Calibrate A Medical Scale? | View | Email |
Health Scales | Articles |
| Maintaining Medical Scales: 5 Ways to Care for Your Scale | View | Email |
Health Scales | Articles |
| How to Clean Health Scales | Email |
Health Scales | Articles | |
| Top 5 Wheelchair Scale Types | Email |
Health Scales|Wheelchair Scales | Articles | |
| What is ATOL and How Does it Affect My Scale? | Email |
Health Scales | Articles |
Manuals
| Title | Version | Revision | Download | Category | Archived | |
|---|---|---|---|---|---|---|
| RL-350-10-4 Digital Wheelchair Scale w/ Seat Operation Manual | F | Download | Email |
Health Scales | No | |
| RL-350-10-4 Digital Wheelchair Scale w/ Seat Technical Manual | F | Download | Email |
Health Scales | No | |
| Bluetooth Setup Instructions for Rice Lake Medical Scales | A | Download | Email |
Health Scales | Yes | |
| Bluetooth Low Energy (BLE) Demo for Rice Lake Medical Scales | D | Download | Email |
Health Scales | No | |
| Rice Lake Health Scales Hinged Joint Replacement | Download | Email |
Health Scales|Wheelchair Scales | No | ||
| Changing the ATOL Setting | A | Download | Email |
No |
Technical Bulletins
| Title | View | Category | |
|---|---|---|---|
| How Often Should You Calibrate A Medical Scale? | Download | Email |
Health Scales|Home Health Scales|Mechanical Health Scales|Load Cells|Weigh Modules |
| Medical Scale Maintenance | Download | Email |
Health Scales|Home Health Scales|Mechanical Health Scales |
| Maintaining Medical Scales: 5 Ways to Care for Your Scale | Download | Email |
Health Scales|Home Health Scales|Mechanical Health Scales |
| Healthweigh Indicator Keypad and CPU Board Testing | Download | Email |
Health Scales |
| Healthweigh 350 Series Wheelchair Scales Trimming Corner Load Cell Alignment | Download | Email |
Wheelchair Scales|Health Scales |
Videos / Webinars
| Title | View | Download | Category | |
|---|---|---|---|---|
| Accurate Patient Weighing With Rice Lake | View | Download | Email |
Health Scales |
| Health Scale Product Line Overview | View | Download | Email |
Health Scales|Wheelchair Scales|Chair Scales|Pediatric Scales|Mechanical Health Scales|Home Health Scales |
| Locking Units of Measure on Rice Lake Medical Indicators | View | Download | Email |
Health Scales |
| ScaleTalk: How to Calibrate a Rice Lake Medical Scale | View | Download | Email |
Health Scales |
| How to Measure a Wheelchair to Find the Right Size Scale | View | Download | Email |
Wheelchair Scales |
| Adjusting ATOL (Average Time of Lock) on Rice Lake Medical Indicators | View | Download | Email |
Indicators / Controllers |
| ScaleTalk: How to Test the Keypad & CPU on Healthweigh Indicators | View | Download | Email |
Health Scales |
| Using a Wheelchair Scale | View | Download | Email |
Wheelchair Scales|Health Scales |
| Measurement Solutions Throughout a Healthcare Facility | View | Download | Email |
Health Scales|Wheelchair Scales|Handrail Scales |
Accurate Patient Weighing With Rice Lake
Health Scale Product Line Overview
Locking Units of Measure on Rice Lake Medical Indicators
ScaleTalk: How to Calibrate a Rice Lake Medical Scale
How to Measure a Wheelchair to Find the Right Size Scale
Adjusting ATOL (Average Time of Lock) on Rice Lake Medical Indicators
ScaleTalk: How to Test the Keypad & CPU on Healthweigh Indicators
Using a Wheelchair Scale
Measurement Solutions Throughout a Healthcare Facility
Parts
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 141448 | Scale, Wheelchair 350-10-4 1000lb(450kg) x 0.2lb(100g) with (2) 9.25in. Ramps, Folding Chair Seat includes 6 AA size Alkaline batteries |
List Price: $3,115.00 |
|
|
194737
|
Scale, Wheelchair 350-10-4BLE 1000lb(450kg) x 0.2lb(100g) with (2) 9.25in. Ramps, Folding Chair Seat with Bluetooth BLE 4.0 and 6 AA size Alkaline batteries
|
List Price: $3,350.00 |
Options
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 115655 | Adapter,100-240V/9 VDC Power supply with US (NEMA 1-15 Plug) wall adapter |
List Price: $43.00 |
|
| 133077 | Power Supply,+9.0V Wall rated input voltage 100-240V, Operating range 50/60Hz, rated input frequency 0.2A max, cULus approved, NEMA 1-15 Plug |
List Price: $30.00 |
|
| 102508 | Adapter, 100-240V/9 VDC Power Supply with EU (CEE 7/16 Plug) wall adapter MSDS Required |
List Price: $30.00 |
Replacement Parts
Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.
To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
