350-10-3M Digital Wheelchair Scale

  • Two wheels for portability
  • Dual ramp
  • Nonslip platform
  • Large 1-inch LCD display
  • Motiontrap™ movement compensation technology
  • Unit of measure toggle or locking
  • EHR capable
  • USB or Bluetooth® BLE 4.0 available, part number selectable
  • Tare function
  • Hold function
  • BMI (body mass index) function
  • Factory calibrated
  • Easy to store, folded depth is 11.75 in

Same-day Shipping Available

Request Quote

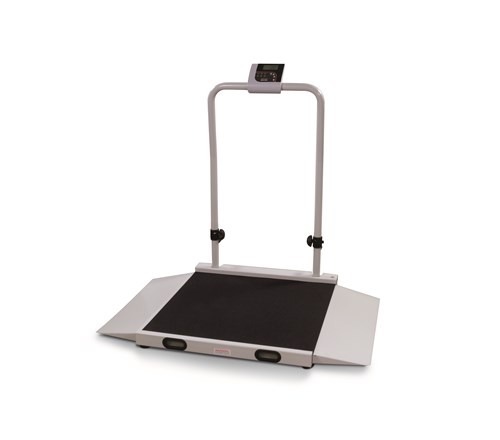

350-10-3M Digital Wheelchair Scale

350-10-3M Healthweigh® Digital Wheelchair Scale

Rice Lake’s Healthweigh® 350-10-3M is a dual ramp, metal wheelchair scale joining the 350-10 Series family. This durable scale offers accurate, high-capacity weighing for a wide range of patients. The 350-10-3M has a large, stable scale base with a nonslip surface to ensure safety during patient weighing. Easy to set up, this foldable scale can be quickly moved on two heavy-duty rear wheels for efficient patient weighing in different locations.

Capacity:
1,000 × 0.2 lb (450 × 0.1 kg)

Platform Dimensions:
(W × L × H)
31.5 × 29.5 × 3.2 in

Power:
9 VDC, provided by six AA alkaline batteries (included)
or AC adapter (optional)

Battery Type:
Six AA alkaline (included)

Battery Use:
25 hours of continuous use with batteries
Automatic power-off can be configured

Operating Temperature:
50 °F to 104 °F (10 °C to 40 °C)

Display:
5-digit LCD display, 0.75 in (1.9 mm) digit height

Approvals:
c-Met, E113986

Warranty:
Two-year limited



Dimensions
  Inches Centimeters
A 3.15 8.0
B 47.7 121.2
C 37.8 96.0
D 45.3 115.1
E 31.5 80.0
F 29.5 74.9
G 2.4 6.1
H 27.2 69.1



Shipping Weight
Part # Model # L (in) W (in) H (in) Package Wgt. (lb) Dim Wgt. (lb) Shipping Wgt. (lb)
193956 350-10-3M 51 42 14 102 216 216
203910 350-10-3MBLE 51 42 14 102 216 216





Resources / Downloads

Title View Email Category Type
How to Clean Health Scales Email Health Scales Articles
The Importance of Medical Scale Calibration View Email Calibration Weights|Health Scales Articles
How Often Should You Calibrate A Medical Scale? View Email Health Scales Articles
Maintaining Medical Scales: 5 Ways to Care for Your Scale View Email Health Scales Articles

Title Download Email
350-10-3M Dual-ramp Wheelchair Scale Catalog Page Download Email

Title Version Revision Download Email Category Archived
350-10-3M Digital Wheelchair Scale Operation Manual A Download Email Health Scales|Wheelchair Scales No
350-10-3M Digital Wheelchair Scale Technical Manual A Download Email Health Scales|Wheelchair Scales No
Bluetooth Low Energy (BLE) Demo for Rice Lake Medical Scales B Download Email Health Scales No
Bluetooth Setup Instructions for Rice Lake Medical Scales A Download Email Health Scales No
Rice Lake Health Scales Hinged Joint Replacement Download Email Health Scales|Wheelchair Scales No

Title Download Email
Medical Indicator, Titanium Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
350-10-3M Digital Wheelchair Scale Request Download Email Health Scales|Wheelchair Scales
Wheelchair Scales: Slip Resistant Metal Top Request Download Email Health Scales|Wheelchair Scales
Medical Product Guide Request Download Email Health Scales
Calibrating Patient Weighing Scales Collateral Wizard Request Download Email Health Scales

Title Version Size Release Date Download Email
Health Scales USB Driver - Titanium 10-button model 1 1.2 KB 06/17/2014 Download Email

Title View Email Category
How Often Should You Calibrate A Medical Scale? Download Email Health Scales|Home Health Scales|Mechanical Health Scales|Load Cells|Weigh Modules
Medical Scale Maintenance Download Email Health Scales|Home Health Scales|Mechanical Health Scales
Maintaining Medical Scales: 5 Ways to Care for Your Scale Download Email Health Scales|Home Health Scales|Mechanical Health Scales

Title View Download Email Category
Accurate Patient Weighing With Rice Lake View Download Email Health Scales
Health Scale Product Line Overview View Download Email Health Scales
Locking Units of Measure on Rice Lake Medical Indicators View Download Email Health Scales
Calibrating a Rice Lake Medical Scale View Download Email Health Scales
How to Measure a Wheelchair to Find the Right Size Scale View Download Email Wheelchair Scales
Adjusting ATOL (Average Time of Lock) on Rice Lake Medical Indicators View Download Email
ScaleTalk: How to Test the Keypad & CPU on Healthweigh Indicators View Download Email Health Scales

Title Download Email Category
350-10-3M Dual-Ramp Wheelchair Scale Warranty Download Email Health Scales

Title Download Email Category
Prescription Dosing Depends on Weight Download Email Health Scales
Limpieza en Forma Correcta de Basculas de Asistencia a La Salud de Rice Lake Download Email Health Scales
How To Properly Clean Rice Lake Health Scales Download Email Health Scales

Parts

Part # Description List Price Cart
193956
Scale, Wheelchair 350-10-3M 1000lb(450kg) x 0.2lb(100g) with (2) 9.25in. Ramps includes 6 AA size Alkaline batteries

List Price: $2,165.00
203910 Scale, Wheelchair 350-10-3MBLE 1000lb(450kg) x 0.2lb(100g) with (2) 9.25in. Ramps includes 6 AA size Alkaline batteries

List Price: $2,400.00

Options

Part # Description List Price Cart
115655 Adapter,120-240VAC/9 VDC

List Price: $43.00
133077 Power Supply,+9.0V Wall rated input voltage 100-240VAC, Operating range 50/60Hz, rated input frequency 0.2A max, UL approved

List Price: $25.00
102508 Adapter,220VAC AC Healthweigh 9VDC 500MA

List Price: $30.00
81076 Printer,Tape TM-U220D RS232 Serial, Universal Power Supply, US Power Cord Epson

List Price: $445.00
186830 Cable ASSY,RS-232 Scale to Printer, 6ft, 25-pin D-Sub male to RJ-45

List Price: $69.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
