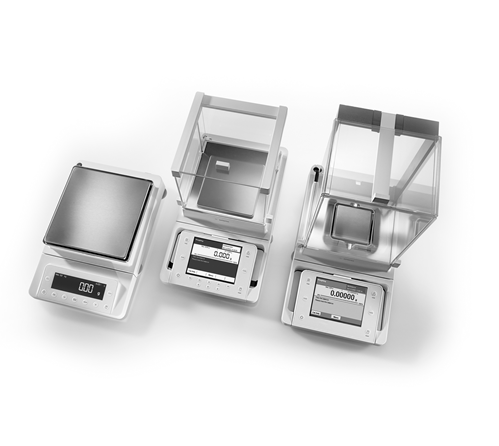

Cubis Series, Sartorius Precision Balance
- Modular design
- User configurable and custom designed to meet changing applications
- Meets advanced Pharma compliance including user/password management for security, audit trail function logs and integrated alibi memory
- RS-232 and USB communication
- Easy cleaning by removing glass doors
- Underweigh hook included
- Manual glass draft shield
- Choice of display
- MCA - Large, high-end, 7" color touchscreen TFT display in 16:9 format
- MCE - State-of-the-art, TFT touchscreen operation
Options:
- Bluetooth® wireless technology
The Cubis modular system offers you a choice of display and control units, weighing modules and draft shields. Customize your Cubis by combining any number of these modules to achieve the best laboratory balance for your application.
Sartorious Cubis Milligram Specifications Table
| 3203S | 2203S | 2203P | 1203S | 5203S | 5203P | 623S | 623P | 323S | |
|---|---|---|---|---|---|---|---|---|---|
| MSE* | |||||||||
| Part # | 109803 | 109804 | 109805 | 109806 | 156315 | 156316 | 109807 | 109808 | 109809 |
| MSU** | |||||||||
| Part # | 109810 | 109811 | 109812 | 109812 | 109813 | 156314 | 109814 | 109815 | 109816 |
| MSA*** | |||||||||
| Part # | 109817 | 109818 | 109819 | 109820 | 156310 | 156312 | 109821 | 109822 | 109823 |
| Capacity | 3200 g | 2200 g | 1010/2200 g | 1200 g | 5200 g | 5200/2400/ 1200 g | 620 g | 150/300/ 620 g | 320 g |
| Resolution | 1 mg | 1 mg | 1/10 mg | 1 mg | 1 mg | 5/2/1 mg | 1 mg | 1, 2, 5 mg | 1 mg |
| Weighing Modes | Grams, Kilograms, Carat, Pounds, Ounces, Troy Ounce, Tael Hong Kong, Tael Singapore, Tael Taiwan, Grain, Pennyweight, Milligram, Parts per Pound, Tael China, Mommes, Austrian Carat, Tola, Baht, Mesghal, Ton, Pound:Ounces, Newton, Micrograms | ||||||||
| Operating Modes (*) | Mass Unit Conversion, SQ min function, ISO-Cal function, Density determination (Buoyancy method only with MSE), Calculation, Averaging, Formulation, Percent weighing, Totalizing, Counting, Customized identification, Statistics, Time control function, Second tare memory, Over/Under Checkweighing | ||||||||
| Repeatability | 1/6 mg | 1 mg | 1/6 mg | 0.7 mg | 1 mg | 1 mg | 0.7 mg | 1/2/4 mg | 0.7 mg |
| Linearity | 5 mg | 3 mg | 5 mg | 2 mg | 5 mg | 5 mg | 2 mg | 5 mg | 2 mg |
| Stabilization Time | 1 second | 1 second | 1 second | 1 second | 1 second | 1 second | 0.8 seconds | 0.8 seconds | 0.8 seconds |
| Operating Temperature | 41° F to 104° F (+5° C to 40° C) | ||||||||
| Weighing Chamber (DE) | 8 x 8 x 7 in (from pan) (200 x 200 x 179 mm) | ||||||||
| Pan Size | 5.5 x 5.5 in (140 x 140 mm) | ||||||||
| Dimensions | 16 x 9.8 x 11 in (410 x 249 x 281.4 mm) (with manual draft shield) | ||||||||
| Weight (Approx.) | 17 lb | ||||||||
| Est. Ship Weight | 27 lb | 25 lb | |||||||
| Calibration Weight | 2000 g | 2000 g | 1000 g | 1000 g | 500 g | 500 g | 500 g | 500 g | 200 g |
| Power | 120 V AC adapter (auto ranging) | ||||||||
| Warranty | Two-year Limited Warranty | ||||||||
| Return Policy | Sartorius Standard Policy - restock fee may apply | ||||||||
| * MSE Large LCD display and easy to use menu system | |||||||||
| **MSU Monochrome graphic display, positive click on keys to activate functions, Ethernet and SD card reader | |||||||||
| ***MSA TFT color touchscreen, Ethernet and SD card reader | |||||||||
Sartorious Cubis Milligram Options
- Bluetooth® wireless technology
Resources / Downloads
Options
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 156906 | Power Supply,100-240V Sartorius 6971987 |
List Price: $260.00 |
|
| 156908 | Cord,Power 220V EU Sartorius 6900900 |
List Price: $50.00 |
|
| Consult | TR: Certificate of compliance and full factory test report (factory installed) |
Call for price |
|
| Consult | IR: Additional RS-232, 25-pin connection (factory installed) |
Call for price |
|
| Consult | IB: Bluetooth wireless® interface (factory installed) |
Call for price |
|
| Consult | IP: Additional RS-232, 9-Pin connection with PS2 port (factory installed) |
Call for price |
|
| Consult | DA, DR, DI, or DU: Other draft shields available |
Call for price |
