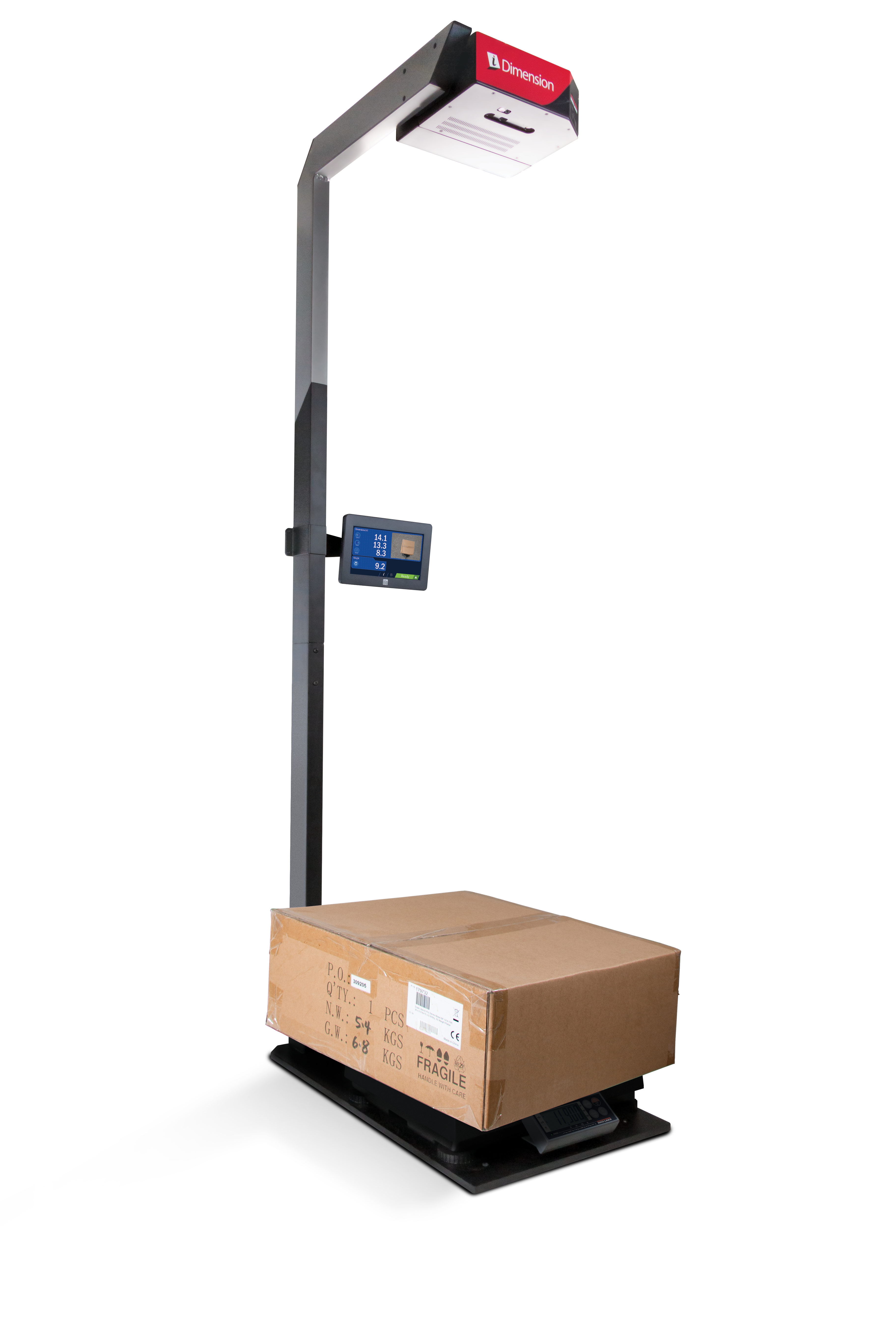

When it comes to calculating the dimensions of boxes, flats, polybags and more, Rice Lake's iDimension Plus is the fastest static tabletop solution on the market. It can be assembled in 30 minutes and helps prevent revenue loss by providing accurate dimensional weight calculations required by parcel and postal carriers.
Dimension parcels faster and more accurately than manual measurements with the iDimension Plus. In an industry-leading 0.2 seconds, parcels are automatically calculated at 0.2 inches or +/-0.5 inches for irregular packages, eliminating the risk of human error. The iDimension Plus is NTEP certified for single irregular and cubic-shaped non-transparent objects.

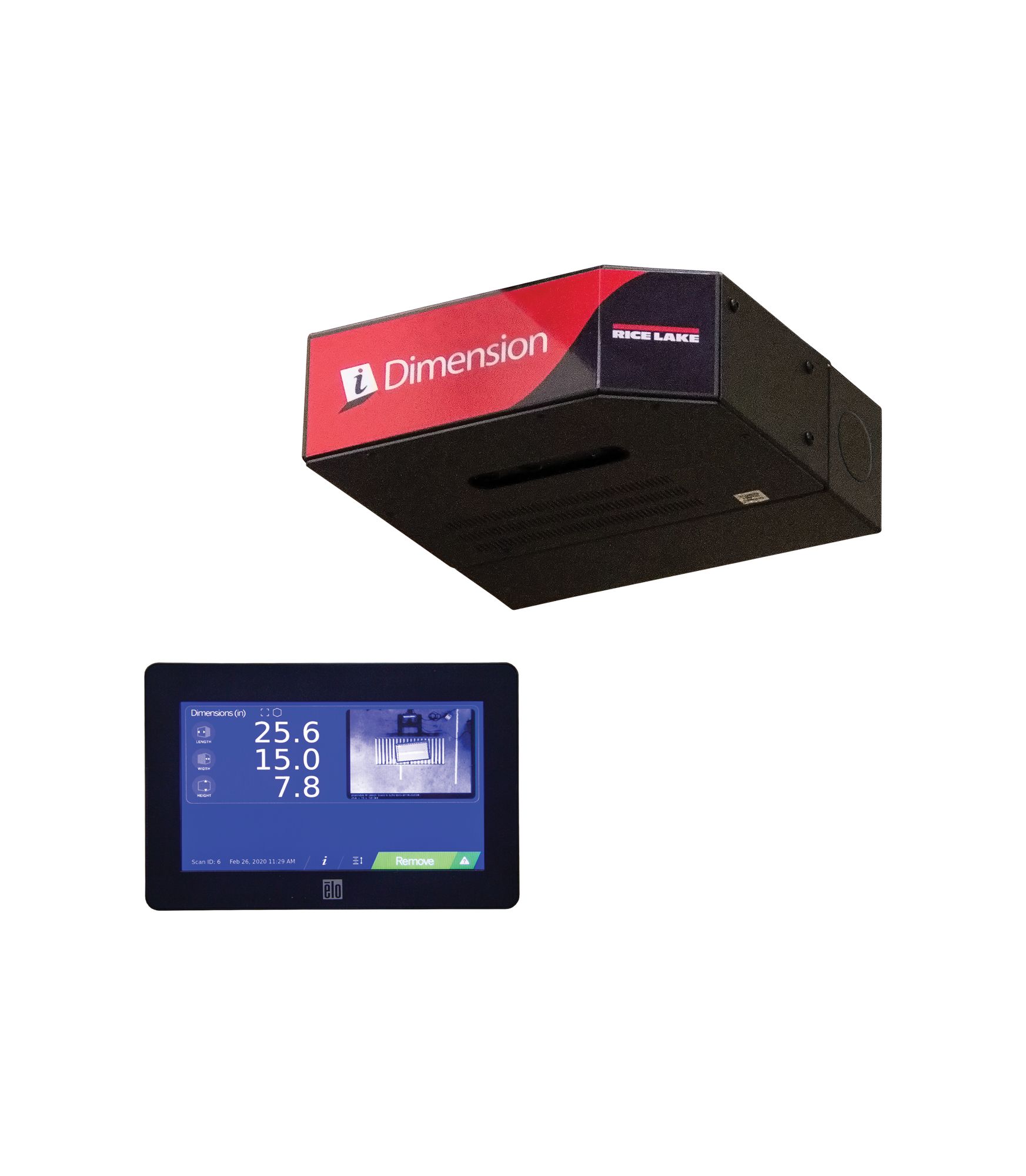

The iDimension Plus uses multiple patented 3D-imaging technologies with advanced algorithms to optimize time and throughput for static outbound shipments. For objects under 1.2 inches, unique flat-detection technology measures envelopes and small packages. Each dimension includes an overhead image for use during claim disputes on damaged packages. A color touchscreen display provides instant feedback, a live image, measurements, weight and operator functions for day-to-day use.
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 222296 | iDimension Plus w/EU pwr cord,1.2M Pole Mount System, OIML/MID/EU/NMI/NTEP Approved | List Price: $7,245.00 | |
| 222297 | iDimension Plus 4K with EU pwr cord,1.2m Pole Mount System, OIML/EU/MID/NMI/NTEP | List Price: $8,845.00 |
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 180007 | USB hub,Kit Includes USB Hub, 5M cable, power adapter, North America | List Price: $280.00 | |
| 180771 | Kit,iDim cable assemblies, USB Hub for Worldship Interface | List Price: $430.00 | |
| 205533 | Power Cord,90 CEE 7/7 0 C13, 5M length power cord | List Price: $45.00 | |
| 95589 | Power Cord,Detachable BS 1363 (UK) Molded Plug To IEC 320-13 (CEE 22 Standard V) Molded Connector 8.2 ft (2.5 Meters) Harmonized 13 Amp | List Price: $35.00 | |
| 162630 | Power Cord,AS/NZS 3112 230VAC Australian Molded Plug to Pluggable C13, 8ft, 2.5m | List Price: $35.00 | |
| 178501 | Adapter,USB Serial FTDI US232R-100, 3.28 ft, iDim Series for use with RLWS indicator and Postal Scales | List Price: $60.00 |
Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.
To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
