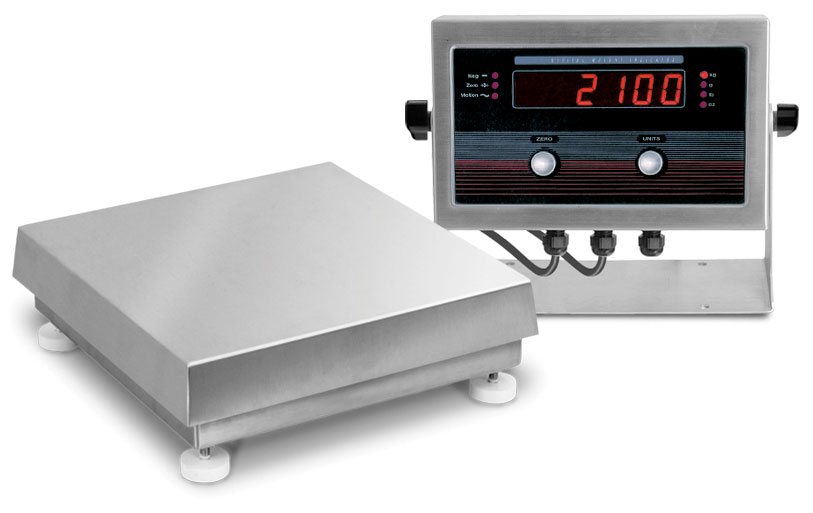

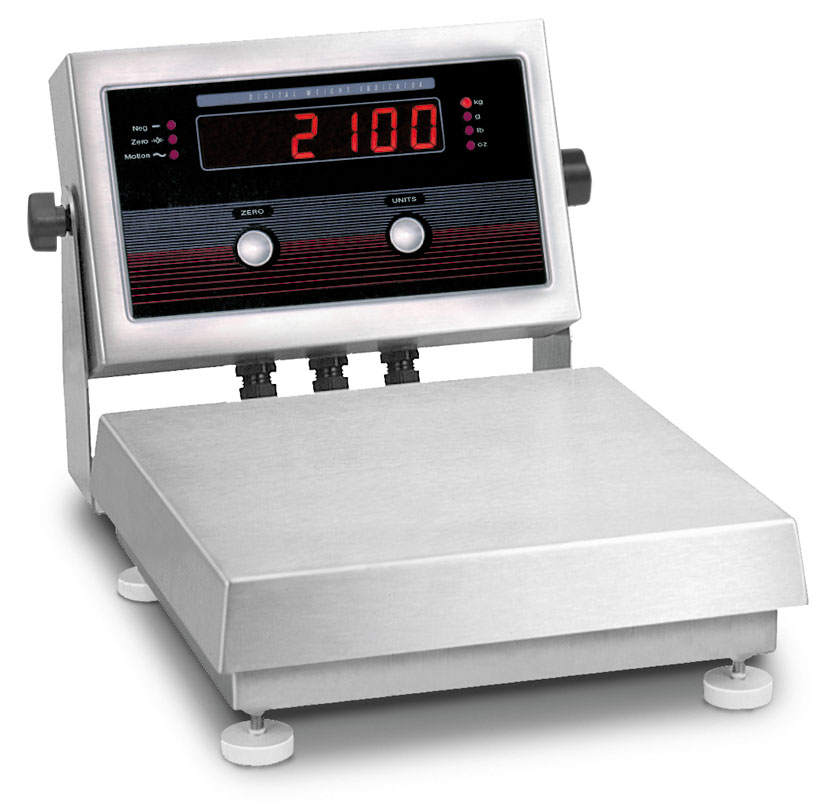

IQ Plus® 2100 Digital Bench Scale

  • NEMA Type 4X/IP66
  • 304 stainless steel construction
  • Large, bold 0.8 in light emitting diode (LED) display
  • Status annunciators: lb, kg, oz, g, negative, motion, center of zero
  • One full-duplex RS-232 port
  • Two digital inputs for remote zero, print and units
  • 12 in column, attachment bracket or tilt stand for table, wall or under counter mounting
  • Aluminum, single-point load cell
  • Overload and upload stops on scale base
  • Stainless steel, non-tactile feel, piezo Zero and Units buttons
  • Unit of measure: kg, gm, lb, oz, lb/oz (lb/oz is not Legal for Trade)
  • PreVent™ breather vent
  • Factory Calibrated

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW ULCUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Unmatched Features and Value

The IQ plus® 2100 digital bench scale is ideal for use in general purpose weighing, portioning, and a variety of food processing applications. Stainless steel buttons repel messy ingredient spills and damage by knife point, while the NEMA Type 4X stainless steel indicator enclosure stands up to frequent washdowns. Standard overload stops protect the base during heavy use. All operations are controlled through two buttons—zero and units. Push-button zero and a full range of units, including lb/oz, offer the flexibility needed for a wide variety of applications.

Power-AC:
Line Voltages
115 or 230 VAC

Frequency:
50 or 60 Hz

Power Consumption:
70 mA at 115 VAC (8 W)
35 mA at 230 VAC (8 W)

Display Resolution:
10,000 graduations maximum

Digital Inputs:
Two inputs, TTL or switch closure, active-low

Serial Communications:
Full-duplex RS-232; 9600, 4800, 2400, 1200 bps; seven or eight data bits; even, odd or no parity

Display:
Six-digit light-emitting diode (LED) display
Seven-segment, 0.8 in (20 mm) digits

LED Annunciators:
Negative value, center of zero, motion, kg, g, lb, oz

Keypad:
Two stainless steel piezo switches

Operating Temperature:
14 °F to 104 °F (-10 °C to 40 °C)

Rating/Material:
NEMA Type 4X/IP66, stainless steel

Load Cell:
Aluminum, environmentally sealed

Warranty:
Two-year limited

Approvals:
Indicator
NTEP CC 00-045 Class III/IIIL 10,000 d
Measurement Canada AM-5374;
UL and C-UL listed
Base
NTEP CC 95-072, Class III 5,000 d

Platform Dimensions L L1
10 × 10 in (254 × 254 mm) 10.25 in (260.4 mm) 10 in (254 mm)
12 × 12 in (305 × 305 mm) 12.25 in (311.2 mm) 112 in (304.8 mm)





Resources / Downloads

Title View Email Category Type
Red is Delicious View Email Indicators / Controllers|Checkweighers Application Story

Title Download Email
IQ Plus 2100 Checkweigher Catalog Page Download Email

Title Version Revision Download Email Category Archived
IQ Plus 2100 Installation Manual 1.02 Download Email Bench Scales|Platform Scales No

Title Download Email
Bench Scale Questionnaire Download Email

Title Download Email
IQ Plus 2100/2100SL Replacement Parts Catalog Page Download Email

Parts

IQ plus 2100 with tilt stand - 115 VAC

Part # Description List Price Cart
63053 CKWGHR,IQ+2100 10x10- 5lb w/ Tilt Stand SST 115vac

List Price: $1,355.00

63052 CKWGHR,IQ+2100 10x10- 10lb w/ Tilt Stand SST 115vac

List Price: $1,355.00

63051 CKWGHR,IQ+2100 10x10- 25lb w/ Tilt Stand SST 115vac

List Price: $1,355.00

63050 CKWGHR,IQ+2100 12x12- 50lb w/ Tilt Stand SST 115vac

List Price: $1,445.00

63049 CKWGHR,IQ+2100 12x12- 100lb w/ Tilt Stand SST 115vac

List Price: $1,445.00

IQ plus 2100 with attachment bracket - 115 VAC

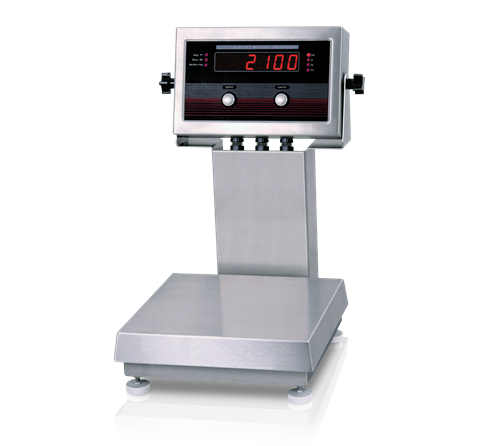

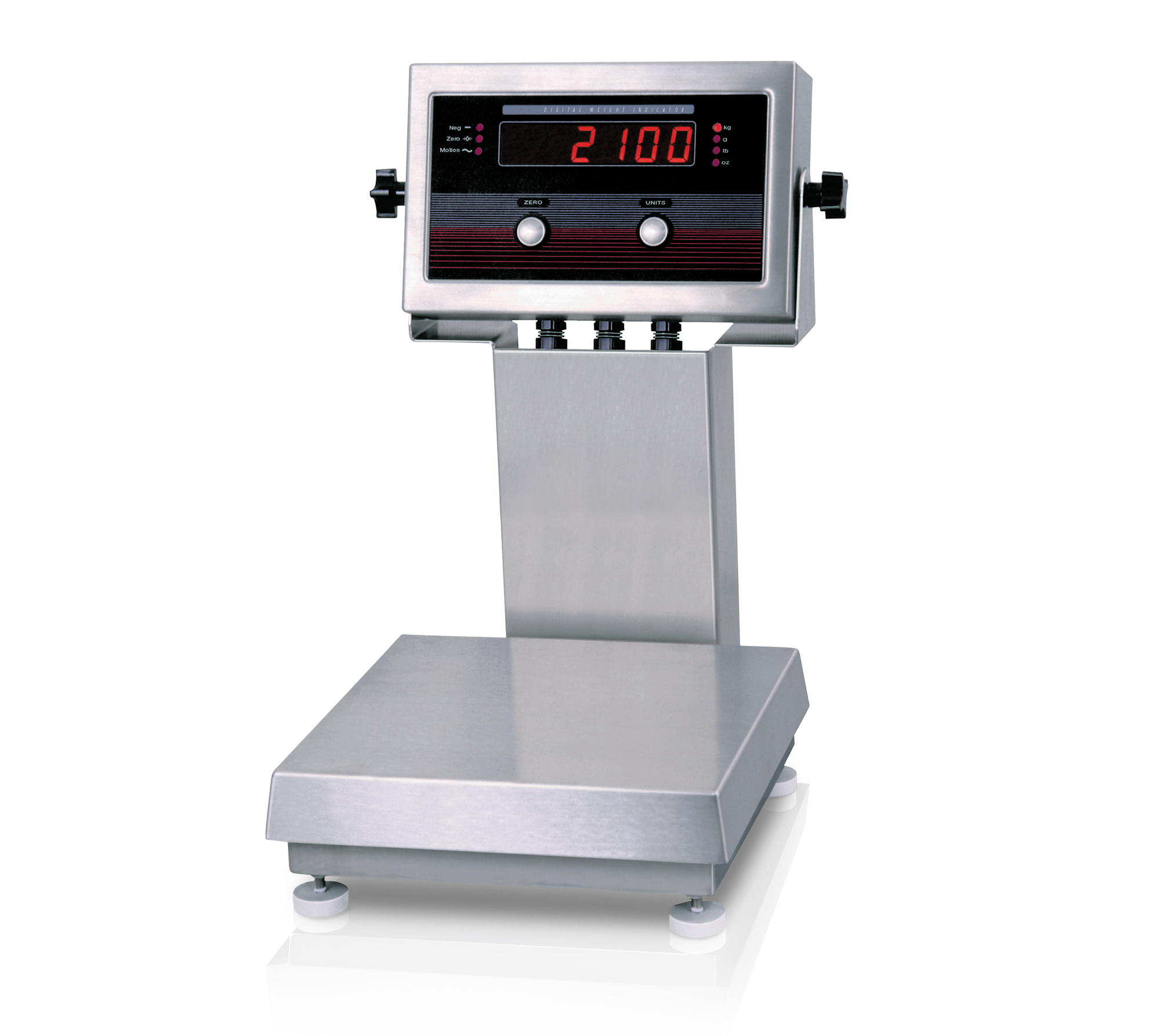

IQ plus 2100 with 12 in column - 115 VAC

IQ plus 2100 with 12 in column - 230 VAC

IQ plus 2100 with 18 in column - 115 VAC

Options

Part # Description List Price Cart
53415 LIT,Manual IQ+2100 Installation Manual

List Price: $30.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

WEB SC 210

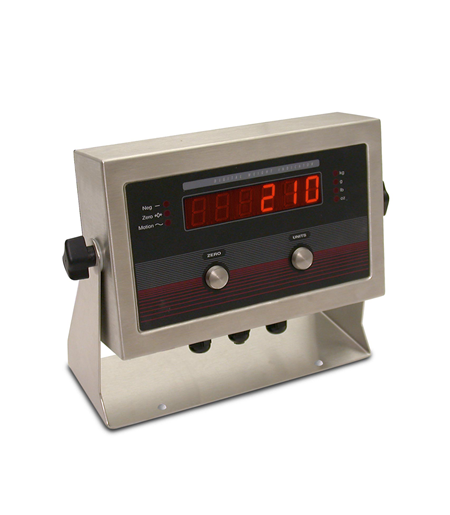

IQ Plus 210 Digital Weight Indicator
