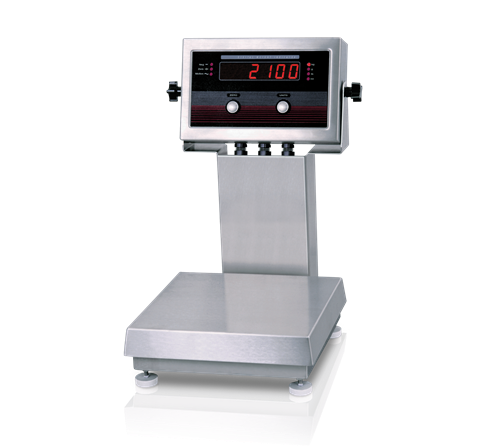

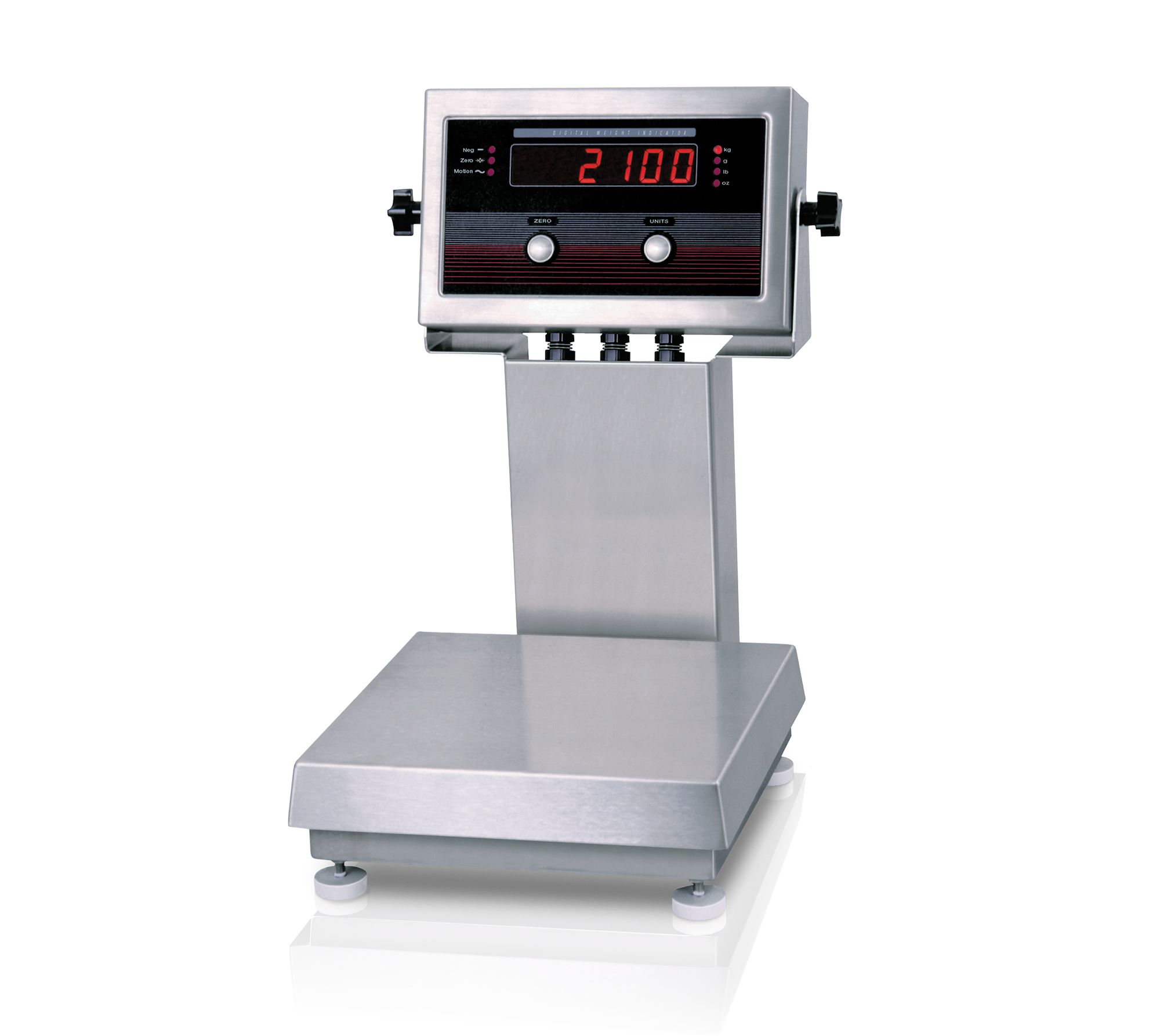

IQ Plus® 2100SL Digital Bench Scale

  • NEMA Type 4X/IP66
  • 304 stainless steel construction
  • Large, bold 0.8-inch LED display
  • Status annunciators: lb, kg, oz, g, negative, motion, center of zero
  • One full-duplex RS-232 port
  • Two digital inputs for remote zero, print and units
  • 12-inch column, attachment bracket or tilt stand for table, wall or under counter mounting
  • Aluminum, single-point load cell
  • Overload and upload stops on scale base
  • Stainless steel, non-tactile feel, piezo zero and units buttons
  • Unit of measure: kg, gm, lb, oz, lb/oz (lb/oz is not Legal for Trade)
  • PreVent™ breather vent
  • Spring-loaded platform
  • Factory calibrated


Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW UL_Listed_C-US

WARNING: Cancer and Reproductive Harm California Proposition 65

Unmatched Features and Value

The IQ plus® 2100SL digital bench scale is ideal for use in general-purpose weighing, portioning, and a variety of food processing applications. Stainless steel buttons repel messy ingredient spills and damage by knifepoint, while the NEMA Type 4X stainless steel indicator enclosure stands up to frequent washdowns. Standard overload stops protect the base during heavy use. All operations are controlled through two buttons—zero and units. Push-button zero and a full range of units, including lb/oz, offer the flexibility needed for a wide variety of applications

Added Overload Protection

This special 2100 model is enhanced with a four-point spring plate suspension, to minimize shock and overload damage. For increased durability, the 2100SL is an economical and durable checkweigher.

Line Voltage 115 VAC

50/60 Hz

Power Consumption:
70 mA at 115 VAC (8 W)

Display Resolution:
10,000 graduations maximum

Digital Inputs:
Two inputs, TTL or switch closure, active-low

Scale Frame:
AISI304L, straight line finish, Ra=45 +/- 10

Scale Cover:
AISI304L, straight line finish, Ra=45 +/- 10

Serial Communications:
Full-duplex RS-232; 9600, 4800, 2400, 1200 bps; seven or eight data bits; even, odd or no parity

Six-digit LED display
Seven-segment, 0.8 in (20 mm) digits

LED Annunciators:
Negative value, center of zero, motion, kg, g, lb, oz

Two stainless steel piezo switches

Operating Temperature:
14 °F to 104 °F (-10 °C to 40 °C)

NEMA Type 4X/IP66, stainless steel

Load Cell:
Aluminum, environmentally sealed

Two-year limited

NTEP CC 00-045 Class III/IIIL 10,000 d
Measurement Canada, AM-5374;
UL and C-UL listed
NTEP CC 95-072, Class III 5,000 d

Platform Dimensions L L1
10 × 10 in (254 × 254 mm) 10.25 in (260.4 mm) 10 in (254 mm)
12 × 12 in (304.8 × 304.8 mm) 12.25 in (311.2 mm) 12 in (304.8 mm)



Resources / Downloads

Title View Email Category Type
Prince Edward Island View Email Checkweighers|Indicators / Controllers|Weight Indicators Application Story
Surviving the Tignish Wind View Email Indicators / Controllers|Weight Indicators|Checkweighers Application Story

Title Download Email
IQ Plus 2100SL Checkweigher Catalog Page Download Email

Title Version Revision Download Email Category Archived
BenchMark SL, SL/HE, CW-80B Technical Manual A Download Email Bench Scales|Platform Scales No

Title Download Email
Bench Scale Questionnaire Download Email

Title Download Email
IQ Plus 2100/2100SL Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
BenchMark Series Bench Scales Request Download Email Platform Scales|Bench Scales


IQ plus 2100SL with tilt stand - 115 VAC

Part # Description List Price Cart
65168 CKWGHR,IQ+2100SL 10x10- 5lb w/ Tilt Stand SST 115vac

List Price: $1,435.00

65169 CKWGHR,IQ+2100SL 10x10- 10lb w/ Tilt Stand SST 115vac

List Price: $1,435.00

65170 CKWGHR,IQ+2100SL 10x10- 20lb w/ Tilt Stand SST 115vac

List Price: $1,435.00

65171 CKWGHR,IQ+2100SL 10x10- 30lb w/ Tilt Stand SST 115vac

List Price: $1,435.00

65172 CKWGHR,IQ+2100SL 12x12- 30lb w/ Tilt Stand SST 115vac

List Price: $1,525.00

65173 CKWGHR,IQ+2100SL 12x12- 50lb w/ Tilt Stand SST 115vac

List Price: $1,525.00

65174 CKWGHR,IQ+2100SL 12x12- 100lb w/ Tilt Stand SST 115vac

List Price: $1,525.00

IQ plus 2100SL with attachment bracket - 115 VAC

IQ plus 2100SL with 12 in column - 115 VAC

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
