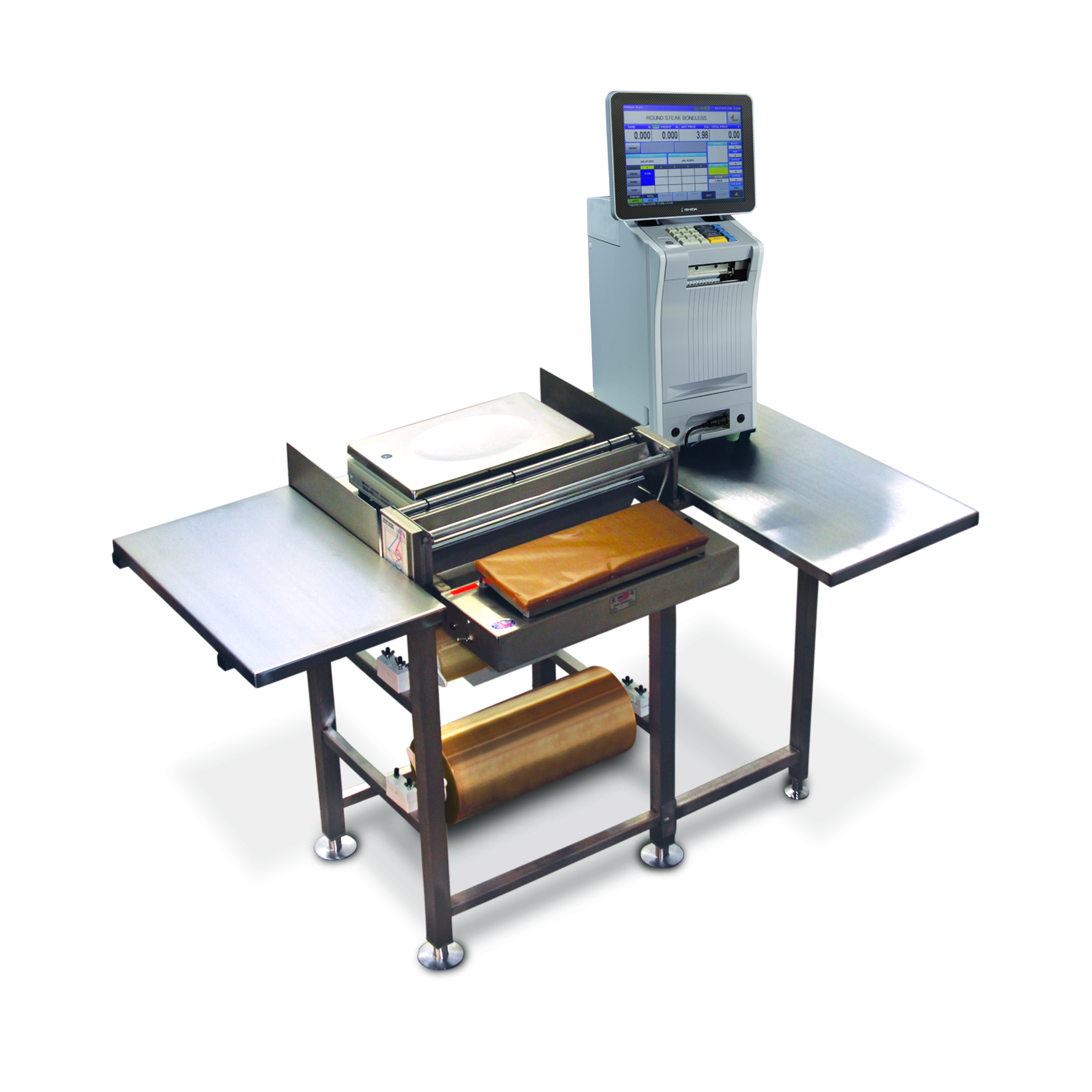

Ishida IP-Ai Remote Scale Base

  • Large color touchscreen with printer and base scale
  • Adjustable touchscreen viewing angle

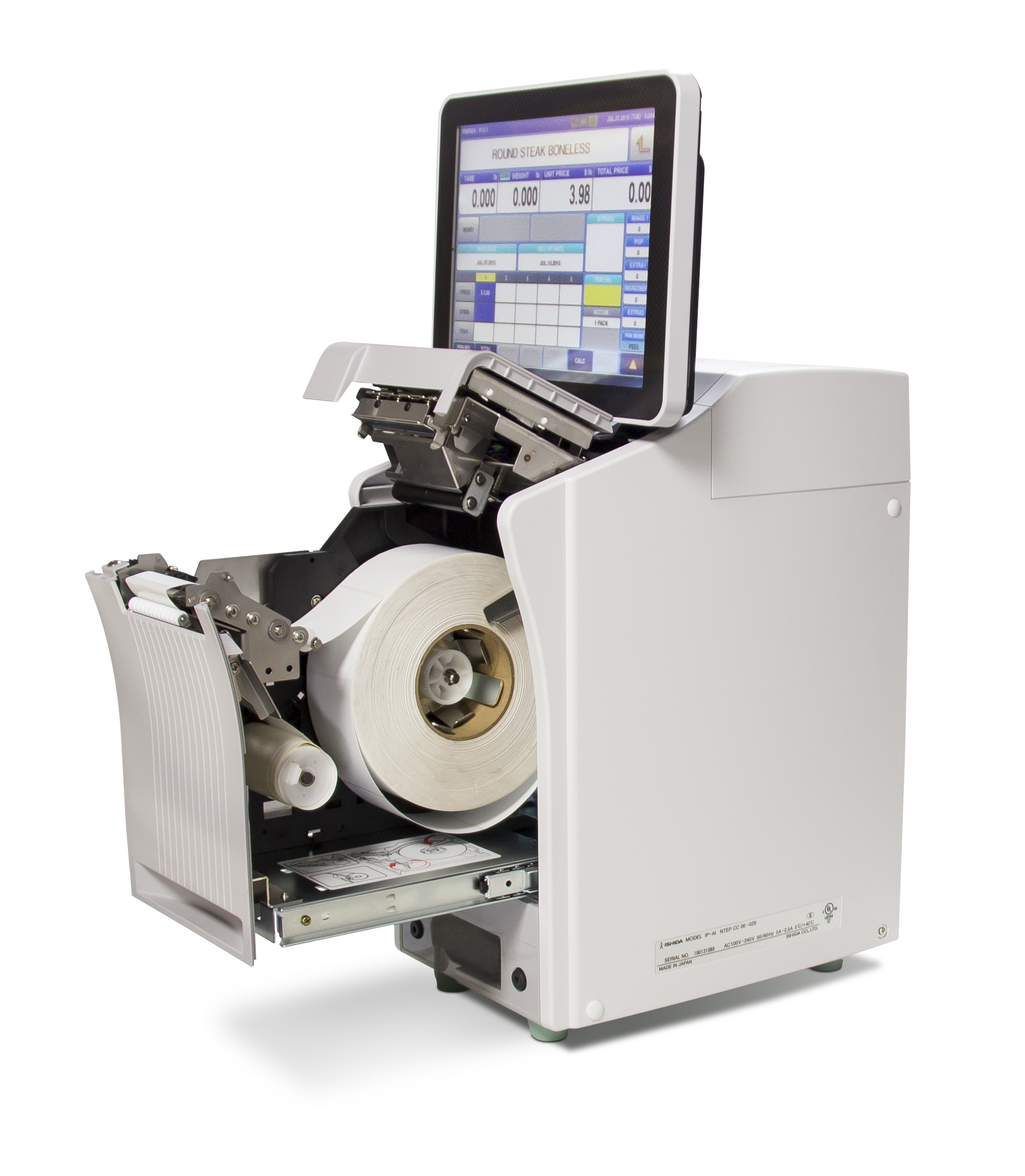

  • Front-loading, 9 in (230 mm) label roll capacity
  • 3-inch thermal head
  • Prints all legally required safe-handling, country of origin labels and 2020 nutritional information
  • Stores and prints graphics for custom labeling
  • Ethernet communications
  • 19 tactile keys
  • 2 GB of memory
  • 30+ selectable fixed bar code formats
  • Flexible setup for ergonomic operation
  • Compatible with third-party communication software, including Invatron’s PLUM, ADC’s InterScale and Droste's PCScale Manager
  • Up to 150mm/sec print speed
  • Configurable for different languages including Spanish, French and German

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo

WARNING: Cancer and Reproductive Harm California Proposition 65

Capacity (Dual Range):
0 to 15 × 0.005 lb/15 to 30 × 0.01 lb (PN 169225)

Capacity (Single Range):
60 × 0.01 lb (PN 186946)

Operating Environment:
Temperature: 23 °F to 104°F (-5 °C to 40 °C)
Humidity: 20% to 85% (no condensation)

Display Unit:
12.1in TFT color LCD with LED
backlight SVGA (800 × 600)

Display Items:
Tare: Four-digits
Unit price: Five-digits
Weight: Five-digits
Total price: Six-digits

Input/Output:
LAN x 1 channel
USB x 4 channel
SD card x 1 channel
(for transaction data)

Memory:
2GB

Communication:
Static TCP/IP 10/100 Base T Ethernet

Print Head:
3.1 in (80 mm) direct thermal
(12 dot/mm)

Print Speed:
3.9/ 4.7/ 5.9 in/sec
(100/ 120/ 150 mm/sec)

Label Size:
Width: 1.5 to 3.1 in (38 to 80 mm)
Length: 1.2 to 7.9 in (30-200 mm)

Label Roll:
Inside diameter: 3.0 in (76 mm) min
Outside diameter: 9.0 in (230 mm) max

Weight:
Main body: 42 lb (19 kg)
Scale unit: 13 lb (6 kg)

Power Supply:
AC110 to 120V, 50/60Hz, 4A

Power Consumption:
Stand-by: 50W
In operation: 120W

Classification:
NTEP CC 06-029

Warranty:
One-year limited

Resources / Downloads

Title Download Email
Ishida IP-Ai Wrapping System Catalog Page Download Email

Title Version Revision Download Email Category Archived
IP-AI Prepack Scale & Printer Operation Manual - Nov 2016 Download Email Retail Equipment No

Title Download Email
IP-Ai Main Body Frame Unit Replacement Parts Catalog Page Download Email
IP-Ai Base Unit Replacement Parts Catalog Page Download Email
IP-Ai Printer Unit Replacement Parts Catalog Page Download Email
IP-Ai Head Unit Replacement Parts Catalog Page Download Email
IP-Ai Keyboard Unit Replacement Parts Catalog Page Download Email
IP-Ai Cassette Unit Replacement Parts Catalog Page Download Email
IP-Ai Display Unit Replacement Parts Catalog Page Download Email
IP-Ai Scale Unit, 30 lb Replacement Parts Catalog Page Download Email
IP-Ai Scale Unit, 60 lb Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
IP-Ai Hand Wrapping System Request Download Email Retail Equipment|Price Computing Scales|Wrappers
Retail Systems Literature Request Download Email Retail Accessories|Retail Equipment|Retail Labelers

Parts

Part # Description List Price Cart
169225 Retail Scale,IP-Ai 30lb Capacity, Pre pack, Hand wrap, 9 inch OD label roll, Ishida

List Price: $6,233.00

186946 Retail Scale, IP-Ai 60lb Capacity, Pre pack Hand wrap, 9 inch OD label roll, Ishida

List Price: $6,768.00

Options

Ishida IP-Ai Remote Scale Base

Part # Description List Price Cart
47670 Retail Scale OPT,Base Unit Scalemate 27 Deep x 23 Wide x 32 High Scale Shelf 36 inch Overall Height 2 Roll 18 in Max Roll Size 750 Watt 6 x 15 in Heat Pad w/Cover 115 VAC 12ft Power Cord Ishida

List Price: $2,205.00

47672 Retail Scale OPT,Wrap Station Wing Left Scalemate, SM20ES, 200ES, 14 x 22 in Ishida

List Price: $255.00

102933 Wrap Station,Right Wing w/o Hood 14 x 34 SST, With Support Leg

List Price: $391.00

53963 Retail Scale OPT,Wrap Station All Purpose Shelf Scalemate, SM20ES, 200ES 12x24 or 15x24 Ishida

List Price: $300.00

98400 Option,10 Key Cover Clear Membrane Self Adhesive Tenkey SOLD PER EACH OMNi-4000 IP-EMZ WM-4000, WM-Ai, IP-Ai, IP-Ai-P Ishida

List Price: $54.50

104948 Mounting kit, Handwrap station, Uni-7RP, Uni-9RP 60lb, Uni-3RP, Ishida

List Price: $27.00

178842 Shelf Assembly, Hand Wrapping Station, IP-Ai, Ishida

List Price: $375.00

155176 Option,UNI-7 RP POP Label Dispenser with Mounting Hardware for ScaleMate

List Price: $379.50

151761 Option, Spacer POP label dispenser, Set of 10, Ishida, use for wider core POP labels

List Price: $18.00

Communication

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
