Ishida Uni-3 Series

  • Blue alphanumeric LCD display (23 digits, 16 segments) or backlit alphanumeric LCD display (23 digits, 7 segments)
  • Dual-range weighing (0-15 lb x 0.005 lb/15-30 lb x 0.01 lb)
  • Side-load label
  • Fast printing speed (3.9 in/ 100 mm per second)
  • Meat nutrition and 2020 nutrition labeling
  • Multiple label formats
  • Powerful batch printing feature
  • Static TCP/IP Ethernet communication
  • 84 one-touch preset keys, 168 presets (assign two items/key)
  • Flash ROM for simple update of application software
  • 2 MB memory
  • Proportional tare
  • Compatible with third-party communication software, including ADC's InterScale and Invatron's PLUM

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo

WARNING: Cancer and Reproductive Harm California Proposition 65

Simple and Efficient Price Computing Scale

Extraordinary Power. Exceptional Value.

With premium-class presets, fast print speed, and more labeling functions, you are getting more flexibility and more features—all for less cost than comparable price computing scales with printers.

With three models and two display types, you can easily find a Uni-3 to fit your specific application needs. Ethernet or optional wireless communication enables any Uni-3 to be added to your existing network—ensuring you have consistent control of all scales in your store.

Product management software ensures easy file maintenance as well as PLU and tare weight consistency throughout your operation. The power of the Uni-3 is at your fingertips with flexible preset buttons to represent PLUs, container tare values, label formats, images and logos.

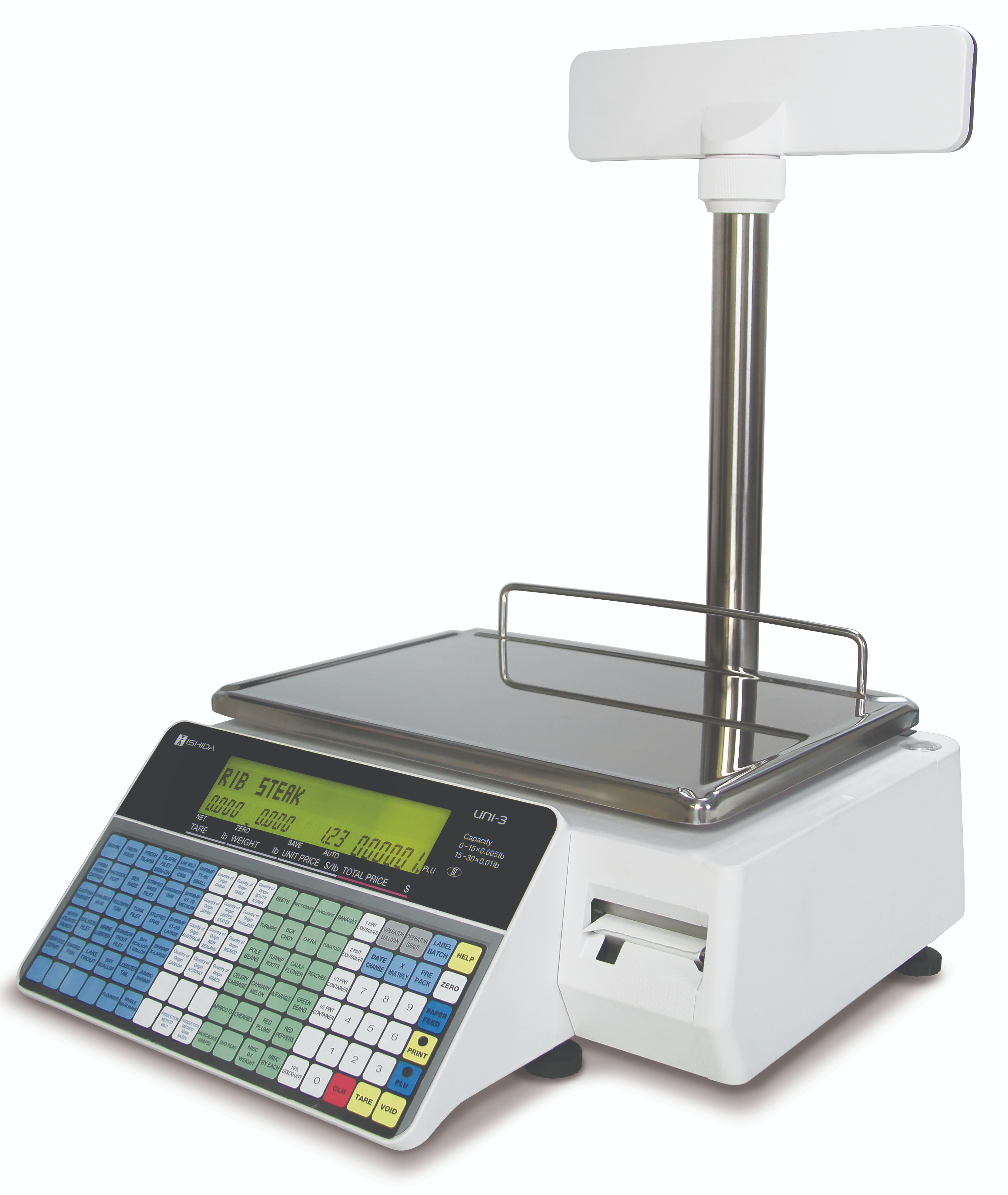

The Uni-3 L1 model features a vibrant blue alphanumeric display with a sharp white 16-segment capability. The Uni-3 L2 model features a clear LCD display with one line alphanumeric and one line numeric. Each model offers a matching customer display.

Capacity (Dual Range):
0-15 x 0.005 lb/15-30 x 0.01 lb/0-60 x 0.02 lb (single range)
Weighing Resolution:
3,000 display divisions maximum
Display Types:
L1: LCD, blue alphanumeric (23 digits 16 seg)
L2: LCD, backlight, alphanumeric (192 x 16 DM + 23 digits 7 seg)
Display Items:
Tare: Four-digits
Weight: Five-digits
Total price: Six-digits
Preset Keys:
84 one-touch preset keys 168 presets (assign two items/key)
Memory Capacity:
2 MB
Communications:
TCP/IP 10/100 Base T Ethernet
Platter:
14.5 x 10.5 in
Printing Speed:
3.9 in (100 mm) per second
Printing:
Direct thermal 2.2 in (56 mm)
Label Size:
Width: 1.5-2.5 in (38-64 mm)
Length: 1.2-6.9 in (30-175 mm)
Label Roll:
Inside diameter: 1.6 in (40 mm)
Outside diameter: 3.9 in (100 mm)
Label Backing Paper:
Width: Up to 2.6 in (66 mm)
Power Supply:
AC100-240 V, 50/60 Hz
Power Consumption:
Stand-by: 50 W
In operation: 100 W
Classification:
NTEP CC 07-005
UL Listed
Warranty:
One-year limited warranty

Resources / Downloads

Title View Email Category Type
Brilliance at Brion's View Email Retail Equipment Articles

Title Download Email
Ishida Uni-3 Countertop Scales Catalog Page Download Email

Title Version Revision Download Email Category Archived
Ishida Uni-3 Series Operator Manual, March 2021 C Download Email Retail Equipment No
Ishida Uni-3 Operation Quick Reference Download Email Retail Equipment No
Ishida Uni-3 Operator Keysheet: July 2015 Download Email Retail Equipment No

Title Download Email
Uni-3L1 Bench Replacements Parts Page Download Email
Uni-3L1 Pole Replacements Parts Page Download Email
Uni-3L2 Bench Replacements Parts Page Download Email
Uni-3L2 Pole Replacements Parts Page Download Email

Title Collateral Wizard Request Download Email Category
Ishida Uni-3 Series Collateral Wizard Request Download Email Retail Equipment|Price Computing Scales
New FDA Nutrition Label Requirements Download Email Retail Labelers|Retail Equipment
Retail Systems Literature Request Download Email Retail Accessories|Retail Equipment|Retail Labelers

Title Version Size Download Email
Ishida ScaleLink Pro 5 Lite (November 2015) 2.20c 24.3 MB Download Email

Title View Download Email Category
Rice Lake/Ishida Retail Overview View Download Email Retail Equipment
ScaleTalk: Programming a PLU with the Uni-3 View Download Email Retail Equipment
ScaleTalk: Changing the Label Roll on the Ishida Uni-3 Retail Scale View Email Retail Equipment
Uni-3: Programming Preset and Function Keys View Download Email Price Computing Scales|Retail Equipment
Uni-3: Store Name Print Configuration View Download Email Retail Equipment|Price Computing Scales

Parts

Part # Description List Price Cart
165200 Retail Scale, Uni-3L1 Bench, LCD display, 0-15lbs x 0.005, 15-30lbs x 0.01 Integrated printer, 115 VAC Ishida

List Price: $1,607.00

165201 Retail Scale, Uni-3L1 Pole, LCD display, 0-15lbs x 0.005, 15-30lbs x 0.01 Integrated printer, 115 VAC Ishida

List Price: $1,690.00

165202 Retail Scale, Uni-3L2 Bench, LCD display, 0-15lbs x 0.005, 15-30lbs x 0.01 Integrated printer, 115 VAC Ishida

List Price: $2,184.00

165203 Retail Scale, Uni-3L2 Pole, LCD display, 0-15lbs x 0.005, 15-30lbs x 0.01 Integrated printer, 115 VAC Ishida

List Price: $2,261.00

173882 Retail Scale, Uni-3L1 Bench, LCD display, 60 x 0.02lbs, Integrated printer, 115VAC Ishida

List Price: $1,782.00

173883 Retail Scale, Uni-3L1 Pole, LCD display, 60 x 0.02lbs, Integrated printer, 115VAC Ishida

List Price: $1,885.00

173884 Retail Scale, Uni-3L2 Bench, LCD display, 60 x 0.02lbs, Integrated printer, 115VAC Ishida

List Price: $2,421.00

173885 Retail Scale, Uni-3L2 Pole, LCD display, 60 x 0.02lbs, Integrated printer, 115VAC Ishida

List Price: $2,514.00

Options

Uni-3 Misc Options

Part # Description List Price Cart
47976 Retail Scale OPT,Fish Platter 9-1/2 in Deep x 13-1/2 in Wide Ishida

List Price: $95.00

170541 Option,Liner Free Kit Uni-3 Ishida

List Price: $45.00

47977 Retail Scale OPT,Produce Platter 9-1/2 in Deep x 13-1/2 in Wide Ishida

List Price: $75.00

Communication

Manuals and Service Tools

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
