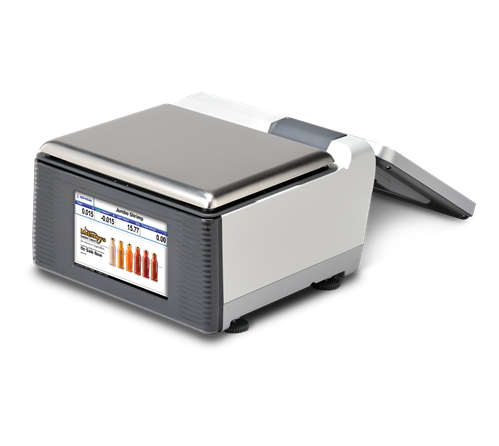

Ishida Uni-9 Series PC Scale

(DISCONTINUED)

  • Large color touchscreen
  • Adjustable touchscreen viewing angle
  • Play videos with sound on customer and operator display
  • 999 customizable label formats
  • Up to seven label cassettes allow quick label changing or easy switching to different size labels
  • Intranet browsing capabilities for order entry, recipe lookup and more
  • Solid state drive eliminates moving parts
  • 2020 nutrition labeling
  • Configurable for different languages including Spanish, French and German
  • Fully compliant with RoHS regulations for a completely lead-free machine
  • Compatible with third-party communication software, including Upshop’s InterScale®, Invafresh's ePLUM® and Droste's PCScale Manager
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo

WARNING: Cancer and Reproductive Harm California Proposition 65
Hdimage(3) (1)

Power:
100 to 240 VAC, 50/60 Hz

Power Consumption:
Stand-by: 50 W
In operation: 120 W

Resolution:
12 dot/mm (300 dpi)

Communications:
TCP/IP 1G Base T Ethernet
Wireless
WEP/WPA/WPA2

Bar Code Type:
EAN/UPC 8/12/13, ITF FSI, QR CODE, Databar/Limited/Expanded CODE128, EAN128

I/O Port:
LAN 1 channel
USB 4 channel
SD 1 channel
SDHC 32 GS maximum
(for transaction data)

O/S:
Linux

Display:
Operator: 12 in (800 × 600) color LCD, Uni-9DB: 8.4 in
Customer: 7 in (800 × 480) or 12 in (800 × 600) for bench, 12 in for other models
Type: Five-wire resistive

Display Items:
Tare: Four digits
Unit price: Six digits
Weight: Five digits
Total price: Six digits

Button/Keys:
1980: 20 × 99 pages

Memory Capacity:
SSD 585 MB

Cassette:
Front-load, removable label cassette

Print Head:
Direct thermal 3 in (80 mm)

Printing Speed:
3.9/ 4.7/ 5.9 in/sec
(100/ 120/ 150 mm/sec)

Label Backing Paper:
80 mm

Temperature:
Operating: 32 °F to 104 °F (0 °C to 40 °C

Approvals:
NTEP 12-121
UL Listed

Warranty:
One-year limited

Dimensions Bench
A 11.9 in (302 mm) E 5.8 in (147.5 mm) I 6.5 in (166 mm)
B 9.0 in (229 mm) F 20.3 in (516 mm) J 2.2 in (55 mm)
C 11.1 in (283 mm) G 11.8 in (300 mm) K 11.8 in (300 mm)
D 6.2 in (158.5 mm) H 6.4 in (162 mm) L 10.6 in (268 mm)
DB Model
F1 16.3 in (415 mm)





Dimensions Elevated Keyboard
A 11.8 in (300 mm) H 6.4 in (162 mm) L 10.6 in (268 mm)
B 9.0 in (229 mm) I 10.3 in (262 mm) M 10.2 in (258 mm)
D 6.2 in (158.5 mm) J 1.9 in (47 mm) N 5.9 in (150 mm)
E 5.8 in (147.5 mm K 11.9 in (302 mm) P 26.4 in (671.5 mm)
F 16.1 in (408 mm)



Dimensions Labeler
A

11.9 in (302 mm)

 G 11.8 in (300 mm) K 11.8 in (300 mm)
D 6.2 in (158.5 mm) H 5.6 in (141 mm) L 10.6 in (268 mm)
E 5.8 in (147.5 mm) I 12.50 in (318 mm)
F 20.3 in (516 mm) J 2.2 in (55 mm)



Dimensions short pole
A 11.9 in (302 mm) G 16.0 in (407 mm) M 10.2 in (258 mm)
B 9.0 in (229 mm) H 6.4 in (162 mm) N 4.4 in (112.5 mm)
C 11.1 in (283 mm) I 10.3 in (262 mm) O 11.8 in (300 mm)
D 6.2 in (158.5 mm) J 1.9 in (47 mm) P 9.5 in (241.5 mm)
E 5.8 in (147.5 mm K 11.9 in (302 mm)
F 24.5 in (623 mm) L 10.6 in (268 mm)



Resources/Downloads

Title View Email Category Type
Gleaming Grocery View Email Retail Equipment|Price Computing Scales Application Story
Weighing Meat from Farm to Table View Email Agriculture|Livestock Scales|Floor Scales|Bench Scales|Retail Equipment Application Story

Title Version Revision Download Email Category Archived
Ishida Uni-9 Operation Manual: Jan 2016 Download Email Retail Equipment No
Ishida Uni-9 Series Cleaning, Sanitizing and Inspection Instructions A Download Email Retail Equipment|Price Computing Scales No

Title Version Size Release Date Download Email
VNC Viewer for Remote Connection - RealVNC ver. 6.19.325 6.19.325 7.4 MB 04/15/2019 Download Email

Title View Email Category
Ishida SLP-5: Automatic Presets for the Uni-9, Rev 3 April 2020 Download Email Retail Equipment|Retail Software

Title View Download Email Category
Rice Lake/Ishida Retail Overview View Download Email Retail Equipment
Cleaning the Uni-9 Series PC Scale's Thermal Print Head View Download Email Retail Equipment|Price Computing Scales

Parts

Part # Description List Price Cart/Quote
160262 Retail Labeler, Uni-9 Bakery Version XL, PC Based, No Scale, RF, 115VAC Ishida

Consult
170096 Retail Scale, Uni-9 SP PC Based, 15x0.005, 30x0.01lb, RF 115VAC, Ishida

Consult

Options

Uni-9 Options

Part # Description List Price Cart/Quote
119030 USB Flash Drive-1GB Branded RLWS and Ishida, Uni-7 black

Consult
78860 Cable,Ethernet Cross RJ45 to RJ45, 7FT

List Price: $40.00
105346 Label,Roll Retail Blank DTL 64mm x 85mm (2.52 x 3.34) Small Core 425 LPR 12 RPC Ishida

List Price: $96.00
155393 Option,Label Cassette UNI-9 UNI-9DB UNI-9XL UNI-9DXL UNI-9DB RP Ishida

Consult
159947 Option,Cassette Linerless Label Top Cutter Version UNI-9 Ishida

Consult
174110 Card, SD 2GB Uni-7, WM-Ai, IP-Ai Ishida

Consult
155395 Option, Larger platter Uni-9, 14in W x 9in D, Ishida

Consult
