Ishida WM-Micro Compact Wrapper

  • Process up 15 packages per minute with manual tray selection
  • Quick film loading
  • Compart space saving design fits almost anywhere
  • Wraps most trays between #2 and #25
  • High-capacity label roll with two times the length of a standard roll
  • Fixed high-capacity side load cassette
  • High resolution printhead
  • Prints safe handing instructions, country of origin, 2020 nutrition, custom text messages, custom images and more
  • Graphic-based QR code printing
  • Large customizable color touchscreen with adjustable viewing angle and tactile keypad
  • Assign color images to presets keys
  • Display videos with sound on operator display
  • PC-based with a solid-state drive for speed and reliability
  • Secure remote access
  • Modes: Wrap and Label, Wrap, Label
  • Fully compliant with RoHS regulations for a completely lead-free machine
  • Optional Wi-Fi kit (factory installation recommended)
  • Linerless model available with auto cutter
  • Compatible with third-party software, including Upshop 360®, ADC's InterScale®, Invafresh’s ePlum®, Toast®, Square® and Droste®
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo

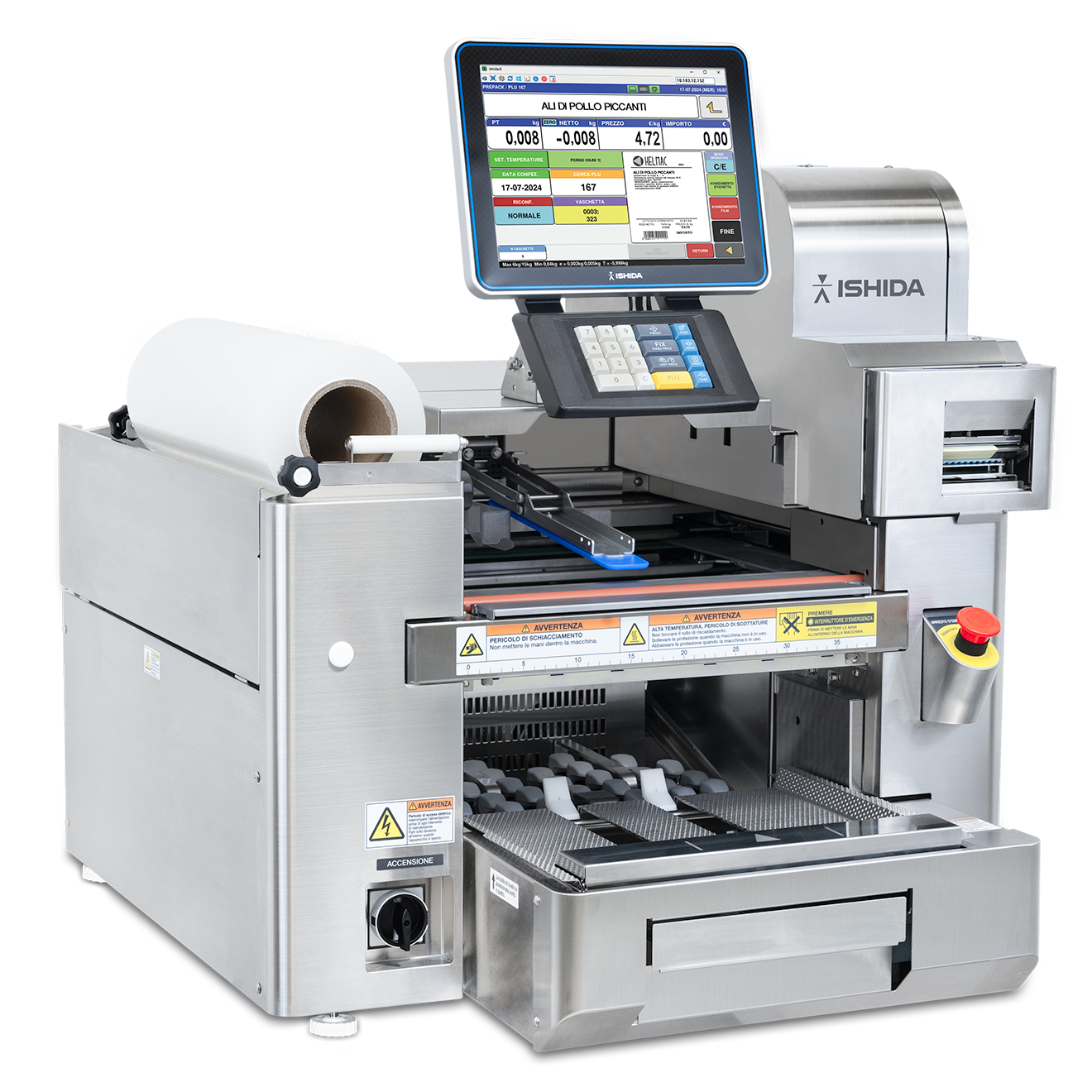

1 WEB WM MICRO Right Facing

Compact Retail Weighing, Wrapping and Labeling

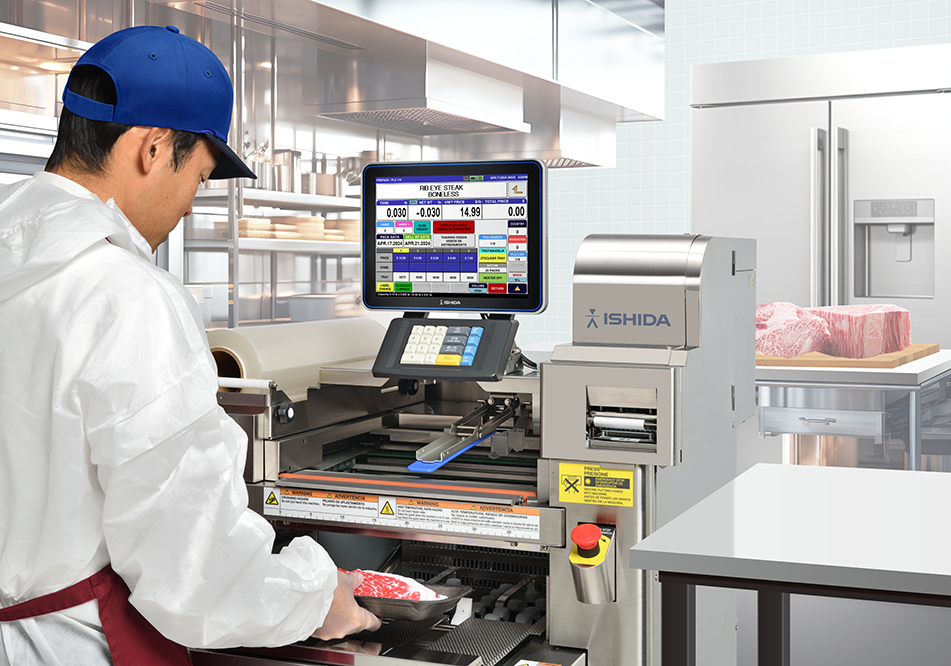

The WM-Micro is a semi-automatic wrapping machine with integrated scale and printer. It’s smaller than a standard hand-wrapping station and can be easily installed in nearly any backroom. Reducing repetitive manual labor for operators, the WM-Micro consistently delivers high-quality wrapping. A large 12.2-inch operator display is easy to read and features a responsive interface powered by LINUX OS to support intuitive operation.

Film and label rolls can be quickly and easily replaced, and the WM-Micro is designed to minimize downtime for cleaning and maintenance.

Wrap a Variety of Trays

The WM-Micro allows operators to weigh, wrap and label up to 15 trays per minute. It is designed to wrap many types of trays, supporting a wide variety of products. It features high-quality and stable wrapping to minimize defects and reduce waste.



Power:
200 to 240V (1 phase)
Standard 20 A circuit

Power Consumption:
In operation: 1,200 W or less
Standby: 1,000 W or less

Resolution:
3,000 display divisions maximum

Communications:
LAN
Static/DHCP
Optional Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz
Security: WEP/WPA/WPA2

Input/Output:
LAN
Four USB-A (service, transaction data)

Operating System:
Linux

Memory Capacity:
SSD 1 GB

Preset Keys:
99 dynamically programmed groups with 99 sub pages
19 tactile function keys

Display:

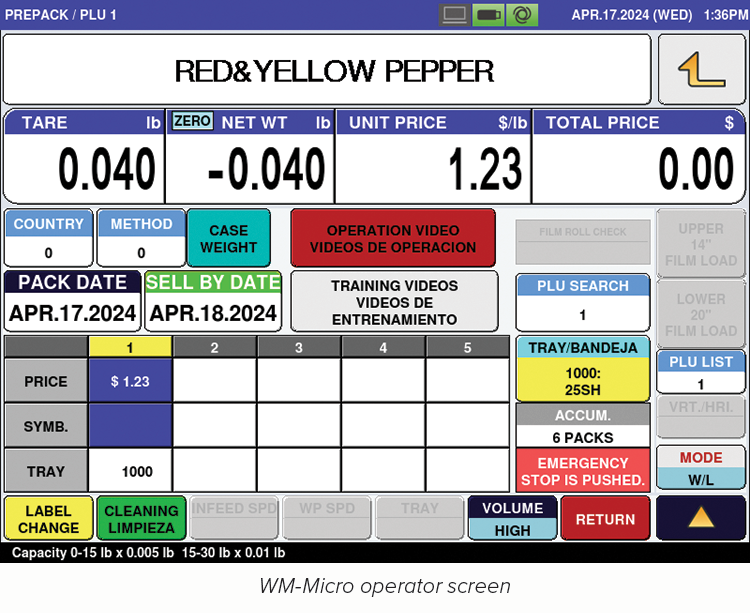

Operator: resistive thin film analogue touch panel, TFT LCD color touchscreen with LED backlight with SVGA, 12.1 in (800 × 600 px)
Unit Price: six digits
Tare: four digits
Weight: five digits
Total Price: eight digits

Printer:
Print Head: 3.1 in (80 mm) direct thermal, effective 3 in (76mm)
Dots/inch: 300 dpi (12 dot/mm)
Speed: 4.7 in/sec (120 mm/sec) max
Min. Weight: 0.015 lb (0.006 kg)
Formats: up to 999 customizable label formats
Barcodes: UPC, JAN, EAN, EAN128, CODE128, ITF, GS1, Custom

Label Size:
Type: Die-cut, continuous, optional linerless label with kit
Width (with liner): 1.1 to 3.1 in (30 to 80 mm) kit
Width (linerless): 1, 2, 3 in (44, 60, 80 mm)
Length (with liner): 0.9 to 4.1 in (23 to 105 mm), kit
Length (linerless): 1.1 to 19.6 in (30 to 500 mm)

Label Roll:
I.D.: 1.6 in (40 mm) min
O.D.: 4.9 in (125 mm) max
Backing Width: 3.2 in (82 mm) max

Wrapping:
Weigh and wrap: 15 packages per minute max
Width: 5.9 to 15.0 in (150 x 381 mm)
Depth: 5.0 to 9.6 in (127 x 244 mm)
Height: 0.4 to 5.1 in (10 x 130 mm)
Tray Height: 1.7 in (45 mm) max
Weight: 0.015 lb (0.006 kg) to 7.7 lb (3.5 kg)
Tray Material: Polystyrene Paper (PSP), Polypropylene (PP), Polyethylene Terephthalate (PET)

Film:
Type: PVC, PO, PE
Rolls: One, manual film selection
Length: 5,000 ft (1,524 m)
Width: 400, 450, 500, 550 mm
O.D.: 7.9 in (200 mm)
Recommended: Mitsubishi A50

Platter:
13.5 × 10 inch (343 × 254 mm)

Weight:
Liner: approx. 283.7 lb (128.5 kg)
Linerless: approx. 286.0 lb (129.8 kg)

Temperature:
Operating: 41 °F to 95 °F (5 °C to 35 °C)

Humidity:
20% to 85% RH (without condensation)

Noise:
73 to 75 dba

Warranty:
One-year limited.
Based on volume of 900 packs per day using Mitsubishi film

Approvals:
NTEP 06-029
cULus Listed

Resources/Downloads

Title Download Email
Ishida WM-Micro Compact Wrapper Catalog Page Download Email

Title Version Revision Download Email Category Archived
Ishida WM-Micro Operation Manual, 1st Edition A Download Email Wrappers No

Title Collateral Wizard Request Download Email Category
Ishida WM-Micro Compact Wrapper Request Download Email Retail Equipment|Wrappers
Retail Systems Literature Request Download Email Retail Accessories|Retail Equipment|Retail Labelers
Rice Lake Retail Solutions Product Guide Request Download Email Retail Equipment

Title View Download Email Category
Weigh, Wrap and Label in any Grocery Environment View Download Email Wrappers
Get to Know the WM-Micro Semi-automatic Wrapper View Download Email Retail Equipment|Wrappers

Parts

Part # Description List Price Cart/Quote
223814 Wrapper,WM-Micro Manual label, Single printer, Wired LAN, 220VAC, Ishida

Consult
226173 Wrapper,WM-Micro Linerless label, Single Printer, 220VAC, Ishida

Consult

Options

Part # Description List Price Cart/Quote

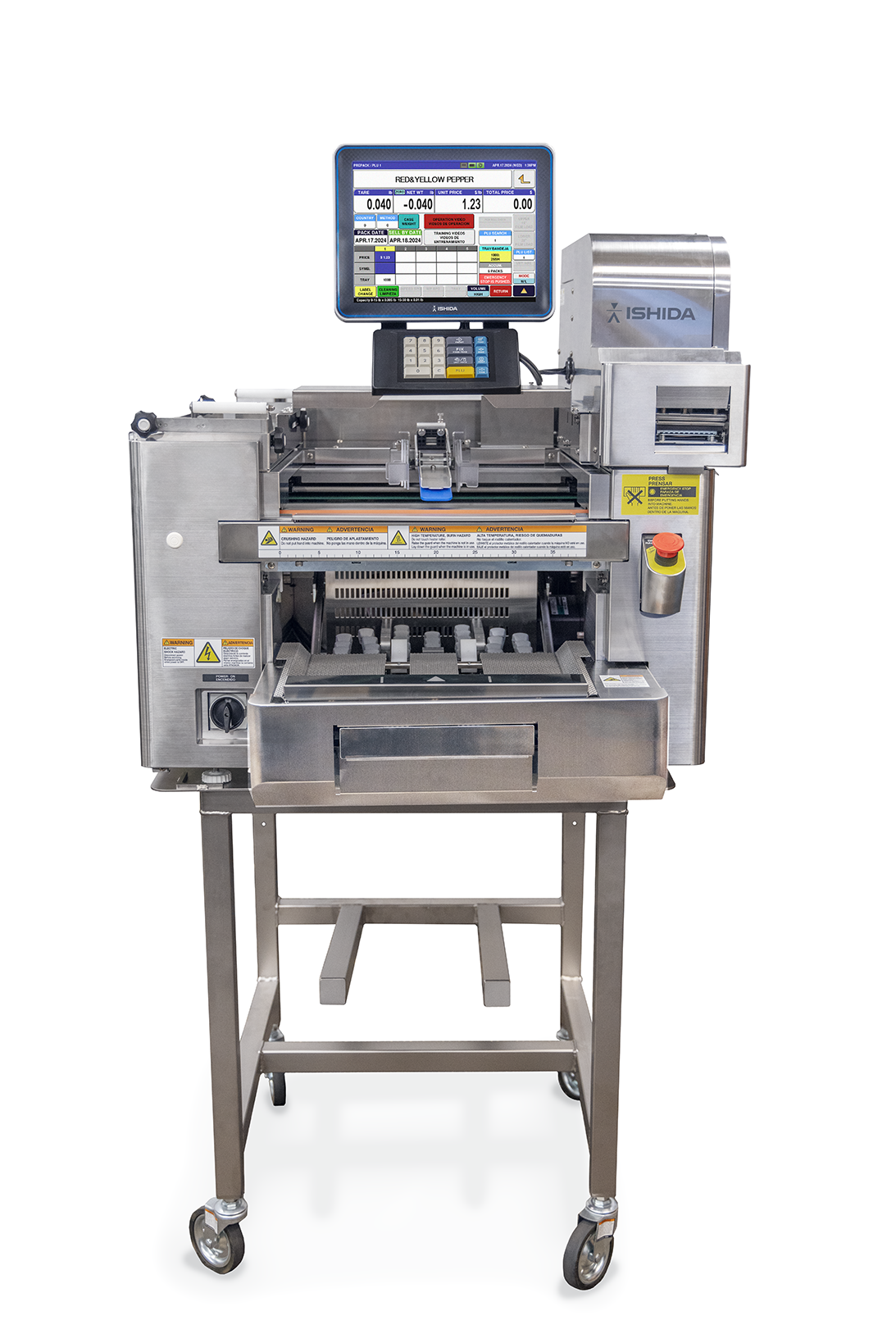

121076 Option,Stand, WM-Micro, WM-Nano, Stainless Steel, Leveling Legs, Casters, Ishida 28Wx26Dx27H

Consult
125578 Option,POP label holder WM-Micro, WM-Nano wrapper, 20 rolls POP labels, Ishida

Consult
151761 Option, Spacer POP label dispenser, Set of 10, Ishida, use for wider core POP labels

List Price: $30.00
121077 Option,Cover, Washdown WM-Nano, WM-Micro, plastic, Ishida

Consult
125417 Option,Cover, Washdown TALL - Cover WM-Nano, WM-Micro Stand and POP Label Option Plastic Ishida

Consult
226175 Option,Cover, Film Roll Protection, SST, (WM-Micro), Ishida

Consult
225984 PROMO,Floor Mat Rice Lake/Ishida, WM-Micro, Template Mat 35in x 40in

Consult
95540 Key,Safety Switch Door Interlock 65mm Long OMNi-4000, OMNi-3000, OMNi-3000S, OMNi-3000ST WM-4000, WM-Ai, WM-Micro, Ishida

Consult
160906 USB Memory, Stick 1G Hagiwara, UDG4-1GDRJS, Ishida

Consult
226174 Option,Internal Wireless Kit, Silex, SX-590, 2.4GHz/5GHz, 802.11 b/g, WM-Micro, Ishida

Consult

Communication

Manuals and Service Tools

Wrapping Film

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
