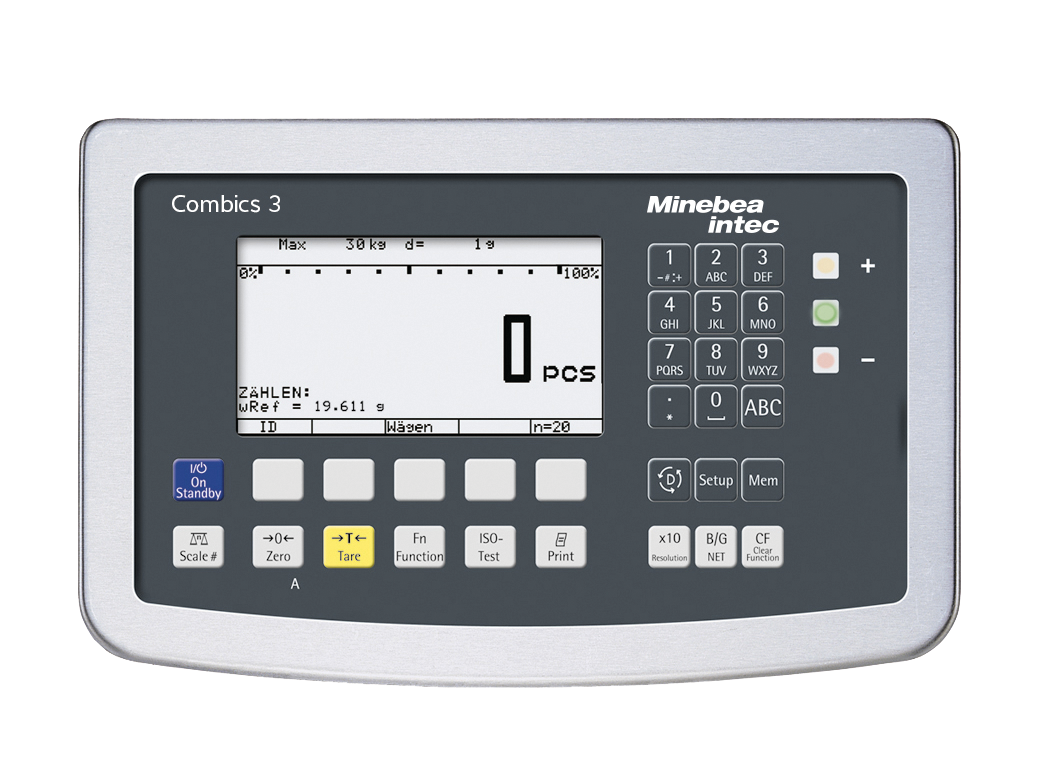

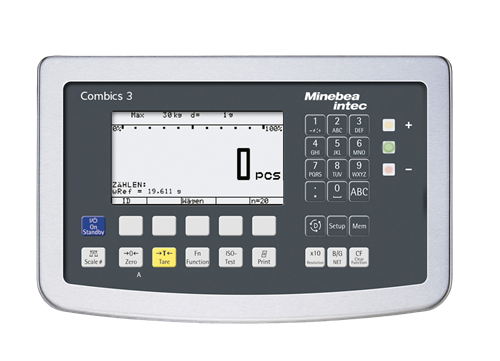

Minebea Intec Combics 3 Digital Weight Indicator

  • IP protection rating (IP44, IP69K)
  • Amber backlit LCD display
  • On/Off Zero, Tare, Print/Data Keys
  • Function keys for: Gross/net toggle; three-way unit toggle; 10X higher resolution toggle
  • Keypad with two IDs for entering identifier codes and preset tare
  • Info key for quick and easy display of tare input and ID codes
  • Date/time fully integrated
  • GMP/GLP printable record
  • Platform toggling and four function keys
  • Three built-in LED checkweighing lights
  • Bar graph weighing range indicator
  • Application data and totalization memory stored in battery-backed RAM
  • Optional barcode scanner for preset tare, reference weight and ID entry
  • Stored customer-specific data records
  • Key for toggling between weighing applications, and five soft keys with text-supported user guidance
  • Input functions for entering up to four alphanumeric ID texts

Load Cell Connection:
4 or 6 wire

Supply Voltage:
9 V

Power Requirements:
120-240 VAC, 17 W/23 VA maximum

Housing:
AISI 304 stainless steel

Dimensions:
(W x D x H): 11.9 x 7.4 x 3.5 in

Operating Temperature:
14° F to 104° F (-10° C to 40° C)

Net Weight:
5 lb

Warranty:
Two-year limited warranty
Accessories: One-year limited warranty

Resources / Downloads

Title Download Email
Combics 3 Digital Weight Indicators Catalog Page Download Email

Title Version Revision Download Email Category Archived
Minebea Combics 3 Operating Instructions Download Email Weight Indicators|Indicators / Controllers No

Title Collateral Wizard Request Download Email Category
Combics 3 Download Email Precision Industrial|Indicators / Controllers

Parts

Part # Description List Price Cart
102405 Indicator,CAISL3-U Combics 3 Indicator, IP44, 110-240VAC, US Power Cord

List Price: $1,925.00

102407 Indicator,CAIS3-U Combics 3 Indicator, IP69K, 110-240VAC, US Power Cord

List Price: $2,310.00

115674 Indicator,CAIS3-UV1 Minebea, Combics 3, Direct Connection to IS Platform, IP69K, LCD, RS-232C, A/D Converter for additional analog platform, 110-240 VAC, US Power Cord

List Price: $2,665.00

Consult IP44, controller for IS base

Call for price

Options

Part # Description List Price Cart
105607 Kit,Wall Mount Combics Tiltable SST YDH02CISUS

List Price: $90.00

171727 Bracket,Bench Mount Fits 10x10 in, 12x12 in and 18x18 in Combics platform, YDH12CWSUS

List Price: $90.00

156440 Column,YDH01CWSUS Minebea Post Mount Assembly, 10x10in platform, 13in High, SST

List Price: $210.00

156441 Column,YDH02CWSUS Minebea Post Mount Assembly, 12x12in platform, 19in High

List Price: $225.00

156442 Column,YDH03CWSUS Minebea Post Mount Assembly, 18x18in platform, 29in High

List Price: $260.00

103049 Accessory,Power Supply Module Industrial 24V (Replaces Standard Unit) Midrics, Signum, Combics 1, Combics 1 Plus, Combics 2

List Price: $201.00

155826 Output,Analog Combics 0-20mA, 4-20 mA, 0-10V, 16-bit YDO02C-AO

List Price: $801.00

162640 Output,Ethernet TCP/IP Combics YD002C-ETH

List Price: $801.00

193049 Dust Cover,Combics Series Indicator Pack of 2

List Price: $67.00

Cables

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
