MSI-3460 Challenger 3 Crane Scale

  • Multi-color LED display
  • Top lifting eye and bottom swivel hook
  • Lb/kg switch selectable
  • Six volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA plug standard)
  • Meets or exceeds OSHA, ANSI, ASME and other safety design standards (5:1 Ultimate Safety Factor)
  • NTEP Certified (250 to 10,000 lb capacities)

Options
(Contact MSI for application consultation)

  • RF modem install for connectivity to MSI-8000, MSI-8000HD RF, MSI-8004HD RF remote display,  TranSend™ and LaserLight2 remote display (Typical range 100-300 ft line of sight)
  • Rugged Remote (control for off, zero, tare and other functions) (Requires 3460RF version,  typical range 50 ft line of sight)
  • Universal direct power supply (115/230 VAC)
  • Audible alarm
  • Wi-Fi communication is available for specialty applications
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo OIML Logo CE Mark UKCA Black Fill

WARNING: Cancer and Reproductive Harm California Proposition 65
MSI 3460 Challenger 3 Crane Scale
360 Image

Legal for Trade Crane Scale

The MSI-3460 digital crane scale with ScaleCore measurement module provides industry-leading weighing features. Long-range viewing is enhanced with a large 1.5-inch (38 millimeters) ultra-bright LED digital display and resolution settings of up to 10,000 divisions for precise 0.1% loading accuracy.

Product operating time is extended to over 80 hours with a single six-volt rechargeable battery. The MSI-3460 Challenger 3 has a NEMA Type 4/IP65 rating. Manufactured in the USA in strict compliance with the highest safety standards, the Challenger sustains a minimum 200% Safe and 500% Ultimate Safety Factor.

Accuracy:
± 0.1% (+1 d) of applied load

Resolution:
2,500 d max standard (up to 10,000 d max non-standard)

Enclosure:
NEMA 4, IP65, powder coated cast aluminum

Lifting Eye and Hook:
Crosby® or equivalent with 360° non-bearing swivel hook

Design Overload:
200% Safe/500% Ultimate

Functions:
Power, zero, tare, user (programmable)

Display:
Five-digit, 1.5 in (38 mm) LED with programmable brightness control; toggle between red, orange and green digits

Displayable Units:
Pounds or kilogram selectable

Annunciators:
COZ, net, gross, total, peak, low battery, lb/kg, motion, setpoints, ACK IN, ACK OUT, RF

Power:
6 volt rechargeable battery. 115/230 VAC battery charger is included

Operating Time:
Up to 80 hours between charging with typical use. Less with optional RF model link

Temperature:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: -10 °F to 104 °F (-40 °C to 40 °C)

Auto-Off Mode:
Select for 15, 30, 45, 60 minutes or off

Auto Sleep Mode:
Power down during non-use and power up with weight change or any key press

Service Counters:
Counts number of lifts over percentage of capacity and lifts over capacity

Filtering:
OFF, LO, HI-1, HI-2 selectable

Warranty:
One-year limited

Approvals:
NTEP 86-021: 250 to 10,000 lb
OIML R76/2006-A-NL1-21.36
CE
UKCA

Resources / Downloads

Title View Email Category Type
Installation Tips for MSI Scales and Systems Email MSI Crane Scales Articles
Overhead Weighing Safety Guide Email Overhead Weighing Systems Articles
When to Use a Dynamometer to Measure Tension Email MSI Crane Scales|Tension Dynamometers Articles
Which Crane Scale is the best fit for my Application? Email MSI Crane Scales|Overhead Weighing Systems Articles

Title Download Email
MSI-3460 Challenger 3 Catalog Page Download Email

Title Version Revision Download Email Category Archived
MSI-3460 Challenger 3 Technical Manual C A Download Email MSI Crane Scales|Overhead Weighing Systems No
MSI-3460 Challenger 3 Technical Manual (Legacy) B F Download Email MSI Crane Scales No
MSI-3460 Menu Map Download Email MSI Crane Scales No
Overhead Weighing Safety and Periodic Maintenance Manual B Download Email MSI Crane Scales|Overhead Weighing Systems No
MSI Wi-Fi Setup Download Email MSI Crane Scales No
ScaleCore Connect Software Manual B Download Email MSI Crane Scales|Overhead Weighing Systems No
MSI-8000 RF Remote Display Operation Manual F Download Email MSI Crane Scales No
SC-3 PCA Software Update Procedure Download Email MSI Crane Scales No
ScaleCore 2 Database Program (Sc2Db) Download Email MSI Crane Scales No

Title Download Email
Low Headroom Questionnaire Download Email
MSI Hook Questionnaire Download Email
Overhead Weighing Systems Questionnaire Download Email
Weighing System Questionnaire Download Email

Title Download Email
MSI-3460 Replacement Parts Page Download Email

Title Collateral Wizard Request Download Email Category
MSI-3460 Challenger 3 Digital Crane Scale Request Download Email MSI Crane Scales
Crane Scale Selection Guide Request Download Email MSI Crane Scales|Overhead Weighing Systems
In-Process Material Weighing and Handling for the Metals Industry Email MSI Crane Scales
MSI Crane Scale Family Comparison Download Email MSI Crane Scales
MSI Crane Scale Installation Tips Download Email MSI Crane Scales
MSI Overhead Weighing Product Guide Request Download Email MSI Crane Scales
The Overhead Weighing Solutions Buyer's Guide Request Download Email Systems Integration/Load Cells|Tension Dynamometers|MSI Software|MSI Aircraft Load Monitoring|MSI Crane Scales|Overhead Weighing Systems
Why Buy MSI? Download Email MSI Crane Scales|Overhead Weighing Systems

Title Version Size Release Date Download Email
ScaleCore Connect 2.02 49 MB 06/05/2023 Download Email
ScaleCore Configuration Management Program (ScCMP) Software v2-0-5-51 44.9 MB 06/17/2015 Download Email
MSI WiFi Connect 1.0 58.3 MB 05/04/2017 Download Email

Title View Download Email Category
Types of Crane Scales View Download Email Overhead Weighing Systems
Ensure Safety with MSI View Download Email Overhead Weighing Systems|MSI Crane Scales|Systems Integration/Load Cells|Hanging Scales|Weight Indicators|MSI Software|MSI Aircraft Load Monitoring
MSI Systems Installation Tips View Download Email MSI Crane Scales

Title Download Email Category
Connecting with MSI Download Email MSI Crane Scales

Parts

MSI-3460B

Part # Description List Price Cart
139102 MSI-3460 250/500 Lb Final Assembly, Challenger 3 Crane Scale. NTEP Approved. Standard Features Include: 5-Digit LED Display, Top Lifting Eye, And Bottom Non-Bearing Swivel Hook, Selectable Units Key. A Six-Volt Rechargeable Battery And Universal Charger Are Also Included. Capacity Must Be Specified At Time Of Order.

List Price: $2,345.00
139103 MSI-3460 1K/2K Lb Final Assembly, Challenger 3 Crane Scale. NTEP Approved. Standard Features Include: 5-Digit LED Display, Top Lifting Eye, And Bottom Non-Bearing Swivel Hook, Selectable Units Key. A Six-Volt Rechargeable Battery And Universal Charger Are Also Included. Capacity Must Be Specified At Time Of Order.

List Price: $2,450.00
139104 MSI-3460 5K/10K Lb Final Assembly, Challenger 3 Crane Scale. NTEP Approved. Standard Features Include: 5-Digit LED Display, Top Lifting Eye, And Bottom Non-Bearing Swivel Hook, Selectable Units Key. A Six-Volt Rechargeable Battery And Universal Charger Are Also Included. Capacity Must Be Specified At Time Of Order

List Price: $2,980.00
139105 MSI-3460 15,000 Lb Final Assembly, Challenger 3 Crane Scale. Standard Features Include: 5-Digit LED Display, Top Lifting Shackle, And Bottom Non-Bearing Swivel Hook, Selectable Units Key. A Six-Volt Rechargeable Battery And Universal Charger Are Also Included. Capacity Must Be Specified At Time Of Order.

List Price: $5,185.00
139110 MSI-3460RF 250/500# Final Assembly, Challenger 3 Crane Scale With Optional RF Capabilites For Communication With An MSI-8000 Remote Display (MSI-8000 Sold Seperately). NTEP Approved. Standard Features Include: 5-Digit LED Display, Top Lifting Eye, And Bottom Non-Bearing Swivel Hook, Selectable Units Key. A Six-Volt Rechargeable Battery And Universal Charger Are Also Included. Capacity Must Be Specified At Time Of Order.

List Price: $2,490.00
139111 MSI-3460RF 1K/2K# Final Assembly, Challenger 3 Crane Scale With Optional RF Capabilites For Communication With An MSI-8000 Remote Display (MSI-8000 Sold Seperately). NTEP Approved. Standard Features Include: 5-Digit LED Display, Top Lifting Eye, And Bottom Non-Bearing Swivel Hook, Selectable Units Key. A Six-Volt Rechargeable Battery And Universal Charger Are Also Included. Capacity Must Be Specified At Time Of Order.

List Price: $2,615.00
139112 MSI-3460RF 5K/10K# Final Assembly, Challenger 3 Crane Scale With Optional RF Capabilites For Communication With An MSI-8000 Remote Display (MSI-8000 Sold Seperately). NTEP Approved. Standard Features Include: 5-Digit LED Display, Top Lifting Eye, And Bottom Non-Bearing Swivel Hook, Selectable Units Key. A Six-Volt Rechargeable Battery And Universal Charger Are Also Included. Capacity Must Be Specified At Time Of Order.

List Price: $3,110.00
139113 MSI-3460RF 15K# Final Assembly, Challenger 3 Crane Scale With Optional RF Capabilites For Communication With An MSI-8000 Remote Display (MSI-8000 Sold Seperately). Standard Features Include: 5-Digit LED Display, Top Lifting Shackle, And Bottom Non-Bearing Swivel Hook, Selectable Units Key. A Six-Volt Rechargeable Battery And Universal Charger Are Also Included. Capacity Must Be Specified At Time Of Order.

List Price: $4,955.00
176909 MSI-3460WIFI 250/500# FA Assembly, Challenger 3 Crane Scale With Optional WIFI. For Communication With Scaleconnect App. NTEP Approved. Standard Features Include 5-Digit LED Display, Top Lifting Eye, And Bottom Non Bearing Swivel Hook, Selectable Units Key. A Six-Volt Rechargeable Battery And Universal Charger Are Also Included. Capacity Must Be Specified At The Time Of Order.

List Price: $2,545.00
176910 MSI-3460WIFI 1/2K Final Assembly, Challenger 3 Crane Scale With Optional WIFI. For Communication With Scaleconnect App. NTEP Approved. Standard Features Include 5-Digit LED Display, Top Lifting Eye, And Bottom Non Bearing Swivel Hook, Selectable Units Key. A Six-Volt Rechargeable Battery And Universal Charger Are Also Included. Capacity Must Be Specified At The Time Of Order.

List Price: $2,655.00
176911 MSI-3460WIFI 5/10K Final Assembly, Challenger 3 Crane Scale With Optional WIFI. For Communication With Scaleconnect App. NTEP Approved. Standard Features Include 5-Digit LED Display, Top Lifting Eye, And Bottom Non Bearing Swivel Hook, Selectable Units Key. A Six-Volt Rechargeable Battery And Universal Charger Are Also Included. Capacity Must Be Specified At The Time Of Order.

List Price: $3,170.00
176912 MSI-3460WIFI 15K Final Assembly, Challenger 3 Crane Scale With Optional WIFI. For Communication With Scaleconnect App. NTEP Approved. Standard Features Include 5-Digit LED Display, Top Lifting Eye, And Bottom Non Bearing Swivel Hook, Selectable Units Key. A Six-Volt Rechargeable Battery And Universal Charger Are Also Included. Capacity Must Be Specified At The Time Of Order. End User will be required to provide internal I.T support for WIFI equiped scales.

List Price: $5,165.00

MSI-3460C

Options

Part # Description List Price Cart
140049 MSI-3460 Battery Assembly Six-Volt Rechargeable Non-spillable

List Price: $155.00
139152 MSI-3460 Battery Charger With North American Style Plug

List Price: $200.00
139153 MSI-3460 Battery Charger With European Style Plug

List Price: $200.00
197201 MSI-3460 Battery Charger With North American Style Plug CEC Compliant

List Price: $245.00
149549 MSI-8000 Battery Charger 115/230 VAC 50/60 Hz. North American Style Plug

List Price: $165.00
178004 4in LASERLIGHT2 MSI RF Includes ScaleCore RF Kit and Tilt Mounting Bracket

List Price: $2,535.00
178006 6in LASERLIGHT2 MSI XBEE RF Includes ScaleCore RF Kit and Tilt Mount Bracket

List Price: $3,005.00
140058 3360/3260 AC CONVERSION KIT

List Price: $465.00
139395 RETROFIT KIT 3460

List Price: $1,190.00
139397 RETROFIT KIT RF CHALLENGER 3 3460

List Price: $1,370.00
173014 MSI-Rugged Remote Control Non-CE for Products with XBEE Radios

List Price: $355.00
139381 MSI-8000 Remote Display RF Handheld (Requires an MSI Crane Scale or MSI-7300 equipped with a RF modem)

List Price: $1,415.00
153591 Remote Display, ScaleCore RF, MSI-8000HD, 85 to 265 VAC

List Price: $1,541.00
178281 8004HD Display AC, RedGrn 1.5in Dual Color LED Display, 85~264VAC

Call for price
Consult AC power supply

List Price: $325.00
Consult Audible alarm

List Price: $420.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

WEB SC Laserlight2 Remote Display

LaserLight2™ Remote Display

Display weight, numeric data and messages with the LaserLight2 Remote Display. A super-bright LED display with non-glare lens provides sharp seven-segment, six-digit characters that are easy to read.

Hdimage(1)

ScaleCore Connect

This application provides a complete solution for ScaleCore family product configuration and setup. It allows complete backup, copy and restore of a scale configuration including calibration.

WEB SC MSI 4260 Portaweight

MSI-4260 Port-A-Weigh Industrial Crane Scale

For medium- to heavy-capacity and duty-cycle needs, the MSI-4260 Port-A-Weigh & MSI-4260 IS Intrinsically Safe Crane Scale have an established reputation as the industry standard in overhead weighing.

rl-msi-8004hd-remote-display

MSI-8004HD Indicator/RF LED Remote Display

The MSI-8004HD Indicator and RF Remote Display has all of the heavy-duty versatility of the MSI-8000HD with the added benefit of extremely high visibility in indoor and outdoor applications.

rl-msi-8000-remote-display

MSI-8000 RF Remote Display

The MSI-8000 RF Remote Display is a full-featured remote display enabling operators to operate weighing systems from a distance not offering harm's way.

rl-msi-8000HD-remote-display

MSI-8000HD Indicator/Remote Display

The MSI-8000HD weight indicator/RF remote display is the heavy-duty version of the reputable handheld MSI-8000 RF remote display.

Hdimage(1)

TranSend MSI-7000 Wireless Load Cell Interface System

The MSI-7000 TranSend exceeds communication expectations by wirelessly transmitting data between load cells and receiving units.

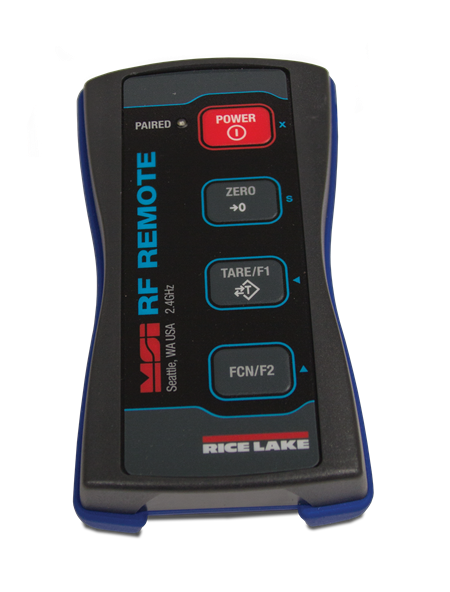

1 RF Rugged Remote
