Product PDF

MSI-4260 Port-A-Weigh Industrial Crane Scale

  • Multi-color LED display
  • Top lifting eye or shackle with Crosby® (or equivalent) 360° thrust-bearing swivel hook
  • 12 volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA plug standard)

Options
(Contact MSI for application consultation)

  • Rugged Remote control
  • RF modem install for connectivity to MSI-8000, MSI-8000HD RF, MSI-8004HD RF remote display, TranSend™ and LaserLight2™ remote display. Typically 100 to 300 ft, line of sight; for longer range consult factory
  • Anti-heat shielding for high temperature applications
  • Substitute bottom swivel hook with shackle
  • Oversized top lifting eye or shackle
  • Oversized bottom hook
  • Universal direct power supply; 85 to 265 VAC, 47 to 440 Hz/130 to 300 VDC
  • Wi-Fi communication is available for specialty applications and for use with the ScaleCore Webserver
  • Low headroom top adapter
  • Audible alarm
  • Custom top and bottom interfaces
  • Factory Mutual and ATEX approved intrinsically safe models available
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW

WARNING: Cancer and Reproductive Harm California Proposition 65

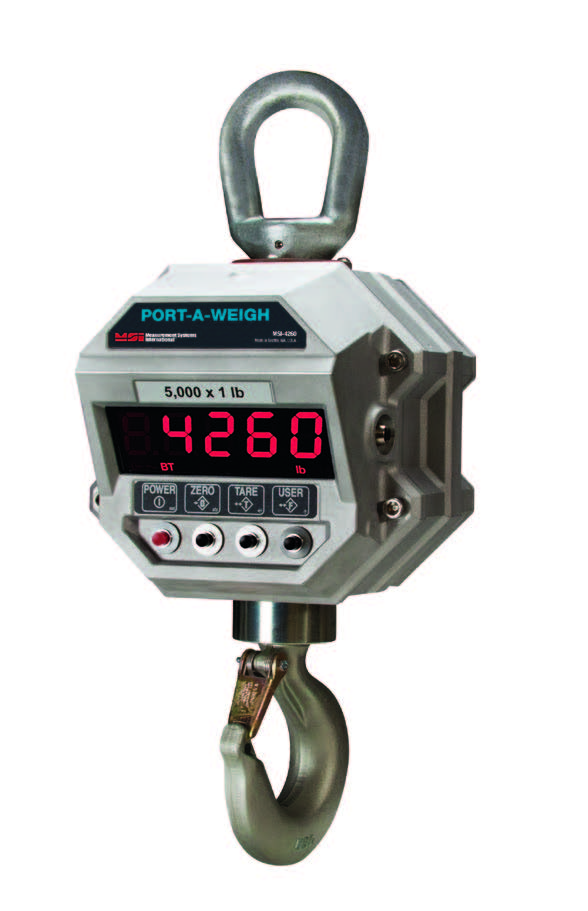

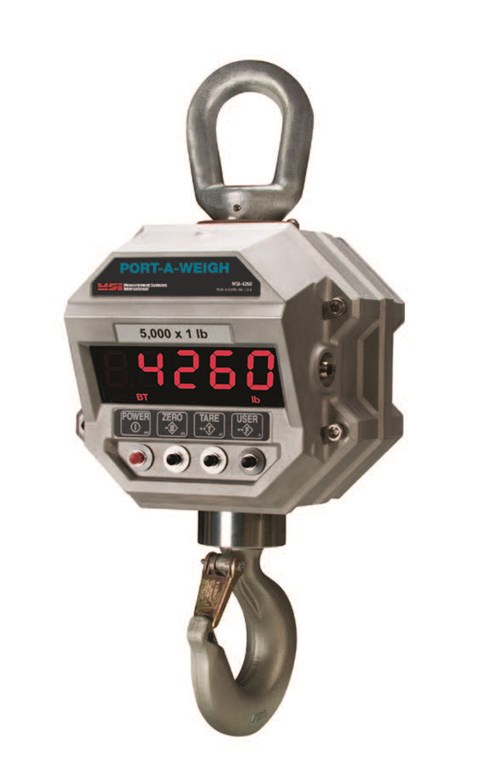

MSI 4260B
360 Image

Digital Crane Scale with LED Display

The MSI-4260 Port-A-Weigh features ScaleCore technology and has a capacity of 500 to 100,000 pounds (250 to 50,000 kilograms). The IP66 marine-grade cast aluminum enclosure protects and secures sensitive electronics from harsh conditions.

For peak performance, a 360-degree thrust-bearing swivel hook can be used. Measurements in pounds and kilograms have an accuracy of ±0.1%, and it features a 200% Safe and 500% Ultimate Safety Factor to minimize overloading risks. The MSI-4260 meets or exceeds industrial safety standards, including OSHA, ANSI and ASME.

Power:
12 V rechargeable battery (115/230 VAC battery charger is included)

Resolution:
2,000 to 5,000 d standard (Up to 10,000 d available)

Accuracy:
±0.1% +1 d of applied load

Annunciators:
COZ, net, gross, total, peak, low battery, lb/kg, motion, setpoints

Display:
1.2 in (30 mm), 5-digit, programmable LED display, multi-color (red, orange, green)

Displayable Units:
Pounds or kilograms selectable

Keys/Buttons:
Power, zero, tare, F1 (programmable)

Temperature:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: -40 °F to 122 °F (-40 °C to 50 °C)

Rating/Material:
NEMA Type 4, IP66 marine grade 356 alloy anodized cast aluminum

Design Overload:
200% Safe / 500% Ultimate (except where noted)

Operating Time:
Up to 200 hours between charging with typical use, less with optional RF modem

Auto-Off Mode:
Select for 15, 30, 45 minutes, 1 hour or off

Auto Sleep Mode:
Power down during non-use and power up with weight change or any key press

Service Counters:
Counts number of lifts over percentage of capacity and lifts over capacity

Filtering:
OFF, LO, HI-1, HI-2 selectable

Warranty:
One-year limited

Approvals:
NTEP 19-122: 500 to 70,000 lb
Measurement Canada AM-6198: 500 to 5,000 lb
Measurement Canada AM-6249: 10,000 to 20,000 lb

Part #

 W.l.l. Tons Size A B

C

 D E

F

 H L N P Weight
151357 3 1/4 0.63 in 1.06 in 0.75 in 2.38 in 0.63 in 1.69 in 1.56 in 4.22 in 2.94 in 0.69 in N/A 1.58 lb
151355 6 1/2 0.88 in 1.44 in 1.00 in 3.31 in 0.88 in 2.28 in 2.13 in 5.75 in 4.03 in 0.97 in 5.00 in 3.95 lb
141992 17 1.50 in 2.38 in 1.63 in 5.75 in 1.50 in 3.88 in 3.63 in 9.88 in 6.88 in 1.62 in 8.25 in 19.50 lb
151356 25 1.75 in 2.88 in 2.00 in 7.00 in 1.75 in 5.00 in 4.32 in 11.88 in 8.50 in 2.12 in 9.59 in 31.30 lb
146634 30 1.50 in 2.38 in 1.63 in 5.75 in 1.50 in 3.88 in 3.63 in 9.88 in 6.88 in 1.62 in 8.25 in 20.80 lb
146335 40 1.75 in 2.88 in 2.00 in 7.00 in 1.75 in 5.00 in 4.32 in 11.88 in 8.50 in 2.12 in 9.59 in 33.91 lb
146336 55 2.00 in 3.25 in 2.25 in 7.75 in 2.00 in 5.75 in 5.00 in 13.38 in 9.75 in 2.00 in 11.00 in 51.75 lb
151359 85 2.50 in 4.12 in 2.75 in 10.50 in 2.72 in 7.25 in 5.69 in 17.84 in 12.87 in 3.12 in 13.58 in 96.00 lb
151360 120 3.00 in 5.00 in 3.25 in 13.00 in 3.00 in 7.88 in 6.50 in 21.50 in 14.50 in 3.63 in 16.50 in 178.00 lb
83455 120 3.00 in 5.00 in 3.25 in 13.00 in 3.11 in 7.88 in 6.50 in 21.50 in 14.36 in 3.63 in 15.13 in 178.00 lb
151361 175 4.00 in 5.50 in 4.25 in 14.50 in 4.00 in 10.00 in 9.00 in 25.69 in 18.38 in 4.56 in 19.75 in 338.00 lb
151358 250 4.00 in 8.50 in 5.00 in 20.00 in 4.50 in 13.00 in  12.00 in 35.00 in 24.50 in 6.50 in 22.68 in 600.00 lb
Oversized Shackles
148497 40 1.75 in 2.88 in 2.00 in 10.00 in 2.25 in 6.00 4.32 15.35 10.50 in 2.25 in 9.00 in 45.00 lb
148393 40 2.25 in 2.88 in 2.00 in 12.50 in 2.25 in 8.00 4.32 17.85 12.50 in 2.25 in 10.00 in 90.00 lb
148394 50 2.00 in 3.25 in 2.25 in 12.25 in 2.50 in 8.00 5.00 18.50 13.00 in 2.50 in 11.00 in 72.00 lb
Shims
146534 (For use with 50,000 to 70,000 ton systems)





Resources/Downloads

Title View Email Category Type
Explosion-Proof vs. Intrinsically Safe Equipment Email Intrinsically Safe Articles
Installation Tips for MSI Scales and Systems Email MSI Crane Scales Articles
Likeliest Catch View Email Overhead Weighing Systems Application Story
What Is Intrinsic Safety? Email Intrinsically Safe Articles
What Are Overhead Weighing Solutions? View Email Overhead Weighing Systems|MSI Software|Tension Dynamometers|MSI Crane Scales Articles
Why Buy MSI? Email Overhead Weighing Systems|Tension Dynamometers Articles

Title Download Email
MSI-4260 Port-A-Weigh Catalog Page Download Email
Shackle Dimensions Catalog Page Download Email

Title Version Revision Download Email Category Archived
MSI-4260 Port-A-Weigh Crane Scale Technical Manual C Download Email MSI Crane Scales|Overhead Weighing Systems No
MSI-8000 RF Remote Display Operation Manual G Download Email MSI Crane Scales No
Overhead Weighing Safety and Periodic Maintenance Manual B Download Email MSI Crane Scales|Overhead Weighing Systems No
MSI Wi-Fi Setup Download Email MSI Crane Scales No
MSI-4260 Retrofit Kit Instructions B Download Email MSI Crane Scales|Overhead Weighing Systems No
ScaleCore 2 Database Program (Sc2Db) Download Email MSI Crane Scales No
ScaleCore Connect Software Manual B Download Email MSI Crane Scales|Overhead Weighing Systems No
ScaleCore Electronic Tension Test Recorder (ScETTR) Download Email MSI Crane Scales No
MSI-4260 Port-A-Weigh Technical Manual (Legacy) B D Download Email MSI Crane Scales|Overhead Weighing Systems No
Battery Life Optimization - MSI Download Email MSI Crane Scales No

Title Download Email
Low Headroom Questionnaire Download Email
Rigging Hook Questionnaire Download Email
Overhead Weighing Systems Questionnaire Download Email

Title Download Email
MSI-4260 Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
MSI-4260 Port-A-Weigh Crane Scale Download Email MSI Crane Scales
MSI Heat Shield Download Email MSI Crane Scales
MSI Crane Scale Family Comparison Download Email MSI Crane Scales
In-Process Material Weighing and Handling for the Metals Industry Email MSI Crane Scales
MSI Overhead Weighing Product Guide Request Download Email MSI Crane Scales
Overhead Weighing Safety Guide Request Download Email Overhead Weighing Systems|MSI Crane Scales
Why Buy MSI? Download Email MSI Crane Scales|Overhead Weighing Systems
Crane Scale Selection Guide Request Download Email MSI Crane Scales|Overhead Weighing Systems
MSI Crane Scale Installation Tips Download Email MSI Crane Scales
The Overhead Weighing Solutions Buyer's Guide Request Download Email Systems Integration/Load Cells|Tension Dynamometers|MSI Software|MSI Aircraft Load Monitoring|MSI Crane Scales|Overhead Weighing Systems

Title Version Size Release Date Download Email
MSI WiFi Connect 1.0 58.3 MB 05/04/2017 Download Email
ScaleCore Connect 2.03 47.4 MB 02/18/2025 Download Email

Title View Download Email Category
Why Buy MSI Overhead Weighing Solutions View Download Email Overhead Weighing Systems|MSI Crane Scales|MSI Software|MSI Instrumentation|MSI Load Cells
Ensure Safety with MSI View Download Email Overhead Weighing Systems|MSI Crane Scales|Systems Integration/Load Cells|Hanging Scales|MSI Software|MSI Aircraft Load Monitoring
ScaleTalk: What are Hazardous Areas? View Download Email
Types of Crane Scales View Download Email Overhead Weighing Systems
MSI Systems Installation Tips View Download Email MSI Crane Scales|MSI Aircraft Load Monitoring|MSI Software|MSI Instrumentation|MSI Load Cells|Overhead Weighing Systems

Parts

Part # Description List Price Cart/Quote
197760 MSI-4260C 500 lb Swvl Hook 12V Battery LED Dual Color Display Non-CE

List Price: $5,670.00
197761 MSI-4260C 2,000 lb Swvl Hook 12V Battery LED Dual Color Display Non-CE

List Price: $5,700.00
197762 MSI-4260C 5,000 lb Swvl Hook 12V Battery LED Dual Color Display Non-CE

List Price: $6,440.00
197763 MSI-4260C 10,000 lb Swvl Hook 12V Battery LED Dual Color Display Non-CE

List Price: $6,440.00
197764 MSI-4260C 20,000 lb Swvl Hook 12V Battery LED Dual Color Display Non-CE

List Price: $7,430.00
197765 MSI-4260C 30,000 lb Swvl Hook 12V Battery LED Dual Color Display Non-CE

List Price: $7,530.00
197766 MSI-4260C 50,000 lb Swvl Hook 12V Battery LED Dual Color Display Non-CE

List Price: $14,200.00
197767 MSI-4260C 70,000 lb Swvl Hook 12V Battery LED Dual Color Display Non-CE

List Price: $18,690.00
197768 MSI-4260C 100,000 lb Swvl Hook 12V Battery LED Dual Color Display Non-CE

List Price: $27,080.00

Options

Part # Description List Price Cart/Quote
150971 MSI-4260B Remote Disp Opt Kit, RF. Modem Will Allow For Connectivity With an MSI-8000 Remote Display

Consult
139381 MSI-8000 Remote Display RF Handheld (Requires an MSI Crane Scale or MSI-7300 equipped with a RF modem)

List Price: $1,530.00
173014 MSI-Rugged Remote Control Non-CE for Products with XBEE Radios

List Price: $375.00
153591 Remote Display, ScaleCore RF, MSI-8000HD, 85 to 265 VAC

List Price: $1,675.00
178281 8004HD Display AC, RedGrn 1.5in Dual Color LED Display, 85~264VAC

Consult
159221 MSI CRANE CART (48.50)

List Price: $1,425.00
178004 4in LASERLIGHT2 MSI RF Includes ScaleCore RF Kit and Tilt Mounting Bracket

List Price: $3,350.00
178006 6in LASERLIGHT2 MSI XBEE RF Includes ScaleCore RF Kit and Tilt Mount Bracket

List Price: $3,850.00
219296 4260C RETROFIT KIT ASSY

Consult
176956 Option Kit,Wifi Modem, MSI-4260/9600HT/6360 & Will Allow For Connectivity with Scaleconnect App.

List Price: $490.00
150367 Port-A-Weigh Battery Assy Twelve-Volt Rechargeable Non-spillable

List Price: $170.00
138006 Port-A-Weigh Charger, Battery. 115/230 VAC, 50/60 Hz, North American Plug

List Price: $360.00
138007 Port-A-Weigh Charger, Battery. 115/230 VAC, 50/60 Hz, UK Plug

List Price: $370.00
138008 Port-A-Weigh Charger, Battery. 115/230 VAC, 50/60 Hz, European Plug, Type C

List Price: $370.00
149549 MSI-8000 Battery Charger 115/230 VAC 50/60 Hz. North American Style Plug

List Price: $180.00
Consult AC direct power supply

Consult
Consult Audible alarm

Consult
Consult Anti-heat shield

Consult

4260 Sub Hook with Shackle

4260 Oversize Lifting Eye/Shackle

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
