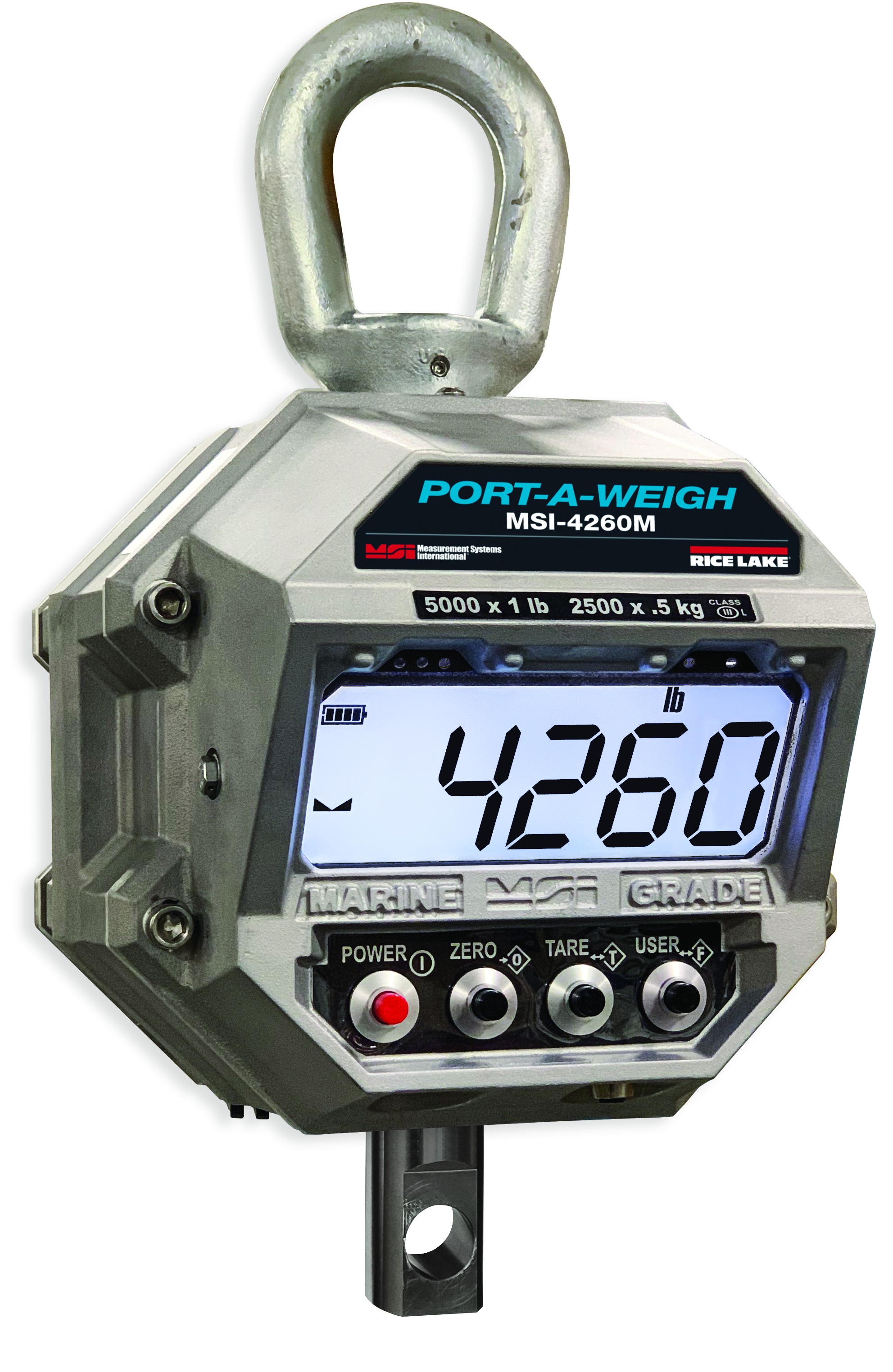

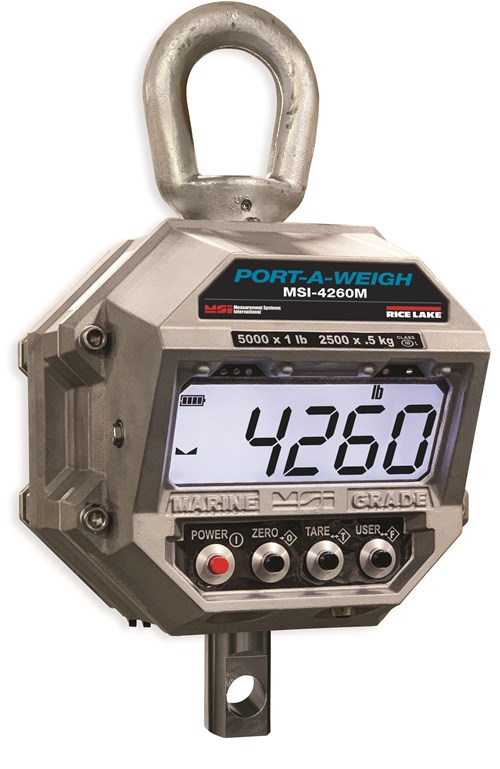

MSI-4260M Port-A-Weigh Marine Crane Scale

  • IP66 cast aluminum
  • Top lifting eye with lower link interface
  • Five-digit, 1.75 in (44.5 mm)LCD with programmable brightness control
  • Battery operated, six (6) D cell 1.5V alkaline batteries
  • Meets or exceeds OSHA, ANSI, ASME and other safety design standards (5:1 Ultimate Safety Factor)
  • NTEP Certified configuration

Options
(Consult MSI for application consultation)

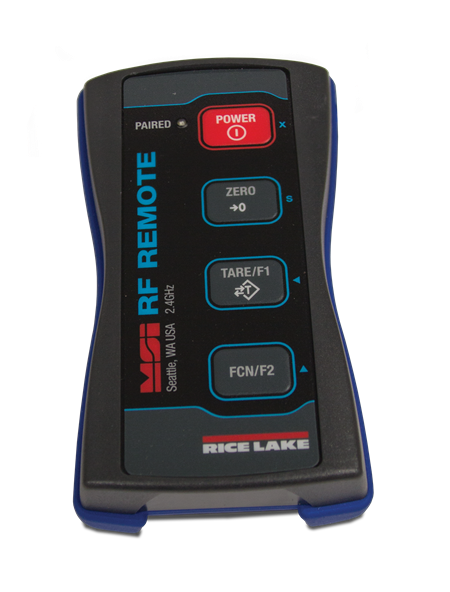

  • Rugged remote control (control for On/Off, Zero, Tare and other functions)
  • RF modem install for connectivity to MSI-8000, MSI-8000HD, MSI-8004HD, TranSend and LaserLight 2 remote display. Typically 100 ft – 300 ft, line of sight; for longer range consult factory.
  • Wi-Fi and Bluetooth® communication are available for specialty applications

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo

WARNING: Cancer and Reproductive Harm California Proposition 65

The MSI-4260M Port-a-Weigh crane scale is the most robust scale on the market for marine and industrial weighing, able to capture weight with ± 0.1% accuracy with a standard 5,000 lb capacity.

An IP66 aluminum enclosure stands up to moisture in marine and washdown environments. Sensitive electronic components are sealed off and well-protected, including the MSI-4260M’s sleek and vibrant LCD display. Featuring programmable brightness control, the display ensures users have access to the weight data they need—in any light condition.

In highly regulated marine applications, meeting safety requirements is crucial. The NTEP-Certified MSI-4260M features a 200% Safe and 500% Ultimate Safety Factor, minimizing the risk of accidents from overloading. The MSI-4260M is built to perform reliably for every catch with extended battery life up to 1,000 hours. A brightly lit battery display indicates when the unit is at 25%, 50%, 75% and full power. Timed auto-off and auto-sleep modes conserve power when the unit is not in use, meaning users are never surprised by a dead battery.


Choose equipment that works as hard as you do with the MSI-4260M crane scale, designed with dockside weighing in mind.

Accuracy:
± (0.1% +1d) of applied load

Resolution:
Max NTEP Approved Class III: 2,500 Divisions
Max NTEP Approved Class IIIL: 5,000 Divisions
Max Non NTEP Approved: 10,000 Divisions

Enclosure:
IP66 cast aluminum

Lifting Eye, Link & Hook:
Top lifting eye with lower link interface

Design Overload:
200% Safe / 500% Ultimate

Functions:
Power: Turns Unit ON or OFF
Zero: Zeros applied load up to 100% of capacity (limited range in NTEP configuration),
Tare: Tares applied load and displays weight in Net mode
User: Programmable as test, total, unit, peak hold, net/gross, view total and print

Display:
Five-digit,  1.75in (44.5 mm) LCD with programmable brightness control

Displayable Units:
Pounds or kilograms selectable

Annunciators:
COZ, Battery Level, Net, Total, lb/kg, Stability, RF and Setpoint LEDs

Power:
Battery operated, six (6) D cell 1.5 V alkaline batteries

Operating Time:
Up to 1,000 hours of battery life with typical use, less with RF modem option

Operating Temperature:
-20° F to 122° F (-28° C to 50° C)
Legal for Trade: 14° F to 104° F (-10° C to 40° C)

Auto-Off Mode:
Powers off after the scale is not used for the set time (in minutes); 15, 30, 45, 60 or OFF selectable

Auto Sleep Mode:
Power down during non-use after the set time (in minutes) and powers up with weight change or any key press; 5, 15, 30 or OFF selectable

Service Counters:
Counts number of lifts over percentage of capacity and lifts over capacity

Calibration:
Digital (procedure initiated by calibration switch)

Filtering:
OFF, LO, HI-1 or HI-2 selectable

Radio Link:
802.15.4 at 2.4 GHz

Radio Effective Range:
Typically 100-300 ft line of sight

Warranty:
One-year limited

Approvals:
NTEP CC 19-122

Resources / Downloads

Title View Email Category Type
Which Crane Scale is the best fit for my Application? Email MSI Crane Scales|Overhead Weighing Systems Articles
When to Use a Dynamometer to Measure Tension Email MSI Crane Scales|Tension Dynamometers Articles

Title Download Email
MSI-4260M Marine Port-A-Weigh Catalog Page Download Email

Title Version Revision Download Email Category Archived
MSI-4260M Port-A-Weigh Crane Scale Technical Manual A Download Email MSI Crane Scales No
ScaleCore Connect Software Manual B Download Email MSI Crane Scales|Overhead Weighing Systems No

Title Download Email
Overhead Weighing Systems Questionnaire Download Email

Title Download Email
MSI-4260M Marine Replacement Parts Page Download Email

Title Collateral Wizard Request Download Email Category
MSI-4260M Port-A-Weigh Literature Request Download Email MSI Crane Scales
MSI Overhead Weighing Product Guide Request Download Email MSI Crane Scales
The Overhead Weighing Solutions Buyer's Guide Request Download Email Systems Integration/Load Cells|Tension Dynamometers|MSI Software|MSI Aircraft Load Monitoring|MSI Crane Scales|Overhead Weighing Systems

Title View Download Email Category
Types of Crane Scales View Download Email Overhead Weighing Systems
The MSI-4260M is the Ultimate Crane Scale for Commercial Fishing View Download Email MSI Crane Scales

Parts

Part # Description List Price Cart
194593 MSI-4260M 5K SHACKLE INTFC NO RF D-CELL BATTERIES

List Price: $4,720.00

196908 MSI-4260M 5K SHACKLE INTFC 802.15.4 D-CELL BATTERIES

List Price: $5,010.00

Options

Options/Accessories

Part # Description List Price Cart
150971 MSI-4260B Remote Disp Opt Kit, RF. Modem Will Allow For Connectivity With an MSI-8000 Remote Display

Call for price

139381 MSI-8000 Remote Display RF Handheld (Requires an MSI Crane Scale or MSI-7300 equipped with a RF modem)

List Price: $1,250.00

173014 MSI-Rugged Remote Control Non-CE for Products with XBEE Radios

List Price: $310.00

153591 FINAL ASSY REMOTE DISPLAY AC POWER 8000HD

List Price: $1,370.00

159221 MSI CRANE CART

Call for price

178004 4in LASERLIGHT2 MSI RF Includes ScaleCore RF Kit and Tilt Mounting Bracket

List Price: $2,250.00

178006 6in LASERLIGHT2 MSI XBEE RF Includes ScaleCore RF Kit and Tilt Mount Bracket

List Price: $2,675.00

Consult Option kit, 4260M Wi-Fi

Call for price

Consult Option kit, 4260M Bluetooth®

Call for price

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

MSI 3460 Challenger 3 Crane Scale2

MSI-3460 Challenger 3 Crane Scale

MSI-3460's latest instrumentation technology is the central enhancement of the Challenger 3, bringing industry-leading weighing features of previous Challenger designs to a whole new level.

WEB SC MSI 4260 Portaweight

MSI-4260 Port-A-Weigh Crane Scale

For medium- to heavy-capacity and duty-cycle needs, the MSI-4260 Port-A-Weigh & MSI-4260 IS Intrinsically Safe Crane Scale have an established reputation as the industry standard in overhead weighing.

Hdimage(1)

MSI-7300 Dyna-Link 2 Digital Tension Dynamometer

The industry's most advanced digital tension dynamometer, the new and improved MSI-7300, provides more features and benefits than earlier dynamometer models.

Hdimage(1)

TranSend™ Wireless Load Cell Interface System

The MSI-7000 and 7001 TranSend exceeds communication expectations by wirelessly transmitting data between load cells and receiving units.

Hdimage(1)

MSI-8004HD Indicator/RF LED Remote Display

The MSI-8004HD Indicator and RF Remote Display has all of the heavy-duty versatility of the MSI-8000HD with the added benefit of extremely high visibility in indoor and outdoor applications.

Hdimage(1)

MSI-8000 RF Remote Display

The MSI-8000 RF Remote Display is a full-featured remote display enabling operators to operate weighing systems from a distance not offering harm's way.

Hdimage(1)

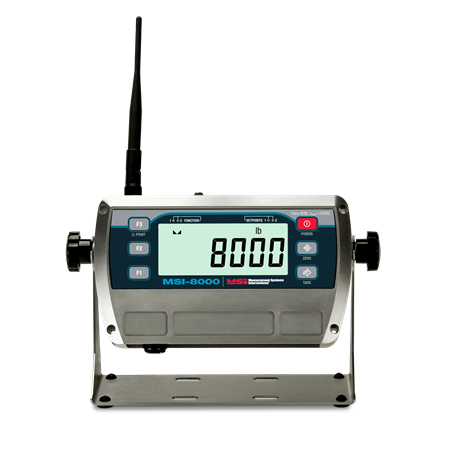

MSI-8000HD Weight Indicator and RF Remote Display

The MSI-8000HD weight indicator/RF remote display is the heavy-duty version of the reputable handheld MSI-8000 RF remote display.

WEB SC Laserlight2 Remote Display

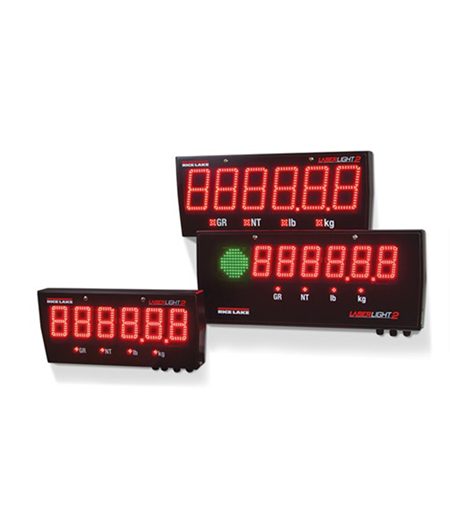

LaserLight2™ Remote Display
