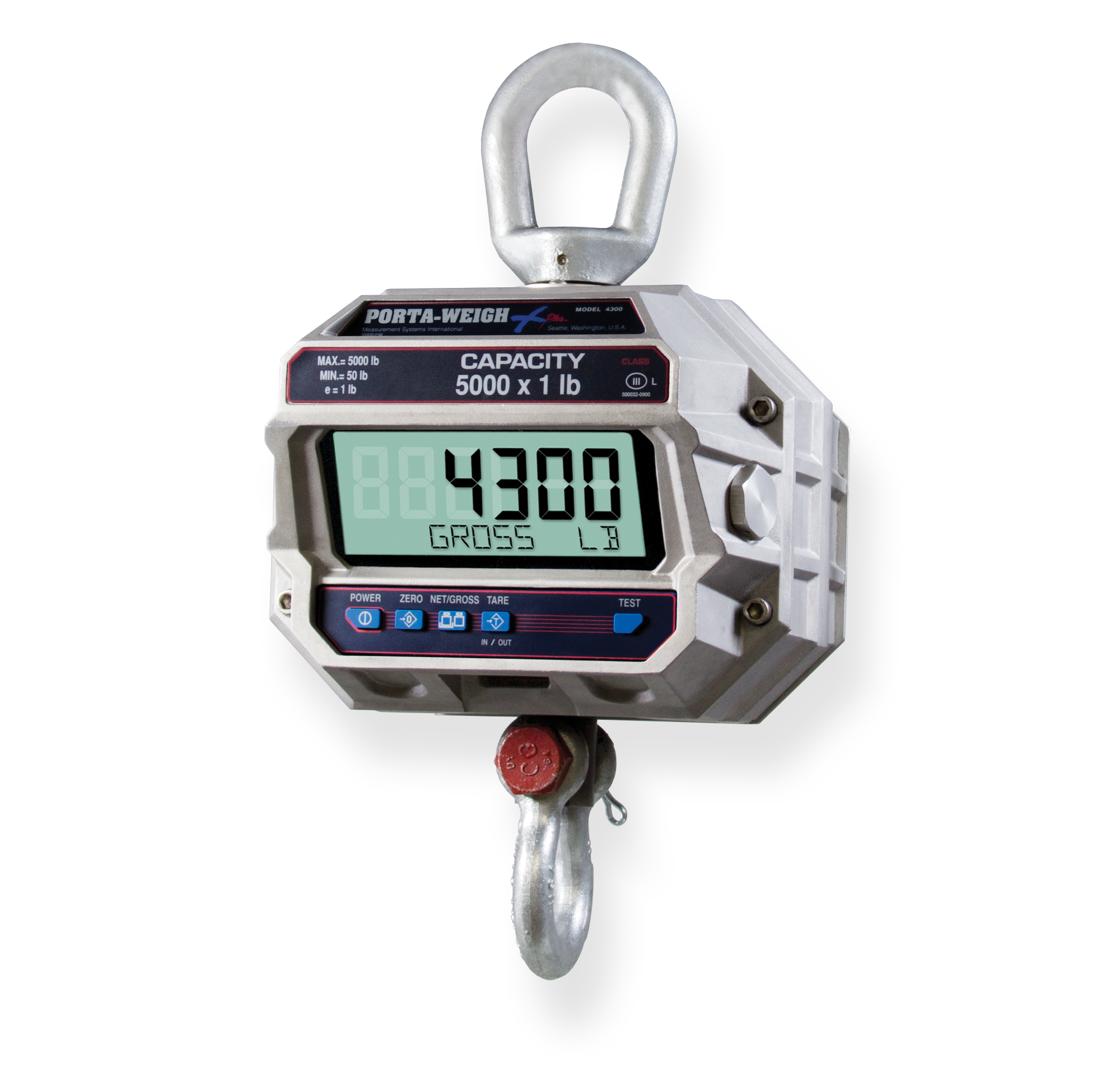

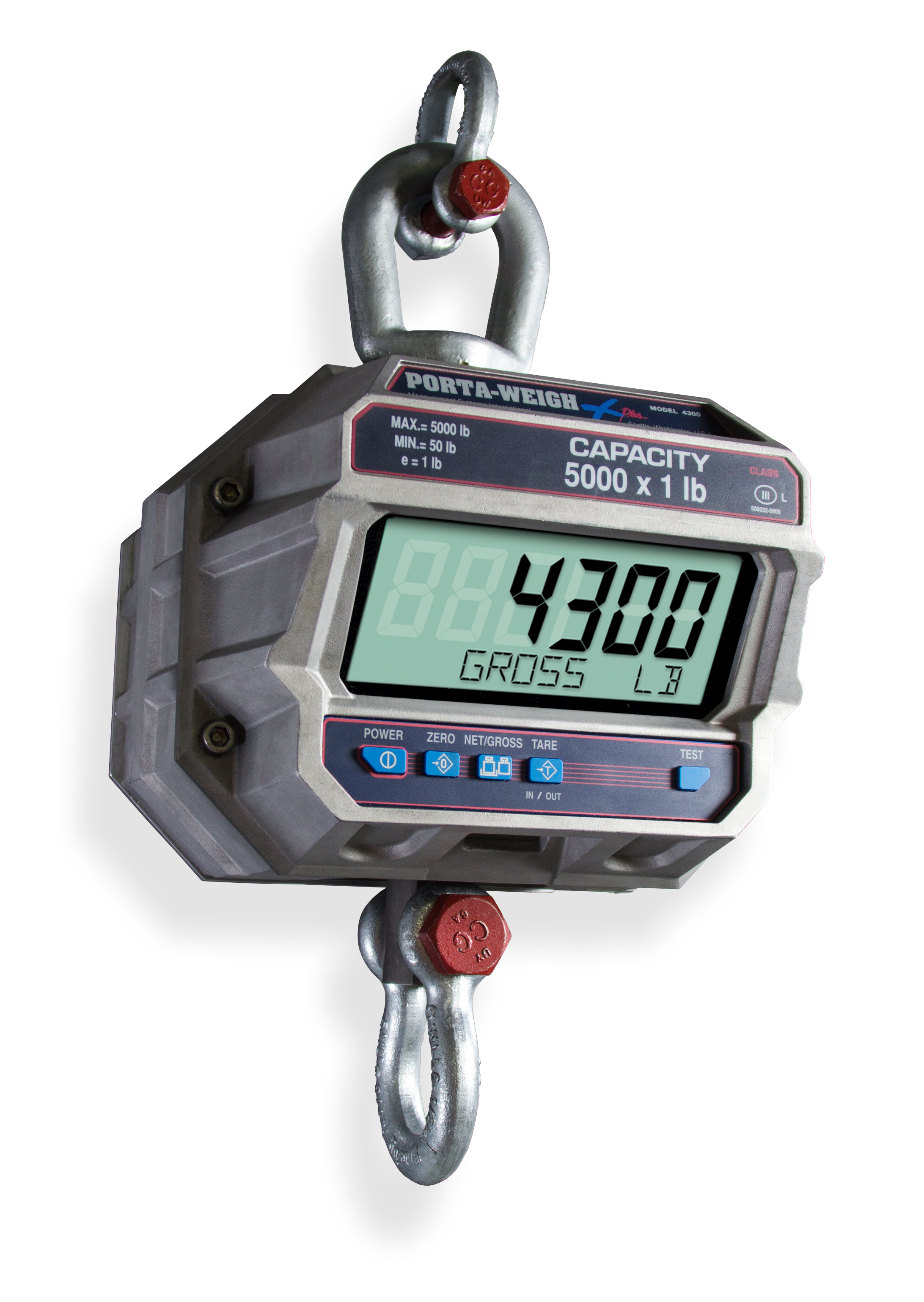

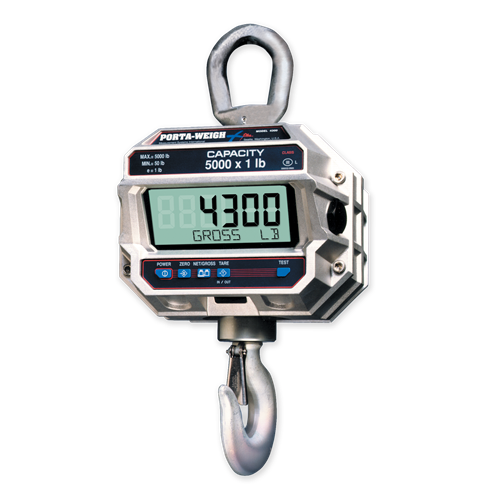

MSI-4300 Port-A-Weigh Plus Crane Scale

  • Crane scale unit with six-digit, 1.6 in (40 mm), backlight LCD display
  • Top lifting eye or shackle, bottom thrust bearing swivel hook
  • 12 volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA plug standard)

Options
(Contact MSI for application consultation)

  • D-cell battery option, provides up to 2,000 hours of operation
  • Substitute bottom swivel hook with shackle
  • Oversized top-lifting eye or shackle
  • Oversized bottom hook
  • Universal direct power supply; 85 to 265 VAC, 47 to 440 Hz /130 to 300 VDC
  • Low headroom top adapter
  • Audible setpoint alarm
  • Custom top and bottom interfaces
  • Crane scale cart

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo

WARNING: Cancer and Reproductive Harm California Proposition 65

A Digital Crane Scale Built to Last

THE ALL-SEASON CRANE SCALE

The Port-A-Weigh Plus is world renowned for safe and reliable use in heavy-duty industrial crane scale applications. No other crane scale compares with the advanced features and benefits provided by the MSI-4300.

Port-A-Weigh Plus includes an extra large 1.6 inch (40mm) alphanumeric LCD display with adjustable backlighting providing user-friendly visibility from a distance in day or night conditions. Full digital calibration and self-diagnostic circuitry ensure simple and cost effective maintenance over a long and useful product life. All electronics are securely shock mounted in a robust NEMA Type 4/IP66 enclosure including dual O-ring sealing gaskets to ensure watertight integrity in washdown and marine applications.

The Port-A-Weigh Plus is the ideal crane scale for all heavy-duty applications in nearly any industrial environment.

Accuracy:
± (0.1% +1 d) of applied load

Resolution:
3,000 to 5,000 d standard (Up to 10,000 d available)

Enclosure:
NEMA Type 4, IP66, marine grade 356 alloy anodized cast aluminum

Top Lifting Eye, Shackle & Hook:
Crosby® or equal with 360° thrust-bearing swivel hook

Design Overload:
200% Safe / 500% Ultimate (except where noted)

Functions:
Power, zero, net/gross, tare and programmable test/user

Display:
6 digit, 1.6 in (40 mm) LCD (upper) 8 digit, 0.8 in (20 mm) LCD (lower) with adjustable display contrast

Displayable Units:
Pounds, kilograms, tons, and metric tons selectable

Power:
12 V rechargeable battery. 115/230 VAC battery charger included

Operating Time:
300 hours with typical use

Operating Temperature:
5° F to 122° F (-15 °C to 50 °C)
Legal for Trade: 14 °F to 104 °F (-10 ºC to 40 °C)

Filtering:
OFF, LO, Medium and HI selectable

Warranty:
One-year limited

Approvals:
NTEP CC 92-176: 5,000 lb (2,500 kg)
Measurement Canada AM-4984

Resources / Downloads

Title View Email Category Type
6 Steps to Create an Integrated Crane Weighing System View Email MSI Crane Scales Articles
Likeliest Catch View Email Overhead Weighing Systems Application Story
When to Use a Dynamometer to Measure Tension Email MSI Crane Scales|Tension Dynamometers Articles
Which Crane Scale is the best fit for my Application? Email MSI Crane Scales|Overhead Weighing Systems Articles

Title Download Email
MSI-4300 Port-A-Weigh Plus Catalog Page Download Email

Title Version Revision Download Email Category Archived
MSI Crane Scale Safety and Periodic Maintenance Manual A Download Email MSI Crane Scales No
MSI-4300 Port-A-Weigh Plus Technical Manual Download Email MSI Crane Scales No
MSI-9300 and MSI-4300 Crane Scale Cage Kit Download Email MSI Crane Scales No

Title Download Email
Low Headroom Questionnaire Download Email
MSI Hook Questionnaire Download Email
Overhead Weighing Systems Questionnaire Download Email
Weighing System Questionnaire Download Email

Title Collateral Wizard Request Download Email Category
MSI-4300 Port-A-Weigh Plus Request Download Email MSI Crane Scales
MSI Overhead Weighing Product Guide Request Download Email MSI Crane Scales
The Overhead Weighing Solutions Buyer's Guide Request Download Email Systems Integration/Load Cells|Tension Dynamometers|MSI Software|MSI Aircraft Load Monitoring|MSI Crane Scales|Overhead Weighing Systems
MSI Crane Scale Family Comparison Download Email MSI Crane Scales
MSI Crane Scale Installation Tips Download Email MSI Crane Scales
Why Buy MSI? Download Email MSI Crane Scales|Overhead Weighing Systems

Title View Download Email Category
Ensure Safety with MSI View Download Email Overhead Weighing Systems|MSI Crane Scales|Systems Integration/Load Cells|Hanging Scales|Weight Indicators|MSI Software|MSI Aircraft Load Monitoring
Types of Crane Scales View Download Email Overhead Weighing Systems

Parts

MSI-4300

Part # Description List Price Cart
138825 MSI-4300 500 Lb. Final Assembly. Port-A-Weigh Plus Crane Scale. Standard Features Include: Six-Digit Backlight LCD Display, Crosby or Equivalent Top Lifting Eye and Thrust Bearing Swivel Hook, NEMA 4/IP66, Marine-Grade 356 Alloy And A Double O-Ring Gasket. A Twelve-Volt Rechargeable Battery And Universal Charger Are Also Included.

List Price: $5,250.00

138826 MSI-4300 2000 Lb. Final Assembly. Port-A-Weigh Plus Crane Scale. Standard Features Include: Six-Digit Backlight LCD Display, Crosby or Equivalent Top Lifting Eye and Thrust Bearing Swivel Hook, NEMA 4/IP66, Marine-Grade 356 Alloy And A Double O-Ring Gasket. A Twelve-Volt Rechargeable Battery And Universal Charger Are Also Included.

List Price: $5,250.00

138827 MSI-4300 5000 Lb. Final Assembly. Port-A-Weigh Plus Crane Scale. Standard Features Include: Six-Digit Backlight LCD Display, Crosby or Equivalent Top Lifting Eye and Thrust Bearing Swivel Hook, NEMA 4/IP66, Marine-Grade 356 Alloy And A Double O-Ring Gasket. A Twelve-Volt Rechargeable Battery And Universal Charger Are Also Included.

List Price: $5,390.00

138828 MSI-4300 10000 Lb. Final Assembly. Port-A-Weigh Plus Crane Scale. Standard Features Include: Six-Digit Backlight LCD Display, Crosby or Equivalent Top Lifting Eye and Thrust Bearing Swivel Hook, NEMA 4/IP66, Marine-Grade 356 Alloy And A Double O-Ring Gasket. A Twelve-Volt Rechargeable Battery And Universal Charger Are Also Included.

List Price: $5,650.00

138069 MSI-4300 20000 Lb Final Assembly. Port-A-Weigh Plus Crane Scale. Standard Features Include: Six-Digit Backlight LCD Display, Crosby or Equivalent Top Lifting Eye and Thrust Bearing Swivel Hook, NEMA 4/IP66, Marine-Grade 356 Alloy And A Double O-Ring Gasket. A Twelve-Volt Rechargeable Battery And Universal Charger Are Also Included.

List Price: $7,040.00

138070 MSI-4300 30000 Lb Final Assembly. Port-A-Weigh Plus Crane Scale. Standard Features Include: Six-Digit Backlight LCD Display, Crosby or Equivalent Top Lifting Eye and Thrust Bearing Swivel Hook, NEMA 4/IP66, Marine-Grade 356 Alloy And A Double O-Ring Gasket. A Twelve-Volt Rechargeable Battery And Universal Charger Are Also Included.

List Price: $7,410.00

138071 MSI-4300 50000 Lb Final Assembly. Port-A-Weigh Plus Crane Scale. Standard Features Include: Six-Digit Backlight LCD Display, Crosby or Equivalent Top Lifting Eye and Thrust Bearing Swivel Hook, NEMA 4/IP66, Marine-Grade 356 Alloy And A Double O-Ring Gasket. A Twelve-Volt Rechargeable Battery And Universal Charger Are Also Included.

List Price: $10,870.00

138072 MSI-4300 70000 Lb Final Assembly. Port-A-Weigh Plus Crane Scale. Standard Features Include: Six-Digit Backlight LCD Display, Crosby or Equivalent Top Lifting Eye and Thrust Bearing Swivel Hook, NEMA 4/IP66, Marine-Grade 356 Alloy And A Double O-Ring Gasket. A Twelve-Volt Rechargeable Battery And Universal Charger Are Also Included.

List Price: $14,250.00

138073 MSI-4300 100000 Lb Final Assembly. Port-A-Weigh Plus Crane Scale. Standard Features Include: Six-Digit Backlight LCD Display, Crosby or Equivalent Top Lifting Eye and Thrust Bearing Swivel Hook, NEMA 4/IP66, Marine-Grade 356 Alloy And A Double O-Ring Gasket. A Twelve-Volt Rechargeable Battery And Universal Charger Are Also Included.

List Price: $23,000.00

Options

Options

Part # Description List Price Cart
159221 MSI CRANE CART (48.50)

List Price: $1,250.00

Consult AC power supply

Call for price

Consult D cell battery option

Call for price

Consult Audible set point alarm

Call for price

Accessories

4300 Sub Hook with Shackle

4300 Oversize Lifting Eye/Shackle

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

WEB SC MSI 4260M

MSI-4260M Port-A-Weigh Marine Crane Scale

The MSI-4260M Port-a-Weigh crane scale is the most robust scale on the market for marine and industrial weighing, able to capture weight with ± 0.1% accuracy with a standard 5,000 lb capacity.

WEB SC MSI 4260 Portaweight

MSI-4260 Port-A-Weigh Crane Scale

For medium- to heavy-capacity and duty-cycle needs, the MSI-4260 Port-A-Weigh & MSI-4260 IS Intrinsically Safe Crane Scale have an established reputation as the industry standard in overhead weighing.

Hdimage(1)

MSI-7300 Dyna-Link 2 Digital Tension Dynamometer

The industry's most advanced digital tension dynamometer, the new and improved MSI-7300, provides more features and benefits than earlier dynamometer models.

Hdimage(1)

TranSend™ Wireless Load Cell Interface System

The MSI-7000 and 7001 TranSend exceeds communication expectations by wirelessly transmitting data between load cells and receiving units.

Hdimage(1)

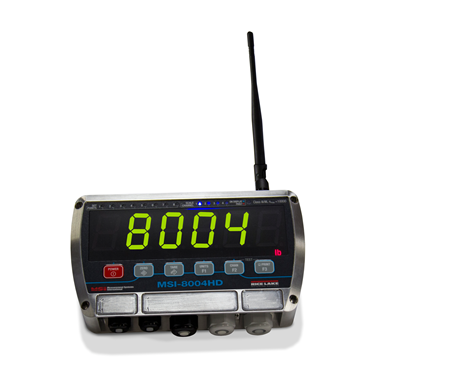

MSI-8004HD Indicator/RF LED Remote Display

The MSI-8004HD Indicator and RF Remote Display has all of the heavy-duty versatility of the MSI-8000HD with the added benefit of extremely high visibility in indoor and outdoor applications.

Hdimage(1)

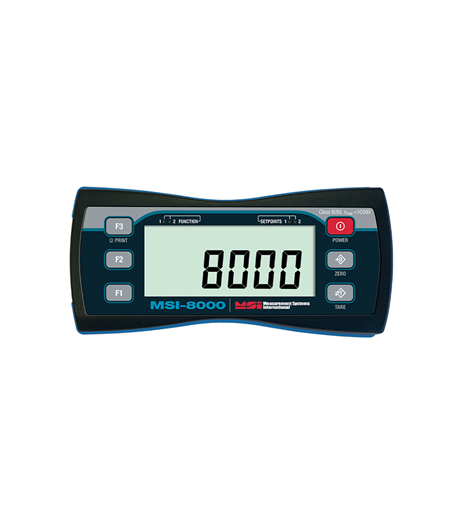

MSI-8000 RF Remote Display

The MSI-8000 RF Remote Display is a full-featured remote display enabling operators to operate weighing systems from a distance not offering harm's way.

Hdimage(1)

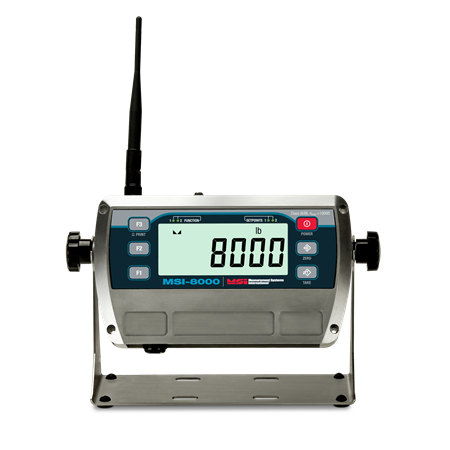

MSI-8000HD Indicator/Remote Display
