Complete Kit Includes

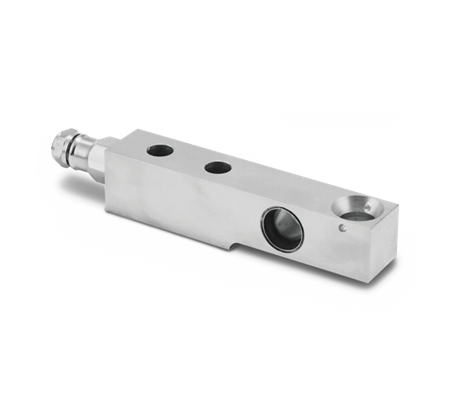

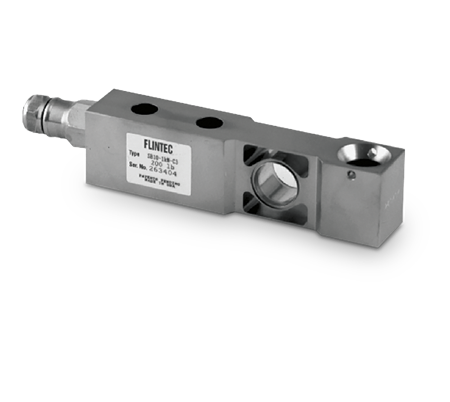

One fixed-pin module, one side-stop module, and one or two free-sliding assemblies. Each module is complete with a Flintec® SB4 NTEP Certified, stainless steel, hermetically sealed load cell.
One JB4SS NEMA Type 4X stainless steel signal trim junction box
25 ft of hostile environment EL147HE SURVIVOR® load cell cable
Standard Features
Capacities (per module): 5 to 100 kN
Unique design allows for thermal expansion/contraction
Jacking screw allows empty vessel to be lifted clear of load cell for maintenance
Unique blind load hole eliminates unwanted side and eccentric loads
Vessel is free to slide laterally on PTFE-coated surfaces
Load cell outputs are matched to ±0.07% allowing replacement without further calibration
Applications
Light- to medium-capacity tanks and hoppers
Mixers and blenders
Process measurement and control
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
The Paramounts tank weighing system consists of one fixed-pin mount which allows only the top plate to rotate, one side-stop mount which allows the top plate to slide along the cell only, and one or more free-sliding mount(s) which allow the top plate to slide freely in all directions. This system provides self-checking while maintaining unparalleled system accuracy.
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 29871 | Mount Kit,Paramount 3EA 5kN 1,125 lb NTEP Mild Steel Zinc Plated Compression INCL SB4-5kN -C3 (1,125 lb) And JB4SS | List Price: $3,370.00 | |
| 29872 | Mount Kit,Paramount 3EA 10kN 2,250 lb NTEP Mild Seel Zinc Plated Compression INCL SB4- 10kN-C3 (2,250 lb) And JB4SS | List Price: $3,370.00 | |
| 29873 | Mount Kit,Paramount 3EA 23kN 5,200 lb NTEP Mild Steel Zinc Plated Compression INCL SB4- 23kN-C3 (5,200 lb) And JB4SS | List Price: $3,370.00 | |
| 29874 | Mount Kit,Paramount 3EA 50kN 11,250 lb NTEP Mild Steel Steel Zinc Plated Compression INCL SB4-50kN-C3 (11,250 lb) And JB4SS | List Price: $4,000.00 |
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 17703 | Adapter,Conduit 1/2-14NPT Male For SB4/UB1 SST | List Price: $50.00 |
Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.
To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
